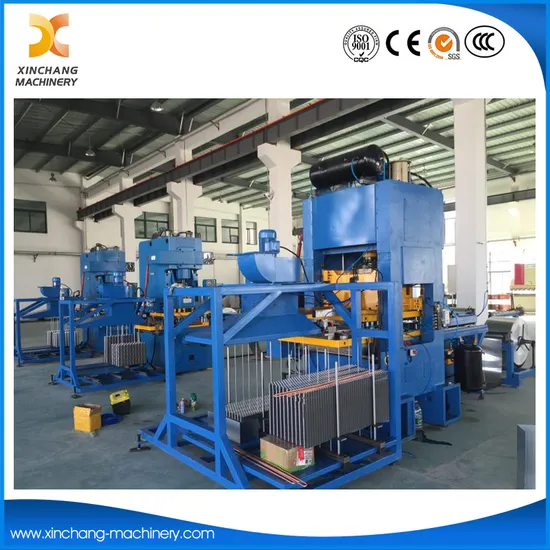

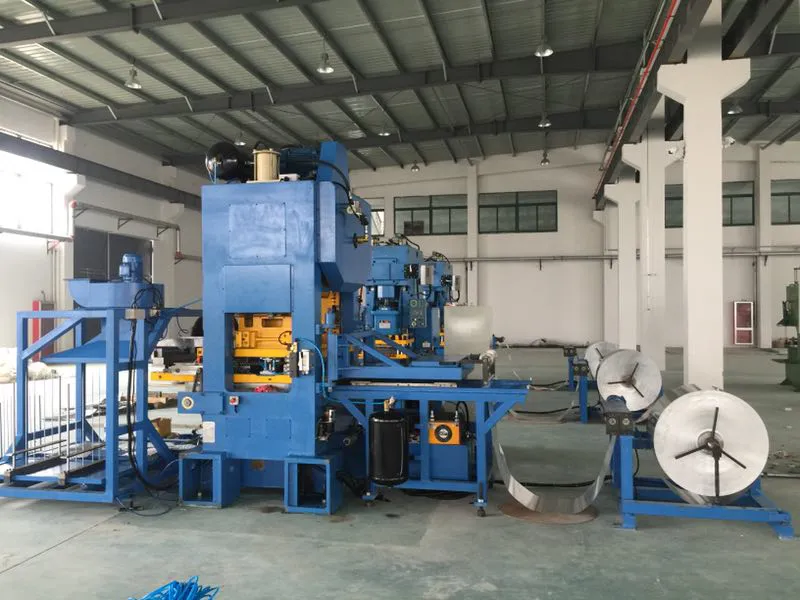

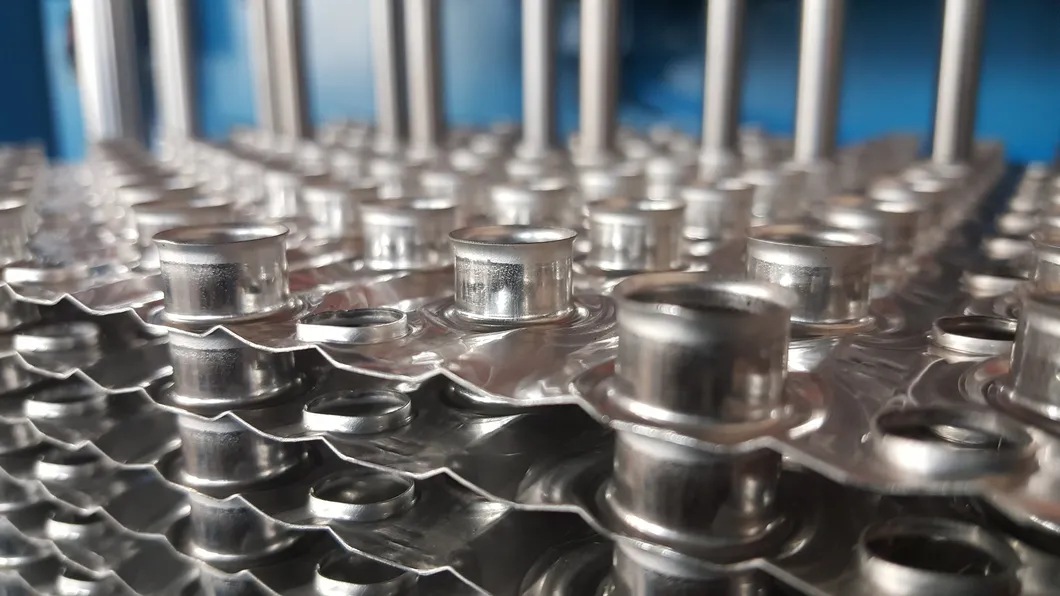

Open Type Fin Press for Evaporators of Refrigerator or Air Condition A. Main functions and features:
1. CB series closed type fin press is a special production line for fin production in the refrigeration industry, consisting of high-speed precision punching, discharging rack, oil lubrication tank, pulling device (single and double-jump), suction rack, collector, electrical system , pneumatic system composition.
2. The mainframe speed control adopts frequency conversion control
3. The host has a hydraulic overload function
4. Using a quick die change device
5. Adopt human-machine interface and PLC and rotary encoder electrical centralized control system to ensure the reliable execution of various functions of the automatic production line. B. Key parameters, | No. | Names | Unit | Specifications |
| CB63 | CB85 | CB100 |
| 1 | Nominal Pressure | KN | 630 | 850 | 1000 |
| 2 | Stroke of slide | mm | 40-60 | 40-60 | 40-60 |
| 3 | Stamping Strokes | SPM | 150-300 | 150-300 | 150-300 |
| 4 | Die set height | mm | 250-300 | 250-300 | 270-320 |
| 5 | Die height adjustment | mm | 80 | 80 | 80 |
| 6 | Size of table(FB x LR) | mm | 900×1300 | | |
| 7 | Thickness of table | mm | 80 | 90 | 100 |
| 8 | Distance from table to floor | mm | 720 | 760 | 760 |
| 9 | Bottom size of slide (FB x LR) | mm | 730×850 | | |
| 10 | Main motor (power) | KW | 7.5 | 11 | 15 |
| 11 | Air pressure | MPa | 0.5 | 0.5 | 0.5 |
| 12 | Collector length | mm | 1200/1500/2000 | 1200/1500/2000 | 1200/1500/2000 |
| 13 | Aluminum coils max.width | mm | 545 | 615 | 850 |
| 14 | Aluminum coils inner Dia. | mm | ∮75/∮150 | ∮75/∮150 | ∮75/∮150 |
| 15 | Aluminum coils outer Dia. | mm | ∮1000 | ∮1000 | ∮1000 |
C. key parts brands we also could adjsut it at customer's needs | NO. | Content | Manufacturer |
| 1 | Inverter | Inovance |
| 2 | PLC programmer | OMRON |
| 3 | HMI (color screen) | Taiwan Weinview |
| 4 | Rotary encoder | OMRON |
| 5 | Main pneumatic components | AirTAC |
| 6 | Main hydraulic components | YUKEN |
| 7 | Centralized lubrication | IHI |
| 8 | Dual valve of main clutch brake | TACO |
| 9 | Photoelectric safety device | Keli |
