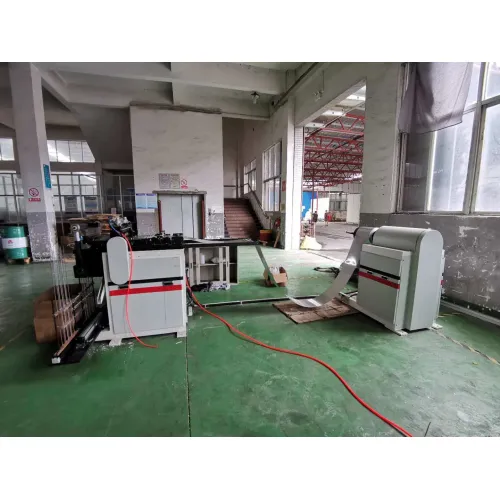

Condenser Heat Exchanger Coil Fin Press Stamping Machine

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Brand: xinchang

Type: High-Speed Punching Machine

Punch Shape: Open Punch

Slider Movement: Double Action

Slider Drive Mechanism: Cam Press

Controlling Mode: Cnc

Automatic Grade: Automatic

Power Source: Mechanical Drive

Precision: High Precision

Certification: CE, ISO 9001

Condition: New

Rate: 180-300 Times/Min

Transport Package: Wooden Case

Specification: export standard

Trademark: Xin chang

Origin: China

Production Capacity: 20set / Months

Customization: Available

After-sales Service: Life Long

Warranty: 12 Months

Supply Ability & Additional Information

Supply Ability: 20set / Months

Packaging & Delivery

Selling Units:

Piece/Pieces



Evaporators Fin Press Line Punching Machine



Condenser Heat Exchanger Coil Fin Press Stamping Machine

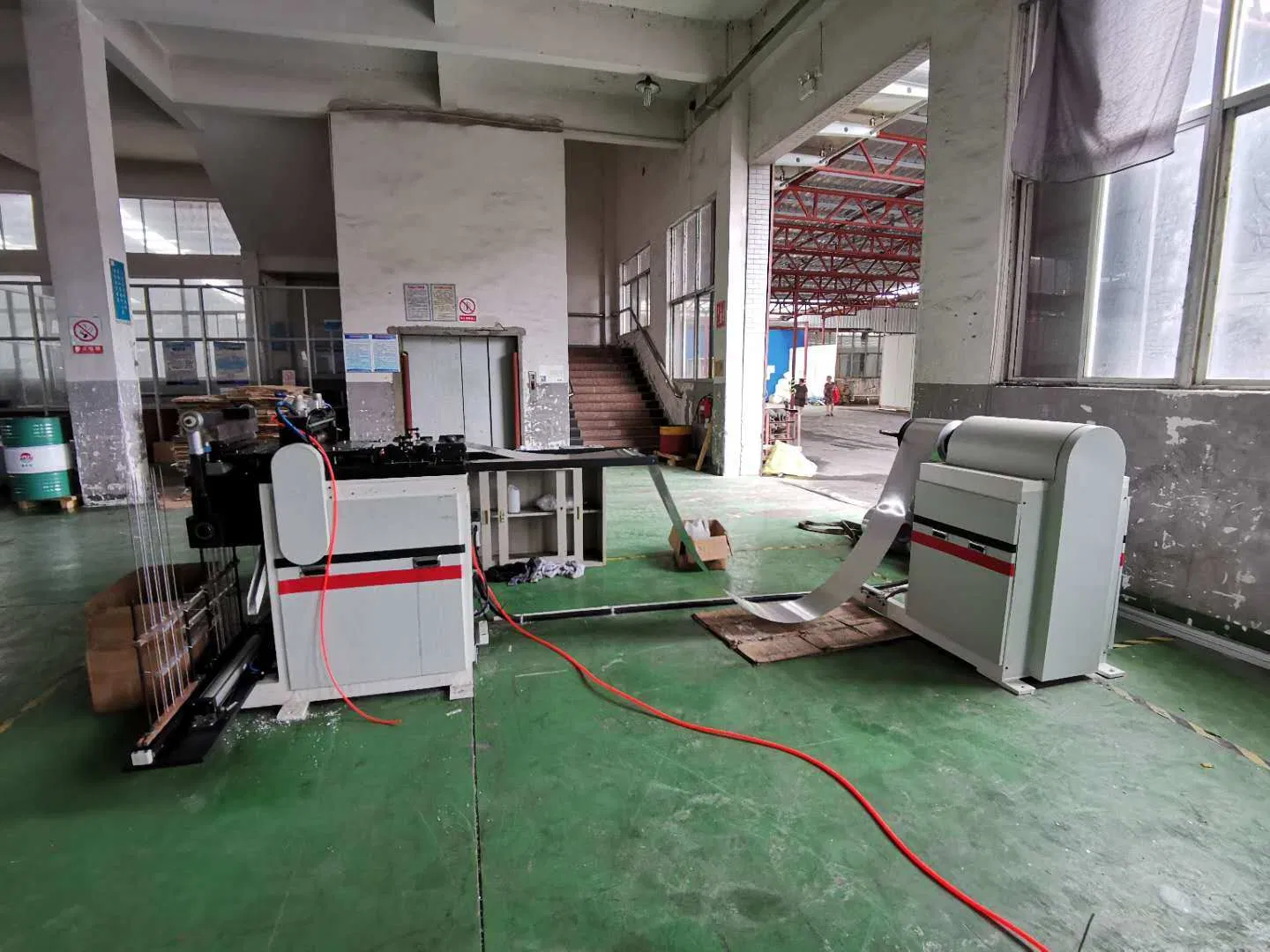

The high-speed punch is specialized equipment for processing refrigerator evaporator fins, adopting FX2N series PLC central control to realize intelligent and precise operation, with frequency conversion control for adjustable stamping speed to adapt to different production demands. It operates in a continuous loop, ensuring uninterrupted production, and features a compact structure, simple operation, stable transmission, high production efficiency and excellent product quality, effectively meeting the mass production needs of refrigerator evaporator fins. As a professional Fin Press Machine, it integrates stamping, forming and conveying functions, realizing automatic control of the entire process from raw material feeding to finished product output. This equipment is also compatible with the working principle of Automatic Fin Stamping Equipment, which can precisely stamp thin metal sheets into standard evaporator fins with uniform size and smooth surface. Equipped with advanced mold technology, it is equivalent to an Automated Fin Die Press Equipment in terms of precision forming, ensuring consistent fin thickness and spacing to improve heat transfer efficiency of the evaporator. It is widely used in refrigeration equipment manufacturing, with low energy consumption and easy maintenance, bringing stable and efficient production support to enterprises while reducing labor costs and material waste.

For raw materials	Aluminum foil volume, 286-316 - mm wide, 0.16 0.2 mm thick
Piece rate	180-300 times/min
Output quantity	5 / time (depending on piece mold)
Take out the way	Vertical and horizon, back, back
Capacitance	About 5 KVA (380 v, 50 hz)
Main equipment	high-speed punch ontology, die
Auxiliary equipment	uncoiling machine
