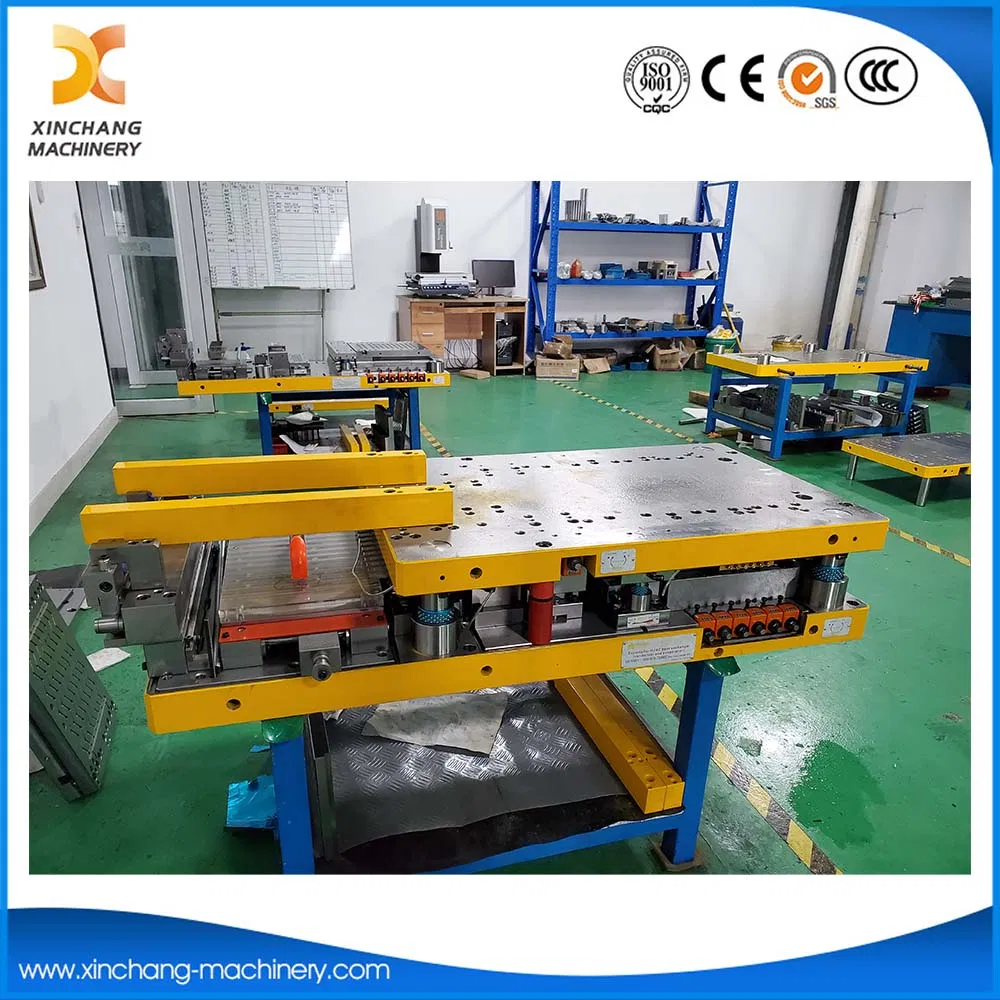

Name: Staggered Pattern Punching Press Machine Line with Fin Press Die
Brand: Ningbo Xin Chang Machinery Co.,Ltd
Rating: 4.9 (29 reviews)

Staggered Pattern Punching Press Machine Line with Fin Press Die

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Material: Carbon Tool Steel

Processing Method: Punching And Shearing Mould

Technics: Cutting Die

Process Combination: Single-Process Mould

Manufacturing Technology: Automation Technology

Mold Cavity Technology: CNC Milling

Milling Speed: Normal Speed

Parts Detection Method: Measurement Of Three Axis Nc

After-sales Service: Life Long

Fin Stock Thickness Range: 0.1-0.25mm

Distance Between Holes In Row: 25-38mm

Fin Shape: V-Wave

Standard Production Rate: 150-180 Strokes/Min

Transport Package: Wooden Case

Specification: export standard

Trademark: xinchang

Origin: China

Production Capacity: 500 Set / Month

Customization: Available

Warranty: 12 Months

Application: Evaporator Fins

Supply Ability & Additional Information

Supply Ability: 500 Set / Month

Packaging & Delivery

Selling Units:

Piece/Pieces

Overview
Fin Die Parameters
Fin Die Standard Component
Display photos
Company Profile
FAQ

Basic Info.

Material

Carbon Tool Steel

Processing Method

Punching and Shearing Mould

Technics

Cutting Die

Process Combination

Single-Process Mould

Manufacturing Technology

Automation Technology

Mold Cavity Technology

CNC Milling

Milling Speed

Normal Speed

Parts Detection Method

Measurement of Three Axis NC

After-sales Service

Life Long

Fin Stock Thickness Range

0.1-0.25mm

Distance Between Holes in Row

25-38mm

Fin Shape

V-Wave

Standard Production Rate

150-180 Strokes/Min

Transport Package

Wooden Case

Specification

export standard

Trademark

xinchang

Origin

China

Production Capacity

500 Set / Month

Product Description

	Item	¢9.52×12R×2P	¢12×6R×2P	¢15.88×6R×2P
1	Type die	ribbon	ribbon	ribbon
2	Fin shape	v-wave	v-wave	v-wave
3	Number of rows	12R	6R	6R
4	Distance between holes in row	25mm	30mm	38mm
5	Distance between rows	21.65mm	25.98mm	32.9mm
6	Pattern	staggered pattern	staggered pattern	staggered pattern
7	Feed progression	25mm	30mm	38mm
8	Hole size	9.85mm±0.03mm	12.4mm±0.03mm	16.3mm±0.03mm
9	Material	Temper H22, A1100 Alloy/8011 or O temp	Temper H22, A1100 Alloy/8011 or O temp	Temper H22, A1100 Alloy/8011 or O temp
10	Fin stock thickness range	0.1-0.25mm	0.1-0.25mm	0.1-0.25mm
11	Collar height range	1.5-6.5mm	1.5-7.0mm	1.5-8.0mm
12	Reflare	individual adjustment for full range of collar heights	individual adjustment for full range of collar heights	individual adjustment for full range of collar heights
13	Collar base	provided	provided	provided
14	Slitter blades	blade positions in each row with quick change	blade positions in each row with quick change	blade positions in each row with quick change
15	Feed	internal hitch finger pull type	internal hitch finger pull type	internal hitch finger pull type
16	Cut off	guillotine type cut off with plain grind insert blades.	guillotine type cut off with plain grind insert blades.	guillotine type cut off with plain grind insert blades.
17	Standard production rate	150-180 strokes per minute.	150-180 strokes per minute.	150-180 strokes per minute.
18	Guide post	Every guide post have lubrication	Every guide post have lubrication	Every guide post have lubrication

^{_{We made our FIN DIE use the best quality material from JAPAN or SWEDEN. The following form shows some of our material used in the FIN DIE.}}

	Item	MATERIAL	HARDNESS	ORIGIN
1	Punching convex and concave die	HAP40	HRC62-64	JAPAN
2	Slitting blades	HAP40	HRC62-64	JAPAN
3	Edge cutting blades	HAP40	HRC62-64	JAPAN
4	Crosscut blades	HAP40	HRC62-64	JAPAN
5	Drawing unloading plates of die	NAK80	HRC40-42	JAPAN
6	Drawing concave plates of die	NAK80	HRC40-42	JAPAN
7	Sub-plates of die	NAK80	HRC40-42	JAPAN
8	Fixed seat of crosscut knif	NAK80	HRC40-42	JAPAN
9	Drawing convex and concave die	SKD11	HRC 62-64	JAPAN
10	Collar convex and concave die	SKD11	HRC 62-64	JAPAN
11	Sub-die rack	PDS 5	Pre-hardened steel	JAPAN
12	Fixed plates of die	PDS 5	Pre-hardened steel	JAPAN

^{_{We choose the best standard components in the world to use in our FIN Line and machines(such as MISUMI and SMC). We will give all the list (size,type,grade)of the standard components to you when our die would be delivered along with the assembly drawing and spare parts drawing for the fin die.}}

Detailed Photos

Professional Staggered Pattern Punching Press Machine Line Fin Press Die

Related Products

Professional Staggered Pattern Punching Press Machine Line Fin Press Die
Workshop

Professional Staggered Pattern Punching Press Machine Line Fin Press Die

We, Ningbo Xin Chang Machinery Co.,Ltd are a professional designer and manufacturer in Friction Welding Machine, Resistance Welding Machine and Heat exchanger equipment. Our factory is in this line more than 20 years, we have more than 10 senior mechanical and electrical specialists and total more than 200 staff, our machine is famous in China. We have CCC, ISO9001 and CE certificates.

Over the years, we have exported so many machines to 30 and more countries, such as France,Spain,Poland,Russia,Indonesia,Vietnam,Pakistan,India,Mexico,Egypt etc.

Our main products are Heat exchanger equipment, Friction welding machine, Spot Welding Machine, Projection Welding Machine, Butt Welding Machine, Seam Welding Machine, Multi Head Welding Machine For Wire Mesh, and other various special welding machine for metal connection in different industries.

We always adhere to the management idea of "Integrity, profession, innovation, and win-win", to make Xin Chang becomes trustworthy enterprise of customers. Good product quality, perfect after-sales service, and professional technical support make customers choose no regrets and worry-free use.
