Heat Exchanger Fins Production Progressive Stamping Die Mold

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Brand: xinchang

Material: Carbon Tool Steel

Processing Method: Punching And Shearing Mould

Technics: Cutting Die

Process Combination: Single-Process Mould

Manufacturing Technology: Automation Technology

Mold Cavity Technology: CNC Milling

Milling Speed: Normal Speed

Parts Detection Method: Measurement Of Three Axis Nc

After-sales Service: Life Long

Name: Fin Condenser Die

Key: Bending Machine

Bending Mode: by Servo Motors

Stroke Setting Model: by Servo Motors

Transport Package: Wooden Case

Specification: export standard

Trademark: xinchang

Origin: China

Production Capacity: 500 Set / Month

Customization: Available

Warranty: 12 Months

Application: Evaporator Fins

Supply Ability & Additional Information

Supply Ability: 500 Set / Month

Packaging & Delivery

Selling Units:

Piece/Pieces



Multi Functional Fin Condenser Die Bending Machine with 300 Million Punching1



300 Million Punching Times Refrigeration Condenser Evaporator Fin Press Machine

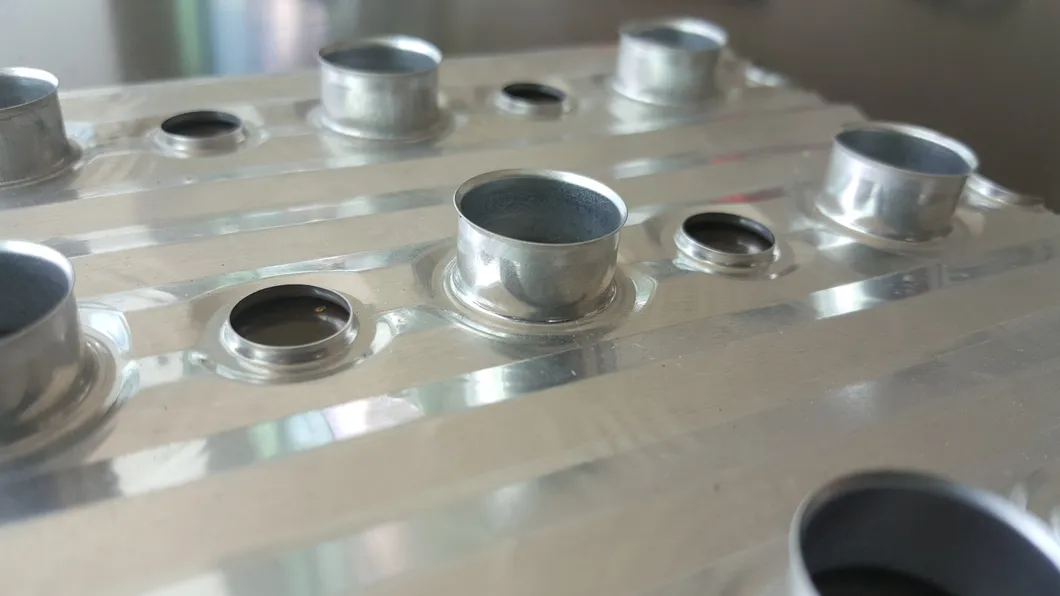

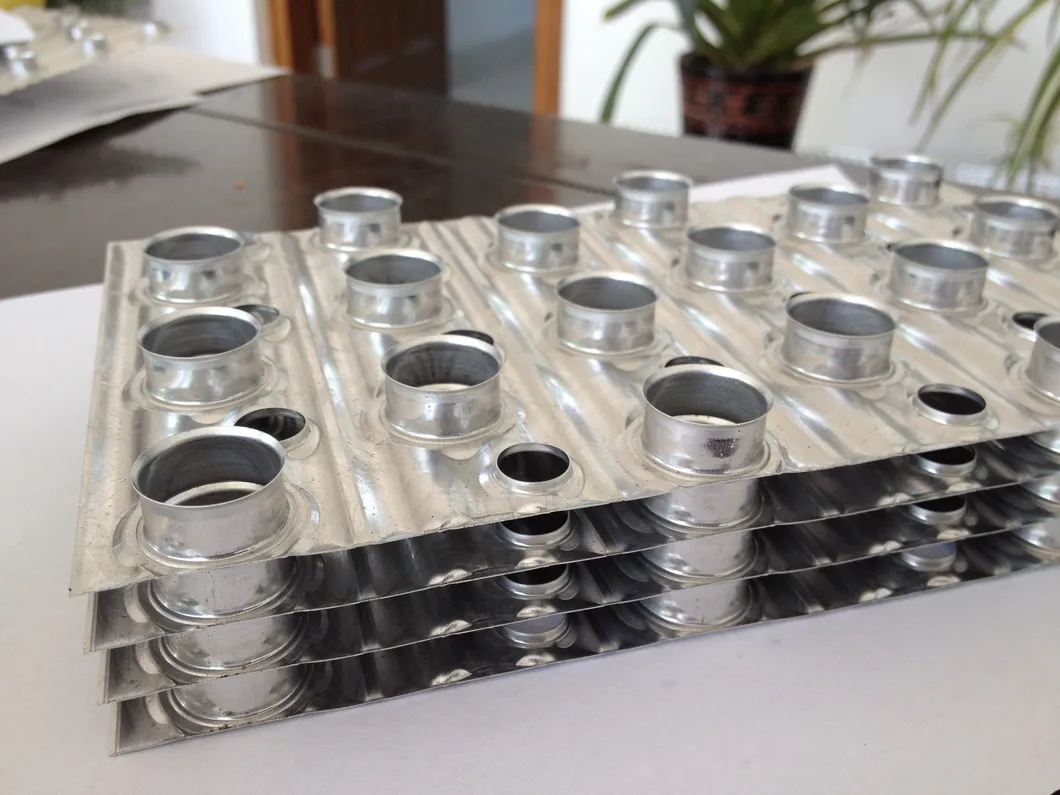

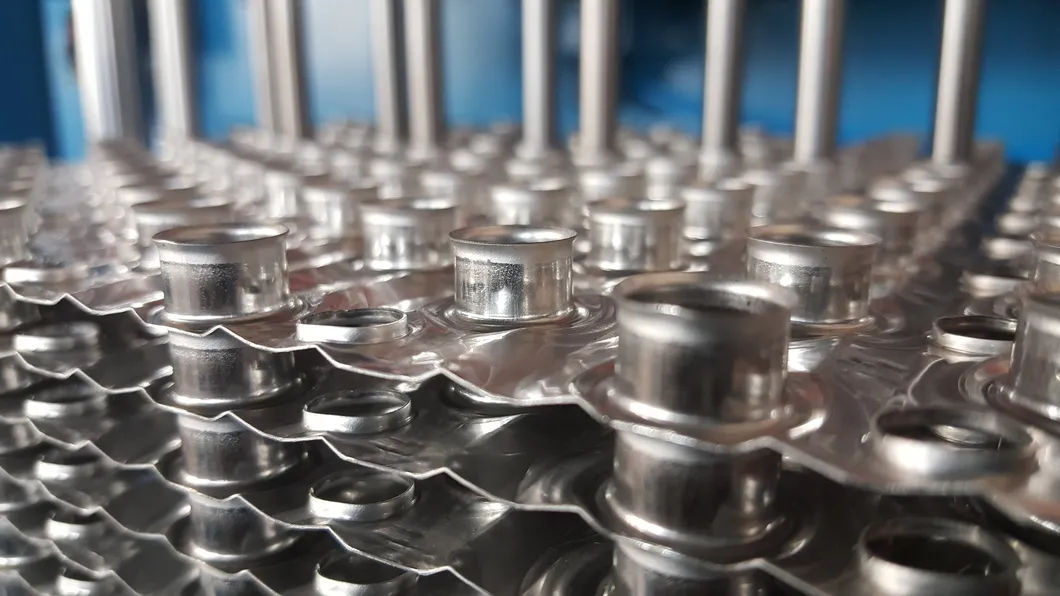

50mm oblique hole Fin Die

Feed progression:50mm
Parts:19 parts per stroke as the drawing show
Material: Temper H18
Fin stock thickness range: 0.12~0.18mm
Feed: internal hitch finger pull type
Cut off: guillotine type cut off with plain grind insert blades.
Heating hole stage:only one type as the drawing show.
Standard production rate: 100-180 strokes per minute.
Every guide post has lubrication

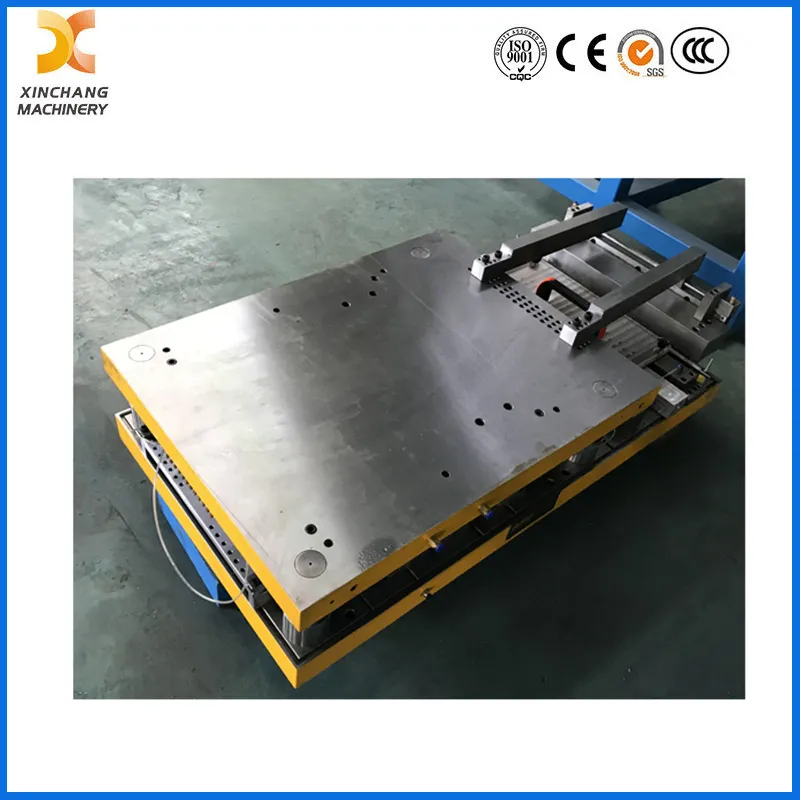

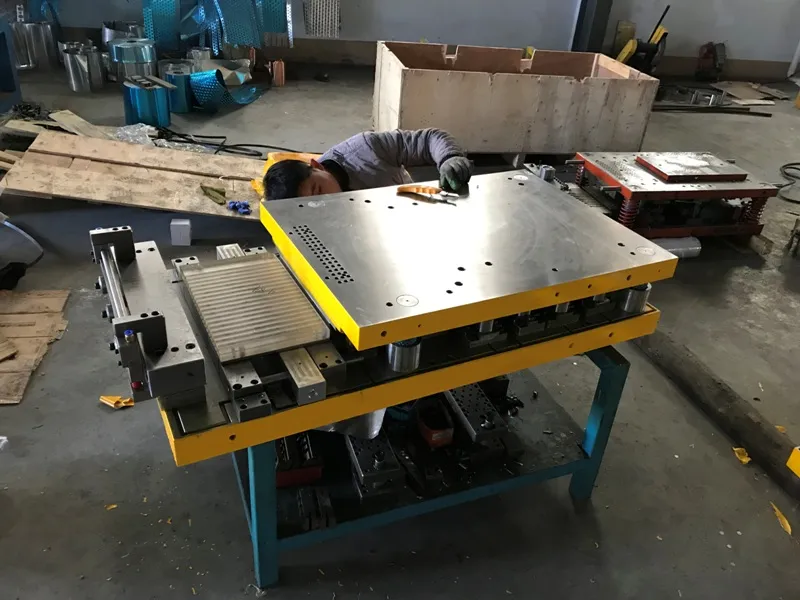

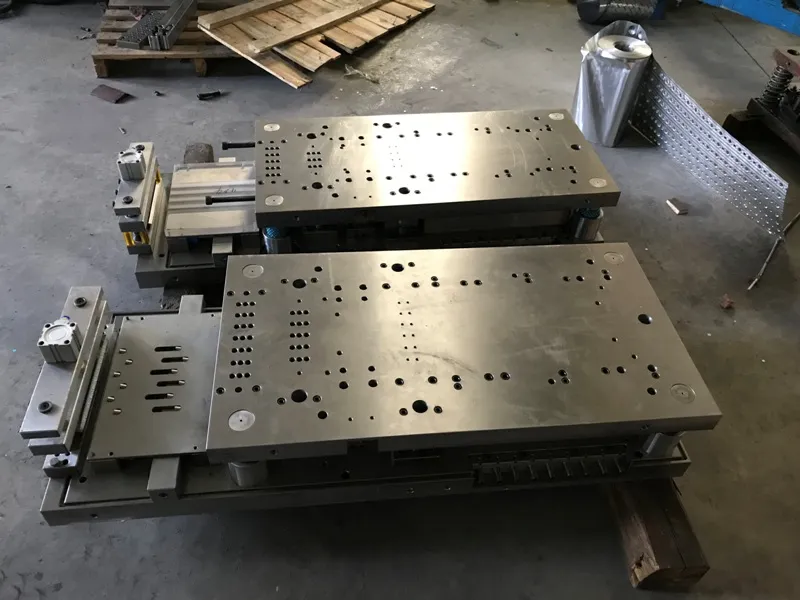

This die consists of forming stage, long hole pierce station, reflare,heating hole stage, edgetrim , slit, feeding and cut off station. We will use four ball cages, guide posts and bushings in the main die
Lifespan: 300 million times of punching (300,000,000)

60mm oblique hole fin die
1.   Feed progression:60mm.
2.   Parts:19 parts per stroke as the drawing show
3.   Material: Temper H18
4.   Fin stock thickness range: 0.12~0.18mm
5.   Feed: internal hitch finger pull type
6.   Cut off: guillotine type cut off with plain grind insert blades.
7.   Heating hole stage:two type as the drawing show.
8.   Standard production rate: 100-180 strokes per minute
9.   Every guide post has lubrication
10. This die consists of forming stage, long hole pierce station, reflare,heating hole stage, Edgetrim, slit, feeding and cut off station. We will use four ball cages, guide posts and bushings in the main die
11. Lifespan: 300 million times of punching (300,000,000)

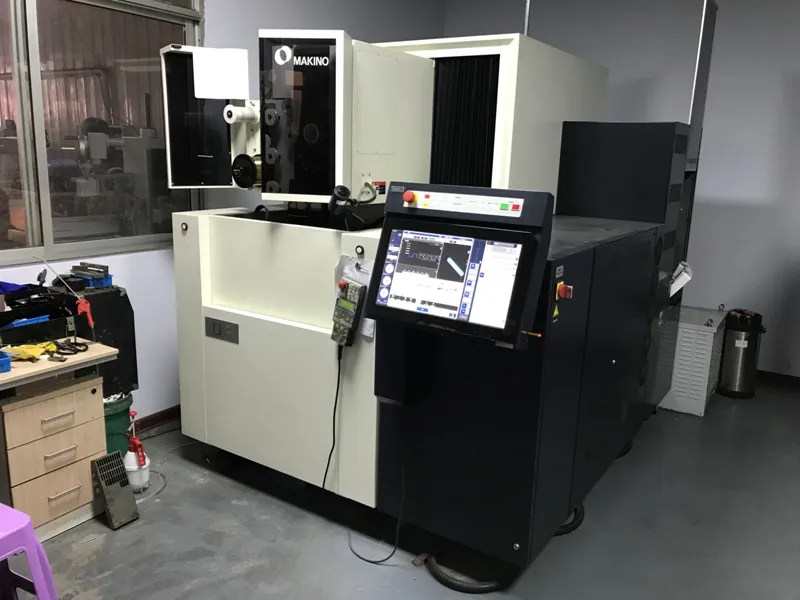

FIN DIE Material and standard component
We made our Automatic Fin Stamping Equipment use the best quality material from JAPAN or SWEDEN. The following form shows some of our material used in the Automated Fin Die Press Equipment.

	MATERIAL	HARDNESS	COUNTRY
DRAW PLATE	NAK80	HRC40-42	JAPAN
DRAW PUNCH AND DIE	SKD11	HRC60-62	JAPAN
REFLACE PUNCH AND DIE	SKD11	HRC60-62	JAPAN
LOUVER PUNCH AND DIE	ASP30	HRC62-64	SWEDEN
PIERCE PUNCH AND DIE	ASP30	HRC62-64	SWEDEN
SLITTER BLADE	ASP30	HRC62-64	SWEDEN
EDGE TRIM BLADE	ASP30	HRC62-64	SWEDEN
CUT OFF BLADE	ASP30	HRC62-64	SWEDEN

We choose the best standard components in the world to use in our FIN Line and machines(such as MISUMI and SMC). We will give all the list (size,type,grade)of the standard components to you when our die would be delivered along with the assembly drawing and spare parts drawing for the fin die.

WARRANTY:
We warrants to the purchaser is free of defective materials and workmanship for a period of 12 month it does not cover damages or failures due to improper use of our machines or beyond its rated capacity.

300 Million Punching Times Refrigeration Condenser Evaporator Fin Condenser Die
