Name: High Speed Punching H Fin Press Line Machine for Evaporators
Brand: Ningbo Xin Chang Machinery Co.,Ltd
Rating: 4.9 (15 reviews)

High Speed Punching H Fin Press Line Machine for Evaporators

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Model NO.: 45T, 65T, 85T

Type: High-Speed Punching Machine

Punch Shape: Open Punch

Slider Movement: Double Action

Slider Drive Mechanism: Cam Press

Controlling Mode: Cnc

Automatic Grade: Automatic

Precision: High Precision

Certification: CE, ISO 9001, CCC

Condition: New

Air Pressure: 0.5MPa

Die Height Adjustment: 80mm

Collector Length: 1200/1500/2000mm

Aluminum Coils Inner Dia.: ∮75/∮150

Transport Package: Export Standard

Specification: 45ton, 65ton, 85ton

Trademark: xinchang

Origin: Ningbo China

HS Code: 8462101000

Production Capacity: 5set/Month

Customization: Available

After-sales Service: Life Long

Warranty: 12 Months

Supply Ability & Additional Information

Supply Ability: 5set/Month

Packaging & Delivery

Selling Units:

Piece/Pieces

Overview
Product Description
Detailed Photos
Company Profile
FAQ

Basic Info.

Model NO.

45T, 65T, 85T

Type

High-Speed Punching Machine

Punch Shape

Open Punch

Slider Movement

Double Action

Slider Drive Mechanism

Cam Press

Controlling Mode

CNC

Automatic Grade

Automatic

Precision

High Precision

Certification

CE, ISO 9001, CCC

Condition

New

Air Pressure

0.5MPa

Die Height Adjustment

80mm

Collector Length

1200/1500/2000mm

Aluminum Coils Inner Dia.

∮75/∮150

Transport Package

Export Standard

Specification

45ton, 65ton, 85ton

Trademark

xinchang

Origin

Ningbo China

HS Code

8462101000

Production Capacity

5set/Month

Product Description

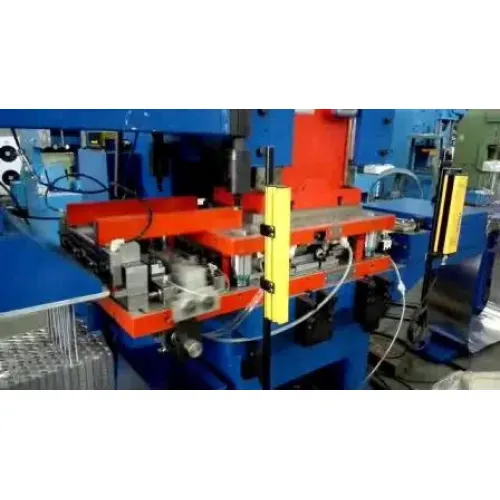

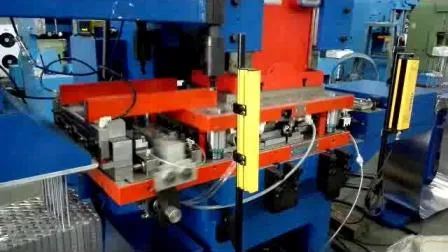

Professional High Speed Punching Type H Fin Press Line Machine for Evaporators

A. Main functions and features:

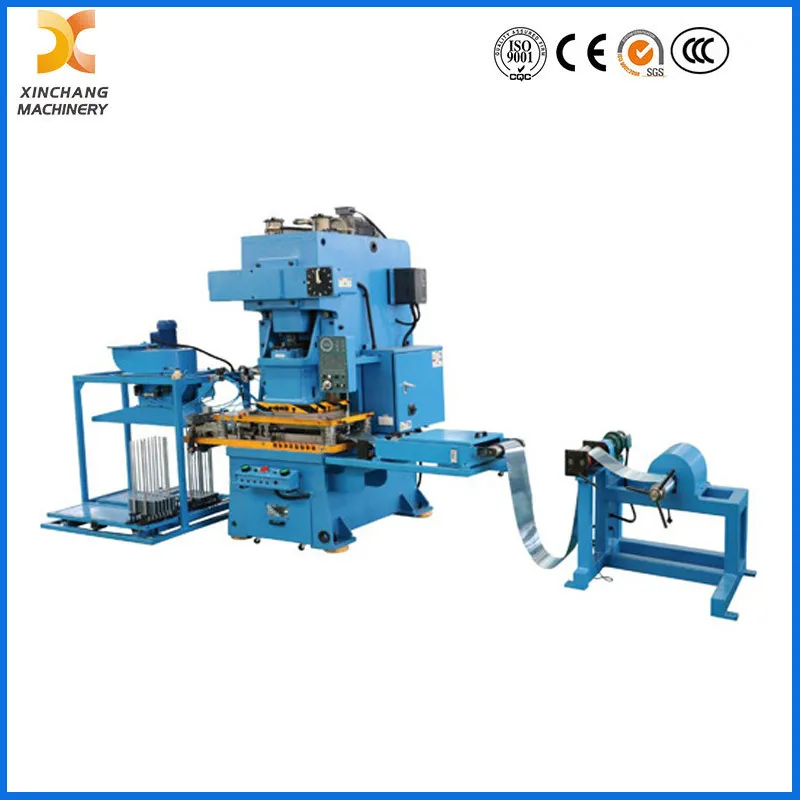

1. CB series closed type fin press is a special production line for fin production in the refrigeration industry, consisting of high-speed precision punching, discharging rack, oil lubrication tank, pulling device (single and double-jump), suction rack, collector, electrical system , pneumatic system composition.

2. The mainframe speed control adopts frequency conversion control

3. The host has a hydraulic overload function

4. Using a quick die change device

5. Adopt human-machine interface and PLC and rotary encoder electrical centralized control system to ensure the reliable execution of various functions of the automatic production line.

B. Key parameters,

No.	Names	Unit	Specifications
No.	Names	Unit	CB63	CB85	CB100
1	Nominal Pressure	KN	630	850	1000
2	Stroke of slide	mm	40-60	40-60	40-60
3	Stamping Strokes	SPM	150-300	150-300	150-300
4	Die set height	mm	250-300	250-300	270-320
5	Die height adjustment	mm	80	80	80
6	Size of table(FB x LR)	mm	900×1300
7	Thickness of table	mm	80	90	100
8	Distance from table to floor	mm	720	760	760
9	Bottom size of slide (FB x LR)	mm	730×850
10	Main motor (power)	KW	7.5	11	15
11	Air pressure	MPa	0.5	0.5	0.5
12	Collector length	mm	1200/1500/2000	1200/1500/2000	1200/1500/2000
13	Aluminum coils max.width	mm	545	615	850
14	Aluminum coils inner Dia.	mm	∮75/∮150	∮75/∮150	∮75/∮150
15	Aluminum coils outer Dia.	mm	∮1000	∮1000	∮1000

C. key parts brands
we also could adjsut it at customer's needs

NO.	Content	Manufacturer
1	Inverter	Inovance
2	PLC programmer	OMRON
3	HMI (color screen)	Taiwan Weinview
4	Rotary encoder	OMRON
5	Main pneumatic components	AirTAC
6	Main hydraulic components	YUKEN
7	Centralized lubrication	IHI
8	Dual valve of main clutch brake	TACO
9	Photoelectric safety device	Keli

Professional High Speed Punching Type H Fin Press Line Machine for Evaporators

We, Ningbo Xin Chang Machinery Co.,Ltd are a professional designer and manufacturer in Friction Welding Machine, Resistance Welding Machine and Heat exchanger equipment. Our factory is in this line more than 20 years, we have more than 10 senior mechanical and electrical specialists and total more than 200 staff, our machine is famous in China. We have CCC, ISO9001 and CE certificates.

Over the years, we have exported so many machines to 30 and more countries, such as France,Spain,Poland,Russia,Indonesia,Vietnam,Pakistan,India,Mexico,Egypt etc.

Our main products are Heat exchanger equipment, Friction welding machine, Spot Welding Machine, Projection Welding Machine, Butt Welding Machine, Seam Welding Machine, Multi Head Welding Machine For Wire Mesh, and other various special welding machine for metal connection in different industries.

We always adhere to the management idea of "Integrity, profession, innovation, and win-win", to make Xin Chang becomes trustworthy enterprise of customers. Good product quality, perfect after-sales service, and professional technical support make customers choose no regrets and worry-free use.
