High Speed Small Evaporator Air Conditioner Fin Press Line Punching Coil Press Machine

A. Main functions and features:

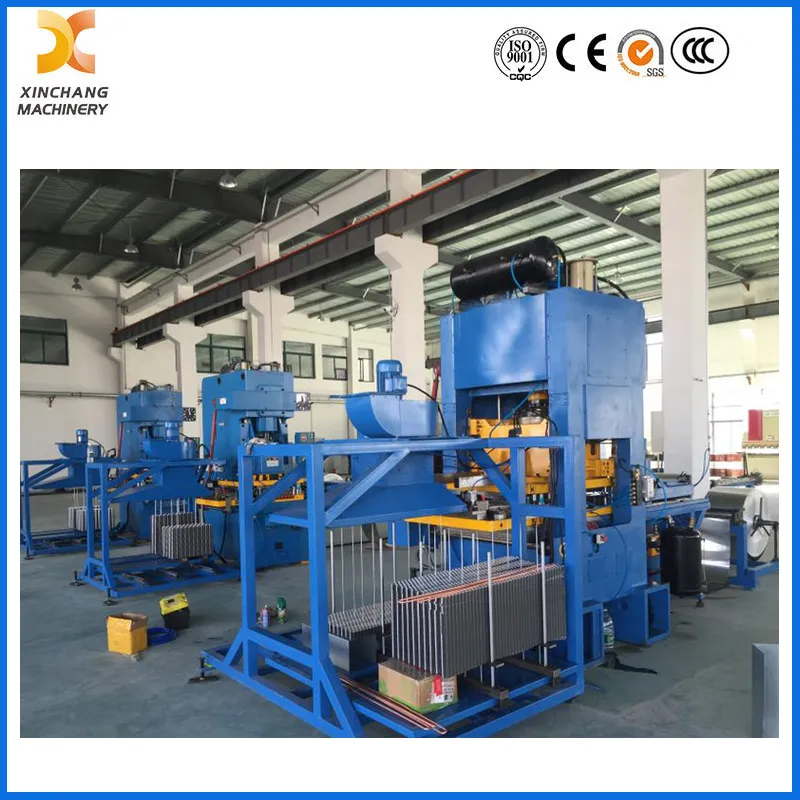

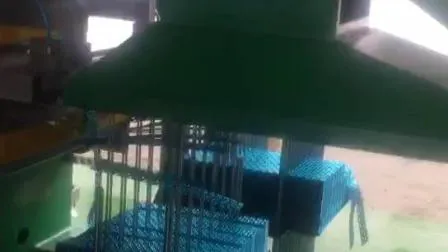

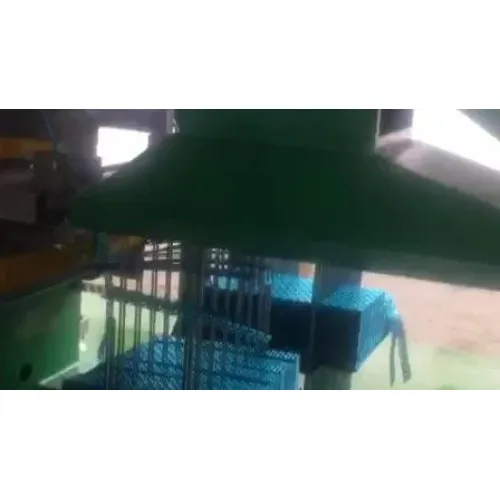

1. CB series closed type fin press is a special production line for fin production in the refrigeration industry, consisting of high-speed precision punching, discharging rack, oil lubrication tank, pulling device (single and double-jump), suction rack, collector, electrical system , pneumatic system composition.

2. The mainframe speed control adopts frequency conversion control

3. The host has a hydraulic overload function

4. Using a quick die change device

5. Adopt human-machine interface and PLC and rotary encoder electrical centralized control system to ensure the reliable execution of various functions of the automatic production line.

B. Key parameters,

No.	Names	Unit	Specifications
No.	Names	Unit	CB63	CB85	CB100
1	Nominal Pressure	KN	630	850	1000
2	Stroke of slide	mm	40-60	40-60	40-60
3	Stamping Strokes	SPM	150-300	150-300	150-300
4	Die set height	mm	250-300	250-300	270-320
5	Die height adjustment	mm	80	80	80
6	Size of table(FB x LR)	mm	900×1300
7	Thickness of table	mm	80	90	100
8	Distance from table to floor	mm	720	760	760
9	Bottom size of slide (FB x LR)	mm	730×850
10	Main motor (power)	KW	7.5	11	15
11	Air pressure	MPa	0.5	0.5	0.5
12	Collector length	mm	1200/1500/2000	1200/1500/2000	1200/1500/2000
13	Aluminum coils max.width	mm	545	615	850
14	Aluminum coils inner Dia.	mm	∮75/∮150	∮75/∮150	∮75/∮150
15	Aluminum coils outer Dia.	mm	∮1000	∮1000	∮1000

C. key parts brands
we also could adjsut it at customer's needs

NO.	Content	Manufacturer
1	Inverter	Inovance
2	PLC programmer	OMRON
3	HMI (color screen)	Taiwan Weinview
4	Rotary encoder	OMRON
5	Main pneumatic components	AirTAC
6	Main hydraulic components	YUKEN
7	Centralized lubrication	IHI
8	Dual valve of main clutch brake	TACO
9	Photoelectric safety device	Keli
