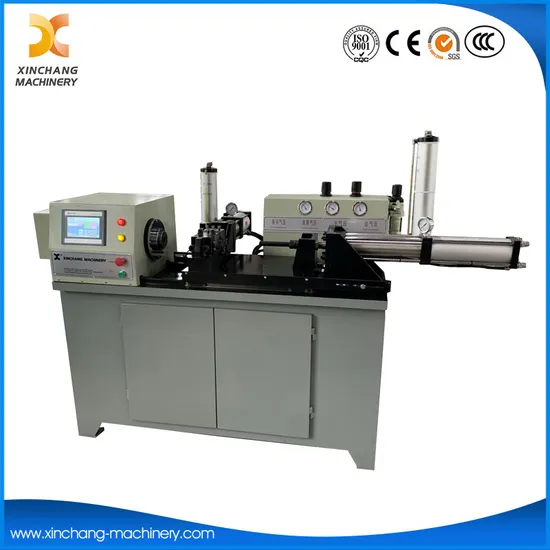

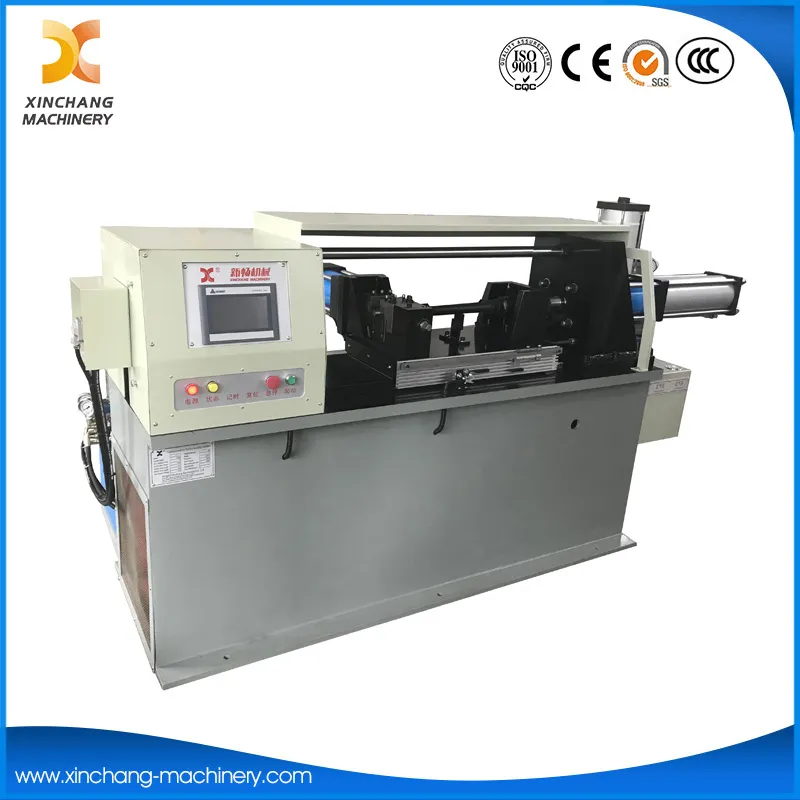

High Frequency Continuous Drive Friction Welding Machine for Shaft Tube Accessories

Friction welding is a sophisticated press welding technique that creates thermal energy by the relative rotating friction between two workpieces, heating the welding ends to a fully thermoplastic condition. After reaching the ideal temperature state, rapid upsetting pressure is applied to complete molecular fusion and solid welding connection. This technology stands out with stable welding quality, minimal workpiece distortion and outstanding joint rigidity, suitable for butt welding of steel, aluminum, copper and various alloy structural parts in machinery, automotive and hardware industries.

To meet diverse production scenarios and workpiece specifications, our lineup covers professional welding equipment for different application demands. The Friction Welding Machine is engineered with robust mechanical layout and precise pressure control, well suited for conventional standard part processing. Featured with steady rotary operation and balanced friction transmission, the Rotary Friction Welding Machine delivers even heat generation and highly repeatable welding results. For modern batch production, the Automatic Welding Machine adopts intelligent program control to realize full-process automatic operation, simplifying workflow and greatly elevating production efficiency and operational convenience.

We can match exclusive equipment models and complete parameter data according to customers’ actual workpiece dimensions, material types and production capacity needs, providing stable and reliable friction welding solutions.

Technical Parameters of Y Series Friction Welding Machine
Y120-C			Y120-D
Product Name	Continuous-drive Friction Welding Machine	Unit	Product Name	Continuous-drive Friction Welding Machine	Unit
Model	Y120-C		Model	Y 120-D
Max. Upset Force	800	Kg	Max. Upset Force	800	Kg
Spindle Rotating Speed	2800	r/min	Spindle Rotating Speed	2800	r/min
Weldment Diameter	5--12	mm	Weldment Diameter	5--12	mm
Rotary Clamp Material Length	5-120	mm	Rotary Clamp Material Length	5-120	mm
Mobile Clamp Material Length	3-400	mm	Mobile Clamp Material Length	5-120	mm
Max Stroke of Sliding Table	125	mm	Max Stroke Of Sliding Table	125	mm
Spindle Motor Power	4-7.5	KW	Spindle Motor Power	4-7.5	KW
Max. Pressure	8	Kg	Max. Pressure	8	Kg
Productivity	200-400	Pcs/h	Productivity	200-400	Pcs/h
Weight	0.8	Ton	Weight	0.8	Ton
Main Unit Dimension	1300X550X1200	mm	Main Unit Dimension	1300X550X1200	mm
Y150-C			Y150-D
Product Name	Continuous-drive friction welding machine	Unit	Product Name	Continuous-drive friction welding machine	Unit
Model	Y150-C		Model	Y150-D
Max. Upset Force	8	Ton	Max. Upset Force	8	Ton
Spindle Rotating Speed	2500	r/min	Spindle Rotating Speed	2500	r/min
Weldment Diameter	8--20	mm	Weldment Diameter	8--20	mm
Rotary Clamp Material Length	3-200	mm	Rotary Clamp Material Length	3-200	mm
Mobile Clamp Material Length	5-500	mm	Mobile Clamp Material Length	3-200	mm
Max Stroke Of Sliding Table	200	mm	Max Stroke of Sliding Table	200	mm
Spindle Motor Power	7.5-11	KW	Spindle Motor Power	7.5-11	KW
Max. Pressure	8	Kg	Max. Pressure	8	Kg
Productivity	300	Pcs/h	Productivity	300	Pcs/h
Weight	1.5	Ton	Weight	1.5	Ton
Main Unit Dimension	2000X650X1200	mm	Main Unit Dimension	2000X650X1200	mm

Model	Maximum upset force (kilonewton)	Maximum spindle speed (rpm)	Welding piece diameter (medium carbon steel) mm	Rotating fixture (clamping length) mm	Mobile fixture (clamping length) mm	Slip fit Maximum stroke mm	Total power (KW)	Productivity (piece/hour)	Overall dimensions	weight ton	Remarks
Z2.5	25	3000	4-14	50-200	50-420	200	12	100-320	22001951250	2.8	Small shaft and tube parts, etc
Z4	40	2500	6-16	50-200	50-420	200	15	100-250	22001951250	3.2	Small shaft and tube parts, etc
Z4Z	40	600	6-16	50-150	50-150	200	15	100-300	22001951250	3	Copper aluminum dedicated
Z10	100	2200	8-22	50-200	50-420	200	15	100-220	22001951250	3.5	Small shaft and tube parts, etc
Z15	150	2000	10-30	50-250	50-700	310	25	100-220	300028001450	4.5	Medium sized shaft and tube parts, etc
Z20	200	1800	10-30	50-250	50-700	310	28.5	100-200	300028001450	5	Medium sized shaft and tube parts, etc
Z20Z	200	450	12-40	50-200	50-180	310	28.5	100-200	300028001450	4.8	Copper aluminum dedicated
Z20L	200	1800	12-35	50-250	50-no limit	310	28.5	100-150	300028001450	5.5	Long shaft parts and tube parts, etc
Z25	250	1800	12-40	50-250	60-700	310	32	100-180	300028001450	5.5	Medium sized shaft and tube parts, etc
Z25Z	250	450	14-45	50-200	50-180	310	32	100-180	300028001450	5.3	Copper aluminum dedicated
Z25L	250	1800	14-40	50-250	60-no limit	310	32	100-120	300028001450	5.8	Long shaft parts and tube parts, etc
Z30	320	1450	14-45	50-300	70-800	320	40	100-150	340029001500	6.5	Medium sized shaft and tube parts, etc
Z30Z	320	380	16-50	50-200	70-200	320	40	100-120	340029001500	6.2	Copper aluminum dedicated
Z30L	320	1450	16-45	50-300	70-no limit	320	47	50-100	340029001500	6.8	Long shaft parts and tube parts, etc
Z30A	150	700	16-55	50-300	70-no limit	320	47	50-150	340029001500	6.5	Special for bearing shells
Z50A	500	1200	16-55	100-380	250-1400	400	92.75	20-80	550028002200	16.5	Welding of pipe and shaft parts
Z63A	630	1000	35-63	100-380	250-1400	400	112.75	20-60	550028002200	16.5	Welding of pipe and shaft parts
Z80A	800	1000	40-75	100-380	250-1400	400	112.75	20-60	550028002200	17	Welding of pipe and shaft parts
