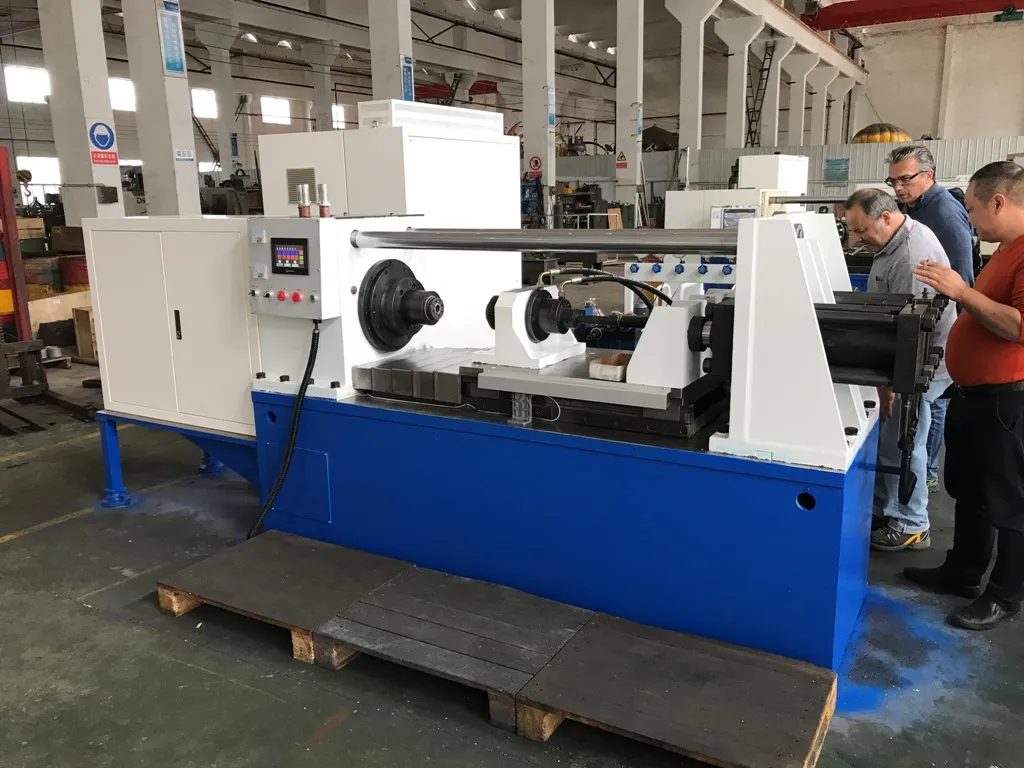

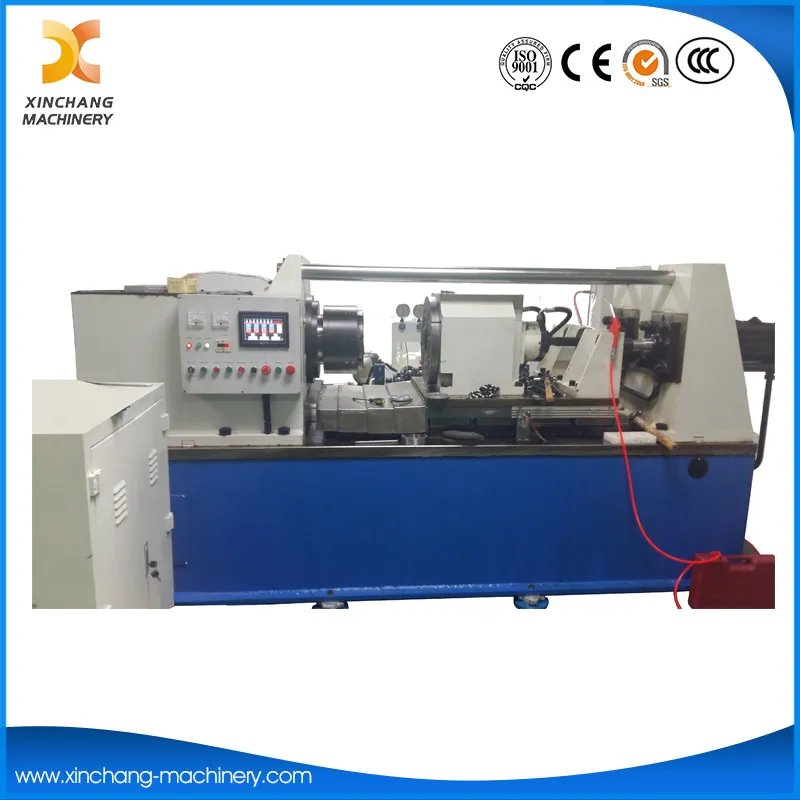

Friction welding falls into the category of press welding technology. It generates heat through high-speed workpiece rotation to soften joint ends into a thermoplastic state, with the whole welding process perfectly realized by our Rotary Friction Welding Machine via rapid upsetting. As an experienced factory specializing in welding equipment manufacturing for decades, we supply diversified specifications covering 4 ton to 360 ton models, with our core product Friction Welding Machine boasting stable performance and reliable quality. We support flexible configuration options, including labour-saving Automatic Welding Machine and conventional manual operation types, to fully match your on-site production demands. Feel free to send your inquiry, and we will share detailed technical and product information for your reference.
Main advantages:
1.Equipped with 8 sets of high-quality angular contact bearings to withstand greater axial force, effectively reducing failure rate and extending service life, different from peers that adopt ordinary plane bearings.
2.Movable fixtures are inlaid with tin bronze material, greatly improving wear resistance and ensuring long-term high machining precision.
3.Instead of the common cast iron structure for piston rod guide sleeves, we adopt non-oil bearing guiding design for superior working performance.
4.Upgraded double guidance groove linear slide rail replaces the traditional single groove structure, greatly strengthened anti-torque capacity and delivering a longer service life than ordinary counterparts.
| Model | C4 | C10 | C20 | C20Z | C20L | C32 | C32Z | C32L | C40 | C63 | C80 |
| Max upsetting force(KN) | 40 | 100 | 200 | 200 | 200 | 320 | 320 | 320 | 400 | 630 | 800 |
| Max rotate speed of Spindle(r/min) | 2500 | 2200 | 1800 | 450 | 1800 | 1450 | 380 | 1450 | 1450 | 1000 | 1000 |
Welding diameter
(solid MS rods in mm) | 6-16 | 8-25 | 10-40 | 12-35 | 12-40 | 14-50 | 16-45 | 16-50 | 25-60 | 35-75 | 40-86 |
Clamping length of rotating clamp
(mm) | 50-200 | 50-200 | 50-250 | 50-200 | 50-250 | 50-300 | 50-200 | 50-300 | 50-300 | 100-380 | 100-380 |
Clamping length of mobile clamp
(mm) | 50-420 | 50-420 | 50-700 | 50-180 | 50-limitless | 70-800 | 70-200 | 70-limitless | 70-900 | 250-1400 | 250-1400 |
Max stroke of workbench
(mm) | 200 | 200 | 310 | 310 | 310 | 320 | 320 | 320 | 320 | 400 | 400 |
Total power
(KW) | 15 | 15 | 28.5 | 28.5 | 28.5 | 40 | 40 | 47 | 72.5 | 112.75 | 112.75 |
Productivity
(pc/hour) | 100-250 | 100-220 | 100-200 | 100-220 | 100-150 | 100-150 | 100-120 | 50-100 | 20-80 | 20-60 | 20-60 |
Overall size
(LWH cm) | 220x195x125 | 220x195x125 | 300x280x145 | 300x280x145 | 300x280x145 | 340x280x150 | 340x280x150 | 340x280x150 | 340x280x220 | 550x280x220 | 550x280x220 |
| Weight(ton) | 3.2 | 3.5 | 5 | 4.8 | 5.5 | 6.5 | 6.2 | 6.8 | 6.8 | 16.5 | 17 |

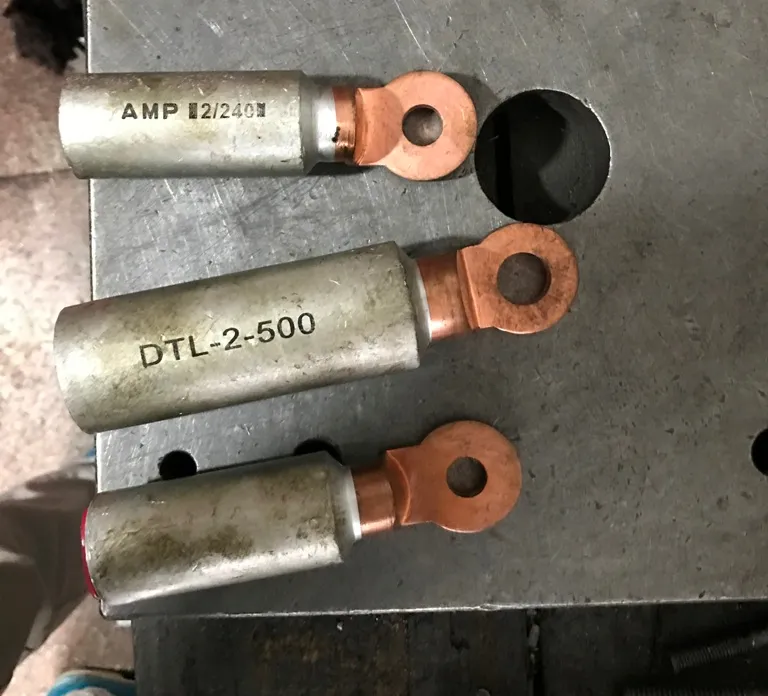

| Application | Small shaft parts and pipe parts etc. | Small shaft parts and pipe parts etc. | Medium shaft parts and pipe parts etc. | Special for Cu and Al | Long shaft parts and pipe parts etc. | Medium shaft parts and pipe parts etc. | Special for Cu and Al | Long shaft parts and pipe parts etc. | Shaft parts and pipe parts etc. | Shaft parts and pipe parts etc. | Shaft parts and pipe parts etc. |
