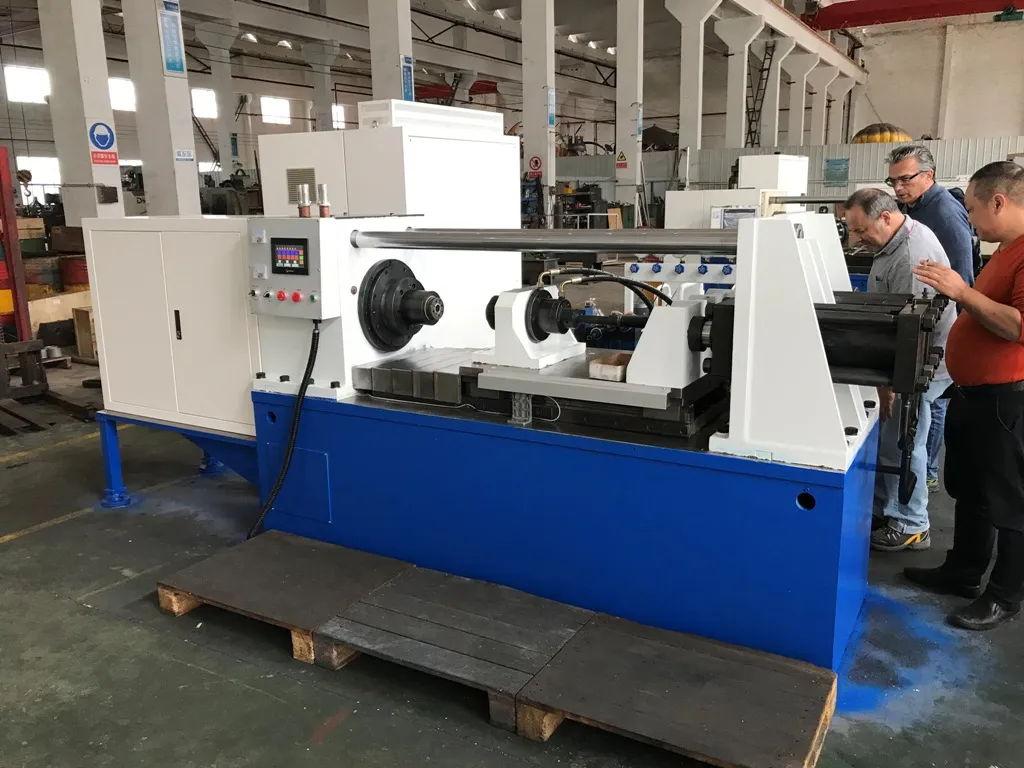

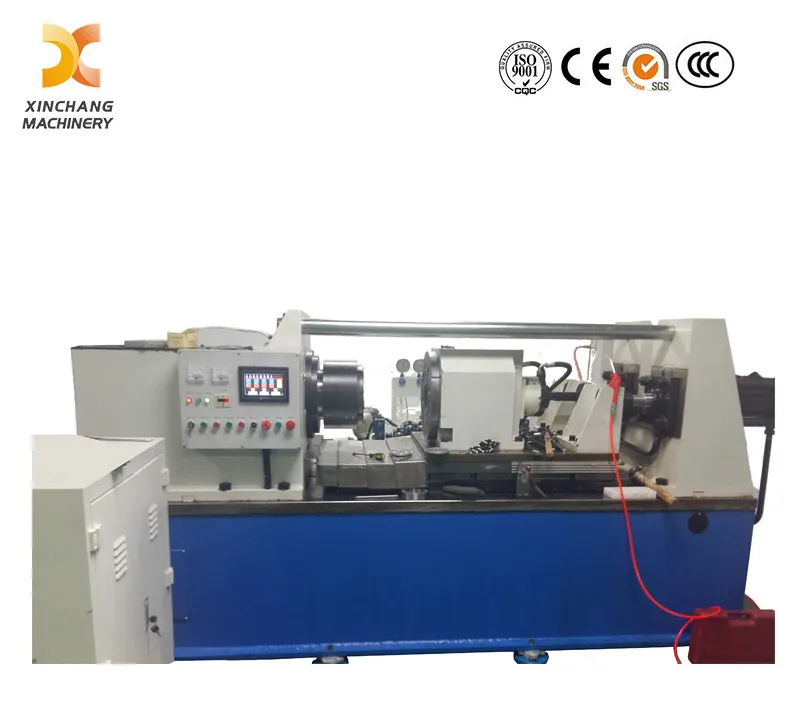

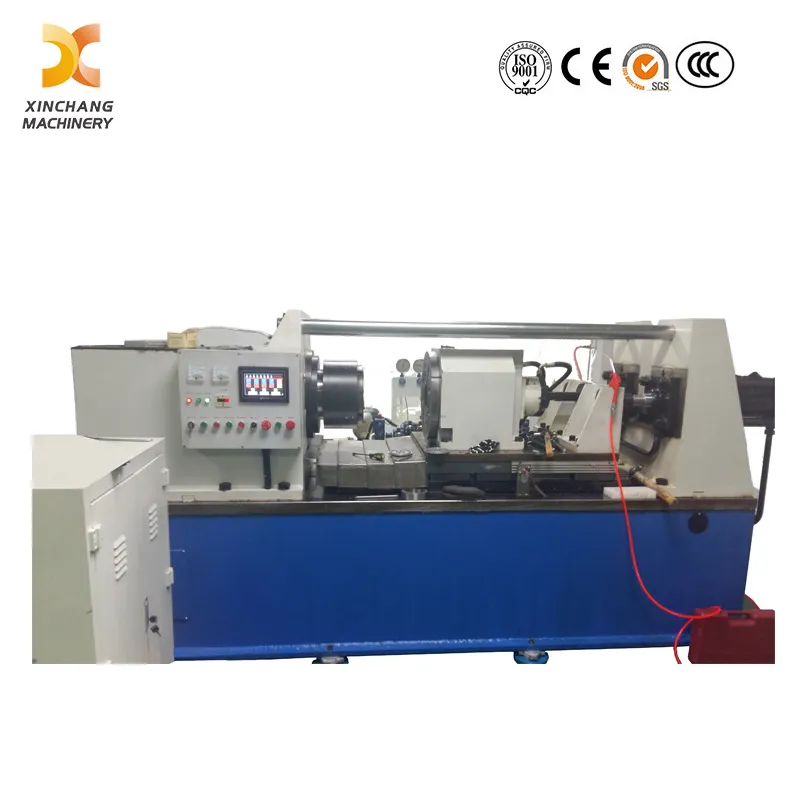

Friction welding is a type of press welding process. It utilizes frictional heat generated by workpiece rotation to bring joint ends to a thermoplastic condition, followed by rapid upsetting to complete the weld, where our precision-engineered Rotary Friction Welding Machine delivers stable and efficient forming performance. We are a professional manufacturer with years of expertise in this industry, offering a full lineup of equipment ranging from 4 ton to 360 ton specifications, with our robust Friction Welding Machine series covering diverse industrial welding demands. To accommodate different production layouts, we provide both high-efficiency Automatic Welding Machine and flexible manual operation models, allowing custom selection based on your actual workshop requirements. We warmly welcome your inquiry and will furnish comprehensive product details for your review.
Main advantages:
1.Adopts 8 sets of premium angular contact bearings to sustain larger axial force, ensuring lower failure rates and longer service life, unlike ordinary plane bearings used by other manufacturers.
2.Movable fixtures are embedded with tin bronze, greatly boosting wear resistance and maintaining outstanding working precision.
3.Differing from conventional cast iron piston rod guide sleeves, non-oil bearing guiding structure is applied for more reliable operation.
4.Upgraded double guidance groove linear slide rail replaces single groove designs, effectively strengthening anti-torque property and achieving a longer service life than equivalent equipment.
| Model | C4 | C10 | C20 | C20Z | C20L | C32 | C32Z | C32L | C40 | C63 | C80 |
| Max upsetting force(KN) | 40 | 100 | 200 | 200 | 200 | 320 | 320 | 320 | 400 | 630 | 800 |
| Max rotate speed of Spindle(r/min) | 2500 | 2200 | 1800 | 450 | 1800 | 1450 | 380 | 1450 | 1450 | 1000 | 1000 |
Welding diameter
(solid MS rods in mm) | 6-16 | 8-25 | 10-40 | 12-35 | 12-40 | 14-50 | 16-45 | 16-50 | 25-60 | 35-75 | 40-86 |
Clamping length of rotating clamp
(mm) | 50-200 | 50-200 | 50-250 | 50-200 | 50-250 | 50-300 | 50-200 | 50-300 | 50-300 | 100-380 | 100-380 |
Clamping length of mobile clamp
(mm) | 50-420 | 50-420 | 50-700 | 50-180 | 50-limitless | 70-800 | 70-200 | 70-limitless | 70-900 | 250-1400 | 250-1400 |
Max stroke of workbench
(mm) | 200 | 200 | 310 | 310 | 310 | 320 | 320 | 320 | 320 | 400 | 400 |
Total power
(KW) | 15 | 15 | 28.5 | 28.5 | 28.5 | 40 | 40 | 47 | 72.5 | 112.75 | 112.75 |
Productivity
(pc/hour) | 100-250 | 100-220 | 100-200 | 100-220 | 100-150 | 100-150 | 100-120 | 50-100 | 20-80 | 20-60 | 20-60 |
Overall size
(LWH cm) | 220x195x125 | 220x195x125 | 300x280x145 | 300x280x145 | 300x280x145 | 340x280x150 | 340x280x150 | 340x280x150 | 340x280x220 | 550x280x220 | 550x280x220 |
| Weight(ton) | 3.2 | 3.5 | 5 | 4.8 | 5.5 | 6.5 | 6.2 | 6.8 | 6.8 | 16.5 | 17 |

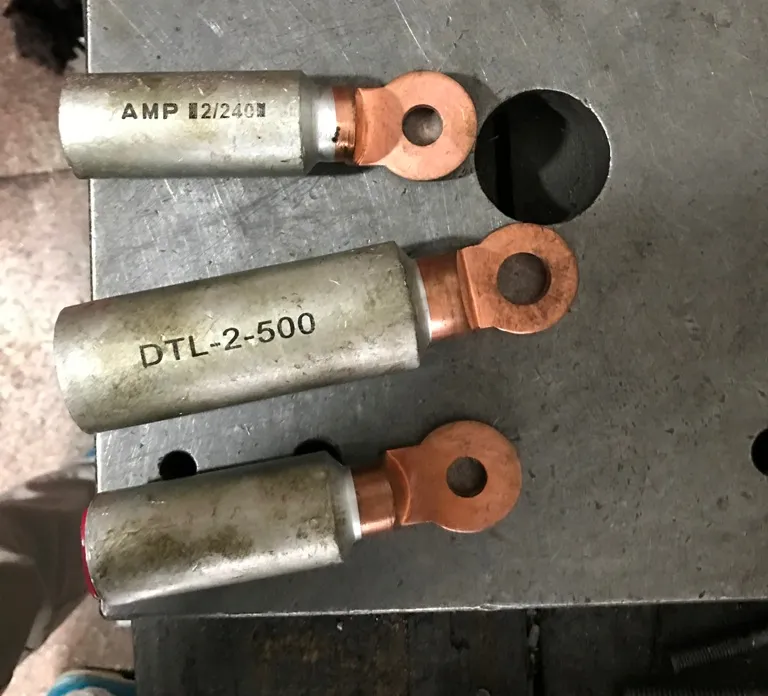

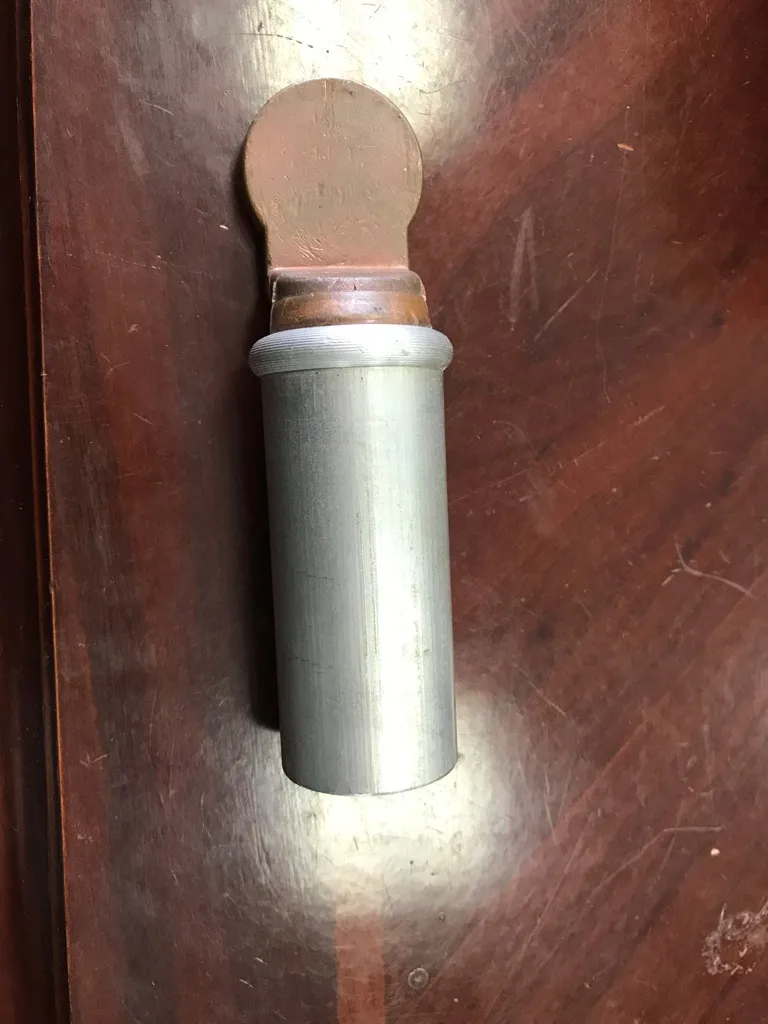

| Application | Small shaft parts and pipe parts etc. | Small shaft parts and pipe parts etc. | Medium shaft parts and pipe parts etc. | Special for Cu and Al | Long shaft parts and pipe parts etc. | Medium shaft parts and pipe parts etc. | Special for Cu and Al | Long shaft parts and pipe parts etc. | Shaft parts and pipe parts etc. | Shaft parts and pipe parts etc. | Shaft parts and pipe parts etc. |
