Professional Efficient Friction Stir Welding Machine for Drill Pipes

Min. Order:1 Piece/Pieces

Supply Ability & Additional Information
Packaging & Delivery
Other information

Supply Ability & Additional Information

Supply Ability: 200 Sets /Month

Packaging & Delivery

Selling Units:

Piece/Pieces



Automatic Hydraulic Friction Welding Machine Friction Welder with Servo Motor1



Basic Info.

Model NO.: Y320-C

Type: Friction Welding

Max Rpm: 2500rpm

Clamp Force: Hydraulic

Machine Name: Friction Welding Machine

Max Upset Force: 200kn

Transport Package: at Customer's Request

Specification: export standard

Trademark: xinchang

Origin: Ningbo China

HS Code: 8515809090

Production Capacity: 200 Sets /Month

Product Description

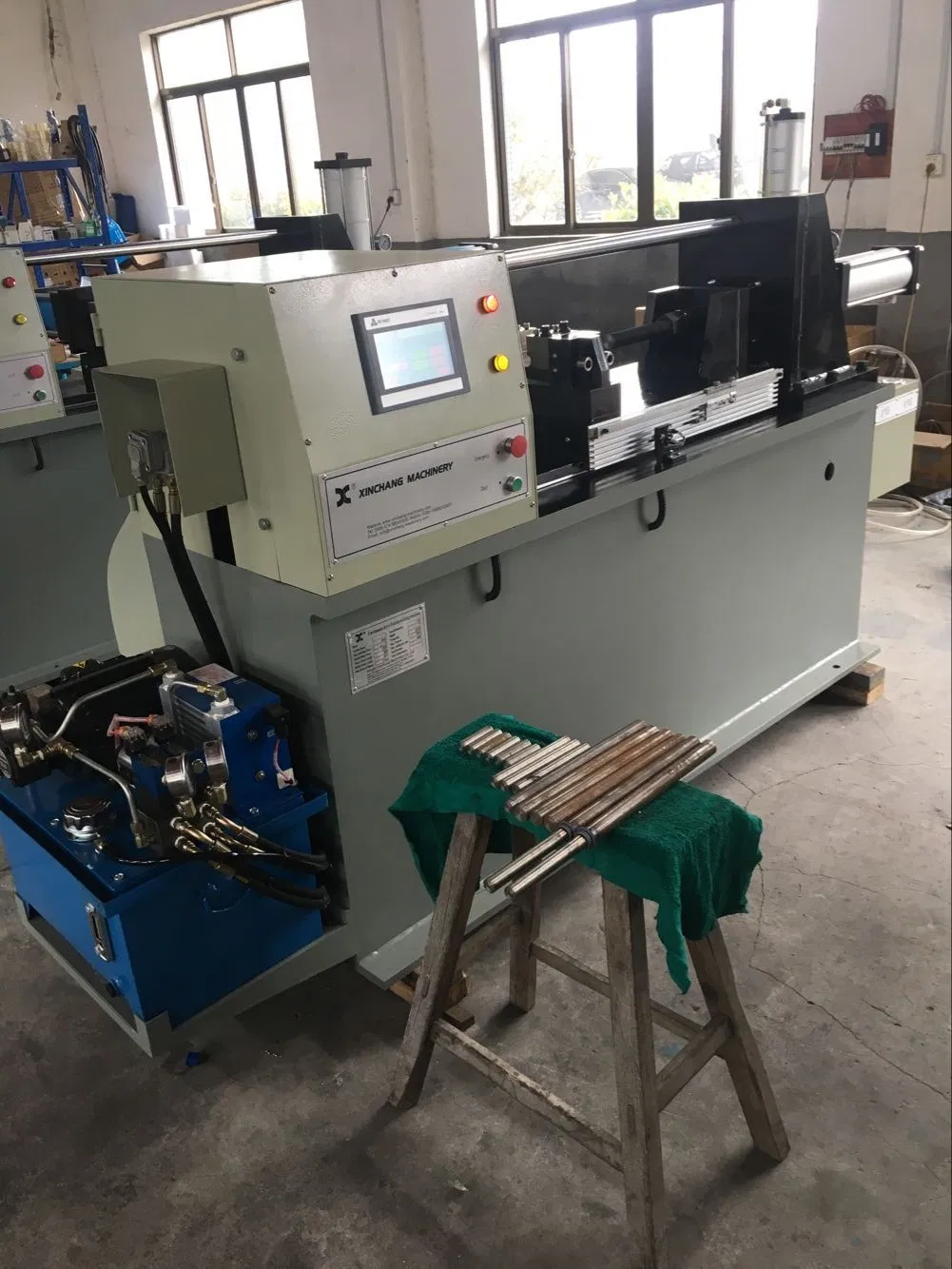

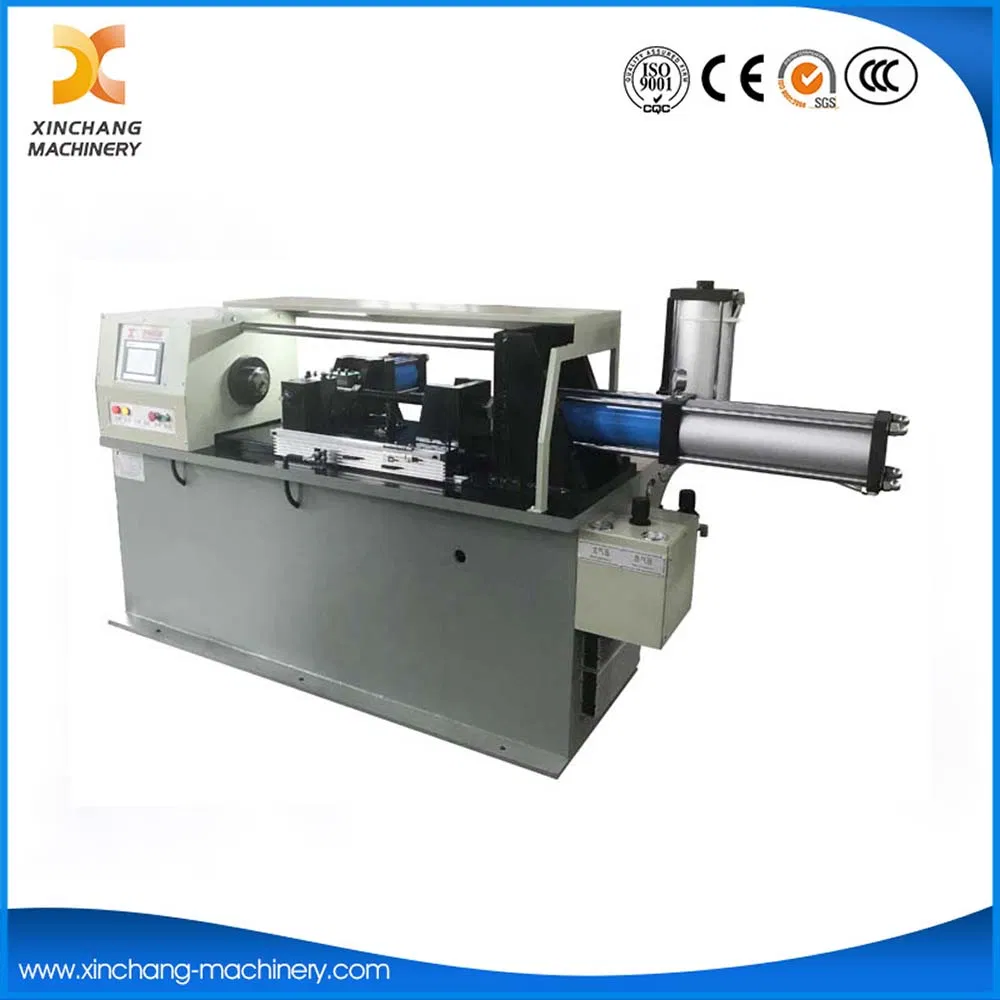

Professional Efficient Friction Stir Welding Machine for Drill Pipes

The Friction welding is a method of press welding, using the heat which is from the rotation of workpiece to make the ends to be thermoplastic status, then quickly upset to finish welding.
According to different parts, we have different models, following is one of model data,

Max upset force	200KN
Max RPM	2500rpm
Max Bar Diameter	Ф12-Ф35mm
Clamping length of rotation fixture	10-220mm
Clamping length of movement fixture	10mm-550mm
Max stroke of worktable	250mm
Press ratings	Three(first friction+second friction+upset)
Friction time	0-99s
Upset time	0-99s
Step speed of parts	0-20Sec
Upset speed	20-30Sec
Major motor	30KW
Efficiency	1500 pcs/hour
Overall	L3000×W1100×H1500mm
Weight	2200kg
Lead time	30 working days
Supply items	The friction welding machine includes Hydraulic system, welding system, controlling system, Operation Manuals and certificates of approval.

No	Parts	Brands
1	Bearings	Haerbing China
2	PLC	CO-TRUST
3	Servo motor	IVT China
4	Air & hydraulic cylinder	Taiwan of China
5	Linear slid rail	HIWIN
6	Touch screen	CO-TRUST
8	Relay	Omron
9	Contactor	Schn eider
10	Solenoid valve	Taiwan of China
