Friction welding belongs to the category of pressure welding technology, which relies on the frictional heat generated by high-speed rotation of workpieces to heat the welding ends into a thermoplastic state. Once the material reaches the ideal plastic forming condition, rapid upsetting and forging are carried out instantly to complete solid-phase welding, delivering stable welding strength and excellent overall joint performance.

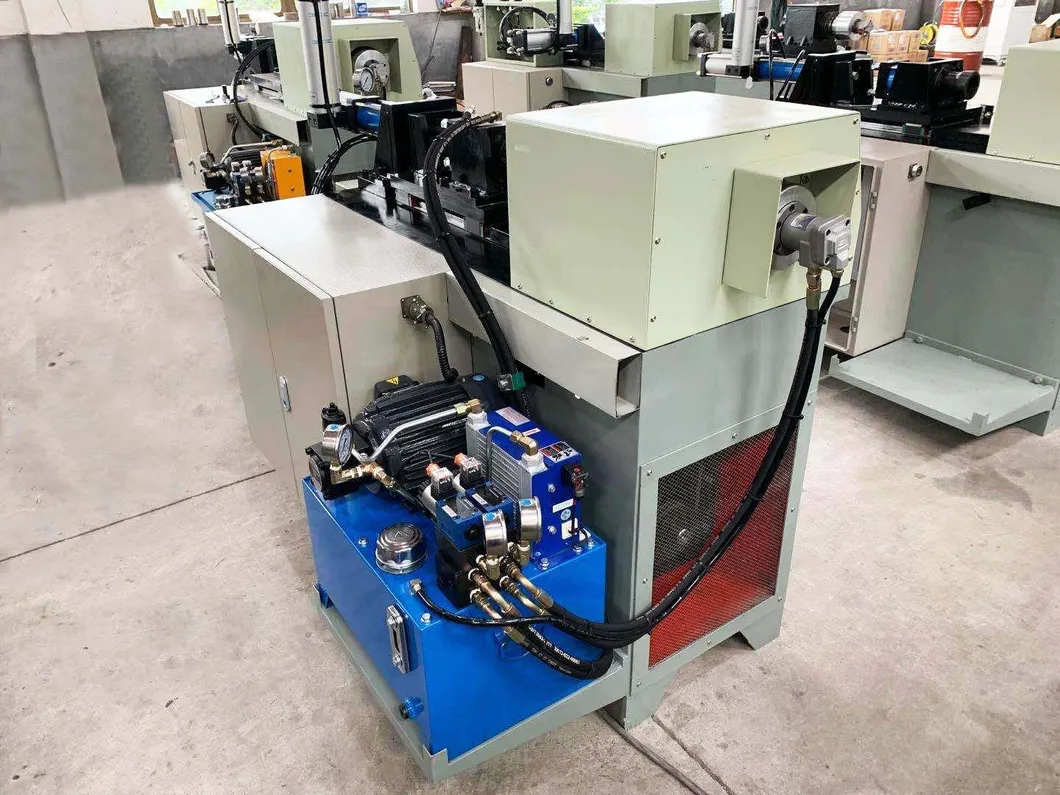

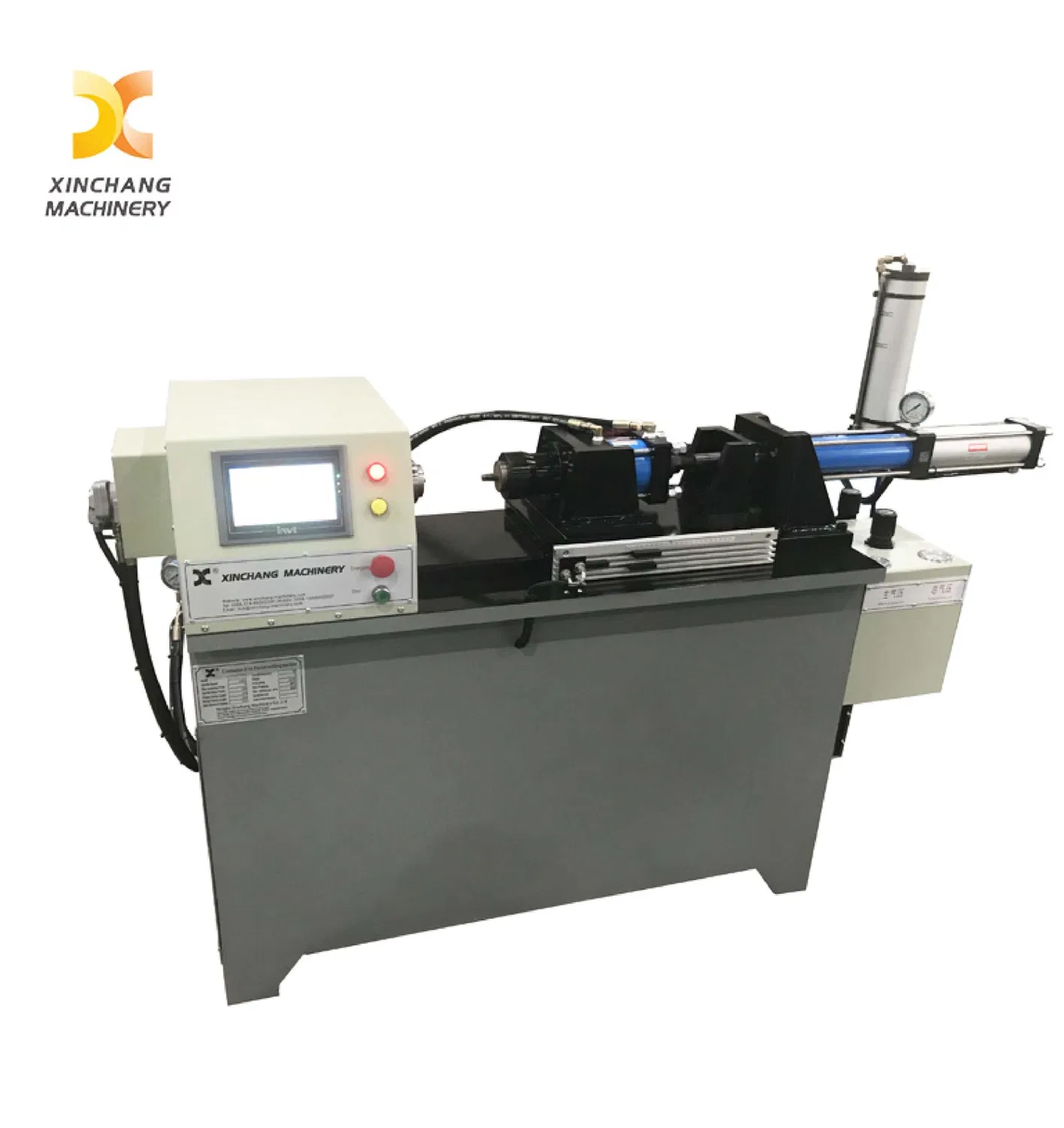

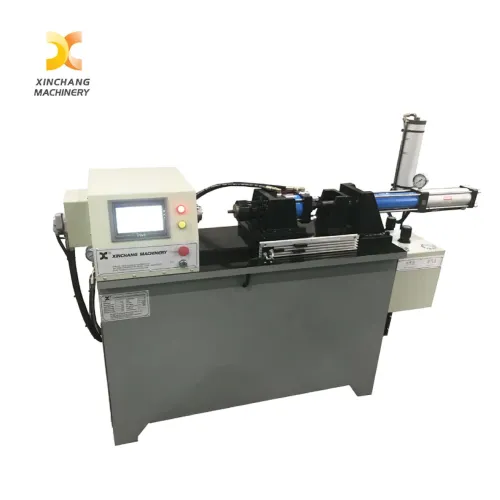

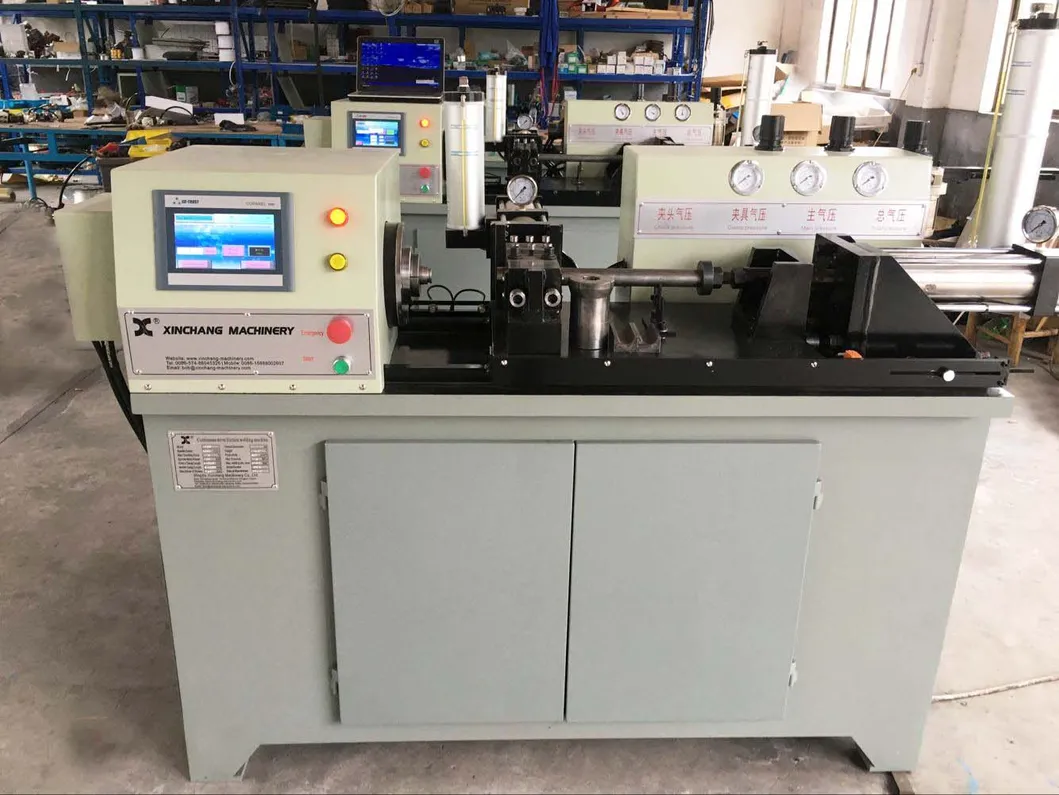

This advanced welding process is perfectly realized by our professional Friction Welding Machine, featuring stable operation, small welding deformation and high processing efficiency, and it is widely applicable to the butt welding of dissimilar and similar metal workpieces. Among the product lineup, the Rotary Friction Welding Machine is tailored for regular rotary parts processing, with precise speed regulation and uniform friction heating, effectively ensuring consistent welding quality for batch production.
To meet the demand for automated production lines, the intelligent Automatic Welding Machine integrates automatic feeding, positioning, welding and discharging functions. We configure customized equipment models according to workpiece specifications, material properties and production capacity requirements, and the following lists the detailed parameter data of one classic model for your reference.
| Technical Parameters of Y Series Friction Welding Machine |
| Y120-C | Y120-D |
| Product Name | Continuous-drive Friction Welding Machine | Unit | Product Name | Continuous-drive Friction Welding Machine | Unit |
| Model | Y120-C | | Model | Y 120-D | |
| Max. Upset Force | 800 | Kg | Max. Upset Force | 800 | Kg |
| Spindle Rotating Speed | 2800 | r/min | Spindle Rotating Speed | 2800 | r/min |
| Weldment Diameter | 5--12 | mm | Weldment Diameter | 5--12 | mm |
| Rotary Clamp Material Length | 5-120 | mm | Rotary Clamp Material Length | 5-120 | mm |
| Mobile Clamp Material Length | 3-400 | mm | Mobile Clamp Material Length | 5-120 | mm |
| Max Stroke of Sliding Table | 125 | mm | Max Stroke Of Sliding Table | 125 | mm |
| Spindle Motor Power | 4-7.5 | KW | Spindle Motor Power | 4-7.5 | KW |
| Max. Pressure | 8 | Kg | Max. Pressure | 8 | Kg |
| Productivity | 200-400 | Pcs/h | Productivity | 200-400 | Pcs/h |
| Weight | 0.8 | Ton | Weight | 0.8 | Ton |
| Main Unit Dimension | 1300X550X1200 | mm | Main Unit Dimension | 1300X550X1200 | mm |
| Y150-C | Y150-D |
| Product Name | Continuous-drive friction welding machine | Unit | Product Name | Continuous-drive friction welding machine | Unit |
| Model | Y150-C | | Model | Y150-D | |
| Max. Upset Force | 8 | Ton | Max. Upset Force | 8 | Ton |
| Spindle Rotating Speed | 2500 | r/min | Spindle Rotating Speed | 2500 | r/min |
| Weldment Diameter | 8--20 | mm | Weldment Diameter | 8--20 | mm |
| Rotary Clamp Material Length | 3-200 | mm | Rotary Clamp Material Length | 3-200 | mm |
| Mobile Clamp Material Length | 5-500 | mm | Mobile Clamp Material Length | 3-200 | mm |
| Max Stroke Of Sliding Table | 200 | mm | Max Stroke of Sliding Table | 200 | mm |
| Spindle Motor Power | 7.5-11 | KW | Spindle Motor Power | 7.5-11 | KW |
| Max. Pressure | 8 | Kg | Max. Pressure | 8 | Kg |
| Productivity | 300 | Pcs/h | Productivity | 300 | Pcs/h |
| Weight | 1.5 | Ton | Weight | 1.5 | Ton |
| Main Unit Dimension | 2000X650X1200 | mm | Main Unit Dimension | 2000X650X1200 | mm |
