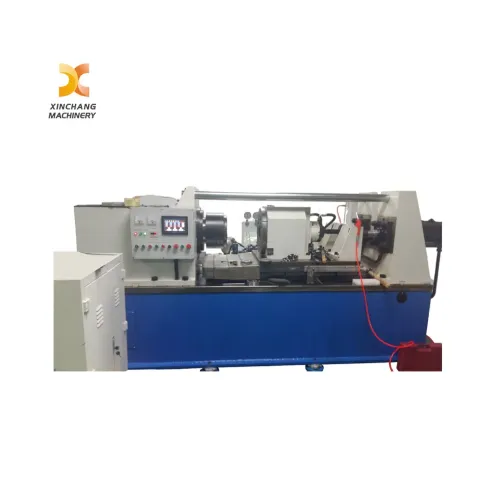

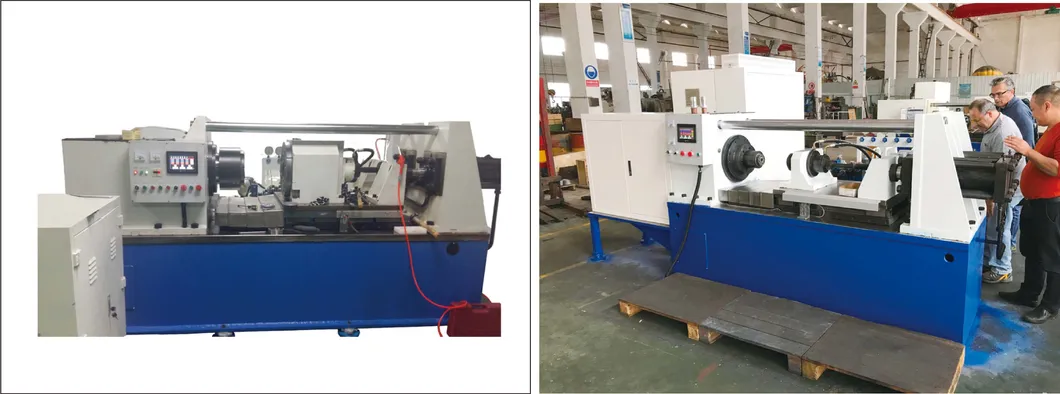

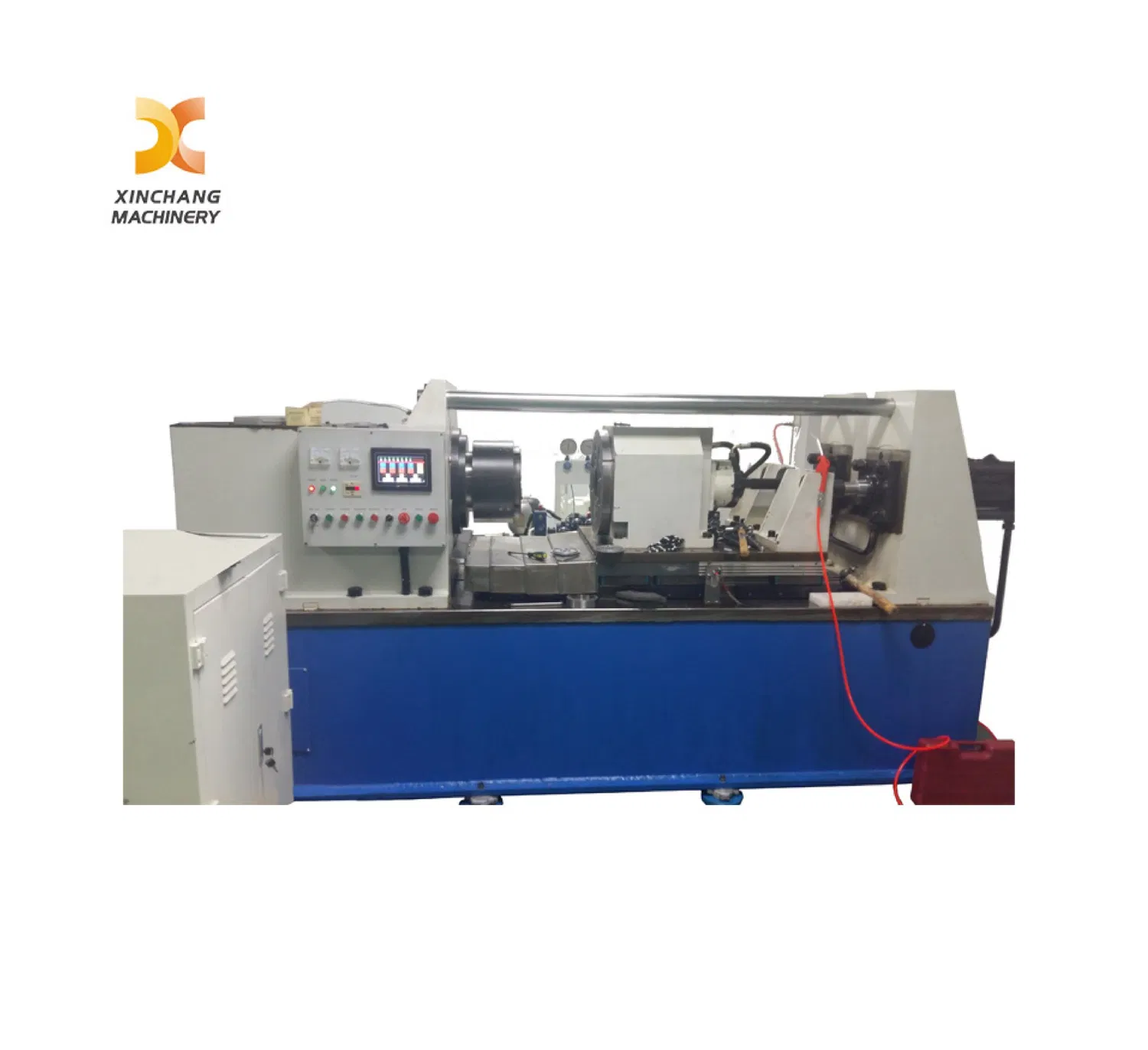

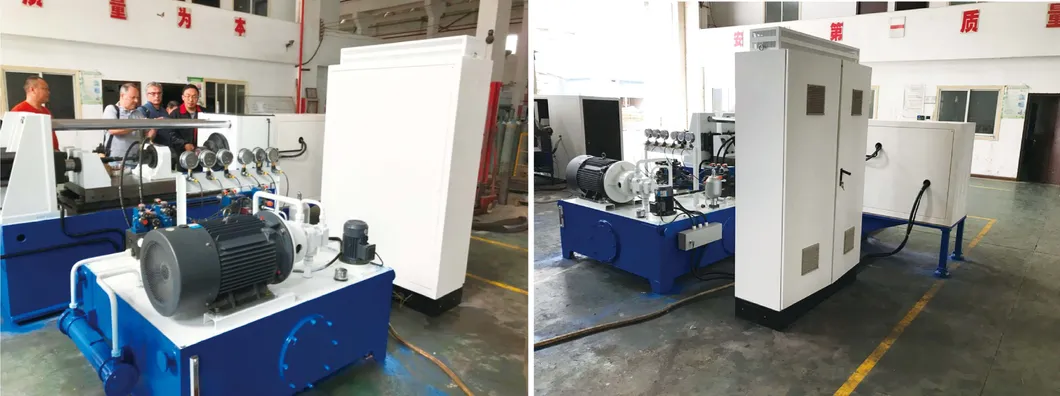

Friction welding is a practical press welding technology. It creates heat through workpiece rotation to soften welding ends into a thermoplastic state, and completes joint forming by rapid upsetting. Our Rotary Friction Welding Machine is precisely developed based on this working principle for steady welding output. With years of manufacturing experience as a professional factory, we deliver complete equipment solutions, and our tailored Friction Welding Machine ranges from 4 ton to 360 ton models to meet various processing needs. We offer flexible equipment configurations, including high-efficiency Automatic Welding Machine and user-friendly manual type, so you can choose the suitable one according to your production plan. We welcome all inquiries and will send you full product details in a timely manner.
Main advantages:
1.Equipped with 8 sets of high-quality angular contact bearings to bear larger axial force, which reduces failure rate and extends service life, abandoning ordinary plane bearings adopted by other brands.
2.Movable fixtures are inlaid with tin bronze material, greatly improving wear resistance and maintaining long-term high working precision.
3.Different from common cast iron piston rod guide sleeves, non-oil bearings are applied for guiding to achieve better overall performance.
4.The linear slide rail adopts double guidance groove structure instead of the traditional single groove design, which greatly enhances anti-torque ability and ensures a longer service life than similar equipment.
| Model | C4 | C10 | C20 | C20Z | C20L | C32 | C32Z | C32L | C40 | C63 | C80 |
| Max upsetting force(KN) | 40 | 100 | 200 | 200 | 200 | 320 | 320 | 320 | 400 | 630 | 800 |
| Max rotate speed of Spindle(r/min) | 2500 | 2200 | 1800 | 450 | 1800 | 1450 | 380 | 1450 | 1450 | 1000 | 1000 |
Welding diameter
(solid MS rods in mm) | 6-16 | 8-25 | 10-40 | 12-35 | 12-40 | 14-50 | 16-45 | 16-50 | 25-60 | 35-75 | 40-86 |
Clamping length of rotating clamp
(mm) | 50-200 | 50-200 | 50-250 | 50-200 | 50-250 | 50-300 | 50-200 | 50-300 | 50-300 | 100-380 | 100-380 |
Clamping length of mobile clamp
(mm) | 50-420 | 50-420 | 50-700 | 50-180 | 50-limitless | 70-800 | 70-200 | 70-limitless | 70-900 | 250-1400 | 250-1400 |
Max stroke of workbench
(mm) | 200 | 200 | 310 | 310 | 310 | 320 | 320 | 320 | 320 | 400 | 400 |
Total power
(KW) | 15 | 15 | 28.5 | 28.5 | 28.5 | 40 | 40 | 47 | 72.5 | 112.75 | 112.75 |
Productivity
(pc/hour) | 100-250 | 100-220 | 100-200 | 100-220 | 100-150 | 100-150 | 100-120 | 50-100 | 20-80 | 20-60 | 20-60 |
Overall size
(LWH cm) | 220x195x125 | 220x195x125 | 300x280x145 | 300x280x145 | 300x280x145 | 340x280x150 | 340x280x150 | 340x280x150 | 340x280x220 | 550x280x220 | 550x280x220 |
| Weight(ton) | 3.2 | 3.5 | 5 | 4.8 | 5.5 | 6.5 | 6.2 | 6.8 | 6.8 | 16.5 | 17 |

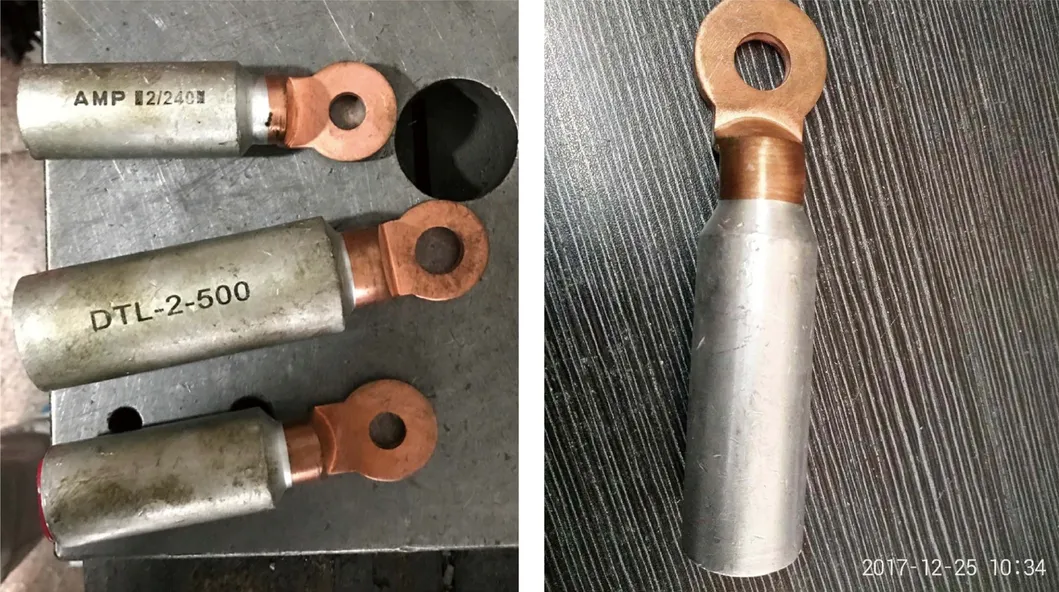

| Application | Small shaft parts and pipe parts etc. | Small shaft parts and pipe parts etc. | Medium shaft parts and pipe parts etc. | Special for Cu and Al | Long shaft parts and pipe parts etc. | Medium shaft parts and pipe parts etc. | Special for Cu and Al | Long shaft parts and pipe parts etc. | Shaft parts and pipe parts etc. | Shaft parts and pipe parts etc. | Shaft parts and pipe parts etc. |
