Friction welding is a method of press welding adopted by the Rotary Friction Welding Machine, which generates heat through workpiece rotation to bring joint ends into a thermoplastic state, followed by rapid upsetting to complete the welding process.
As a professional Friction Welding Machine, it mainly consists of host machine, hydraulic system, cooling system, electrical control system, parameter monitoring system and 2-axis CNC tool post (optional).
We provide 80-125ton drill rod friction welding equipment in this series, with flexible configuration options covering Automatic Welding Machine equipped with automatic loading and unloading functions and manually operated models to fully meet your diverse production needs.
1,Use 8 sets top quality Angular contact bearing.
2,The movable fixture is stuck the Tin bronze.
3,Piston rod guide sleeve we use non-oil bearings to guide.
4,Linear slide rail we use double guidance groove rail.

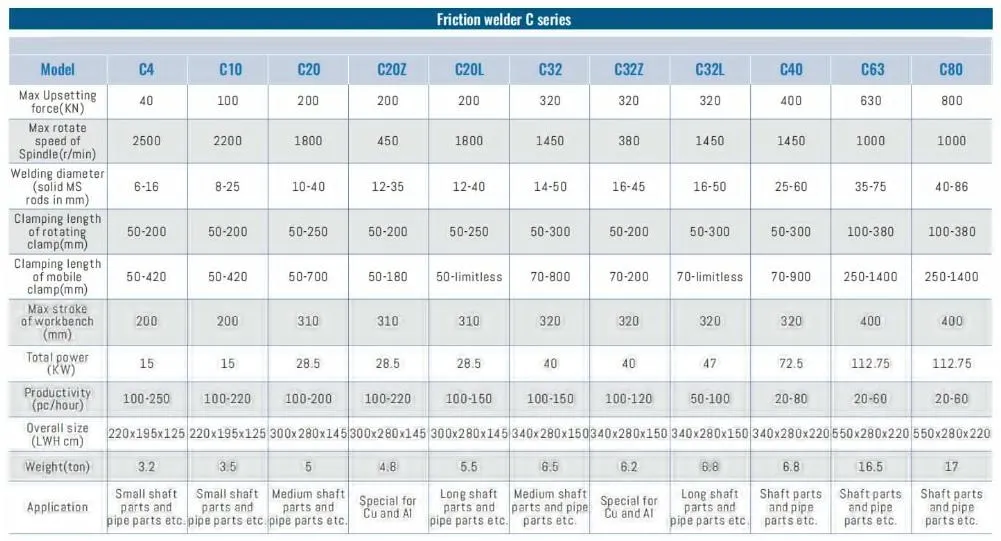

| Model | C80 |
| Max Upset force | 630KN/800KN |
| Highest RPM | 1000rpm |
| Welding diameter | Ф40-Ф85mm ( PipeФ114*18) |
| Clamping length of rotation fixture | 100-380mm |
| Clamping length of movement fixture | 750mm-limitless |
| Max stroke of worktable | 400mm |
| Pressure ratings | three(first friction+second friction+upset) |
| Time of first friction | 0-99s |
| Time of second friction | 0-99s |
| Upset time | 0-99s |
| Step speed of parts | 0-20Sec |
| Upset speed | 20-30Sec |
| Total power | 122.75KW |
| Overall size | L5500×W2800×H2200mm |
| Weight | 17Tons |
| Supply items | The friction welding machine includes Hydraulic system, welding system, controlling system, Operation Manuals and certificates of approval. |
| | |
| Bearings | NSK of Japan |
| PLC | Mitsubishi of Japan |
| Motor | Lichao Shanghai |
| Hydraulic system | Haimen from Beijing huade |
| Linear slid rail | Gao xin kai te from Guanzhou |
