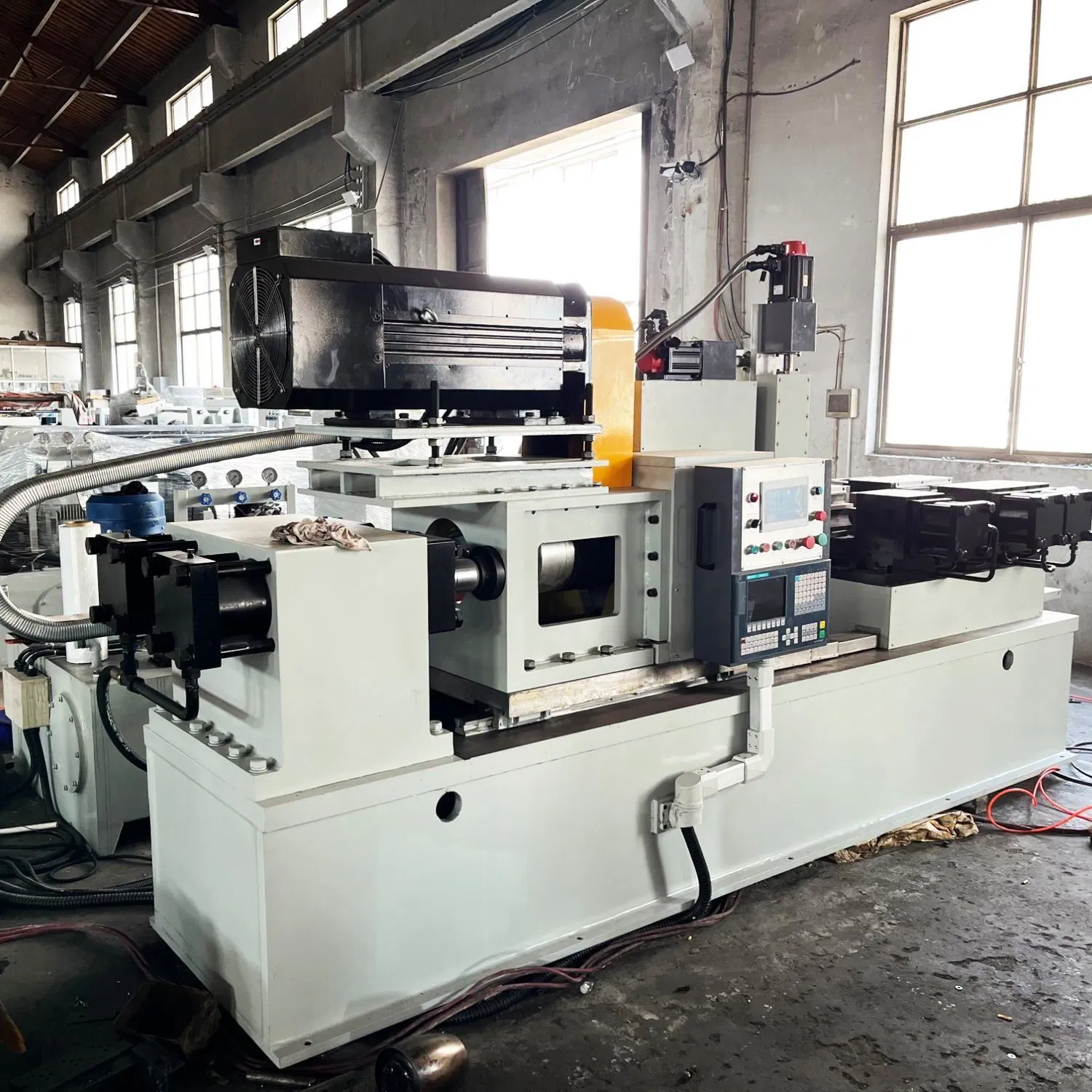

Name: Automatic Direct Drive Friction Welding Machine
Brand: Ningbo Xin Chang Machinery Co.,Ltd
Rating: 4.9 (41 reviews)

Automatic Direct Drive Friction Welding Machine

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Electric Current: Ac

Type: Friction Welding

Workpiece: Drill Rod

Clamp Force: Hydraulic

Current: Alternating Current

Application: Drill Rod, Drill Pipe

Transport Package: Drill Rod Welding Machine

Specification: drill rod welding machine

Trademark: xinchang

HS Code: 8515809090

Production Capacity: 20 Sets/ Month

Customization: Available

Cooling Way: Water Cooling

Control: Automatic

Shipping Cost: Contact the supplier about freight and estimated delivery time.

Supply Ability & Additional Information

Supply Ability: 20 Sets/ Month

Packaging & Delivery

Selling Units:

Piece/Pieces

Overview
Product Description
Product Parameters
Detailed Photos
Company Profile
FAQ

Basic Info.

Electric Current

Type

Friction Welding

Workpiece

Drill Rod

Clamp Force

Hydraulic

Current

Alternating Current

Application

Drill Rod, Drill Pipe

Transport Package

Drill Rod Welding Machine

Specification

drill rod welding machine

Trademark

xinchang

HS Code

8515809090

Production Capacity

20 Sets/ Month

Packaging & Delivery

Package Size

200.00cm * 160.00cm * 200.00cm

Package Gross Weight

1000.000kg

Product Description

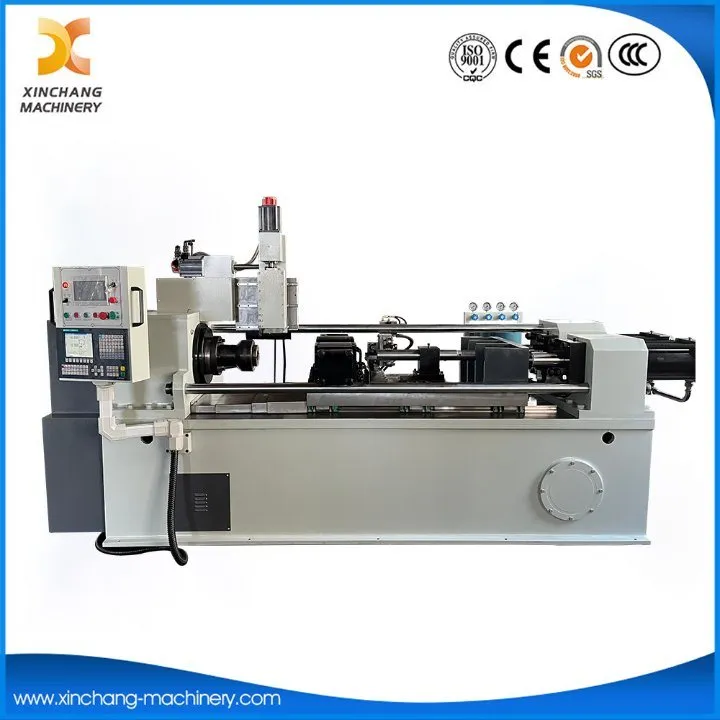

Automatic Direct Drive Welding Equipment Friction Welding Machine

The Friction welding is a method of press welding, using the heat which is from the roatation of workpiece to make the ends to be thermoplastic status, then quickly upset to finish welding. we are professional friction welding machine plant for years, are producing many different model machines from 10ton-125tons machines. Welcome your inquiry, we will provide you the details, also we make the automatic loading and unloading machine and manual operation machine, it is up to your needs.

Main advantages:
1. Use 8 sets top quality Angular contact bearing, it can bear bigger axial force, so lower failure rate and longer lifespan, NOT using plane bearings similar with Others.

2. The movable fixtures is stuck the Tin bronze, extremely enhance the wear-resisting, higher precision.

3. Piston rod guide sleeve often is cast iron, but we use non-oil bearings to guide, better

4. Linear slide rail is often single guidance groove, we use double guidance groove rail, extremely enhance anti-torque, so lifespan is higher than similar ones.

Model	Maximum upset force (kilonewton)	Maximum spindle speed (rpm)	Welding piece diameter (medium carbon steel) mm	Rotating fixture (clamping length) mm	Mobile fixture (clamping length) mm	Slip fit Maximum stroke mm	Total power (KW)	Productivity (piece/hour)	Overall dimensions	weight ton	Remarks
Z2.5	25	3000	4-14	50-200	50-420	200	12	100-320	22001951250	2.8	Small shaft and tube parts, etc
Z4	40	2500	6-16	50-200	50-420	200	15	100-250	22001951250	3.2	Small shaft and tube parts, etc
Z4Z	40	600	6-16	50-150	50-150	200	15	100-300	22001951250	3	Copper aluminum dedicated
Z10	100	2200	8-22	50-200	50-420	200	15	100-220	22001951250	3.5	Small shaft and tube parts, etc
Z15	150	2000	10-30	50-250	50-700	310	25	100-220	300028001450	4.5	Medium sized shaft and tube parts, etc
Z20	200	1800	10-30	50-250	50-700	310	28.5	100-200	300028001450	5	Medium sized shaft and tube parts, etc
Z20Z	200	450	12-40	50-200	50-180	310	28.5	100-200	300028001450	4.8	Copper aluminum dedicated
Z20L	200	1800	12-35	50-250	50-no limit	310	28.5	100-150	300028001450	5.5	Long shaft parts and tube parts, etc
Z25	250	1800	12-40	50-250	60-700	310	32	100-180	300028001450	5.5	Medium sized shaft and tube parts, etc
Z25Z	250	450	14-45	50-200	50-180	310	32	100-180	300028001450	5.3	Copper aluminum dedicated
Z25L	250	1800	14-40	50-250	60-no limit	310	32	100-120	300028001450	5.8	Long shaft parts and tube parts, etc
Z30	320	1450	14-45	50-300	70-800	320	40	100-150	340029001500	6.5	Medium sized shaft and tube parts, etc
Z30Z	320	380	16-50	50-200	70-200	320	40	100-120	340029001500	6.2	Copper aluminum dedicated
Z30L	320	1450	16-45	50-300	70-no limit	320	47	50-100	340029001500	6.8	Long shaft parts and tube parts, etc
Z30A	150	700	16-55	50-300	70-no limit	320	47	50-150	340029001500	6.5	Special for bearing shells
Z50A	500	1200	16-55	100-380	250-1400	400	92.75	20-80	550028002200	16.5	Welding of pipe and shaft parts
Z63A	630	1000	35-63	100-380	250-1400	400	112.75	20-60	550028002200	16.5	Welding of pipe and shaft parts
Z80A	800	1000	40-75	100-380	250-1400	400	112.75	20-60	550028002200	17	Welding of pipe and shaft parts

Automatic Direct Drive Welding Equipment Friction Welding Machine

We, Ningbo Xin Chang Machinery Co.,Ltd are a professional designer and manufacturer in friction welding machine, Resistance Welding Machine and Heat exchanger equipment. Our factory is in this line more than 20 years, we have more than 10 senior mechanical and electrical specialists and total more than 200 staff, our machine is famous in China. We have CCC, ISO9001 and CE certificates.

Over the years, we have exported so many machines to 30 and more countries, such as France,Spain,Poland,Russia,Indonesia,Vietnam,Pakistan,India,Mexico,Egypt etc.

Our main products are Heat exchanger equipment, Friction welding machine, Spot Welding Machine, Projection Welding Machine, Butt Welding Machine, Seam Welding Machine, Multi Head Welding Machine For Wire Mesh, and other various special welding machine for metal connection in different industries.

We always adhere to the management idea of "Integrity, profession, innovation, and win-win", to make Xin Chang becomes trustworthy enterprise of customers. Good product quality, perfect after-sales service, and professional technical support make customers choose no regrets and worry-free use.
