Name: High Efficiency Rotary Spin Drill Pipe Friction Welding Machine
Brand: Ningbo Xin Chang Machinery Co.,Ltd
Rating: 4.6 (1 reviews)

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Model NO.: Y120-C/Y120-D, Y150-C/Y150-D, etc

Electric Current: AC

Type: Friction Welding

Current: Alternating Current

Workpiece: Drill Rod

Clamp Force: Hydraulic

Application: Drill Rod, Drill Pipe

Transport Package: at Customer's Requrest

Specification: export standard

Trademark: xinchang

Origin: Ningbo China

HS Code: 8515809090

Production Capacity: 200 Sets /Month

Customization: Available

Cooling Way: Water Cooling

Control: Automatic

Shipping Cost: Contact the supplier about freight and estimated delivery time.

Supply Ability & Additional Information

Supply Ability: 200 Sets /Month

Packaging & Delivery

Selling Units:

Piece/Pieces

Overview
Product Description
Product Parameters
Detailed Photos
Company Profile
FAQ

Basic Info.

Model NO.

Y120-C/Y120-D, Y150-C/Y150-D, etc

Electric Current

Type

Friction Welding

Current

Alternating Current

Workpiece

Drill Rod

Clamp Force

Hydraulic

Application

Drill Rod, Drill Pipe

Transport Package

at Customer's Requrest

Specification

export standard

Trademark

xinchang

Origin

Ningbo China

HS Code

8515809090

Production Capacity

200 Sets /Month

Packaging & Delivery

Package Size

200.00cm * 160.00cm * 200.00cm

Package Gross Weight

1000.000kg

Product Description

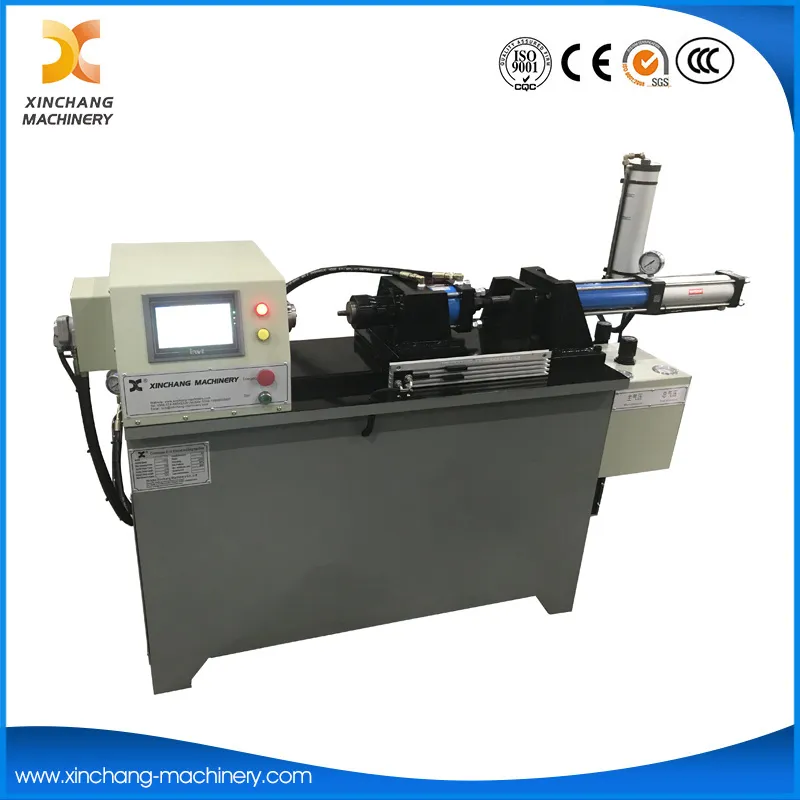

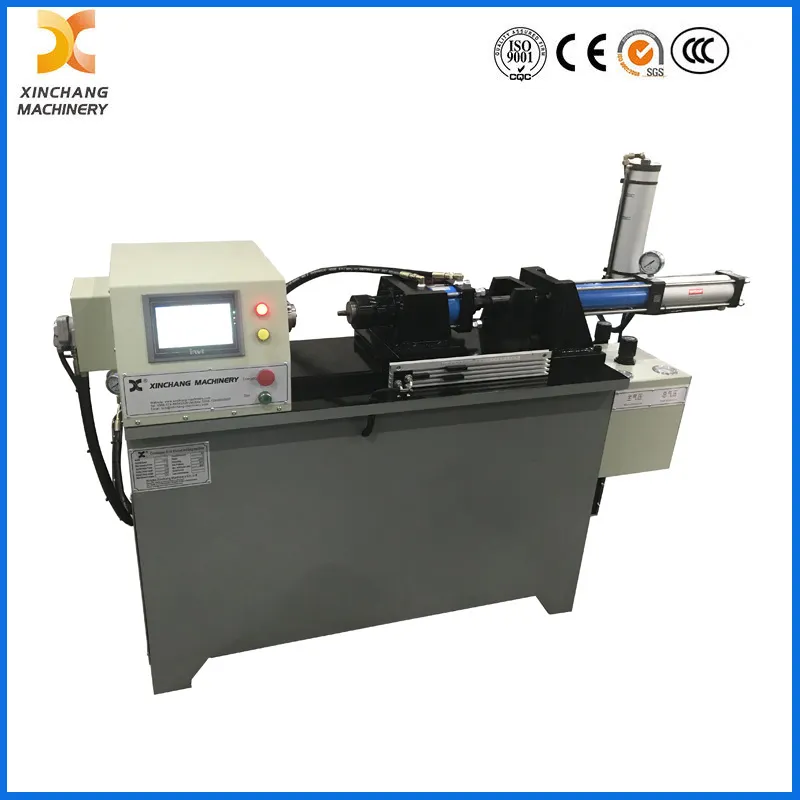

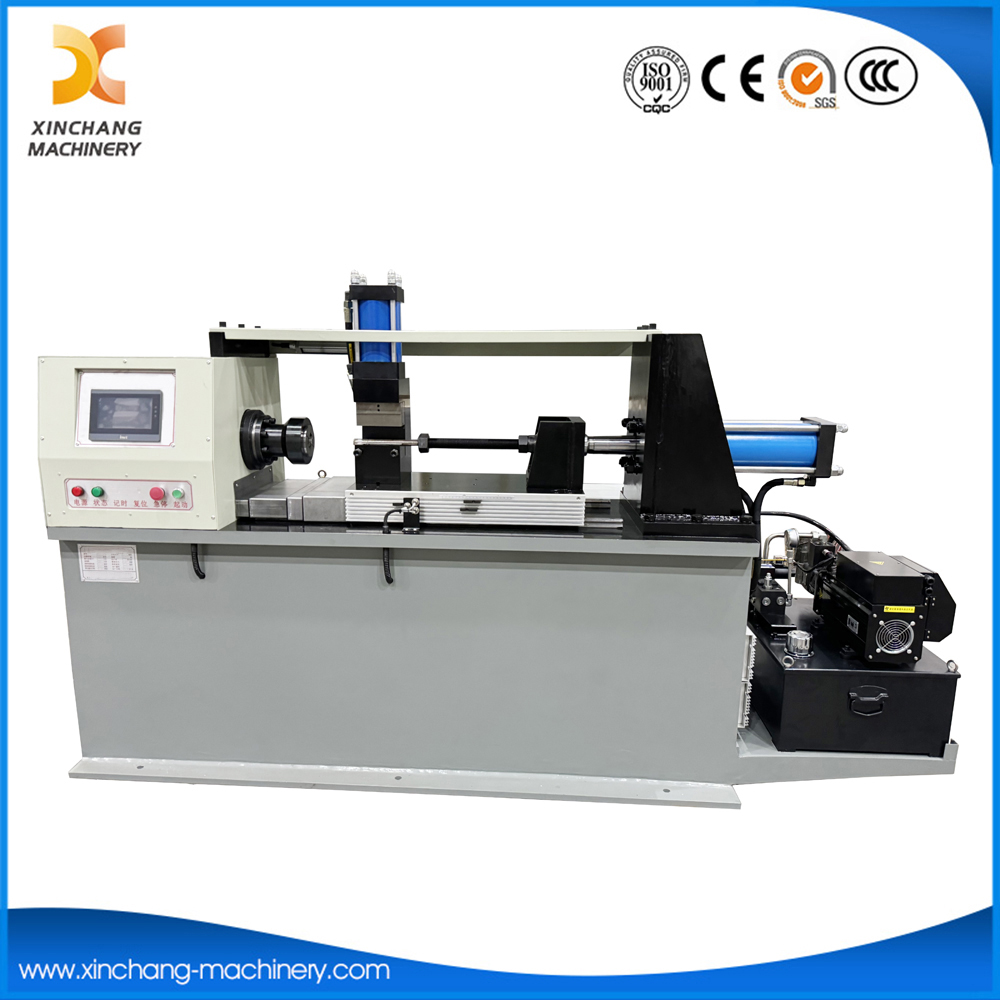

High Efficiency Rotary Spin Drill Pipe Friction Welding Weld Machine

The Friction welding is a method of press welding, using the heat which is from the roatation of workpiece to make the ends to be thermoplastic status, then quickly upset to finish welding.

According to different parts, we have different models, following is one of model data,

Technical Parameters of Y Series Friction Welding Machine
Y120-C			Y120-D
Product Name	Continuous-drive Friction Welding Machine	Unit	Product Name	Continuous-drive Friction Welding Machine	Unit
Model	Y120-C		Model	Y 120-D
Max. Upset Force	800	Kg	Max. Upset Force	800	Kg
Spindle Rotating Speed	2800	r/min	Spindle Rotating Speed	2800	r/min
Weldment Diameter	5--12	mm	Weldment Diameter	5--12	mm
Rotary Clamp Material Length	5-120	mm	Rotary Clamp Material Length	5-120	mm
Mobile Clamp Material Length	3-400	mm	Mobile Clamp Material Length	5-120	mm
Max Stroke of Sliding Table	125	mm	Max Stroke Of Sliding Table	125	mm
Spindle Motor Power	4-7.5	KW	Spindle Motor Power	4-7.5	KW
Max. Pressure	8	Kg	Max. Pressure	8	Kg
Productivity	200-400	Pcs/h	Productivity	200-400	Pcs/h
Weight	0.8	Ton	Weight	0.8	Ton
Main Unit Dimension	1300X550X1200	mm	Main Unit Dimension	1300X550X1200	mm
Y150-C			Y150-D
Product Name	Continuous-drive friction welding machine	Unit	Product Name	Continuous-drive friction welding machine	Unit
Model	Y150-C		Model	Y150-D
Max. Upset Force	8	Ton	Max. Upset Force	8	Ton
Spindle Rotating Speed	2500	r/min	Spindle Rotating Speed	2500	r/min
Weldment Diameter	8--20	mm	Weldment Diameter	8--20	mm
Rotary Clamp Material Length	3-200	mm	Rotary Clamp Material Length	3-200	mm
Mobile Clamp Material Length	5-500	mm	Mobile Clamp Material Length	3-200	mm
Max Stroke Of Sliding Table	200	mm	Max Stroke of Sliding Table	200	mm
Spindle Motor Power	7.5-11	KW	Spindle Motor Power	7.5-11	KW
Max. Pressure	8	Kg	Max. Pressure	8	Kg
Productivity	300	Pcs/h	Productivity	300	Pcs/h
Weight	1.5	Ton	Weight	1.5	Ton
Main Unit Dimension	2000X650X1200	mm	Main Unit Dimension	2000X650X1200	mm

Model	Maximum upset force (kilonewton)	Maximum spindle speed (rpm)	Welding piece diameter (medium carbon steel) mm	Rotating fixture (clamping length) mm	Mobile fixture (clamping length) mm	Slip fit Maximum stroke mm	Total power (KW)	Productivity (piece/hour)	Overall dimensions	weight ton	Remarks
Z2.5	25	3000	4-14	50-200	50-420	200	12	100-320	22001951250	2.8	Small shaft and tube parts, etc
Z4	40	2500	6-16	50-200	50-420	200	15	100-250	22001951250	3.2	Small shaft and tube parts, etc
Z4Z	40	600	6-16	50-150	50-150	200	15	100-300	22001951250	3	Copper aluminum dedicated
Z10	100	2200	8-22	50-200	50-420	200	15	100-220	22001951250	3.5	Small shaft and tube parts, etc
Z15	150	2000	10-30	50-250	50-700	310	25	100-220	300028001450	4.5	Medium sized shaft and tube parts, etc
Z20	200	1800	10-30	50-250	50-700	310	28.5	100-200	300028001450	5	Medium sized shaft and tube parts, etc
Z20Z	200	450	12-40	50-200	50-180	310	28.5	100-200	300028001450	4.8	Copper aluminum dedicated
Z20L	200	1800	12-35	50-250	50-no limit	310	28.5	100-150	300028001450	5.5	Long shaft parts and tube parts, etc
Z25	250	1800	12-40	50-250	60-700	310	32	100-180	300028001450	5.5	Medium sized shaft and tube parts, etc
Z25Z	250	450	14-45	50-200	50-180	310	32	100-180	300028001450	5.3	Copper aluminum dedicated
Z25L	250	1800	14-40	50-250	60-no limit	310	32	100-120	300028001450	5.8	Long shaft parts and tube parts, etc
Z30	320	1450	14-45	50-300	70-800	320	40	100-150	340029001500	6.5	Medium sized shaft and tube parts, etc
Z30Z	320	380	16-50	50-200	70-200	320	40	100-120	340029001500	6.2	Copper aluminum dedicated
Z30L	320	1450	16-45	50-300	70-no limit	320	47	50-100	340029001500	6.8	Long shaft parts and tube parts, etc
Z30A	150	700	16-55	50-300	70-no limit	320	47	50-150	340029001500	6.5	Special for bearing shells
Z50A	500	1200	16-55	100-380	250-1400	400	92.75	20-80	550028002200	16.5	Welding of pipe and shaft parts
Z63A	630	1000	35-63	100-380	250-1400	400	112.75	20-60	550028002200	16.5	Welding of pipe and shaft parts
Z80A	800	1000	40-75	100-380	250-1400	400	112.75	20-60	550028002200	17	Welding of pipe and shaft parts

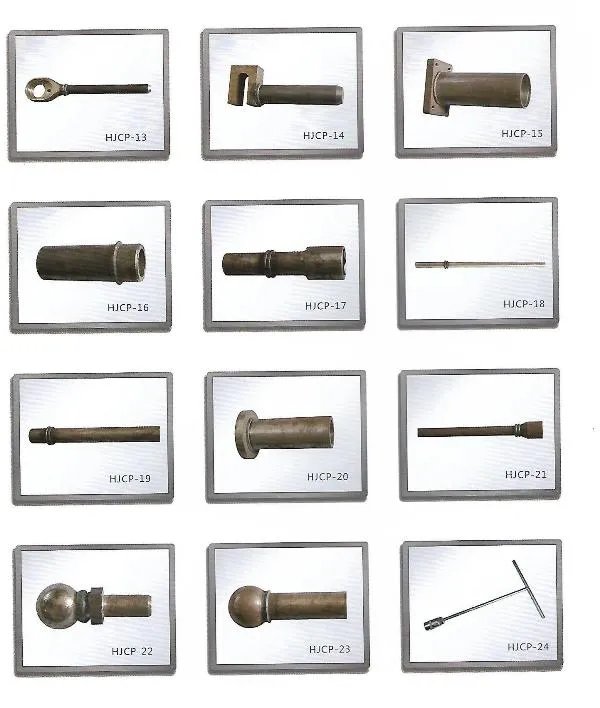

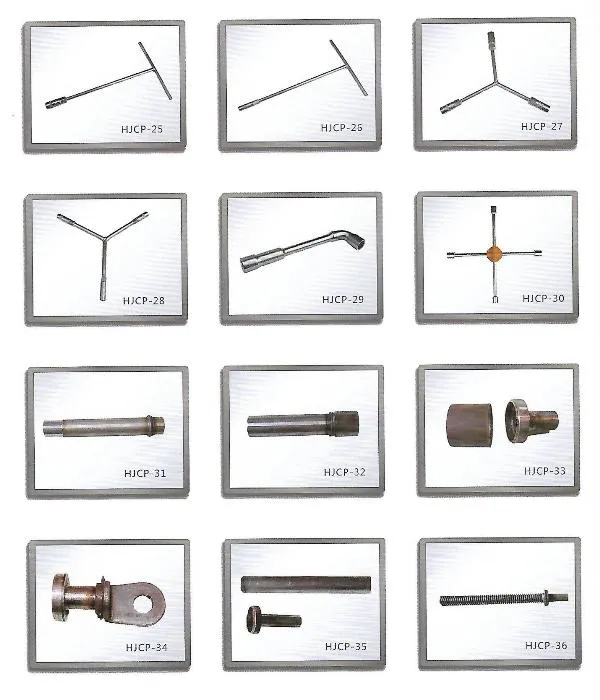

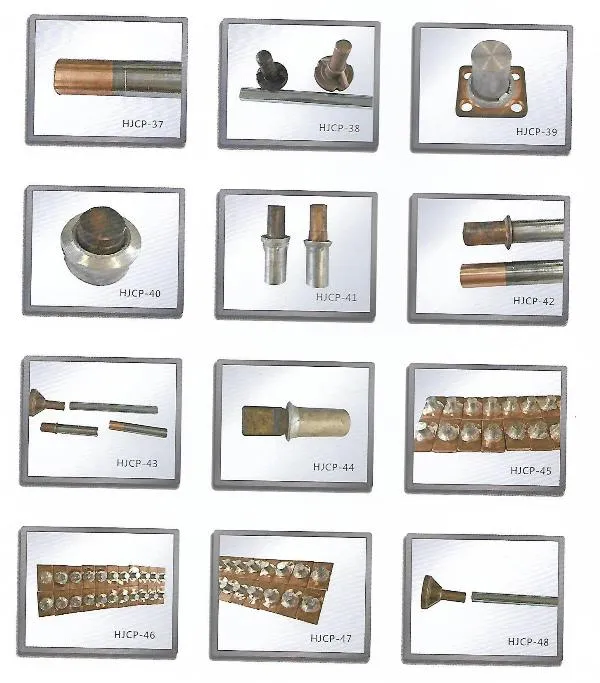

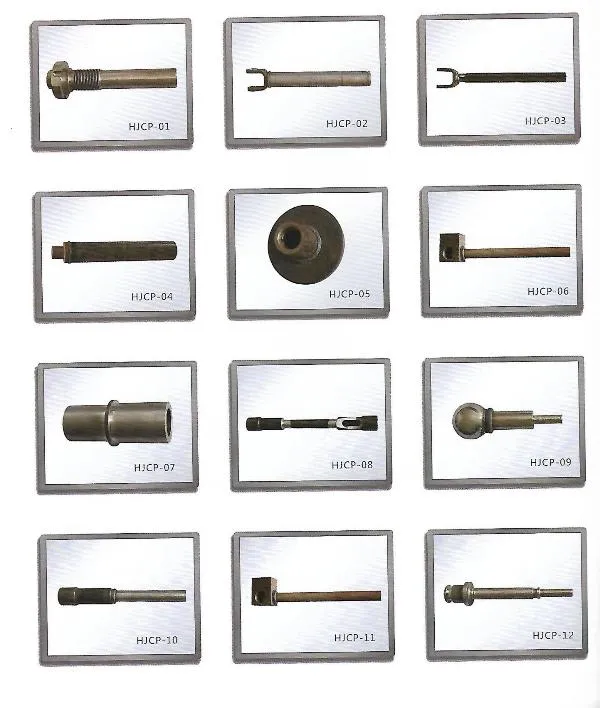

High Efficiency Rotary Spin Drill Pipe Friction Welding Weld Machine

We, Ningbo Xin Chang Machinery Co.,Ltd are a professional designer and manufacturer in friction welding machine, Resistance Welding Machine and Heat exchanger equipment. Our factory is in this line more than 20 years, we have more than 10 senior mechanical and electrical specialists and total more than 200 staff, our machine is famous in China. We have CCC, ISO9001 and CE certificates.

Over the years, we have exported so many machines to 30 and more countries, such as France,Spain,Poland,Russia,Indonesia,Vietnam,Pakistan,India,Mexico,Egypt etc.

Our main products are Heat exchanger equipment, Friction welding machine, Spot Welding Machine, Projection Welding Machine, Butt Welding Machine, Seam Welding Machine, Multi Head Welding Machine For Wire Mesh, and other various special welding machine for metal connection in different industries.

We always adhere to the management idea of "Integrity, profession, innovation, and win-win", to make Xin Chang becomes trustworthy enterprise of customers. Good product quality, perfect after-sales service, and professional technical support make customers choose no regrets and worry-free use.
High Efficiency Rotary Spin Drill Pipe Friction Welding Weld Machine
