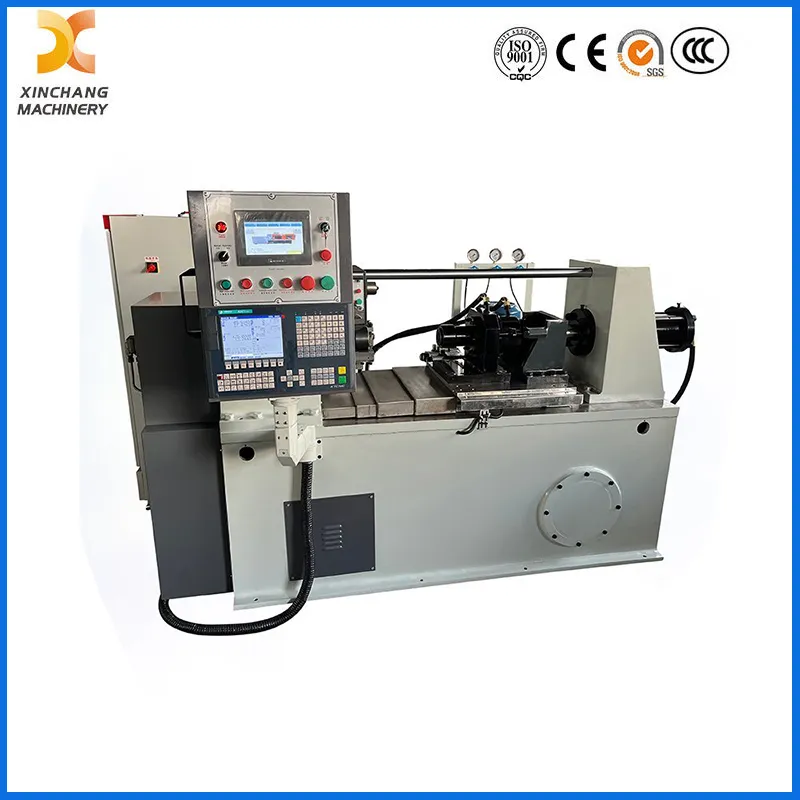

Name: Direct Drive Automatic Cable Lug Friction Welding Machine
Brand: Ningbo Xin Chang Machinery Co.,Ltd
Rating: 4.6 (7 reviews)

Direct Drive Automatic Cable Lug Friction Welding Machine

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Electric Current: Ac

Type: Friction Welding

Max Rpm: 2500rpm

Clamp Force: Hydraulic

Machine Name: Friction Welding Machine

Max Upset Force: 200kn

Transport Package: Friction Welding Machine

Specification: Friction Welding Machine

Trademark: xinchang

Origin: Ningbo China

HS Code: 8515809090

Production Capacity: 20 Sets/ Month

Customization: Available

Cooling Way: Water Cooling

Control: Automatic

Supply Ability & Additional Information

Supply Ability: 20 Sets/ Month

Packaging & Delivery

Selling Units:

Piece/Pieces

Overview
Product Description
Product Parameters
Detailed Photos
Company Profile
FAQ

Basic Info.

Electric Current

Type

Friction Welding

Max Rpm

2500rpm

Clamp Force

Hydraulic

Machine Name

Friction Welding Machine

Max Upset Force

200kn

Transport Package

Friction Welding Machine

Specification

friction welding machine

Trademark

xinchang

Origin

Ningbo China

HS Code

8515809090

Production Capacity

20 Sets/ Month

Product Description

Direct Drive Automatic Cable Lug Friction Welding Machine

The Friction welding is a method of press welding, using the heat which is from the roatation of workpiece to make the ends to be thermoplastic status, then quickly upset to finish welding. we are professional friction welding machine plant for years, are producing many different model machines from 10ton-125tons machines. Welcome your inquiry, we will provide you the details, also we make the automatic loading and unloading machine and manual operation machine, it is up to your needs.

Main advantages:
1. Use 8 sets top quality Angular contact bearing, it can bear bigger axial force, so lower failure rate and longer lifespan, NOT using plane bearings similar with Others.

2. The movable fixtures is stuck the Tin bronze, extremely enhance the wear-resisting, higher precision.

3. Piston rod guide sleeve often is cast iron, but we use non-oil bearings to guide, better

4. Linear slide rail is often single guidance groove, we use double guidance groove rail, extremely enhance anti-torque, so lifespan is higher than similar ones.

Model	C4	C10	C20	C20Z	C20L	C32	C32Z	C32L	C40	C63	C80
Max upsetting force(KN)	40	100	200	200	200	320	320	320	400	630	800
Max rotate speed of Spindle(r/min)	2500	2200	1800	450	1800	1450	380	1450	1450	1000	1000
Welding diameter (solid MS rods in mm)	6-16	8-25	10-40	12-35	12-40	14-50	16-45	16-50	25-60	35-75	40-86
Clamping length of rotating clamp (mm)	50-200	50-200	50-250	50-200	50-250	50-300	50-200	50-300	50-300	100-380	100-380
Clamping length of mobile clamp (mm)	50-420	50-420	50-700	50-180	50-limitless	70-800	70-200	70-limitless	70-900	250-1400	250-1400
Max stroke of workbench (mm)	200	200	310	310	310	320	320	320	320	400	400
Total power (KW)	15	15	28.5	28.5	28.5	40	40	47	72.5	112.75	112.75
Productivity (pc/hour)	100-250	100-220	100-200	100-220	100-150	100-150	100-120	50-100	20-80	20-60	20-60
Overall size (LWH cm)	220x195x125	220x195x125	300x280x145	300x280x145	300x280x145	340x280x150	340x280x150	340x280x150	340x280x220	550x280x220	550x280x220
Weight(ton)	3.2	3.5	5	4.8	5.5	6.5	6.2	6.8	6.8	16.5	17
Application	Small shaft parts and pipe parts etc.	Small shaft parts and pipe parts etc.	Medium shaft parts and pipe parts etc.	Special for Cu and Al	Long shaft parts and pipe parts etc.	Medium shaft parts and pipe parts etc.	Special for Cu and Al	Long shaft parts and pipe parts etc.	Shaft parts and pipe parts etc.	Shaft parts and pipe parts etc.	Shaft parts and pipe parts etc.

Direct Drive Automatic Cable Lug Friction Welding Machine

We, Ningbo Xin Chang Machinery Co.,Ltd are a professional designer and manufacturer in friction welding machine, Resistance Welding Machine and Heat exchanger equipment. Our factory is in this line more than 20 years, we have more than 10 senior mechanical and electrical specialists and total more than 200 staff, our machine is famous in China. We have CCC, ISO9001 and CE certificates.

Over the years, we have exported so many machines to 30 and more countries, such as France,Spain,Poland,Russia,Indonesia,Vietnam,Pakistan,India,Mexico,Egypt etc.

Our main products are Heat exchanger equipment, Friction welding machine, Spot Welding Machine, Projection Welding Machine, Butt Welding Machine, Seam Welding Machine, Multi Head Welding Machine For Wire Mesh, and other various special welding machine for metal connection in different industries.

We always adhere to the management idea of "Integrity, profession, innovation, and win-win", to make Xin Chang becomes trustworthy enterprise of customers. Good product quality, perfect after-sales service, and professional technical support make customers choose no regrets and worry-free use.
Direct Drive Automatic Cable Lug Friction Welding Machine
