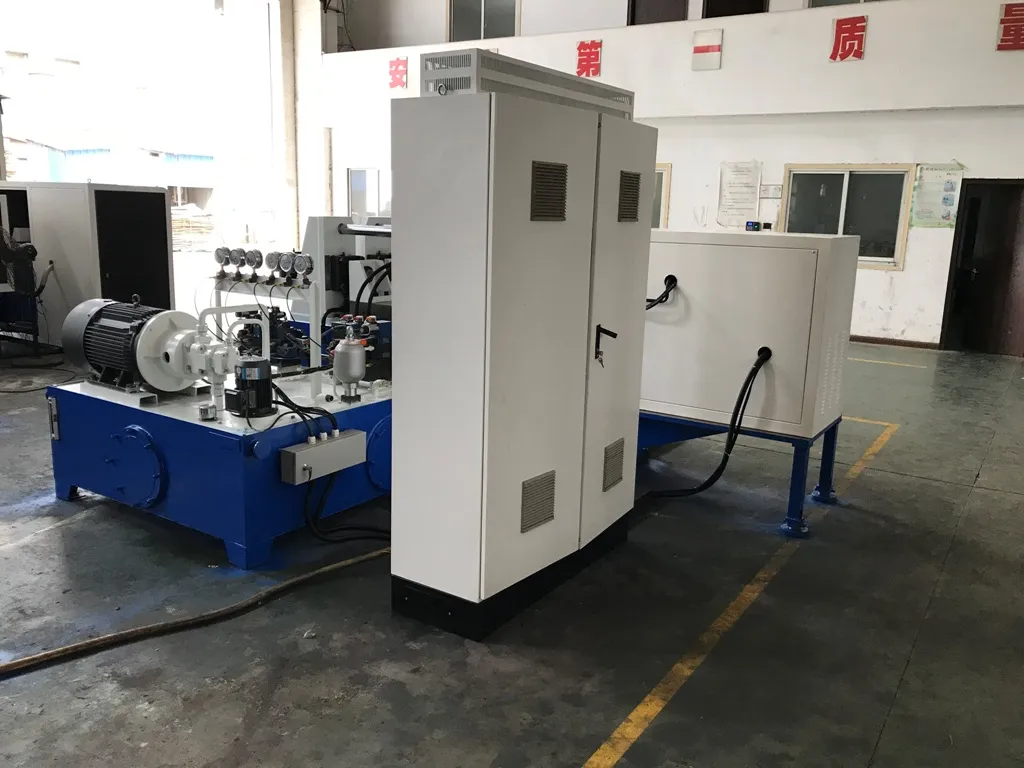

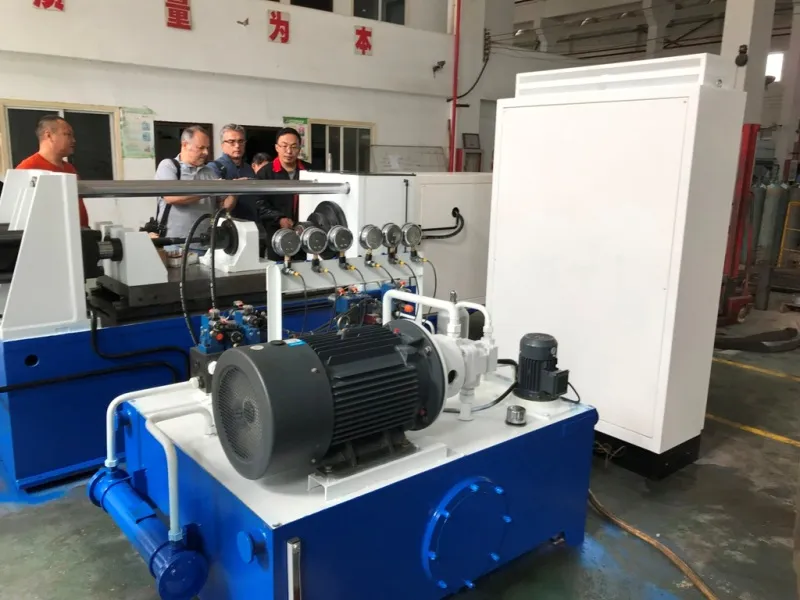

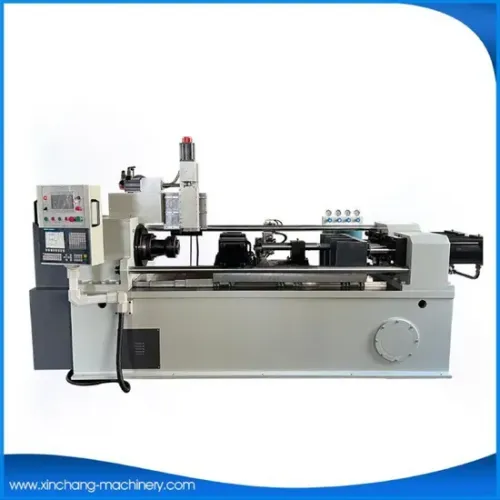

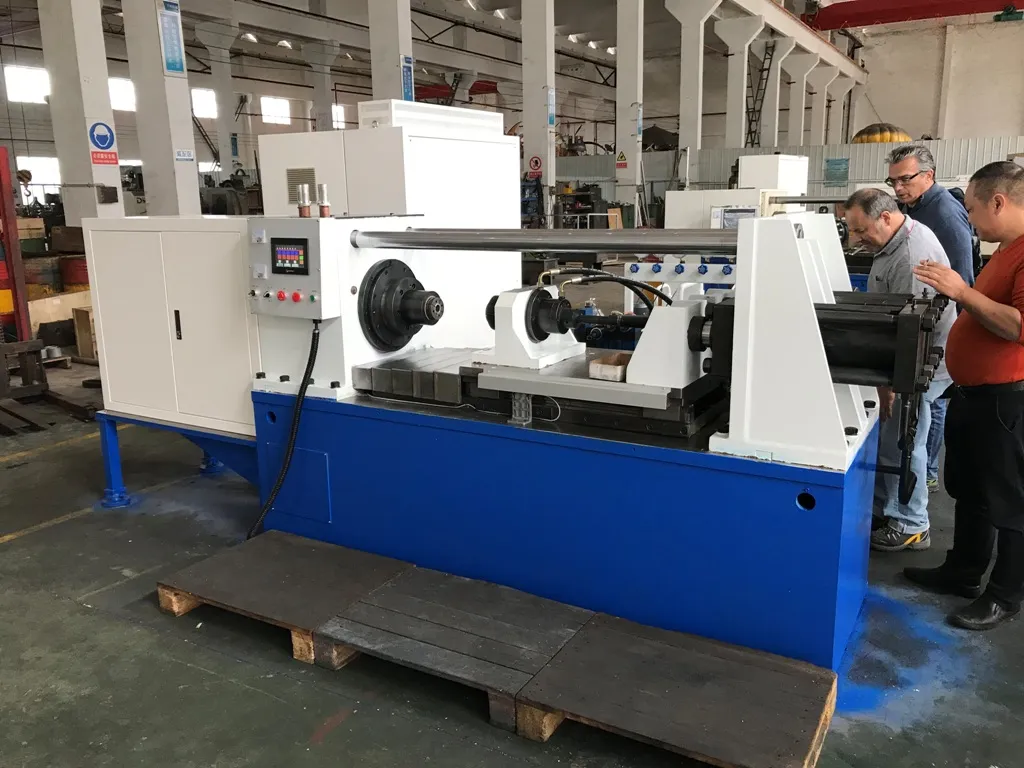

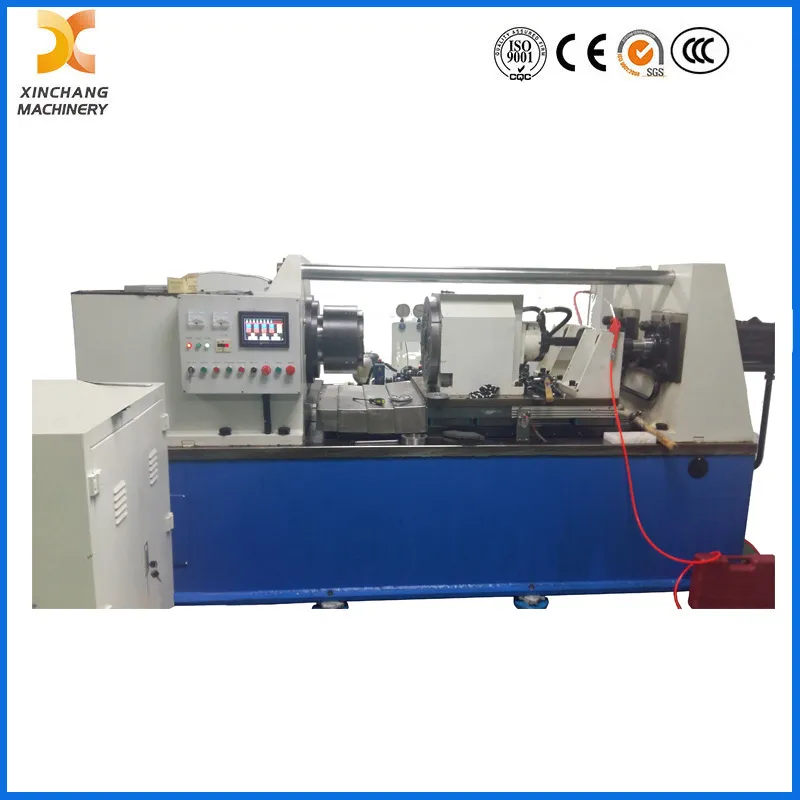

Transmission Shaft Rotary Friction Welder for Drill Pipe
The Friction welding is a method of press welding, and the Rotary Friction Welding Machine relies on workpiece rotation to generate friction heat, making the welding ends reach a thermoplastic status, then quickly upset to finish welding. We are a professional manufacturer dedicated to the production of premium Friction Welding Machine for years, offering a complete range of models with load capacity from 4 ton to 360 tons. Welcome your inquiry, we will provide you with detailed product information. Meanwhile, we customize flexible production solutions, covering intelligent Automatic Welding Machine and cost-effective manual operation models, fully tailored to your actual production needs.
Main advantages:
1.Use 8 sets top quality Angular contact bearing, it can bear bigger axial force, so lower failure rate and longer lifespan, NOT using plane bearings similar with Others. 2.The movable fixtures is stuck the Tin bronze, extremely enhance the wear-resisting, higher precision.
3.Piston rod guide sleeve often is cast iron, but we use non-oil bearings to guide, better operating stability.
4.Linear slide rail is often single guidance groove, we use double guidance groove rail, extremely enhance anti-torque, so lifespan is higher than similar ones.
| Model | C4 | C10 | C20 | C20Z | C20L | C32 | C32Z | C32L | C40 | C63 | C80 |
| Max upsetting force(KN) | 40 | 100 | 200 | 200 | 200 | 320 | 320 | 320 | 400 | 630 | 800 |
| Max rotate speed of Spindle(r/min) | 2500 | 2200 | 1800 | 450 | 1800 | 1450 | 380 | 1450 | 1450 | 1000 | 1000 |
Welding diameter
(solid MS rods in mm) | 6-16 | 8-25 | 10-40 | 12-35 | 12-40 | 14-50 | 16-45 | 16-50 | 25-60 | 35-75 | 40-86 |
Clamping length of rotating clamp
(mm) | 50-200 | 50-200 | 50-250 | 50-200 | 50-250 | 50-300 | 50-200 | 50-300 | 50-300 | 100-380 | 100-380 |
Clamping length of mobile clamp
(mm) | 50-420 | 50-420 | 50-700 | 50-180 | 50-limitless | 70-800 | 70-200 | 70-limitless | 70-900 | 250-1400 | 250-1400 |
Max stroke of workbench
(mm) | 200 | 200 | 310 | 310 | 310 | 320 | 320 | 320 | 320 | 400 | 400 |
Total power
(KW) | 15 | 15 | 28.5 | 28.5 | 28.5 | 40 | 40 | 47 | 72.5 | 112.75 | 112.75 |
Productivity
(pc/hour) | 100-250 | 100-220 | 100-200 | 100-220 | 100-150 | 100-150 | 100-120 | 50-100 | 20-80 | 20-60 | 20-60 |
Overall size
(LWH cm) | 220x195x125 | 220x195x125 | 300x280x145 | 300x280x145 | 300x280x145 | 340x280x150 | 340x280x150 | 340x280x150 | 340x280x220 | 550x280x220 | 550x280x220 |
| Weight(ton) | 3.2 | 3.5 | 5 | 4.8 | 5.5 | 6.5 | 6.2 | 6.8 | 6.8 | 16.5 | 17 |

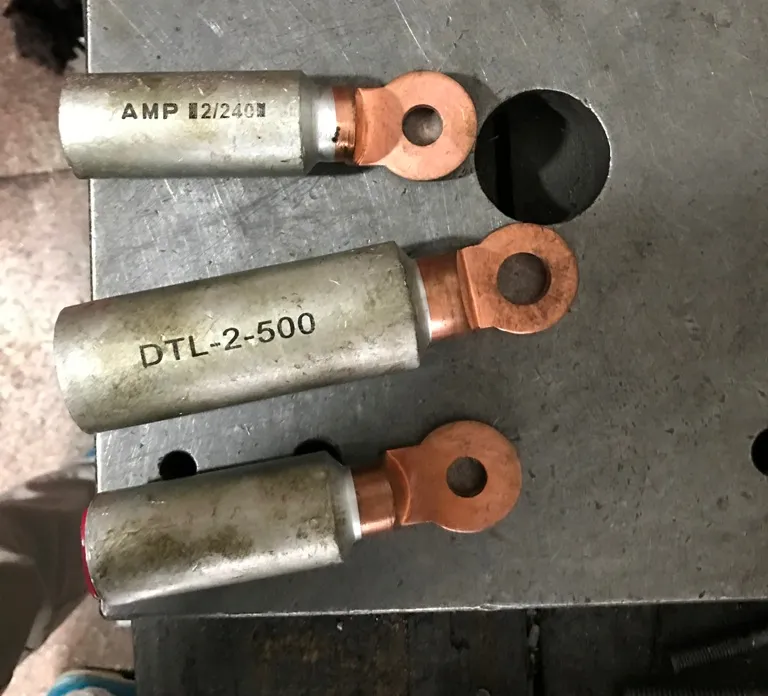

| Application | Small shaft parts and pipe parts etc. | Small shaft parts and pipe parts etc. | Medium shaft parts and pipe parts etc. | Special for Cu and Al | Long shaft parts and pipe parts etc. | Medium shaft parts and pipe parts etc. | Special for Cu and Al | Long shaft parts and pipe parts etc. | Shaft parts and pipe parts etc. | Shaft parts and pipe parts etc. | Shaft parts and pipe parts etc. |
