Multi Head Resistance Spot Welding Machine



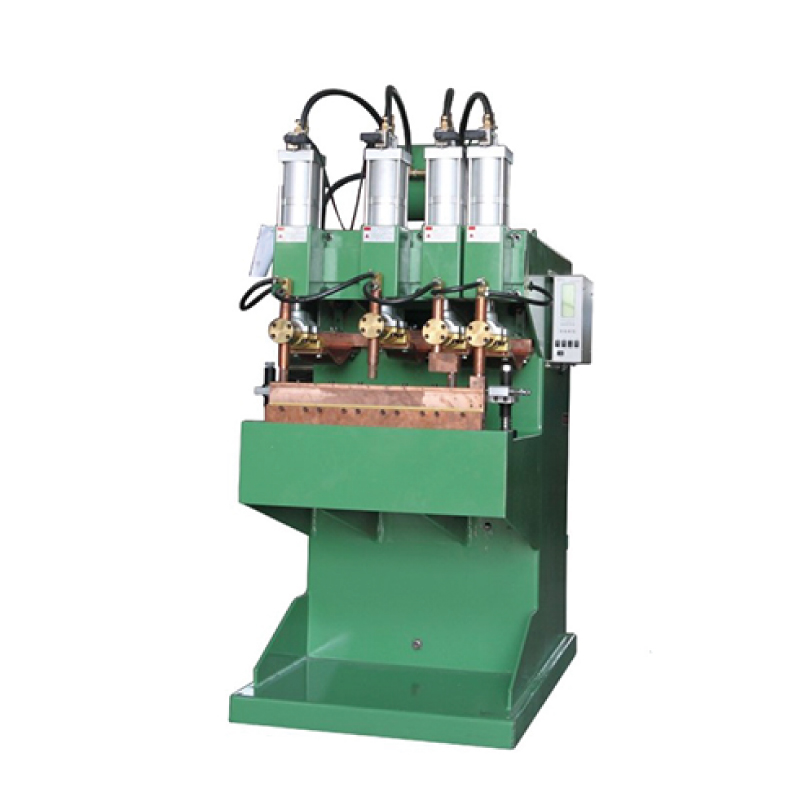

Container Bracket Automatic Spot Welding Machine

Advantage:

This Spot Welding Machine features a machine body built with thick steel sheet, which resists deformation effectively.

It adopts microcomputer control to deliver reliable precision and stable operation.

Equipped with a water cooling transformer assembled from silicon sheets with 15000 gauss permeability, this CNC Resistance Welding Machine applies a full copper alloy core with internal circulating cooling water. The design cuts down impedance and boosts power utilization. With a 20% duty cycle, it fully meets demands for long-duration welding and high power output, while boasting longer service life, lower operating noise and a more compact, rational structure.

Fitted with a high-speed solenoid valve, the equipment accelerates welding speed and lifts overall productivity, effectively lowering production costs.

The cylinder is made of high-precision, wear-resistant duralumin material. It stays rust-free with minimized friction and noise, and achieves quicker actuation, which greatly reduces weld spatter.

Relying on consistent performance and a low failure rate, this Automatic Spot Welder maintains stable running quality and extends the overall service life of the equipment.

Model Unit Item		DTN-25	DTN-40	DTN- 80-1	DTN-100-1	DTN-150-1	DTN-200-1	DTN- 80-2	DTN-100-2	DTN-150-2	DTN- 200-2
Rated capacity	KVA	25	40	80	100	150	200	80	100	150	200
Primary volts.	V	380	380	380	380	380	380	380	380	380	380
Frequency	HZ	50	50	50	50	50	50	50	50	50	50
Max short circuit current	KA	15	18	28	33	38	43	28	33	38	43
Duty cycle	%	20	20	20	20	20	20	20	20	20	20
Max pressure	N	3000	3000	6000	6000	12000	12000	7900	7900	12000	12000
Operational stroke	MM	30	30	30	30	30	30	30	30	30	30
Electrode Stroke	MM	70	70	70	70	70	70	70	70	70	70
Arm length and distance	MM	350*220	350*220	350*250	350*250	350*270	350*270	400*300	400*300	400*300	400*300
Cooling water flux	L/min	3	3	4	4	6	6	4	4	6	6
Max weld capacity(steel)	MM	2+2	3+3	4+4	5+5	6+6	6+6	4+4	5+5	6+6	6+6
