T Spanner Welding Machine

In the production process of T-wrenches, the Welding quality directly determines the strength and durability of the wrenches. The T-Spanner Welding Machine, with its unique performance designed specifically for the structure of T-wrenches, has become the professional choice in this field. ​

Compared with the Friction Welding Machine that relies on frictional heat generation to complete Welding, the T-Spanner welding Machine can control the temperature and pressure in the welding area more precisely when handling the connection between the crossbar and the vertical bar of the T-wrench. To avoid component deformation or strength loss that may be caused by friction welding, ensure that the force-bearing points of the T-wrench are firmly welded and can withstand repeated use. Although the Spot Welding Machine can achieve local point Welding, for structures like T-wrenches that require a stable connection as a whole, the welding process of the T-Spanner welding Machine can better ensure the integrity and strength of the connection, allowing the crossbar and the vertical bar to form a solid whole. ​

Unlike the Butt Welding Machine, which is mainly used for material butt Welding, the T-Spanner welding Machine focuses on the cross-connection of T-shaped structures. Through an optimized welding path, it ensures uniform weld seams and balanced force distribution at the connection points of the crossbars and vertical bars, avoiding excessive local stress. Compared with the continuous sealed weld Seam that the Seam Welding Machine focuses on, the T-Spanner Welding Machine pays more attention to the structural strength of the weld to ensure that there will be no fracture or loosening at the welding point when the T-wrench is tightening or loosening the bolt. ​

When it comes to the high precision demonstrated by the Laser Welding Machine for Steel Ring in the Welding of steel rings, the T-Spanner welding Machine is no less accurate in the welding of T-wrenches. It can precisely align the connection point between the horizontal bar and the vertical bar, ensuring that the weld seam is fine and smooth. This not only does not affect the appearance of the wrench but also enhances its user feel. The Stud Welding Machine is mainly used for the connection between studs and workpieces. Its application scenarios are different from those of the T-Spanner Welding Machine. However, both have their own specialties in the field of tool manufacturing and jointly provide support for the high-quality production of various tools. ​

Choosing the T-Spanner Welding Machine can make the welding work of T-wrenches more efficient and reliable, providing a solid guarantee for the high-quality production of T-wrenches and enabling them to play an outstanding role in mechanical maintenance, industrial installation and other scenarios. ​

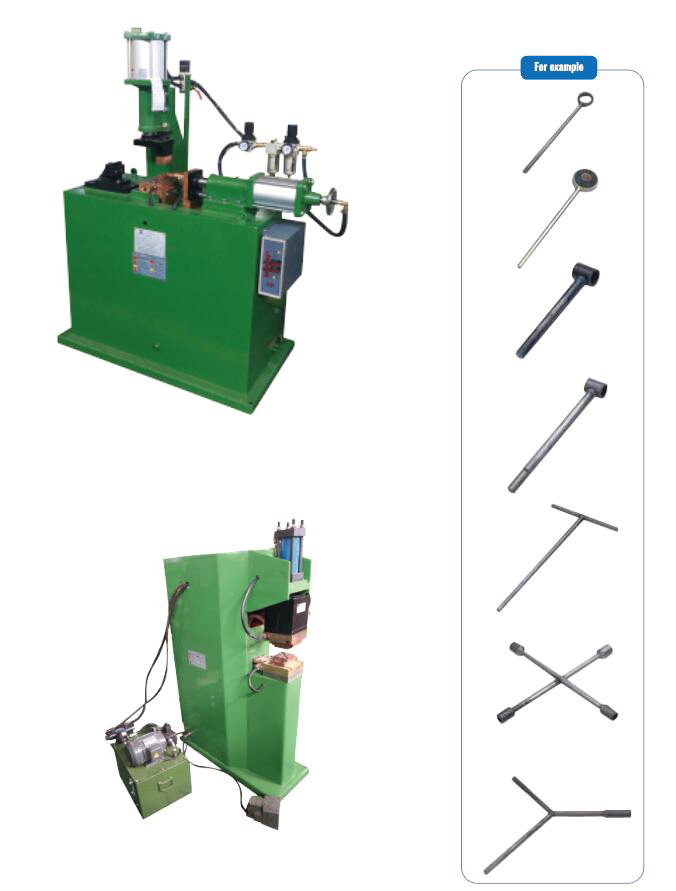

1, This series contain sleeve butt welders, T type butt welders and cross hydraulic type butt welders. It be widely used in "X" "Y" "Cross" type spanner butt welders.
2, fast welding speed, saving electricity.
3, It can replace argon arc welding and CO2 welding, very suitable for batch production.
4, Adopt the air-powered vertical pressure or air-powered lever pressure system, work piece clamp steady which make welding tie-in nice, steady, less dregs.
5, Novel structure, special design, good rigidity. Adopt the high definition guidance institution, high staying quality, high speed welding, pressure steady.
6, Microcomputer constant pressure control system, twice section discharge, multi- group memory programs, precise control of the welding time and welding current, easy to adjust. Can control clamping, welding, upset, off in welding process.
7, High conduction magnetism silicon sheet steel, secondary whole structure, output current is high, energy-saving and protection environmental.
8, Water cooling transformer, water cooling controlled silicon, and water cooling electrode head what can improve the use life of equipment.
9, It is used to high quality welding wide range of wire type, plate type, heteromorphosis type copper\aluminum\iron\stainless steel metal etc.



Model                           Unit     Item		UN-25-1	UN-40-1	UN-40-2	UN-80-2
Rated capacity	KVA	25	40	40	80
Primary voltage	V	380	380	380	380
Rated frequency	HZ	50	50	50	50
Max short circuit current	KA	19	22	22	30
Duty cycle	%	50	50	50	50
Max pressing force	N	3900	3900	3900	3900
Max upset force	N	1500	1500	1500	1500
Forge stroke	MM	10	10	10	10
Upset stroke	MM	25	25	25	25
Cooling water flux	L/Min	4	4	4	5
Weight	Kg	200	230	250	300
