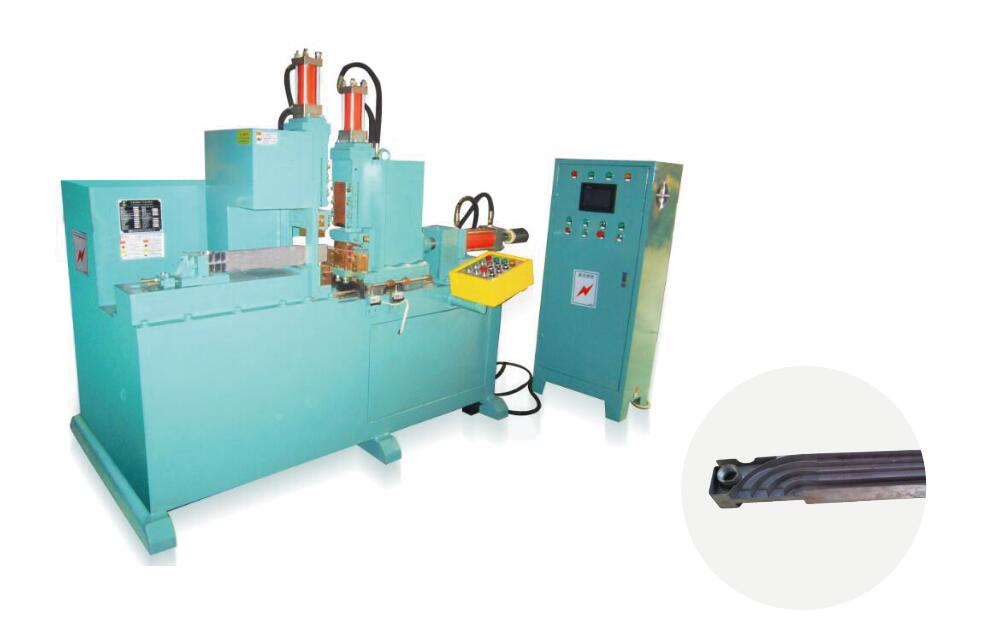

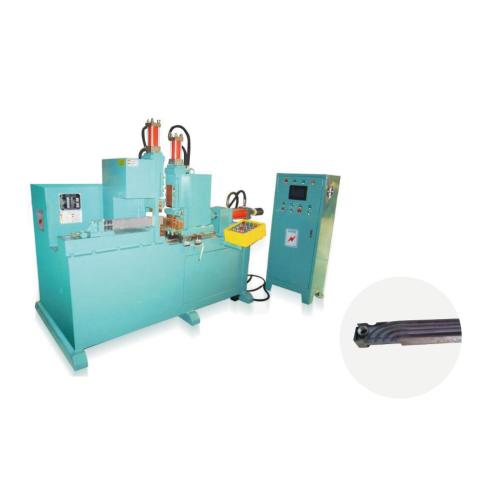

Radiator Fin Flash Butt Welding Machine: The efficient core for welding radiator finsIn the production and manufacturing of heat sinks, the welding quality of the heat sinks directly affects the heat dissipation efficiency and the service life of the equipment. The Radiator Fin Flash
Butt Welding Machine, with its unique flash butt welding process, has become a key device for achieving efficient and high-intensity welding of heat sinks. Meanwhile, it can work in coordination with various professional welding machines to fully meet the welding requirements of different components of the heat sink. Provide a solid guarantee for the stable operation of the heat dissipation system.
When dealing with the connection between the Radiator Fin and the metal conduit in the radiator, the Radiator Fin Flash Butt Welding Machine and the
Friction Welding Machine work in perfect harmony. The friction welding machine uses frictional heat generation to achieve solid-state connection between the conduit and the base of the heat sink, ensuring the sealing and heat conduction efficiency of the connection area. Meanwhile, the flash butt welding machine for heat sinks performs secondary reinforcement welding on the connection area. Through the high-temperature fusion effect of flash butt welding, the heat conduction performance of the connection area is further enhanced, allowing heat to be quickly transferred from the conduit to the heat sink. For the small fixed clips on the heat sink, it works in collaboration with the
Spot Welding Machine. The spot welding machine quickly completes the initial positioning and welding of the clips, while the heat sink flash butt welding machine performs local fusion welding and reinforcement at the root of the clips to ensure that the clips are less likely to break during installation and use.
In the batch splicing stage of Radiator fins, the Butt Welding Machine and the Radiator Fin Flash Butt Welding Machine work together to play an important role. The butt welding machine is responsible for the initial alignment and butt welding of the base plates of the heat sink, laying the foundation for flash butt welding. The flash butt welding machine for heat sinks generates flash through instantaneous high-voltage discharge, melting the butt surface and forming a firm weld seam. The welded heat sink has high flatness and no obvious deformation, which can effectively reduce air flow resistance and improve heat dissipation efficiency. For the frame sealing of the heat sink, it works closely with the
Seam Welding Machine. The seam welding machine forms a continuous sealed weld along the frame to prevent dust and impurities from entering the gap of the heat sink and affecting heat dissipation. The radiator flash butt welding machine, on the other hand, performs reinforcing welding at the corners of the weld to ensure the overall sealing and structural strength of the frame.
for the Steel rings used to fix the heat sink group in the Radiator, the
Laser Welding Machine for steel rings performs well with the assistance of the Radiator Fin Flash Butt Welding Machine. The radiator flash welding machine first pre-fixes the steel ring and the radiator frame to ensure the concentricity and perpendicularity of the steel ring. Then, the laser welding machine uses a high-precision laser beam to complete the precise welding of the steel ring and the frame. The heat-affected zone is extremely small, which will not affect the heat dissipation performance of the radiator. Moreover, the welding is firm and can stably fix multiple groups of radiators. At the position where the bracket needs to be installed on the Radiator, the
Stud Welding Machine works in coordination with the Radiator Fin Flash Butt Welding Machine. The stud welding machine accurately welds the studs onto the radiator shell. The radiator fin flash butt welding machine locally fuses and reinforces the fins around the studs, enhancing the overall connection strength between the bracket and the radiator, and ensuring the stability of the equipment after installation.
The Radiator Fin Flash Butt Welding Machine demonstrates significant advantages in radiator production due to its efficient flash butt welding process and good coordination with various welding machines. It not only increases the welding efficiency of heat sinks by more than 40%, but also ensures the high strength and good thermal conductivity of the weld seam, providing a reliable welding solution for heat sink manufacturing enterprises. It is an indispensable important equipment in the large-scale production of heat sinks.
Features:
1, Working principle: Take the workpiece to move slowly by controlling of Gas-liquid system, to clear away by flash the Oxide layer and uneven place of welding surface, then heat the ends of workpiece, the last machine give the upset force very quickly to have the welding ends to fuse.
2, Use the micro-controller to achieve complete process control in clamping, flash, upset, holding, stop, very high precision.
3, Welding product's strength is higher, sealing is better, without loose-weld, without gas pore, fastness and beauty.
Applications:
Be widely used for metal products whose ends is not flat and with burr, Tube, bar, sheet metal, section steel which materials are carbon steel, steel alloy and nonferrous metals etc.
Advantage:
1, Machine body of thick steel sheet, not easy to deformation
2, Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost.
3, Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.
4, Quality is stable, failure rate is low, therefore machine life is longer.
