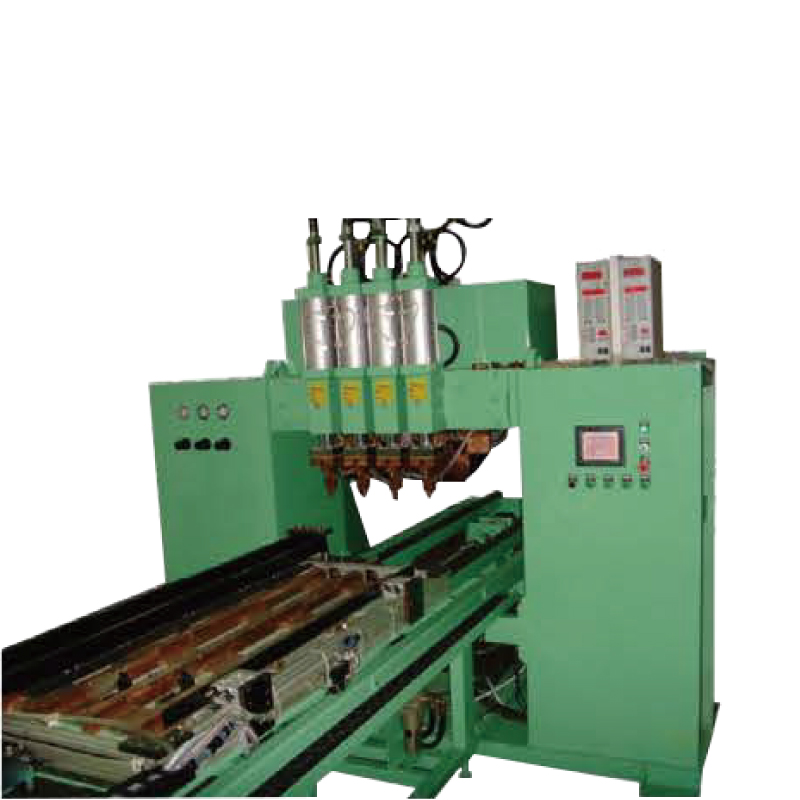

Industrial Gantry-Type Multi-Point Welding Machine

Industrial Gantry-Type Multi-Point Welding Machine: The all-round core of industrial welding

In the field of Welding for large Industrial components, the Industrial Gantry-Type Multi-Point Welding Machine has become the core equipment of the welding production line with its unique portal structure and multi-station collaboration capability. It can not only independently complete complex multi-point welding tasks, but also deeply interact with various professional welding machines to build an efficient and precise integrated welding solution. ​

As an "all-rounder" in industrial Welding, it complements the Friction Welding Machine. When dealing with the connection of large shaft and rod components, the portal welding machine precisely fixes the workpiece, while the friction welding machine uses the heat generated by rotational friction to achieve solid-state connection, avoiding the deformation problem caused by high-temperature fusion welding. Make the joint strength of heavy components far exceed that of traditional techniques; Facing the demand for dense Welding points on large-area plates, it forms an efficient combination with the Spot Welding Machine. The span advantage of the portal structure, combined with the synchronous operation of multi-point welding joints, can complete the synchronous welding of dozens of welding points on the same plane, and the efficiency is several times higher than that of single machine operation. ​

When dealing with long straight welds or the Butt Welding of large components, the Butt Welding Machine demonstrates its powerful capabilities under the guidance of the portal welding machine. Through precise track movement and pressure control, it perfectly joins steel materials of different cross-sections. The strength of the weld seam is consistent with that of the base material. It is particularly suitable for the manufacturing of heavy equipment such as Bridges and pressure vessels. For cylindrical and box-shaped components that require sealing performance, it works in coordination with the Seam Welding Machine. The portal frame ensures the straightness and roundness of the welding trajectory, while the seam welding machine forms a sealed weld seam through continuous current pulses, effectively blocking the leakage of liquids and gases. ​

for the Steel Ring connectors in industrial equipment, the Laser Welding Machine for Steel Ring works in perfect harmony with the portal welding machine. The high-precision positioning system of the portal structure guides the laser head to weld along the circumference of the steel ring, and the heat-affected zone is controlled at the micrometer level. Ensure that the connection between the steel ring and the base is both firm and does not affect the overall accuracy. On the workpiece surface where bolts and studs need to be fixed, the Stud Welding Machine operates efficiently under the coordination of the portal welding machine. It automatically completes the positioning and welding of STUds through the preset program, saving a lot of time for the subsequent assembly process. ​

The Industrial Gantry-Type Multi-Point Welding Machine, with its powerful integration capability, gives full play to the advantages of various welding processes. Whether it is heavy machinery manufacturing, pressure vessel production or large steel structure welding, it can provide stable and reliable welding solutions. Help enterprises enhance production efficiency and product quality. ​
