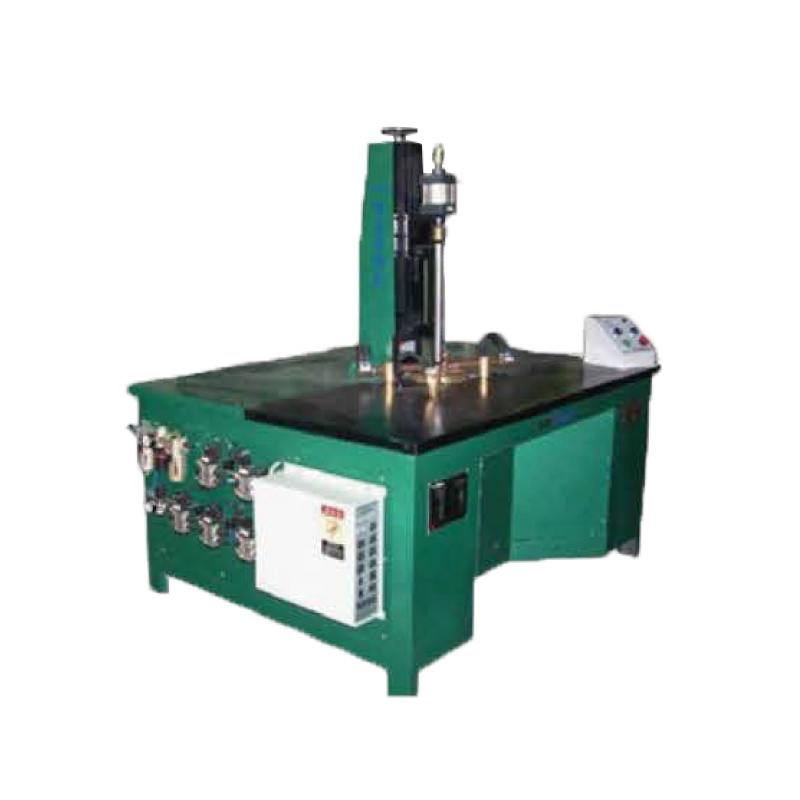

Automatic 3-Point Welding Equipment with Integrated Cooling

Automatic 3-Point Welding Equipment with Integrated Cooling: Double guarantee of welding efficiency and accuracy

In the field of precision Welding, Automatic 3-Point Welding Equipment with Integrated Cooling, with its unique three-point synchronous welding design and built-in cooling system, has become a key device for improving production efficiency and welding quality. It can not only independently complete high-precision three-point welding operations, but also work in coordination with various professional welding machines, playing a core role in complex welding scenarios. ​

When working in conjunction with the Friction Welding Machine, this three-point welding equipment demonstrates outstanding auxiliary capabilities. During the friction welding process, a large amount of heat is generated. However, its integrated cooling system can promptly cool down the welding area, preventing the workpiece from experiencing performance degradation due to continuous high temperatures. Meanwhile, the three-point positioning structure ensures the stability of the workpiece during friction welding, making the strength and accuracy of the connection parts more guaranteed. For workpieces that require dense weld points, it forms an efficient combination with the Spot Welding Machine. The feature of three-point synchronous welding, combined with the instantaneous high temperature of the spot welding machine, can quickly complete the welding of three weld points on the same workpiece. Moreover, the integrated cooling system can rapidly reduce the temperature of the weld points, preventing adjacent weld points from being affected by heat conduction. The spot welding efficiency and quality consistency have been significantly improved. ​

When dealing with the component docking task, the combination of Butt Welding Machine and Automatic 3-Point Welding Equipment with Integrated Cooling is perfect. The three-point positioning device precisely fixes the butt joint workpiece to ensure the uniformity of the butt joint gap, while the integrated cooling system rapidly cools the weld seam after the butt welding is completed, reducing thermal deformation and making the strength of the butt joint match the overall structure. For workpieces that require sealed weld seams, it works in conjunction with the Seam Welding Machine. The three-point welding equipment assists in fixing the workpiece trajectory to ensure the welding path of the seam welding machine is precise and error-free. At the same time, the integrated cooling system continuously cools the weld area to prevent the workpiece from overheating due to long-term welding, making the tightness of the sealed weld seam more reliable. ​

for the Welding of Steel Ring components, the Laser Welding Machine for Steel Ring works in perfect harmony with this three-point welding equipment. The three-point positioning structure provides stable support for the steel ring, ensuring its concentricity during laser welding. The integrated cooling system effectively controls the local high temperature generated by laser welding, preventing the steel ring from deforming due to thermal stress and ensuring the connection accuracy between the steel ring and the base material. On the workpieces that require Stud Welding, the Stud Welding Machine performs well with its assistance. The three-point positioning device accurately determines the stud welding position, and the integrated cooling system rapidly cools the contact area between the welded stud and the workpiece, improving the connection strength and stability of the stud and laying a solid foundation for the subsequent assembly. ​

Automatic 3-Point Welding Equipment with Integrated Cooling, with its innovative three-point welding design and integrated cooling technology, in the collaboration with various welding machines, not only ensures the improvement of welding efficiency but also guarantees the stability of welding quality. It has become an indispensable welding tool in fields such as precision manufacturing, automotive parts, and electronic equipment. ​
