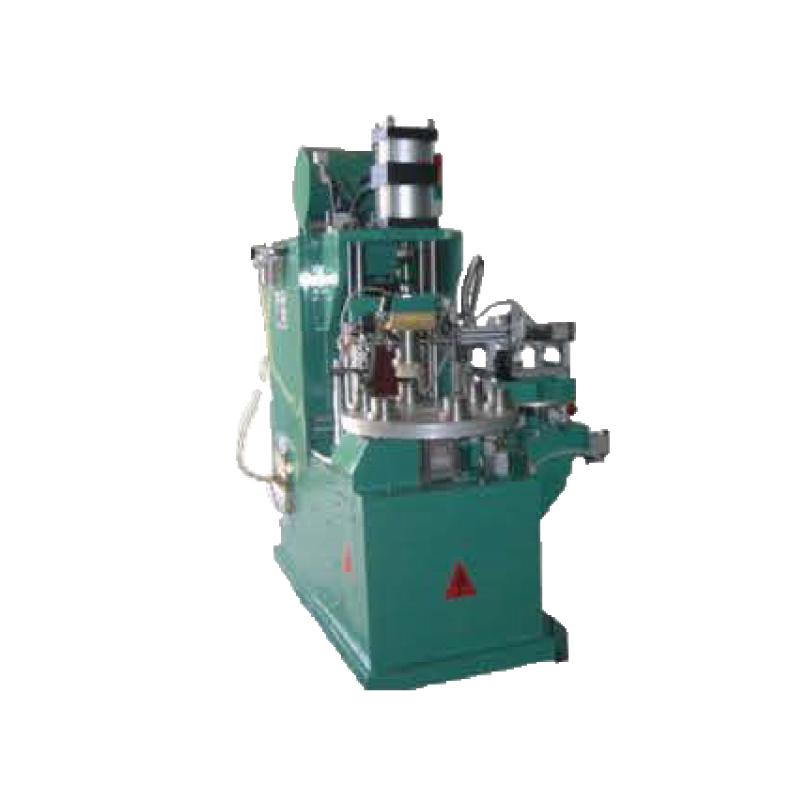

Diode Protector Welding Machine: Precision Guardian for diode protector weldingIn the field of precision manufacturing of electronic components, the Diode Protector Welding Machine, with its high-precision welding capability specially designed for diode protectors, has become the core equipment to ensure the stable performance of such critical components. It can precisely handle the complex welding nodes inside diode protectors, and at the same time work in coordination with various professional welding machines to meet the welding requirements of different structures of protectors, thus building a solid defense line for the safe operation of electronic devices.
When dealing with the connection between the metal leads and the terminal blocks in the Diode Protector, the Diode Protector Welding Machine and the
Friction Welding Machine work in perfect harmony. The friction welding machine achieves solid-state connection between the lead and the terminal through the frictional heat generated by high-speed rotation, avoiding damage to the core components of the diode caused by high temperatures. Subsequently, the diode protector welding machine performs microcurrent repair welding on the connection area, further enhancing the conductivity and stability of the connection and ensuring smooth current transmission. It is suitable for the manufacturing of high-power diode protectors. For the small fixed clips on the protector housing, it works in collaboration with the
Spot Welding Machine. The spot welding machine quickly completes the initial positioning and welding of the clips, while the diode protector welding machine performs fine processing on the weld points to ensure a firm connection between the clips and the housing without affecting the sealing performance of the housing, preventing dust and moisture from entering.
In the splicing stage of the Diode Protector housing, the
Butt Welding Machine and the Diode Protector Welding Machine work together to play an important role. The butt welding machine precisely connects the two parts of the shell to ensure the flatness of the joint. The diode protector welding machine then precisely welds along the seam, with the weld width controlled at the micrometer level, effectively avoiding the deformation of the shell caused by the stress generated during the welding process and ensuring the installation accuracy of the internal components of the protector. For the sealing edge of the protector, it works closely with the
Seam Welding Machine. The seam welding machine forms a continuous sealed weld seam along the edge, while the diode protector welding machine conducts reinforcing welding on the weld seam after air tightness testing to ensure that the protector meets the IP67-level waterproof and dustproof standard and is suitable for harsh working environments.
for the Steel Ring used to fix the circuit board in the Diode Protector, the
Laser Welding Machine for Steel Ring performs well with the assistance of the Diode Protector Welding Machine. The diode protector welding machine first precisely places the steel ring at the designated position on the shell through the visual positioning system for pre-fixation. Then, the
Laser Welding Machine completes the welding of the steel ring and the shell with a high-energy laser beam. The heat-affected zone is extremely small and will not interfere with the surrounding electronic components. The diode protector welding machine then performs insulation treatment on the welding area. Ensure the electrical safety of the circuit board after installation; At the position where the heat sink of the Protector needs to be installed, the
Stud Welding Machine and the Diode Protector Welding Machine work together. The stud welding machine accurately welds the studs onto the surface of the housing, while the diode protector welding machine conducts conductive welding reinforcement at the root of the stud. Enhance the heat conduction efficiency between the heat sink and the housing to ensure the heat dissipation performance of the diode under high-load operation.
The Diode Protector Welding Machine demonstrates irreplaceable advantages in the production of diode protectors with its precise welding technology and efficient synergy with various welding machines. It not only ensures that the welding accuracy of the protector meets the strict standards of the electronics industry, but also enhances production efficiency, providing reliable welding solutions for electronic equipment manufacturing enterprises. It is a key piece of equipment for the high-quality production of diode protectors.
