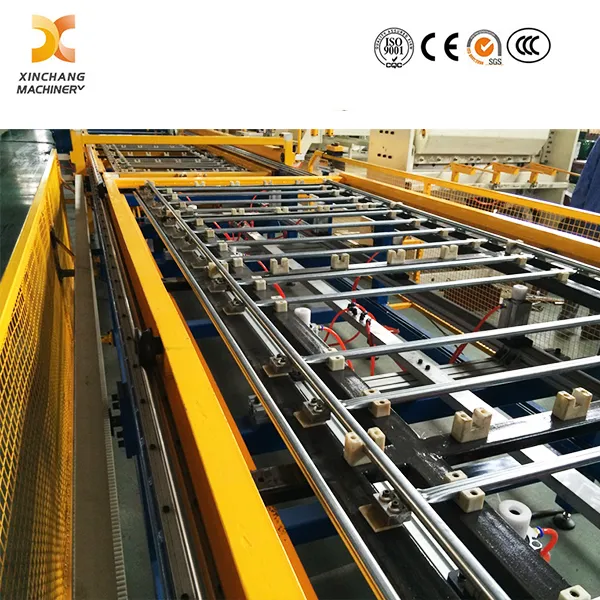

Name: Automatic Cage Frame Hole Mesh Welding Machine for IBC Production
Brand: Ningbo Xin Chang Machinery Co.,Ltd
Rating: 4.5 (24 reviews)

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Style: Vertical

Welding Way: Spot Welding

Automatic Or Manual: Automatic

Current: Alternating Current

Name: Ibcs Production Line

Key: IBC Grid Welding Machine

Transport Package: at Customer's Requrest

Specification: export standard

Trademark: xinchang

Origin: Ningbo China

Production Capacity: 5 Sets/ Month

Customization: Available

Cooling Way: Water Cooling

Control: Semi-Automatic

Supply Ability & Additional Information

Supply Ability: 5 Sets/ Month

Packaging & Delivery

Selling Units:

Piece/Pieces

Overview
Product Description
Detailed Photos
Company Profile
FAQ

Basic Info.

Style

Vertical

Welding Way

Spot Welding

Automatic or Manual

Automatic

Current

Alternating Current

Name

IBCs Production Line

Key

IBC Grid Welding Machine

Transport Package

at Customer's Requrest

Specification

export standard

Trademark

xinchang

Origin

Ningbo China

Production Capacity

5 Sets/ Month

Product Description

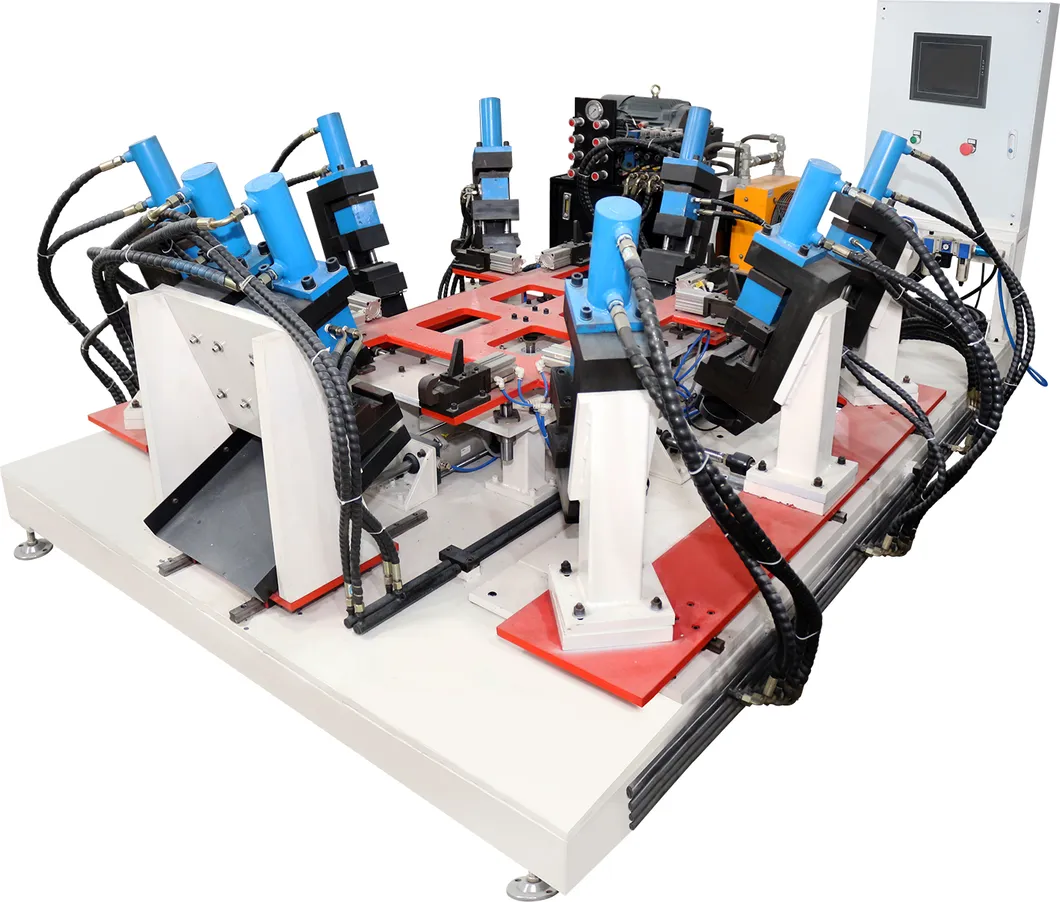

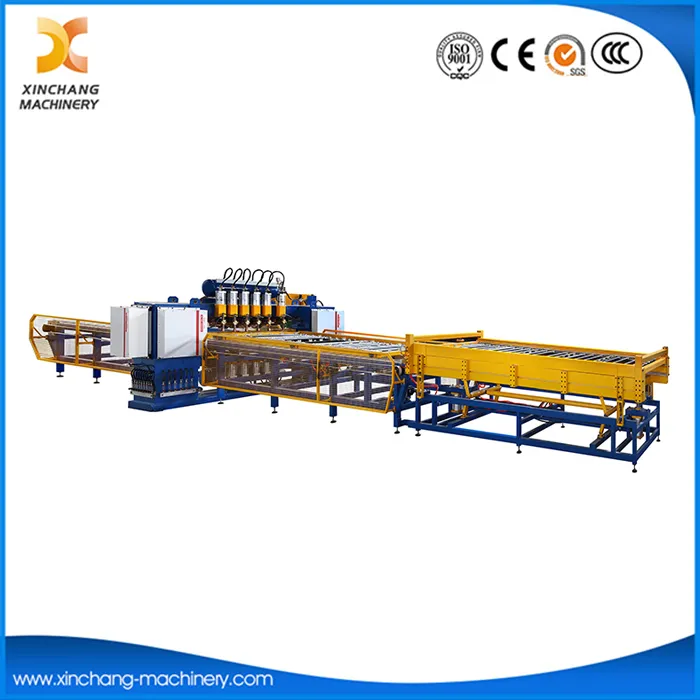

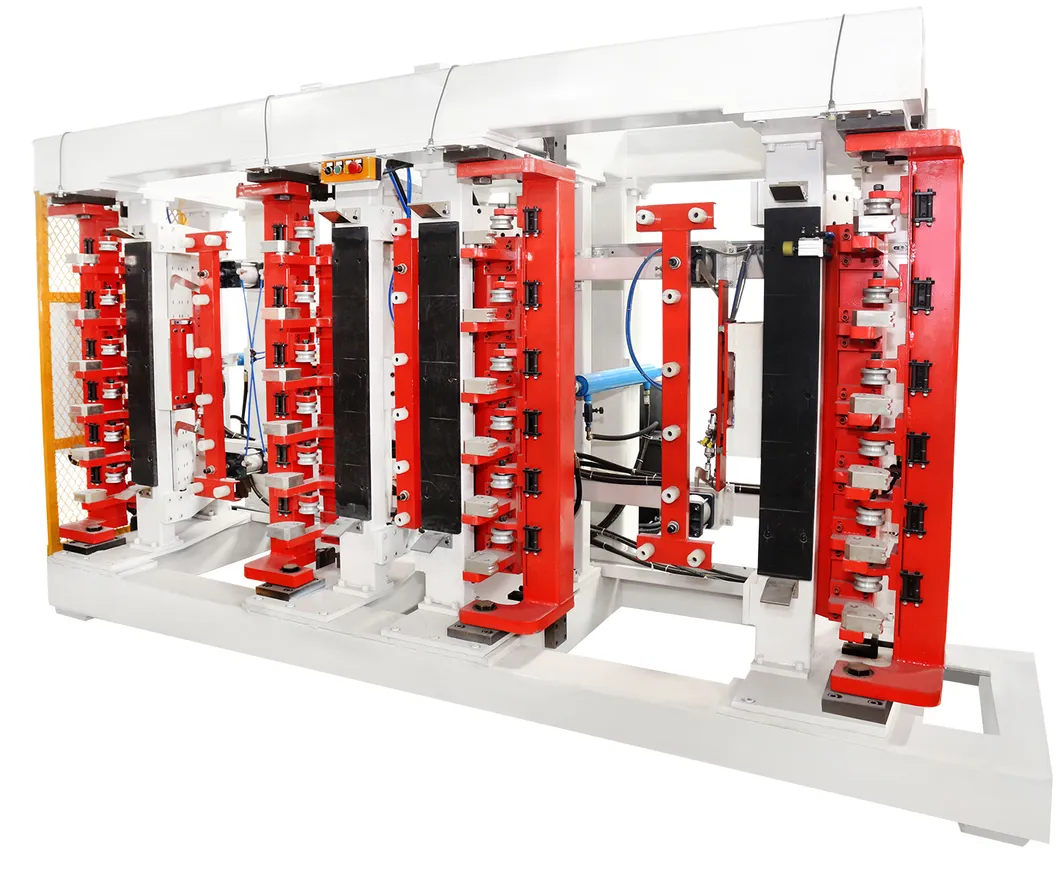

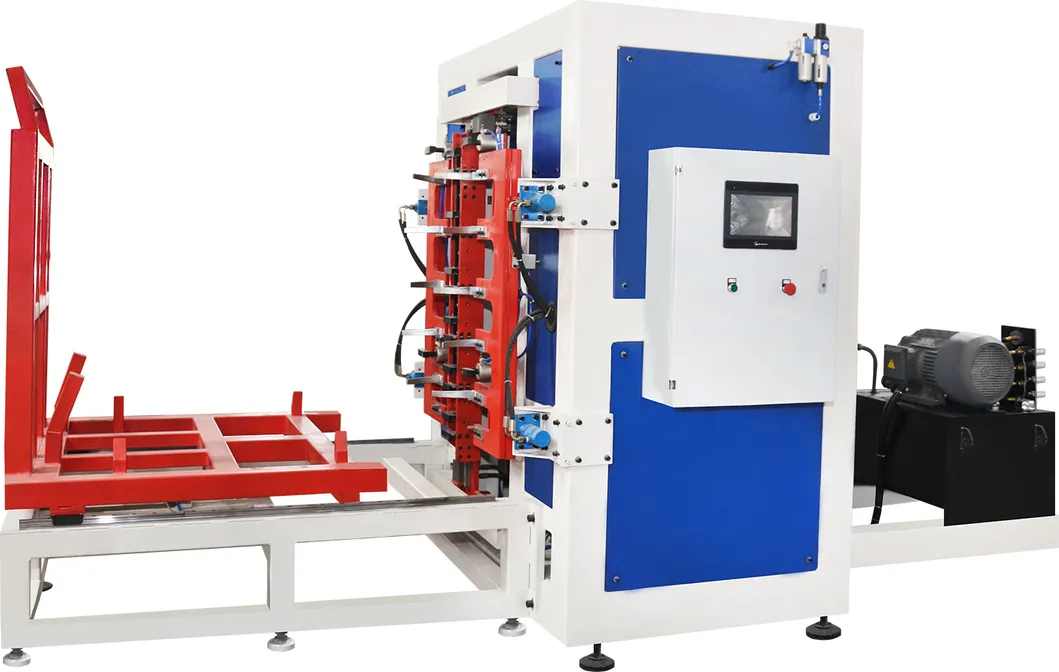

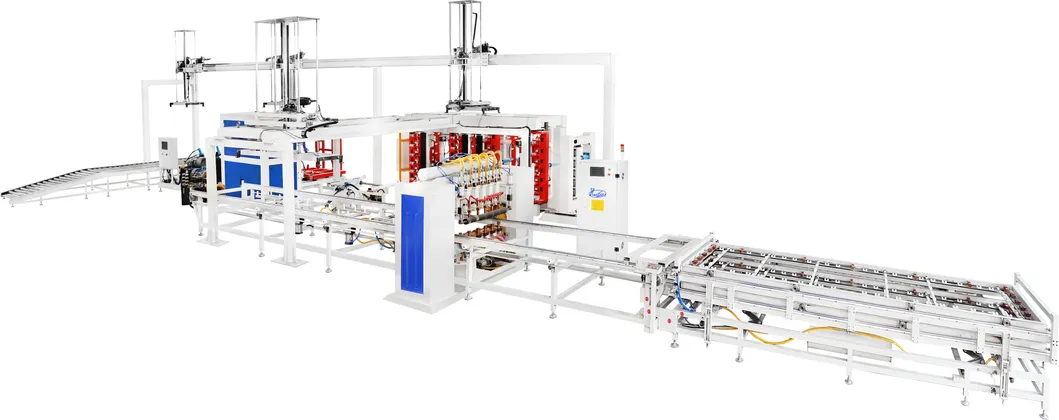

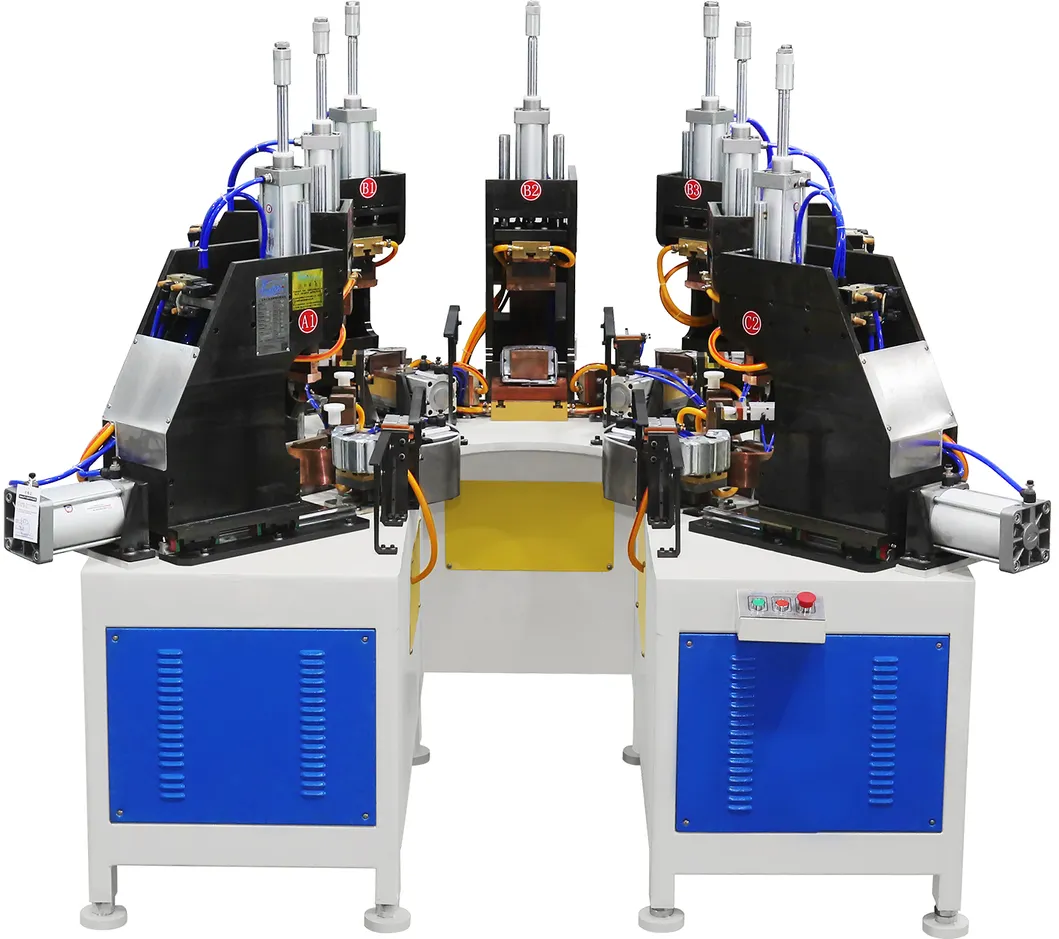

Cage Frame Automatic Hole Mesh Welding Machine for IBC Cage Making

Design concept:
Ribbed square tubes and the welding of ribbed square tubes: As the products to be welded are hollow square pipe and have coating, so four welding transformers are required (four welding spots among the middle and consist of two transformers double sides and single point, one transformer double sides and single point at two sides and one side, while installing two cylinders at two sides of the transformer, and if seven welding spots need welding, this transformer will welding products in two times). Welding speed requirements: No less than 40 pieces per hour; Welding spots look beautiful. In order to ensure the welding quality and production efficiency, our company proposes solution according to the technical experience and customer requirements: Using the gantry welding theory, high-power, high-energy welding current; Medium frequency inversion welding should be the preferred due to current density; The rigidity and guidance quality of electrodes, fixtures and bodies of machines should be superior to ordinary gantry welders;
Welding and material arrangement can be realized by specially designing double-feed welding molds so that the time that workers waiting for the single mold welding in the past can be greatly used so as to enhance welding output. According to the above situations, our company designed the professional medium frequency inversion double mold protective cage welder. The medium frequency inversion specialized welder for the protection of the cage with ribbed design for square tube are mainly made up of gantry body, medium frequency inversion control system, electrical operating system, special transformers, special welding pressurized cylinder, the upper and lower electrodes, double-feed die racks, cooling circuits, pneumatic systems, monitoring devices, security agencies and so on.

Equipment constitution
The device is mainly made up of dragon gate machine body, medium frequency inversion constant current welding power source, electrical operating system, special welding pressurized cylinder, the upper and lower electrode part, double-mold frame, water cooling systems, pneumatic systems, monitoring devices, security agencies and other components and is introduced as follows:

1, machine body: The vertical strengthening structure is welded with thick steel plate in high quality and is equipped with strengthened tendon with reasonable structure and has been derived of stress, so it has extremely good mechanical properties with little deformation during work and toughness.

2, MF inversion DC welding power source is mainly made up of transformer, controller, inverter, power drive, rectifier parts, capacitor plates, IGBT as well as the central control components. Medium frequency inversion constant current welding power source is a set of advanced welding equipment and is widely used. The size of welding transformer is small but the output of energy is large. The feature is the original input voltage 50/60Hz cn be rectified to 1000Hz and the rectified diode of transformer secondary circuit can transform the power into constant current power source so that the secondary circuit reactance coefficients can be greatly improved (it is an important factor in causing the loss of energy before improvement), and it is almost taken into consideration in constant current welding circuit, almost, and thus production costs are minimized. Compared with conventional welding power source, it has the following

Advantages	Save energy
	Improve the power factor and reduce production costs;
	In the secondary circuit with large opening area, interference can be reduced and welding current is constant current. When the secondary winding has inductive materials (with magnetic property), it will not affect the welding
	make a balance of the loading of power supply device, medium frequency inversion constant current welding power source uses three-phase power and stores energy

Cage Frame Automatic Hole Mesh Welding Machine for IBC Cage Making

We, Ningbo Xin Chang Machinery Co.,Ltd are a professional designer and manufacturer in Friction Welding Machine, Resistance Welding Machine and Heat exchanger equipment. Our factory is in this line more than 20 years, we have more than 10 senior mechanical and electrical specialists and total more than 200 staff, our machine is famous in China. We have CCC, ISO9001 and CE certificates.

Over the years, we have exported so many machines to 30 and more countries, such as France,Spain,Poland,Russia,Indonesia,Vietnam,Pakistan,India,Mexico,Egypt etc.

Our main products are Heat exchanger equipment, Friction welding machine, Spot Welding Machine, Projection Welding Machine, Butt Welding Machine, Seam Welding Machine, Multi Head Welding Machine For Wire Mesh, and other various special welding machine for metal connection in different industries.

We always adhere to the management idea of "Integrity, profession, innovation, and win-win", to make Xin Chang becomes trustworthy enterprise of customers. Good product quality, perfect after-sales service, and professional technical support make customers choose no regrets and worry-free use.
Cage Frame Automatic Hole Mesh Welding Machine for IBC Cage Making
