Ningbo Xin Chang Machinery Co.,Ltd
Min. Order:1 Piece/Pieces
Model NO.: L22-K/L26
Application: Electronic Industry, Automotive Industry, Manufacturing Industry, Advertising Industry, Agriculture Machinery
Technical Class: Continuous Wave Laser
Control: Automatic
Laser Classification: Fiber Continuous Laser
Type: Laser Pipe Cutting Machine
Power: 3000W-6000W
Positioning Accuracy: ±0.03mm/M
Support Tube Shapes: Round, Square, Rectangle, Oval etc.
Processing Range: 12-280mm
Transport Package: Seaworthy Package
Specification: According to the Machine Model
Trademark: Xin chang
Origin: Ningbo China
HS Code: 8456100090
Production Capacity: 100 Sets/Month
Customization: Available
After-sales Service: Life Long
Warranty: 12 Months
Supply Ability: 100 Sets/Month

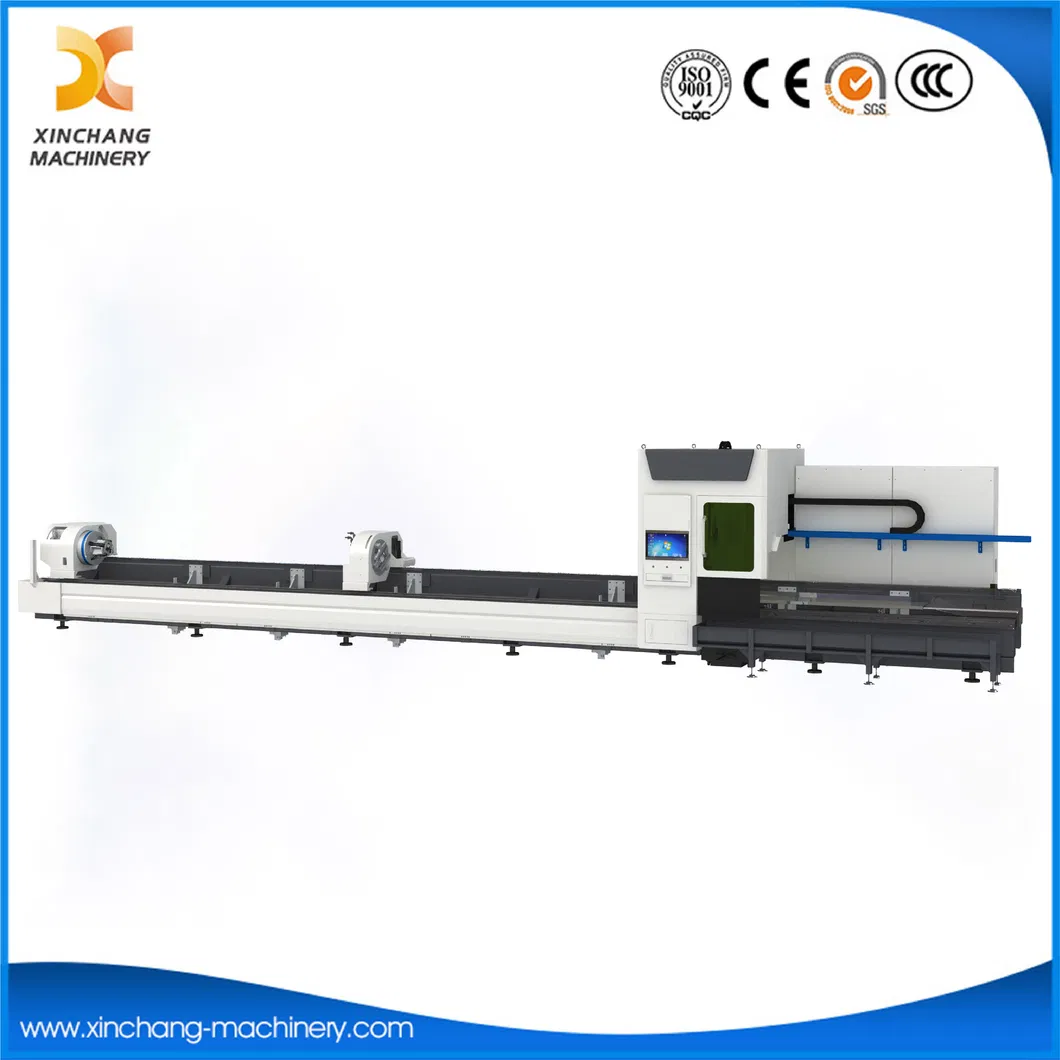

A, Production application
The BK Series machine enjoys high tube cutting efficiency, with the max moving speed of 100 m/min and chuck rotation speed of 100 rpm/min.
B, Feature:
1,Zero-tail cutting with three-chuck system.
2,Upgraded servo support for loading and unloading.
3,Whole tube loading and unloading.
4,Environmental-friendly cutting.
| Model | FCT7025BK-Q1 | FCT7028BK-Q1 | FCT9028BK-Q1 |
| Power | 3000w-6000w | ||
| Processing Range | φ12-245mm | φ12-280mm | φ12-280mm |
| Positioning Accuracy | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m |
| Repositioning Accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
| Max.no-load Running Speed | 100m/min | 100m/min | 100m/min |
| Max Idle Speed | 100r/min | 100r/min | 100r/min |
| Tube Weight | 260kg | 350kg | 350kg |

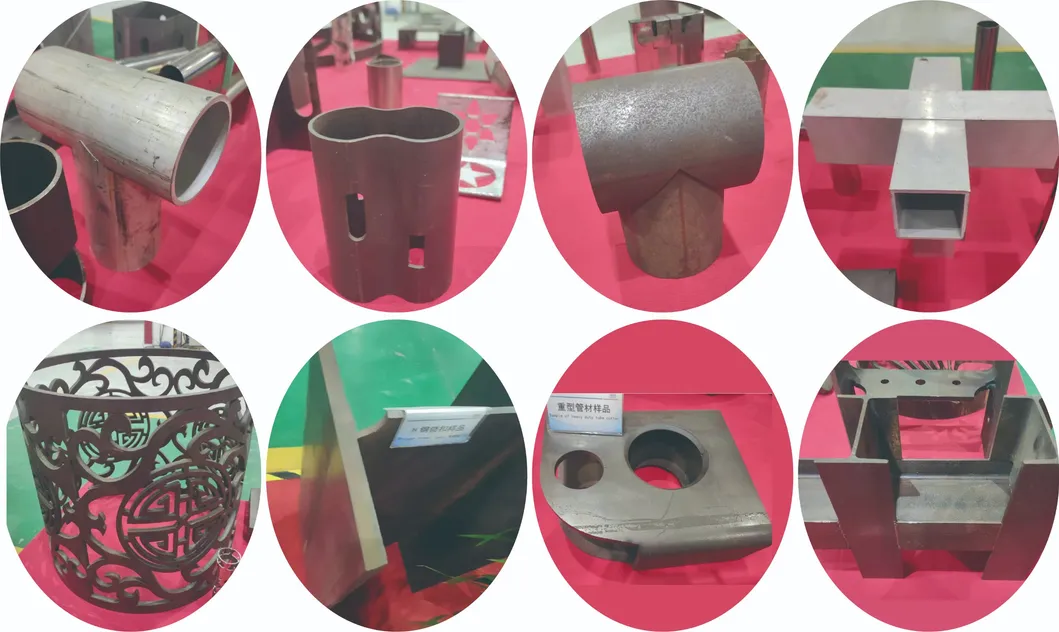

Sample photos:
We, Ningbo Xin Chang Machinery Co.,Ltd are a professional designer and manufacturer in Friction Welding Machine, Resistance Welding Machine and Heat exchanger equipment. Our factory is in this line more than 20 years, we have more than 10 senior mechanical and electrical specialists and total more than 200 staff, our machine is famous in China. We have CCC, ISO9001 and CE certificates.
Over the years, we have exported so many machines to 30 and more countries, such as France,Spain,Poland,Russia,Indonesia,Vietnam,Pakistan,India,Mexico,Egypt etc.
Our main products are Heat exchanger equipment, Friction welding machine, Spot Welding Machine, Projection Welding Machine, Butt Welding Machine, Seam Welding Machine, Multi Head Welding Machine For Wire Mesh, and other various special welding machine for metal connection in different industries.
We always adhere to the management idea of "Integrity, profession, innovation, and win-win", to make Xin Chang becomes trustworthy enterprise of customers. Good product quality, perfect after-sales service, and professional technical support make customers choose no regrets and worry-free use
