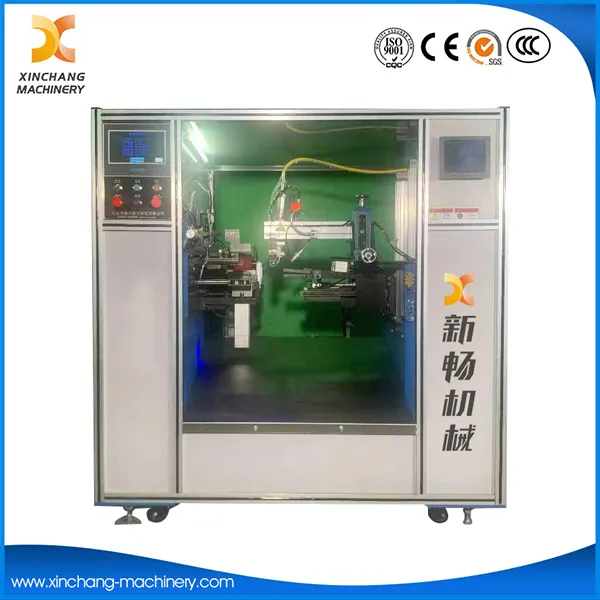

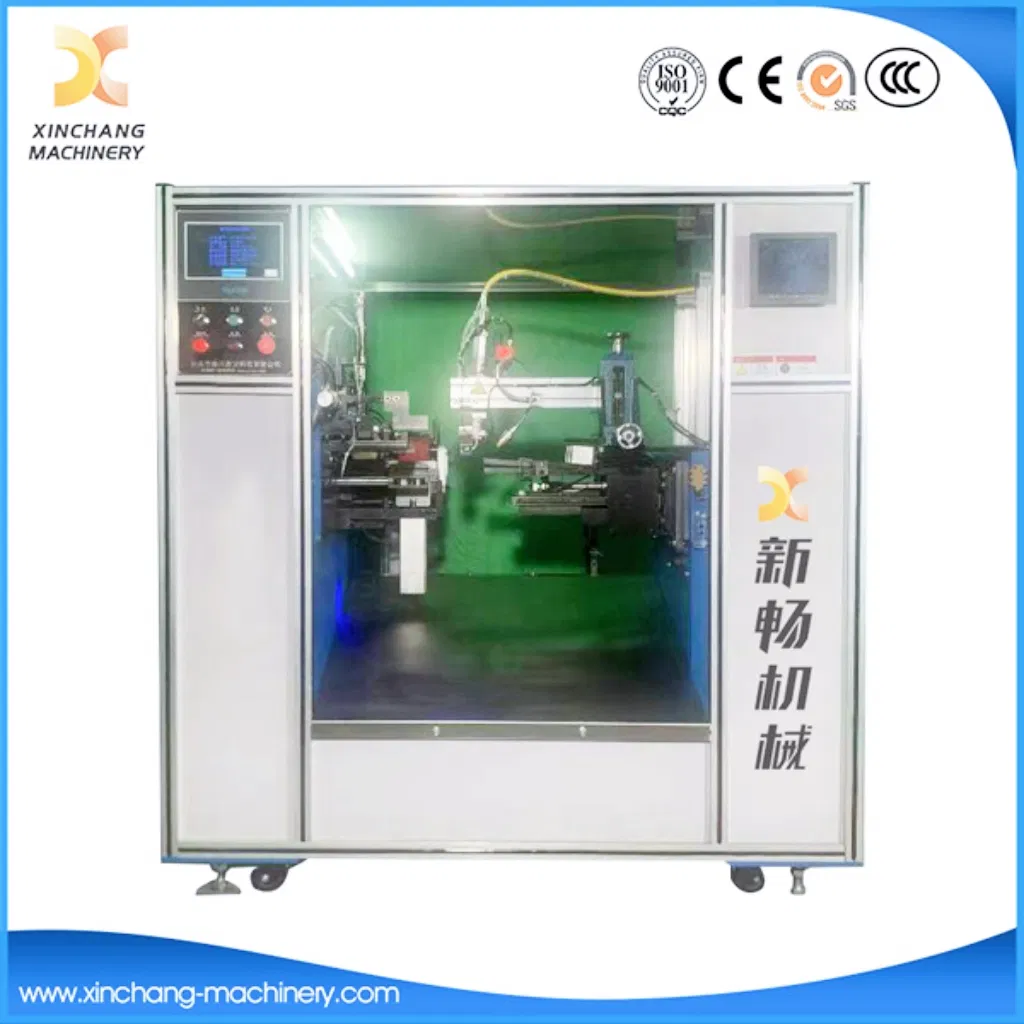

A. Model and specifications
| Item | Machine Models |
| Machine model | ZJ-GL1000-50A | ZJ-GL1000-95A | ZJ-GL1000-125A | ZJ-GL1000-/185A | ZJ-GL1000-200A |
| Max welding width | 10-45mm | 30-90mm | 50-120mm | 70-180mm | 70-200mm |
| Ring diameter | φ90-2000mm | φ90-2000mm | φ90-2000mm | φ90-2000mm | φ90-2000mm |
| Workpiece material | SS430/410/304/202/201,GI,Tinplate etc |
| Welding thickness | 0.1-1.0mm | 0.10-0.5mm | 0.10-0.5mm | 0.10-0.5mm | 0.10-0.5mm |
| Machine total power | 8KW | 8KW | 8KW | 8KW | 8KW |
| Laser power | 1KW | 1KW | 1KW | 1KW | 1KW |
| Input voltage | AC380V/3P | AC380V/3P | AC380V/3P | AC380V/3P | AC380V/3P |
| HZ | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Duty cycle | 100% | 100% | 100% | 100% | 100% |
| Working temperature | 0-45° | 0-45° | 0-45° | 0-45° | 0-45° |
| Humidity | ≤85% | ≤85% | ≤85% | ≤85% | ≤85% |
| Air pressure | ≤0.8MPa | ≤0.8MPa | ≤0.8MPa | ≤0.8MPa | ≤0.8MPa |
| Cooling water pressure | 0.2-0.4MPa | 0.2-0.4MPa | 0.2-0.4MPa | 0.2-0.4MPa | 0.2-0.4MPa |
| Production capacity | 10-30 pcs/min | 10-20pcs/min | 10-20pcs/min | 10-20pcs/min | 10-20pcs/min |
| Machine weight | 1.3Ton | 1.35Ton | 1.35Ton | 1.4Ton | 1.5Ton |
| Machine frame material | high-quality steel plate | high-quality steel plate & Alu. profile | high-quality steel plate & Alu. profile | high-quality steel plate & Alu. profile | high-quality steel plate & Alu. profile |
| Overall size | L1580,W1170, H1900mm | L1680,W1200,H1900mm | L1680,W1200, H1900mm | L1680,W1200, H1900mm | L1680,W1200, H1900mm |
| Chiller size | 720x490x855mm | 720x490x855mm | 720x490x855mm | 720x490x855mm | 720x490x855mm |
| Chiller weight | 38kg | 38kg | 38kg | 38kg | 38kg |
| Chiller power | 1500W | 1500W | 1500W | 1500W | 1500W |
| Cooling water flow | 15L/min | 15L/min | 15L/min | 15L/min | 15L/min |
B. Application
It's used for the stainless steel strip of Glass cover, Basket, Flour sieve,Enamel pot,Trash can,Steamer etc.The steel strip specification is 10-200mm width, 0.1-1mm thickness and material SS430/410/304/202/201,GI,Tinplate etc. C. Advantages - Beautiful design appearance, small floor space
- Built-in fiber continuous laser, No external space occupied.
- Welding capacity 10-20 pcs, efficiency is higher
- More suitable for seamless steel rings, the welding quality is better.
- Succinct design of circuit, more stable and power saving,
- No complicated operation, the operation in HMI is very simple, only need to set the percentage of laser.

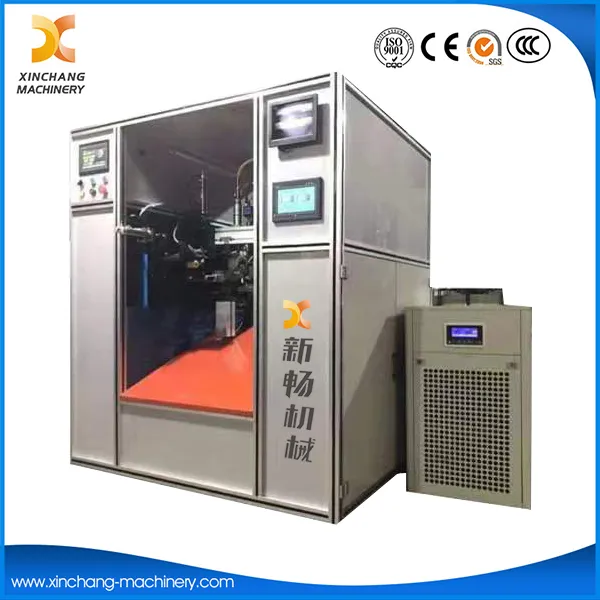

D. Main configuration - Automatic forming servo tooling: self-made
- Control system: Rayne
- Fiber continuous laser: BWT/MAX
- Cooling water chiller: Hanli

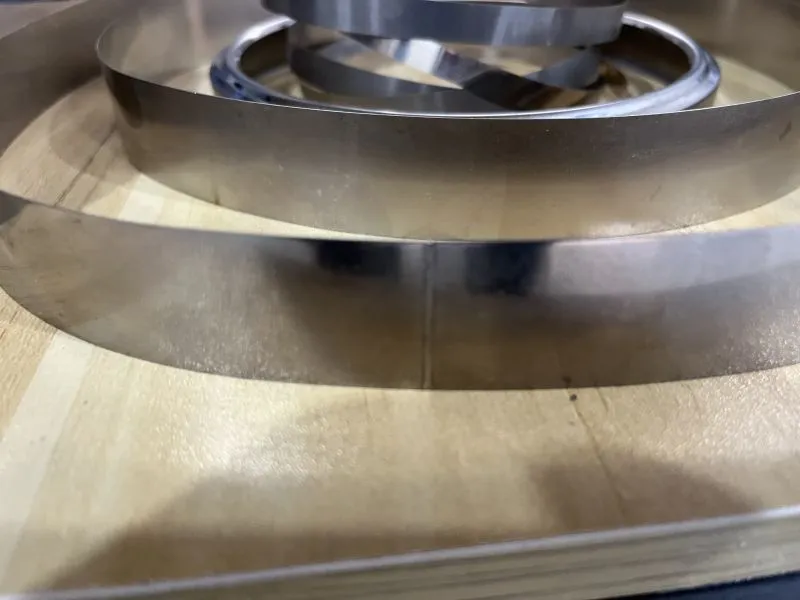

E. Welding samples photos:
