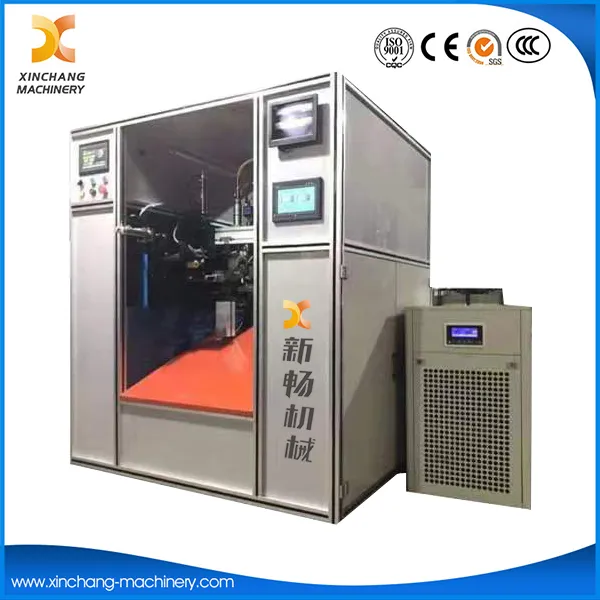

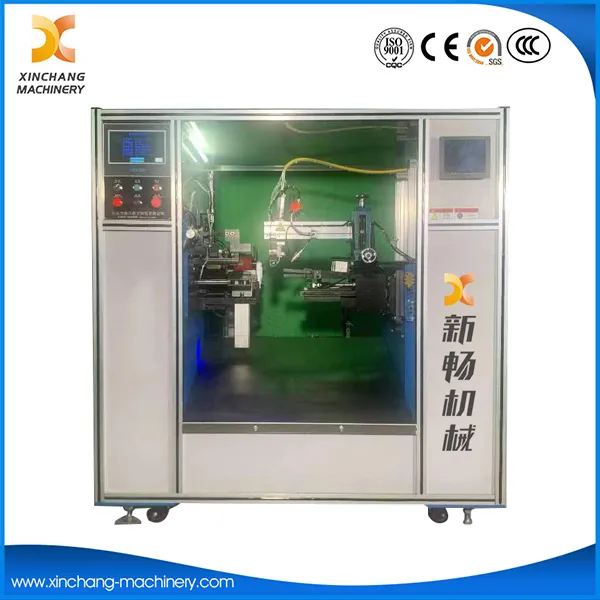

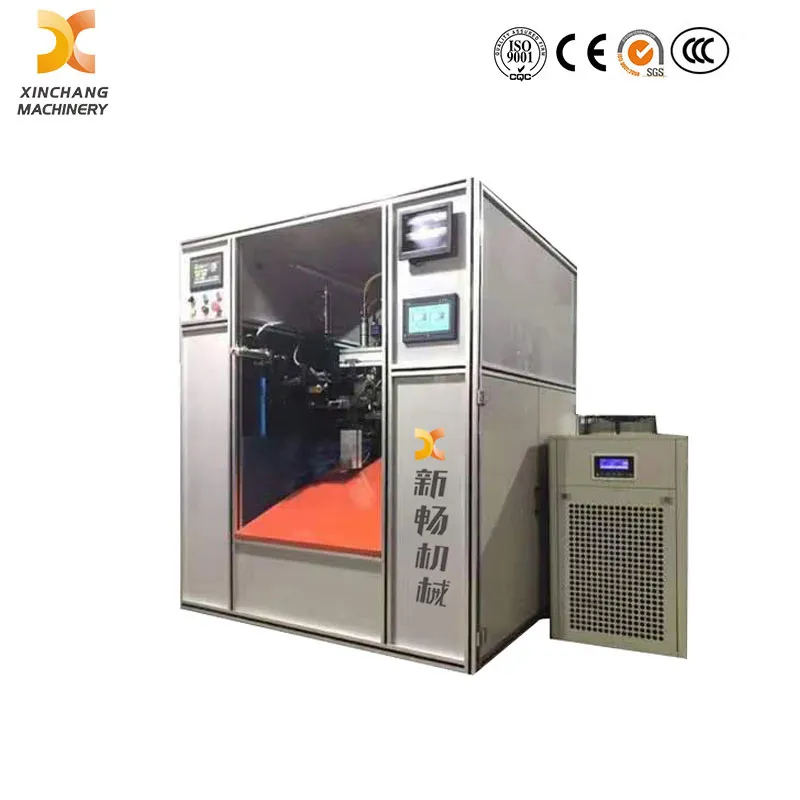

220V 1000W Automatic Steel Ring Laser Welding Machine with Built-in Fiber Laser

Min. Order:1 Piece/Pieces

Supply Ability & Additional Information
Packaging & Delivery
Other information

Supply Ability & Additional Information

Supply Ability: 100 Sets/Month

Packaging & Delivery

Selling Units:

Piece/Pieces



1000W Fully Automatic Laser Welding Machine Price for Steel Strip1



A. Model and specifications

Model	XC-K53-1000	XC-K92-1000	XC-K160-1000
Laser power	1000W	1000W	1000W
Steel strip width	8-53mm	45-92mm	80-160mm
Welding capacity	14-18 pcs/min	12 pcs/min	10pcs/min
Steel strip thickness	0.13-0.7mm	0.2-0.5mm	0.2-0.4mm
Steel ring diameter	65-700mm	85-700mm	120-700mm
Total machine power	5kw	5kw	5kw
Input voltage	220V	220V	220V
Nitrogen protection	Optional	Optional	Optional
Mark function	Optional	Optional	Optional
Cooling mode	Water	Water	Water
Machine weight	1350kg	1350kg	1350kg
Overall size	148x128x168 cm	148x128x168 cm	148x128x168 cm

B. Application

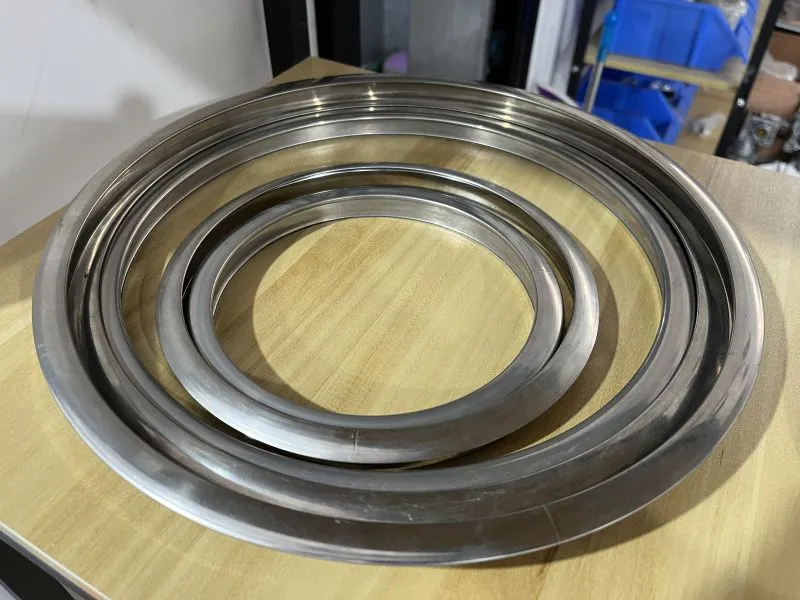

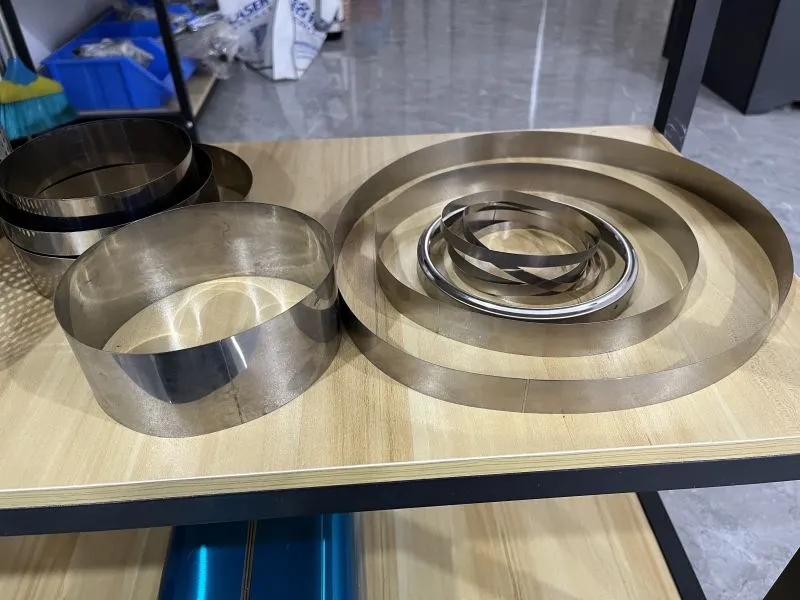

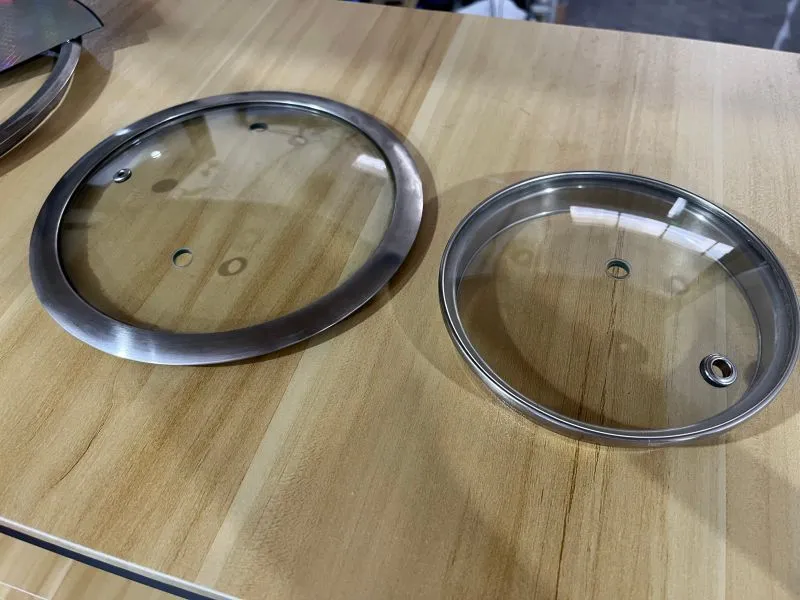

It's used for the stainless steel strip of Glass cover, Basket, Flour sieve,Enamel pot,Trash can,Steamer etc.The steel strip specification is 8-160mm width, 0.13-0.7mm thickness and material SS304,201,410,430.

C. Advantages

Beautiful design appearance, small floor space(148x128x168cm)

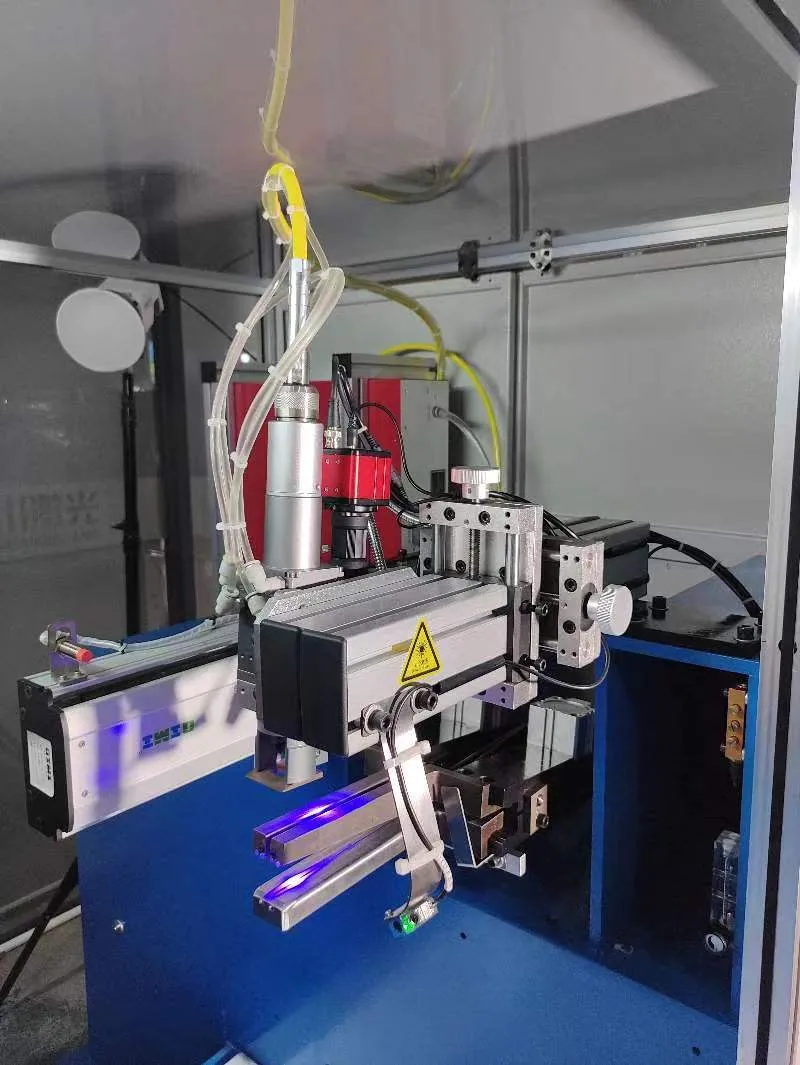

Built-in fiber continuous laser, No external space occupied.
Welding capacity 10-18 pcs, efficiency is higher

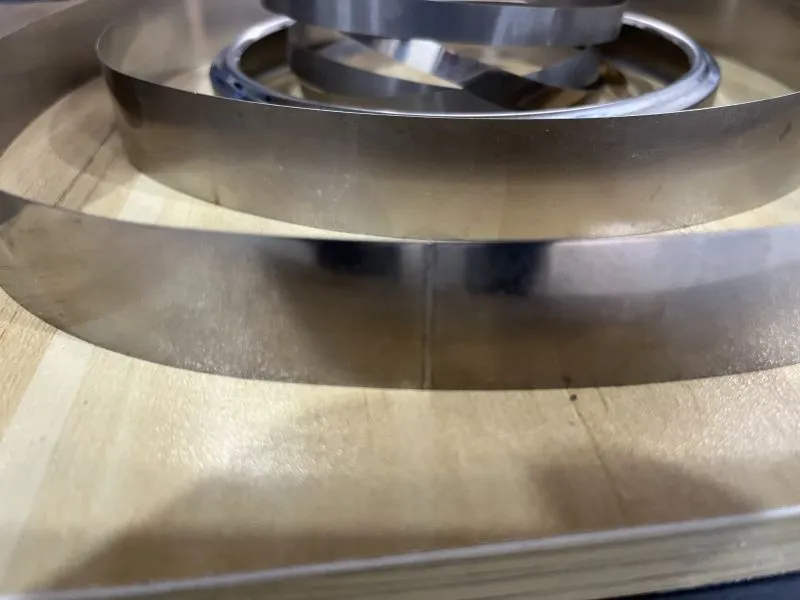

More suitable for seamless steel rings, the welding quality is better.
Succinct design of circuit, more stable and power saving, single phase 220V power supply
No complicated operation, the operation in HMI is very simple, only need to set the percentage of laser.
