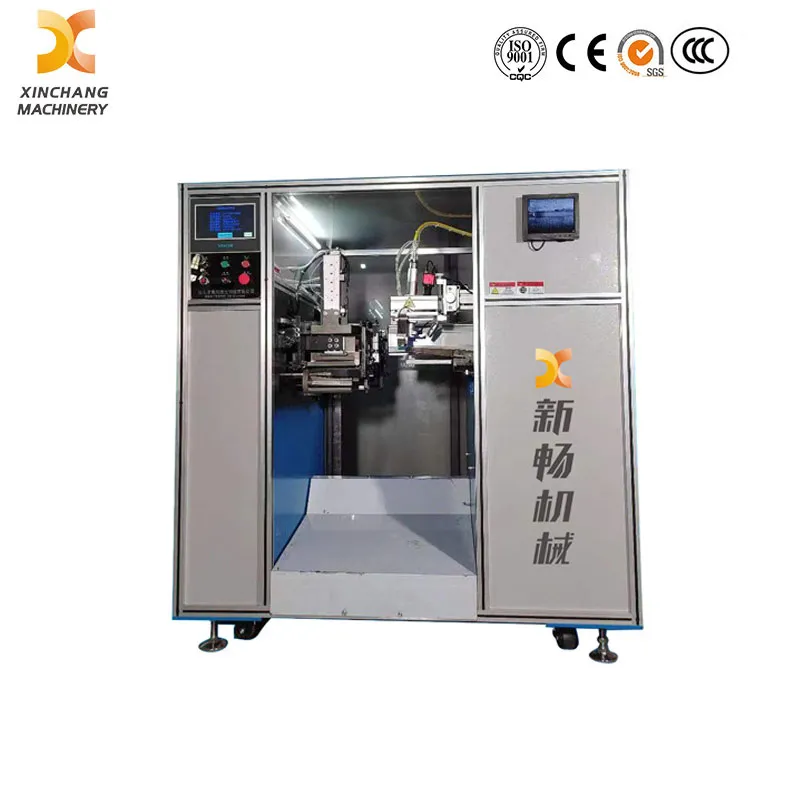

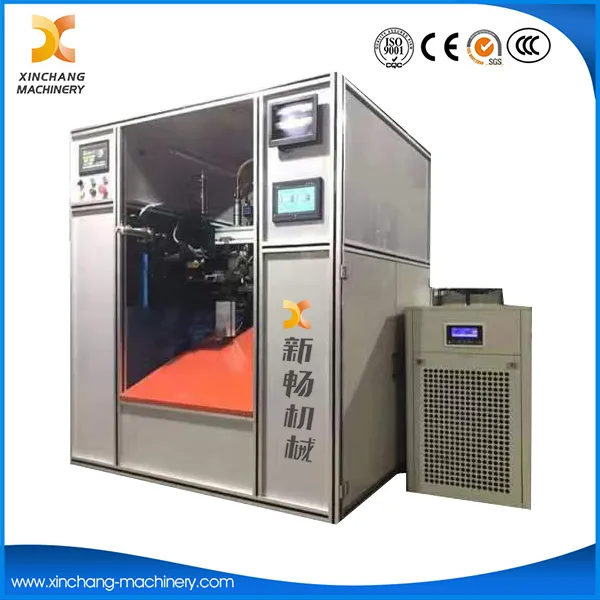

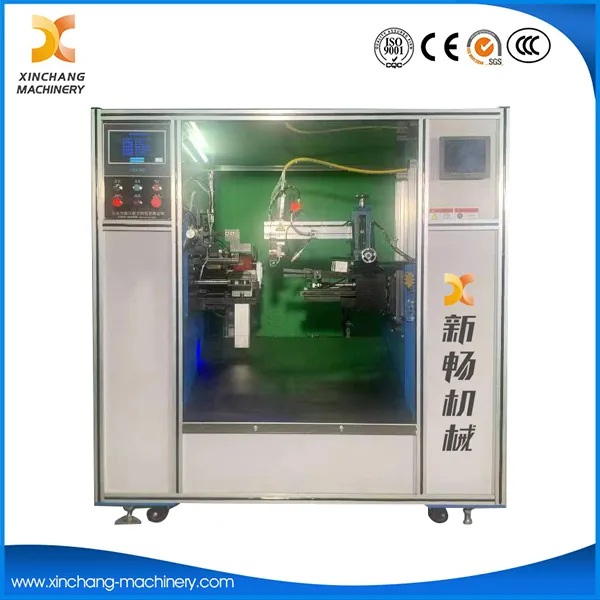

1000W Fully Automatic Steel Strip Laser Welding Machine

Min. Order:1 Piece/Pieces

Supply Ability & Additional Information
Packaging & Delivery
Other information

Supply Ability & Additional Information

Supply Ability: 100 Sets/Month

Packaging & Delivery

Selling Units:

Piece/Pieces



1000W Fully Automatic Laser Welding Machine Price for Steel Strip1



Basic Info.

Application: Manufacturing Industry, Hardware Industry

Technical Class: Continuous Wave Laser

Control: Automatic

Laser Classification: Fiber Continuous Laser

Type: Automatic Laser Welding Machine

Laser Power: 1000W

Total Machine Power: 5kw

Input Voltage: 220V

Cooling Mode: Water

Transport Package: Sea worthy Package

Specification: 148x128x168 cm

Trademark: Xin chang

Origin: Ningbo China

HS Code: 8515809010

Production Capacity: 100 Sets/Month

Product Description

A. Model and specifications

Item	Machine Models
Machine model	ZJ-GL1000-50A	ZJ-GL1000-95A	ZJ-GL1000-125A	ZJ-GL1000-/185A	ZJ-GL1000-200A
Max welding width	10-45mm	30-90mm	50-120mm	70-180mm	70-200mm
Ring diameter	φ90-2000mm	φ90-2000mm	φ90-2000mm	φ90-2000mm	φ90-2000mm
Workpiece material	SS430/410/304/202/201,GI,Tinplate etc
Welding thickness	0.1-1.0mm	0.10-0.5mm	0.10-0.5mm	0.10-0.5mm	0.10-0.5mm
Machine total power	8KW	8KW	8KW	8KW	8KW
Laser power	1KW	1KW	1KW	1KW	1KW
Input voltage	AC380V/3P	AC380V/3P	AC380V/3P	AC380V/3P	AC380V/3P
HZ	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Duty cycle	100%	100%	100%	100%	100%
Working temperature	0-45°	0-45°	0-45°	0-45°	0-45°
Humidity	≤85%	≤85%	≤85%	≤85%	≤85%
Air pressure	≤0.8MPa	≤0.8MPa	≤0.8MPa	≤0.8MPa	≤0.8MPa
Cooling water pressure	0.2-0.4MPa	0.2-0.4MPa	0.2-0.4MPa	0.2-0.4MPa	0.2-0.4MPa
Production capacity	10-30 pcs/min	10-20pcs/min	10-20pcs/min	10-20pcs/min	10-20pcs/min
Machine weight	1.3Ton	1.35Ton	1.35Ton	1.4Ton	1.5Ton
Machine frame material	high-quality steel plate	high-quality steel plate & Alu. profile	high-quality steel plate & Alu. profile	high-quality steel plate & Alu. profile	high-quality steel plate & Alu. profile
Overall size	L1580,W1170, H1900mm	L1680,W1200,H1900mm	L1680,W1200, H1900mm	L1680,W1200, H1900mm	L1680,W1200, H1900mm
Chiller size	720x490x855mm	720x490x855mm	720x490x855mm	720x490x855mm	720x490x855mm
Chiller weight	38kg	38kg	38kg	38kg	38kg
Chiller power	1500W	1500W	1500W	1500W	1500W
Cooling water flow	15L/min	15L/min	15L/min	15L/min	15L/min

B. Application

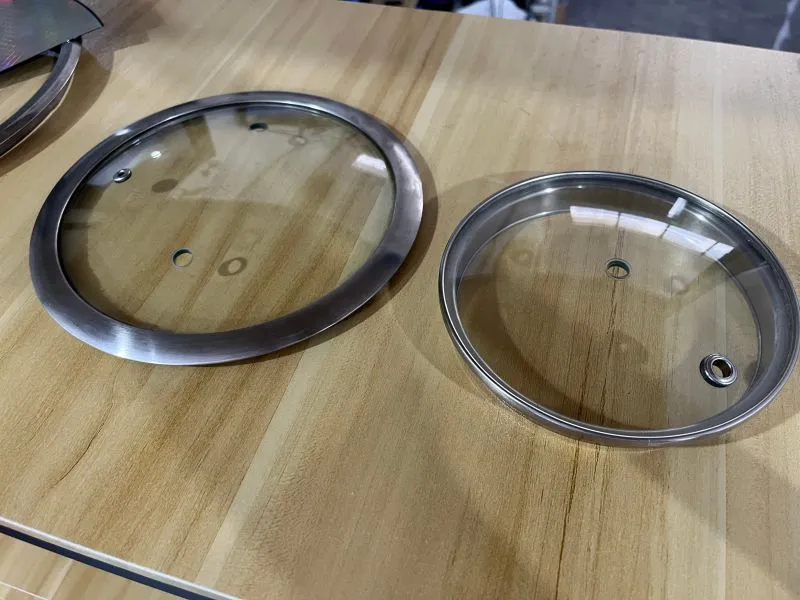

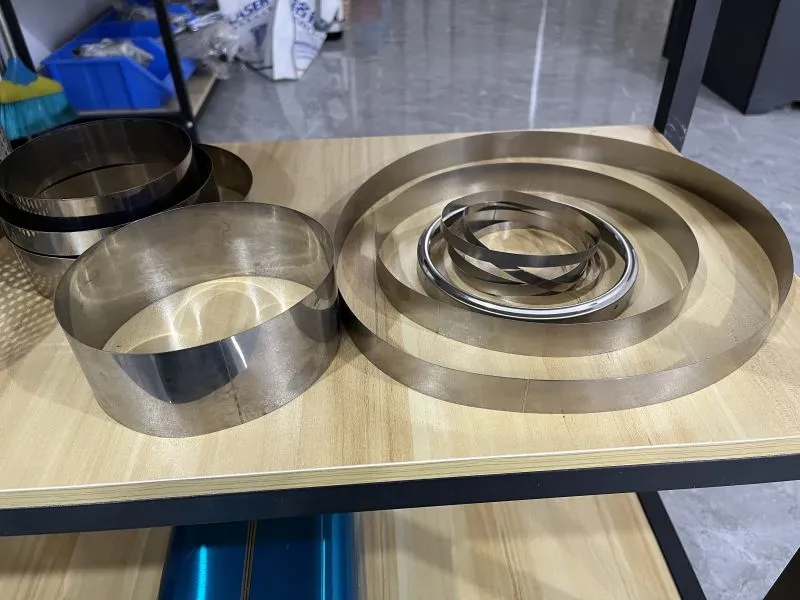

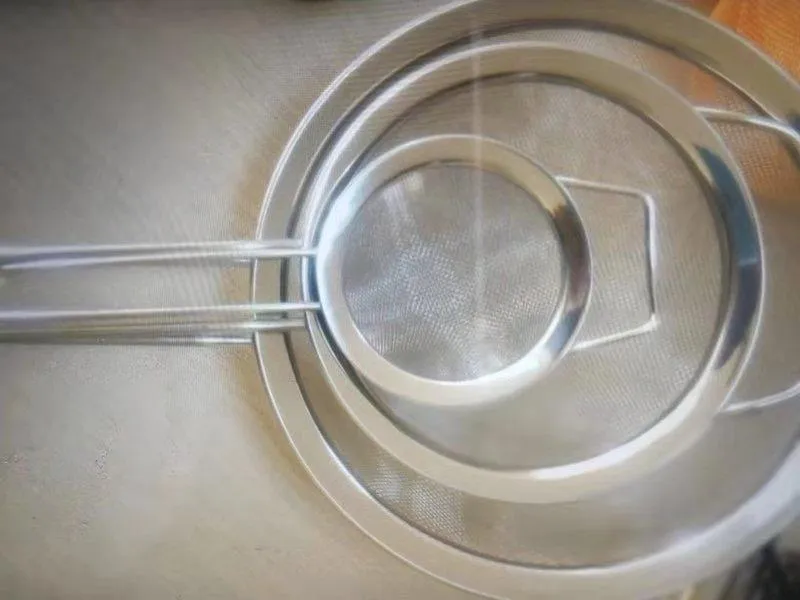

It's used for the stainless steel strip of Glass cover, Basket, Flour sieve,Enamel pot,Trash can,Steamer etc.The steel strip specification is 10-200mm width, 0.1-1mm thickness and material SS430/410/304/202/201,GI,Tinplate etc.

C. Advantages

Beautiful design appearance, small floor space

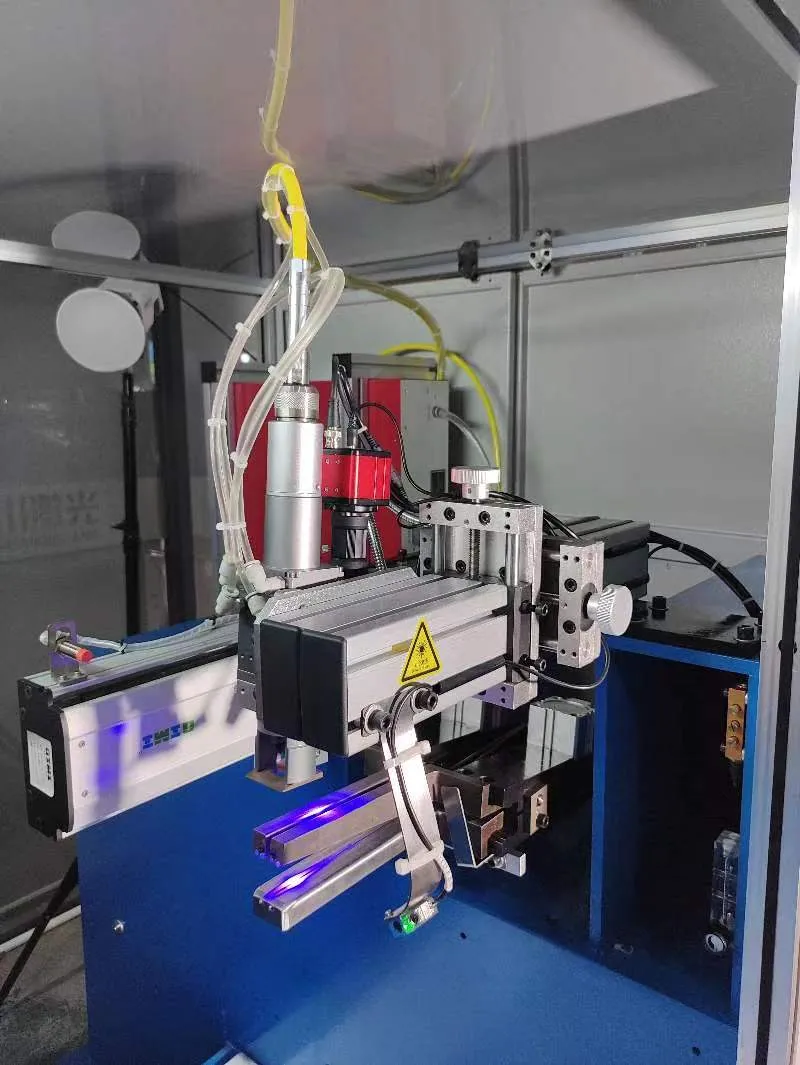

Built-in fiber continuous laser, No external space occupied.
Welding capacity 10-20 pcs, efficiency is higher

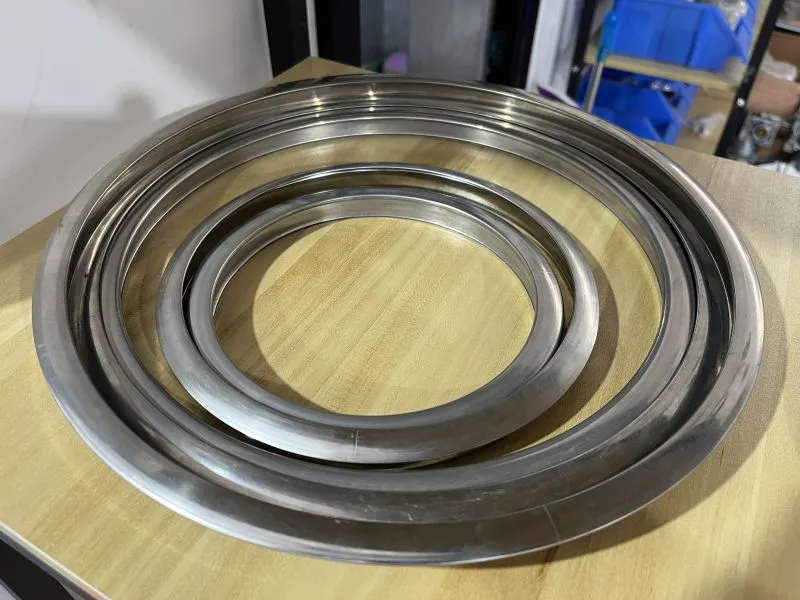

More suitable for seamless steel rings, the welding quality is better.

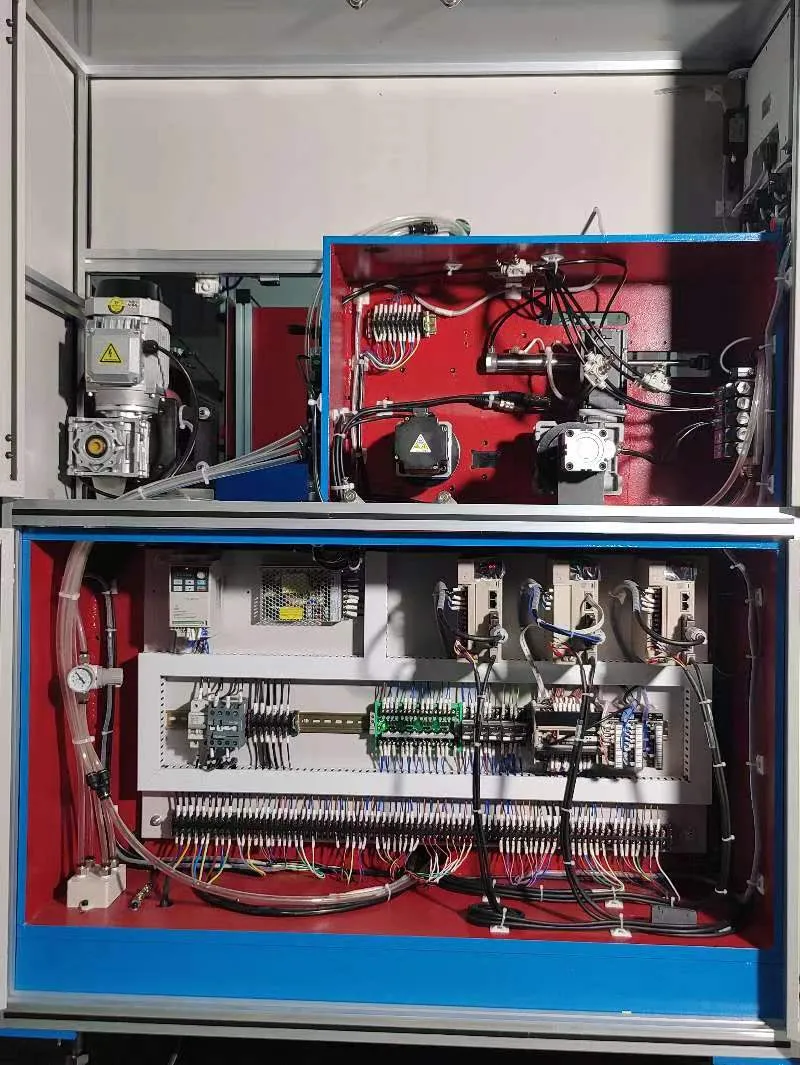

Succinct design of circuit, more stable and power saving
No complicated operation, the operation in HMI is very simple, only need to set the percentage of laser.
