A. Model and specifications
| Model | XC-K53-1000 | XC-K92-1000 | XC-K160-1000 |
| Laser power | 1000W | 1000W | 1000W |
| Steel strip width | 8-53mm | 45-92mm | 80-160mm |
| Welding capacity | 14-18 pcs/min | 12 pcs/min | 10pcs/min |
| Steel strip thickness | 0.13-0.7mm | 0.2-0.5mm | 0.2-0.4mm |
| Steel ring diameter | 65-700mm | 85-700mm | 120-700mm |
| Total machine power | 5kw | 5kw | 5kw |
| Input voltage | 220V | 220V | 220V |
| Nitrogen protection | Optional | Optional | Optional |
| Mark function | Optional | Optional | Optional |
| Cooling mode | Water | Water | Water |
| Machine weight | 1350kg | 1350kg | 1350kg |
| Overall size | 148x128x168 cm | 148x128x168 cm | 148x128x168 cm |
B. Application
It's used for the stainless steel strip of Glass cover, Basket, Flour sieve, Enamel pot, Trash can, Steamer etc. The steel strip specification is 10-200mm width, 0.1-1mm thickness and material SS430/410/304/202/201,GI,Tinplate etc., all well-processed by this Automatic Welding Machine.
C. Advantages
Beautiful design appearance, small floor space
Built-in fiber continuous laser, No external space occupied.
Welding capacity 10-20 pcs, efficiency is higher
More suitable for seamless steel rings, the welding quality is better.
Succinct design of circuit enables this Laser Equipment to run more stable and power saving
No complicated operation, the operation in HMI is very simple, only need to set the percentage of laser.

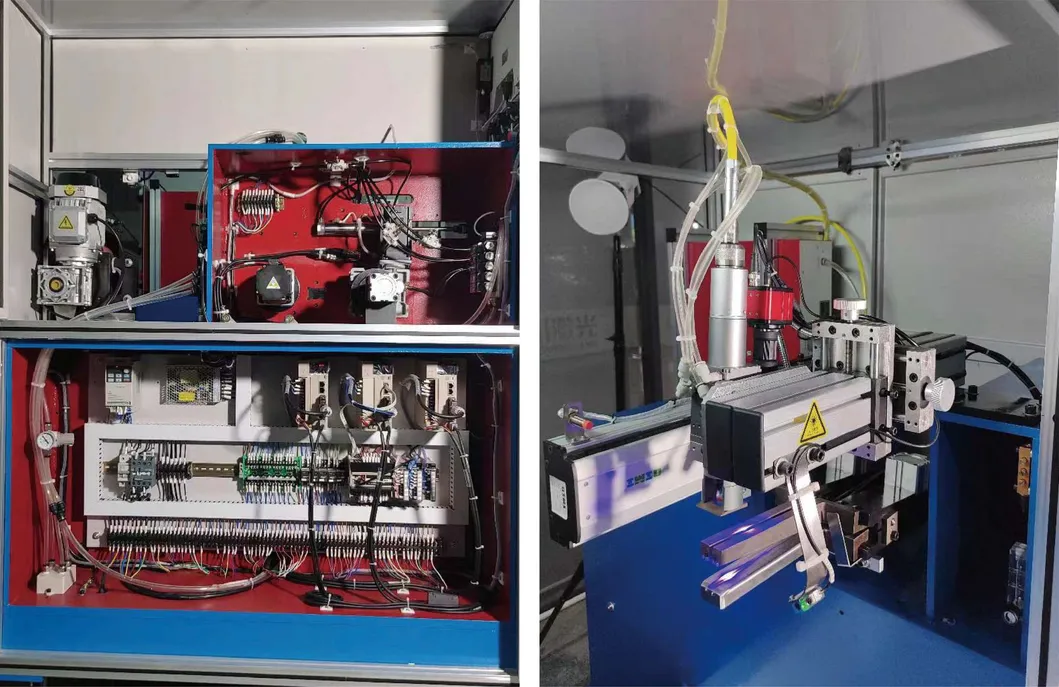

D. Main configuration
This premium Laser Welding Machine is equipped with reliable core components as follows:
Automatic forming servo tooling: self-made
Control system: Raynen
Fiber continuous laser: BWT/MAX
Cooling water chiller: Hanli

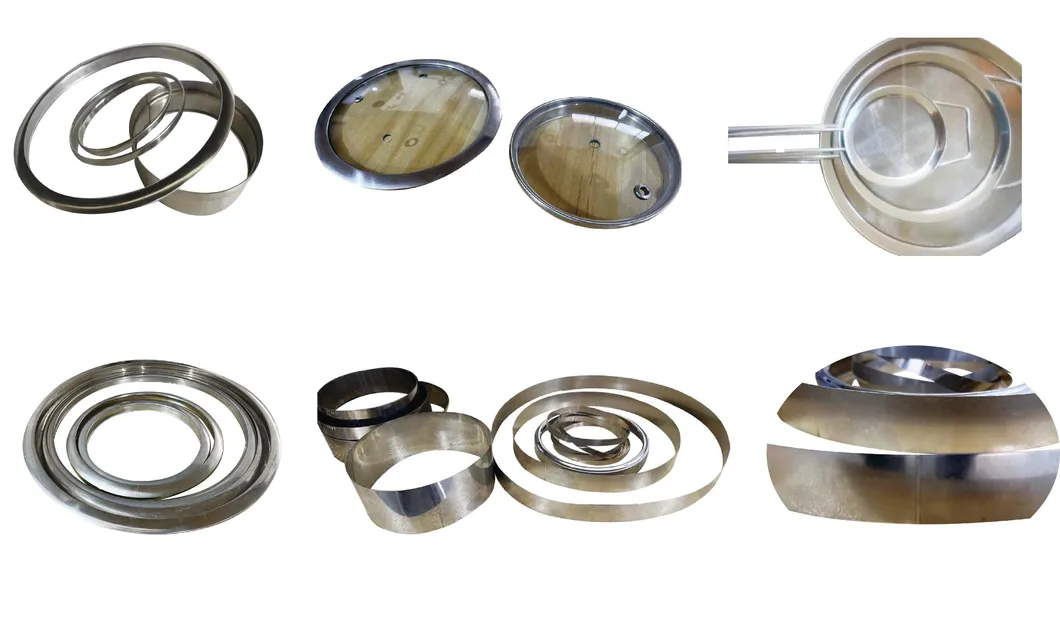

E. Welding samples photos:
