A. Model and specifications
| Model | XC-K53-1000 | XC-K92-1000 | XC-K160-1000 |
| Laser power | 1000W | 1000W | 1000W |
| Steel strip width | 8-53mm | 45-92mm | 80-160mm |
| Welding capacity | 14-18 pcs/min | 12 pcs/min | 10pcs/min |
| Steel strip thickness | 0.13-0.7mm | 0.2-0.5mm | 0.2-0.4mm |
| Steel ring diameter | 65-700mm | 85-700mm | 120-700mm |
| Total machine power | 5kw | 5kw | 5kw |
| Input voltage | 220V | 220V | 220V |
| Nitrogen protection | Optional | Optional | Optional |
| Mark function | Optional | Optional | Optional |
| Cooling mode | Water | Water | Water |
| Machine weight | 1350kg | 1350kg | 1350kg |
| Overall size | 148x128x168 cm | 148x128x168 cm | 148x128x168 cm |
B. Application
It's used for the stainless steel strip of Glass cover, Basket, Flour sieve, Enamel pot, Trash can, Steamer etc. This Automatic Welding Machine supports steel strip specification of 10-200mm width, 0.1-1mm thickness and material SS430/410/304/202/201, GI, Tinplate etc.
C. Advantages
Beautiful design appearance, small floor space
Built-in fiber continuous laser, No external space occupied.
Welding capacity 10-20 pcs, efficiency is higher
More suitable for seamless steel rings, the welding quality is better.
Succinct design of circuit makes this Laser Welding Machine run more stable and power saving
No complicated operation, the operation in HMI is very simple, only need to set the percentage of laser.

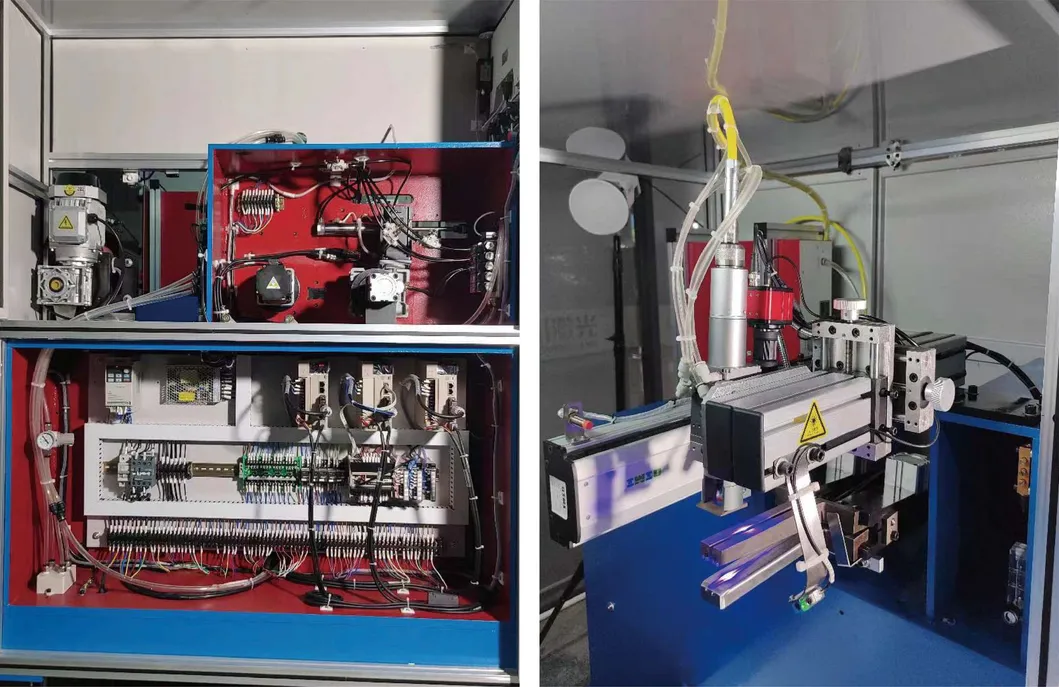

D. Main configuration
Adopting high-standard core components, this Laser Equipment is equipped with:
Automatic forming servo tooling: self-made
Control system: Raynen
Fiber continuous laser: BWT/MAX
Cooling water chiller: Hanli
E. Welding samples photos:
