A. Model and specifications
| Model | XC-K53-1000 | XC-K92-1000 | XC-K160-1000 |
| Laser power | 1000W | 1000W | 1000W |
| Steel strip width | 8-53mm | 45-92mm | 80-160mm |
| Welding capacity | 14-18 pcs/min | 12 pcs/min | 10pcs/min |
| Steel strip thickness | 0.13-0.7mm | 0.2-0.5mm | 0.2-0.4mm |
| Steel ring diameter | 65-700mm | 85-700mm | 120-700mm |
| Total machine power | 5kw | 5kw | 5kw |
| Input voltage | 220V | 220V | 220V |
| Nitrogen protection | Optional | Optional | Optional |
| Mark function | Optional | Optional | Optional |
| Cooling mode | Water | Water | Water |
| Machine weight | 1350kg | 1350kg | 1350kg |
| Overall size | 148x128x168 cm | 148x128x168 cm | 148x128x168 cm |
B. Application
It is applicable to stainless steel strips for glass covers, baskets, flour sieves, enamel pots, trash cans, steamers and similar products. The applicable specification covers strip width 10-200mm and thickness 0.1-1mm, compatible with SS430/410/304/202/201, GI, Tinplate and other materials, well matched for the processing demand of Automatic Welding Machine. C. Advantages
It features exquisite appearance design and occupies little floor space.
Adopting built-in fiber continuous laser, it does not take up any external space.
With welding capacity of 10-20 pcs, it achieves higher working efficiency.
It is more suitable for seamless steel ring processing and delivers superior welding effect.
Concise circuit structure ensures more stable operation and lower energy consumption for this Laser Welding Machine. No complicated operation is required; the HMI interface is user-friendly, only needing to set the laser percentage parameter.

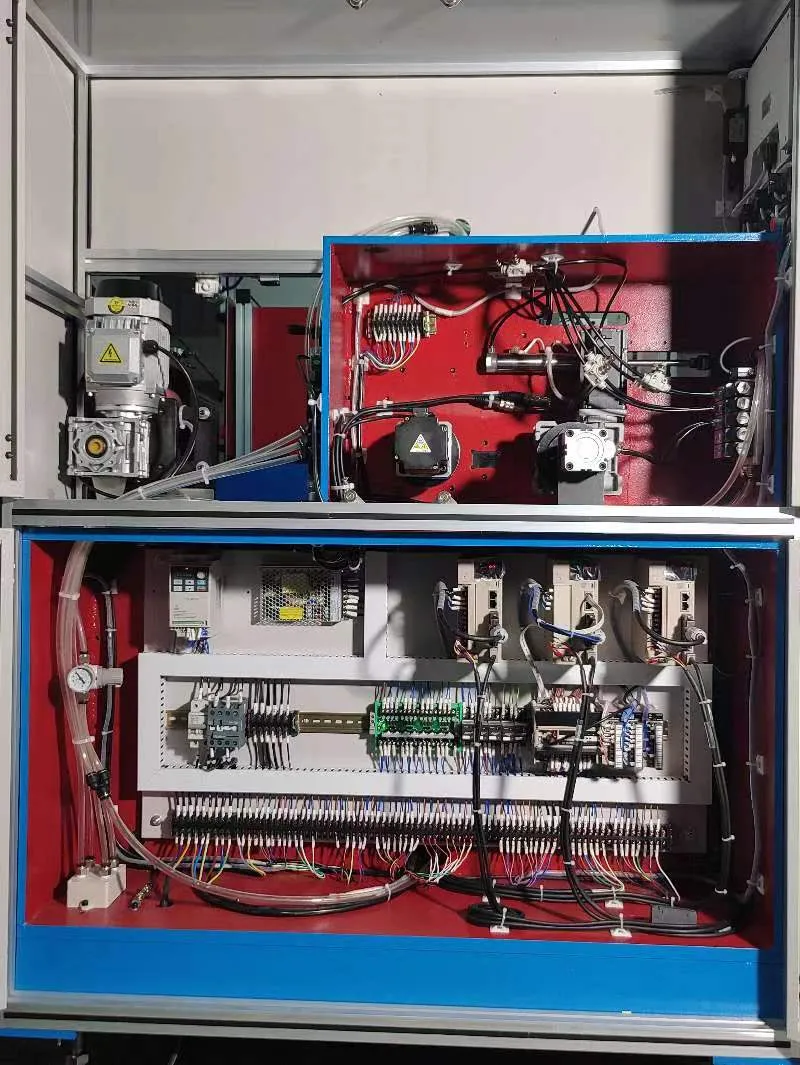

D. Main configuration
Automatic forming servo tooling: self-made
Control system: Raynen
Fiber continuous laser: BWT/MAX
Cooling water chiller: Hanli
This professional Laser Equipment is equipped with mature and reliable core components to guarantee long-term stable operation.

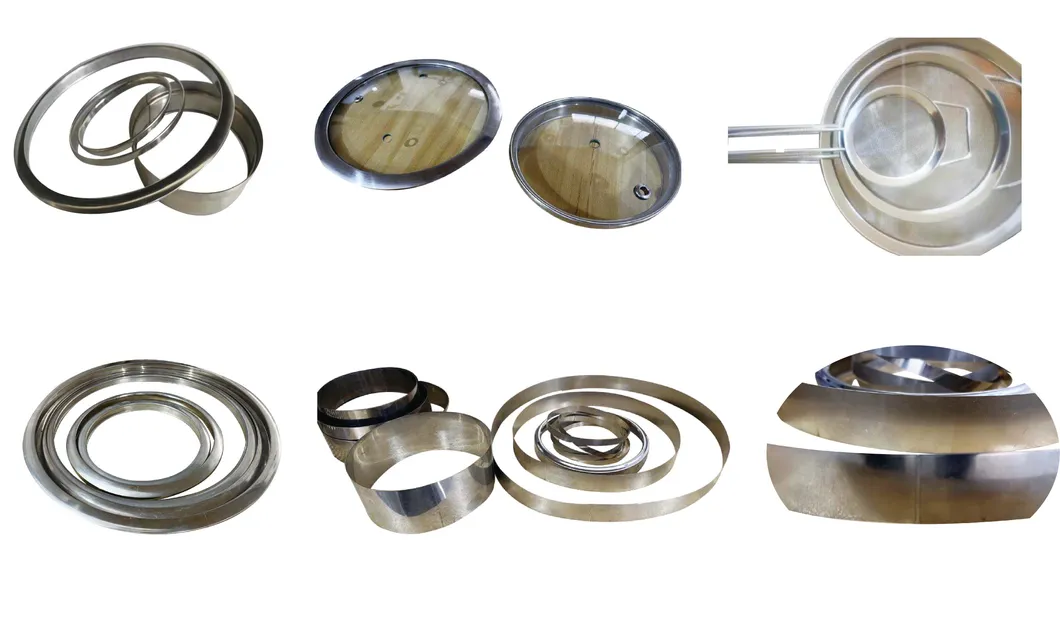

E. Welding samples photos:
