A. Model and specifications
| Model | XC-K53-1000 | XC-K92-1000 | XC-K160-1000 |
| Laser power | 1000W | 1000W | 1000W |
| Steel strip width | 8-53mm | 45-92mm | 80-160mm |
| Welding capacity | 14-18 pcs/min | 12 pcs/min | 10pcs/min |
| Steel strip thickness | 0.13-0.7mm | 0.2-0.5mm | 0.2-0.4mm |
| Steel ring diameter | 65-700mm | 85-700mm | 120-700mm |
| Total machine power | 5kw | 5kw | 5kw |
| Input voltage | 220V | 220V | 220V |
| Nitrogen protection | Optional | Optional | Optional |
| Mark function | Optional | Optional | Optional |
| Cooling mode | Water | Water | Water |
| Machine weight | 1350kg | 1350kg | 1350kg |
| Overall size | 148x128x168 cm | 148x128x168 cm | 148x128x168 cm |
B. Application
It is applicable to stainless steel strips for glass covers, baskets, flour sieves, enamel pots, trash cans, steamers and other products. As a professional Laser Equipment, it fits steel strip specifications of 10–200mm in width and 0.1–1mm in thickness, compatible with SS430/410/304/202/201, GI, Tinplate and other raw materials.
C. Advantages
The Automatic Welding Machine features elegant appearance and small floor occupation.
Adopting built-in fiber continuous laser, it takes up no extra external space.
It supports a welding capacity of 10–20 pcs with remarkably higher working efficiency.
It is highly suitable for seamless steel rings and ensures premium welding quality.
With streamlined circuit design, the Laser Welding Machine runs more stably and saves power consumption.
Complicated operation is unnecessary; the HMI interface delivers simple operation, with only laser parameter percentage setting required.
D. Main configuration
Automatic forming servo tooling: self-made
Control system: Raynen
Fiber continuous laser: BWT/MAX
Cooling water chiller: Hanli

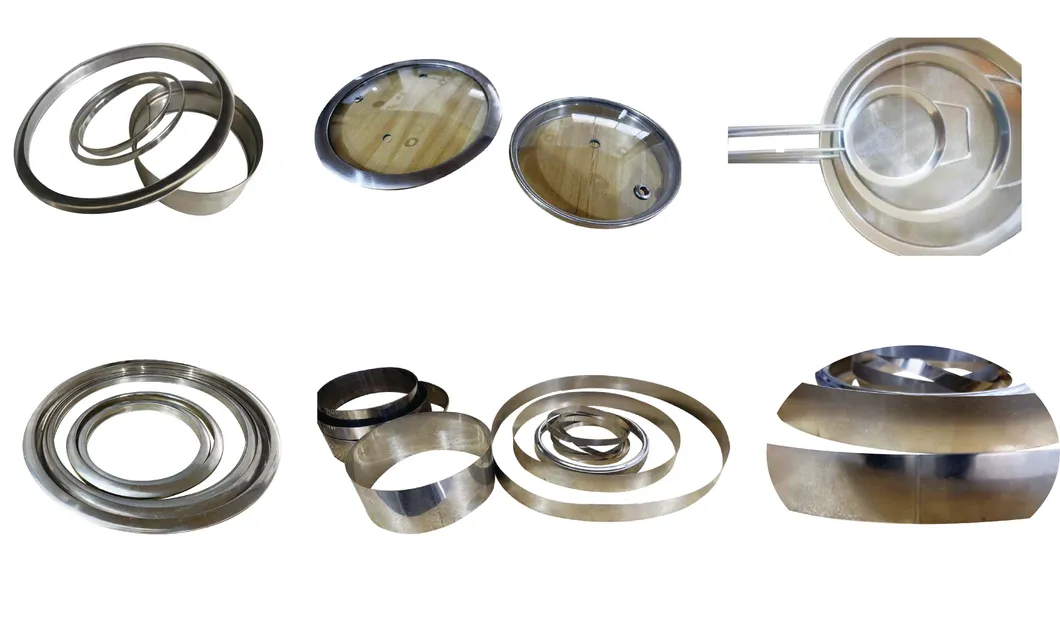

E. Welding samples photos:
