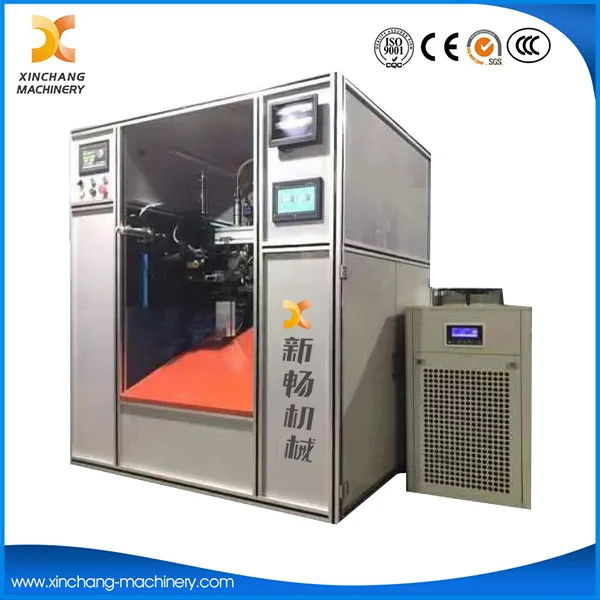

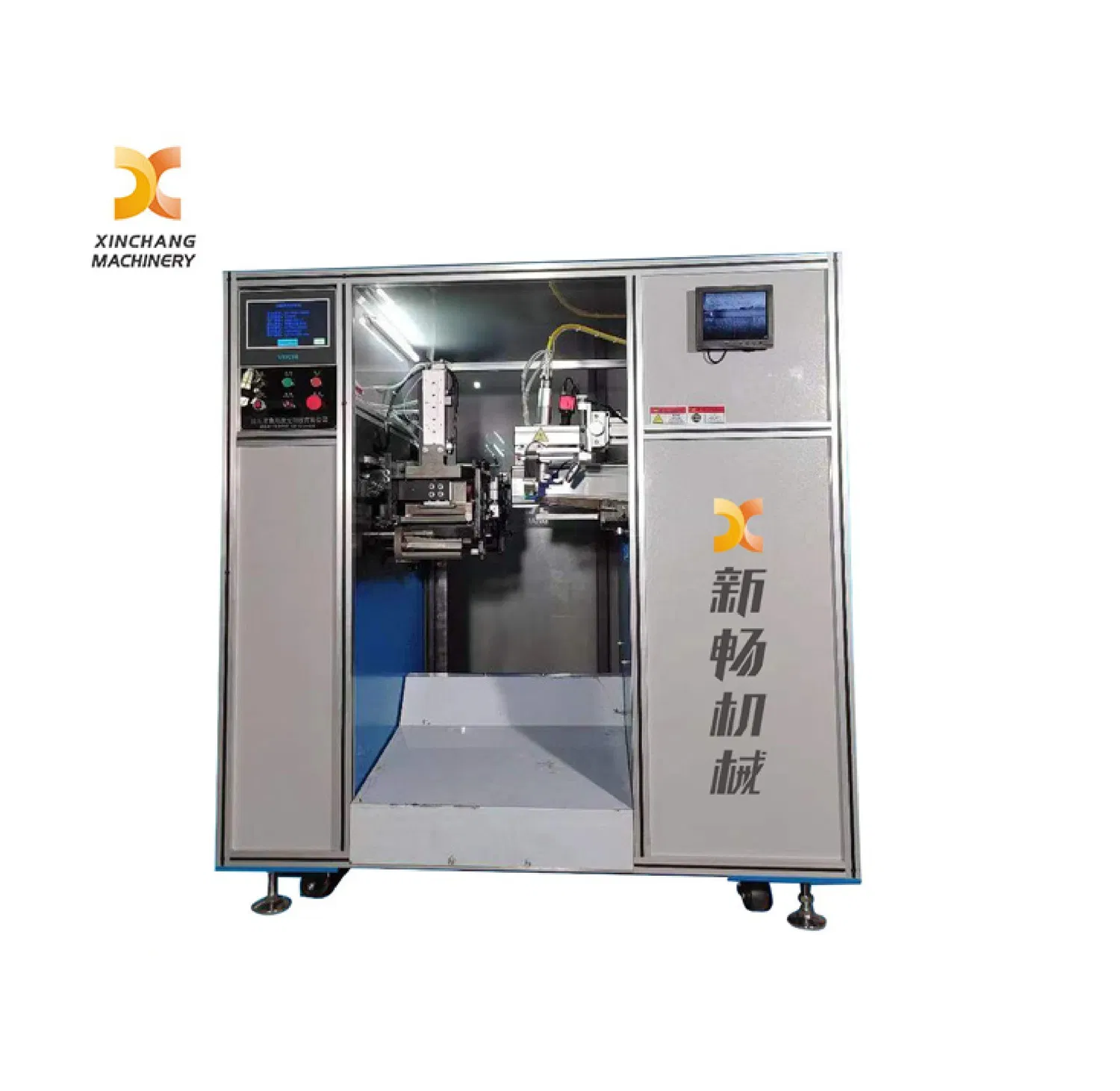

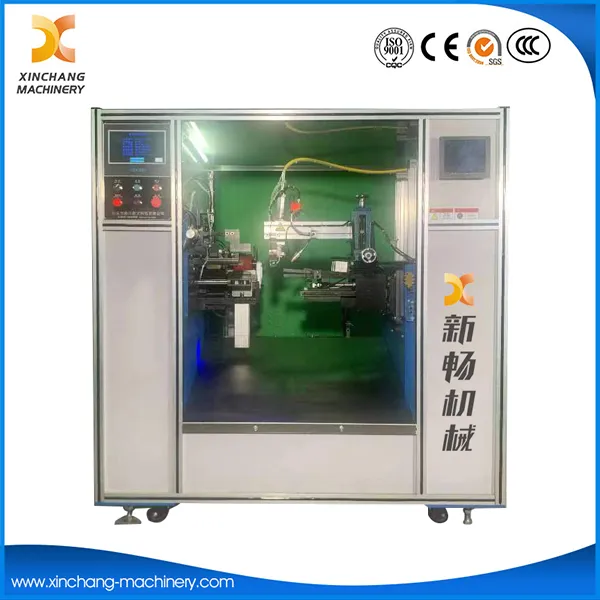

A. Model and specifications
| Model | XC-K53-1000 | XC-K92-1000 | XC-K160-1000 |
| Laser power | 1000W | 1000W | 1000W |
| Steel strip width | 8-53mm | 45-92mm | 80-160mm |
| Welding capacity | 14-18 pcs/min | 12 pcs/min | 10pcs/min |
| Steel strip thickness | 0.13-0.7mm | 0.2-0.5mm | 0.2-0.4mm |
| Steel ring diameter | 65-700mm | 85-700mm | 120-700mm |
| Total machine power | 5kw | 5kw | 5kw |
| Input voltage | 220V | 220V | 220V |
| Nitrogen protection | Optional | Optional | Optional |
| Mark function | Optional | Optional | Optional |
| Cooling mode | Water | Water | Water |
| Machine weight | 1350kg | 1350kg | 1350kg |
| Overall size | 148x128x168 cm | 148x128x168 cm | 148x128x168 cm |
B. Application
It's used for the stainless steel strip of Glass cover, Basket, Flour sieve,Enamel pot,Trash can,Steamer etc.The steel strip specification is 8-160mm width, 0.13-0.7mm thickness and material SS304,201,410,430. C. Advantages - Beautiful design appearance, small floor space(148x128x168cm)
- Built-in fiber continuous laser, No external space occupied.
- Welding capacity 10-18 pcs, efficiency is higher
- More suitable for seamless steel rings, the welding quality is better.
- Succinct design of circuit, more stable and power saving, single phase 220V power supply
- No complicated operation, the operation in HMI is very simple, only need to set the percentage of laser.

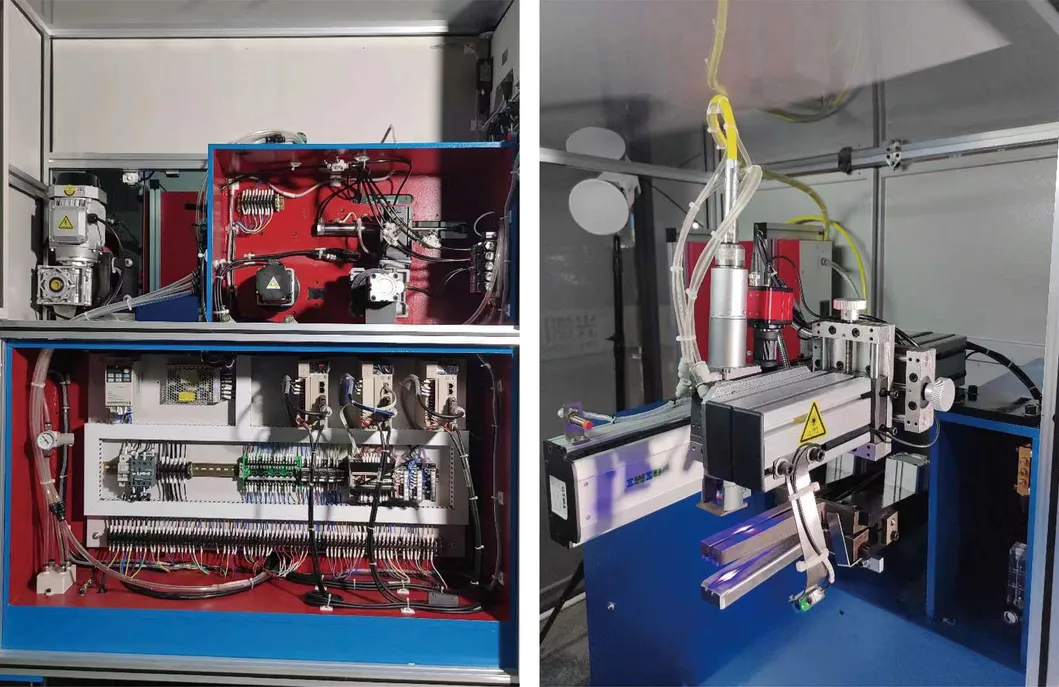

D. Main configuration - Automatic forming servo tooling: self-made
- Control system: Omron
- Fiber continuous laser: JPT
- Cooling water chiller: Bingyue

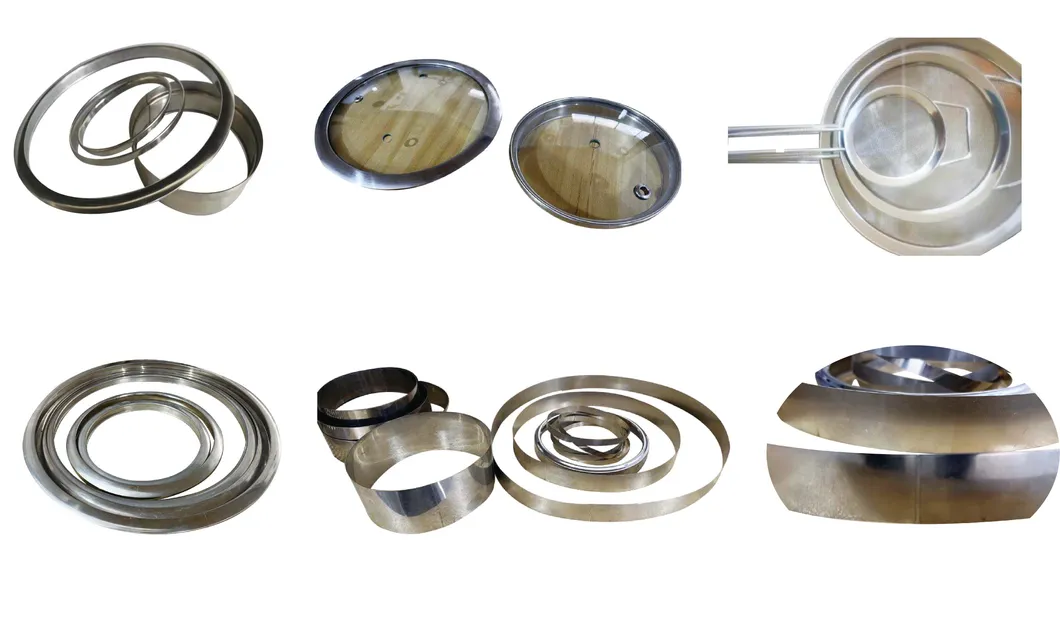

E. Welding samples photos:
