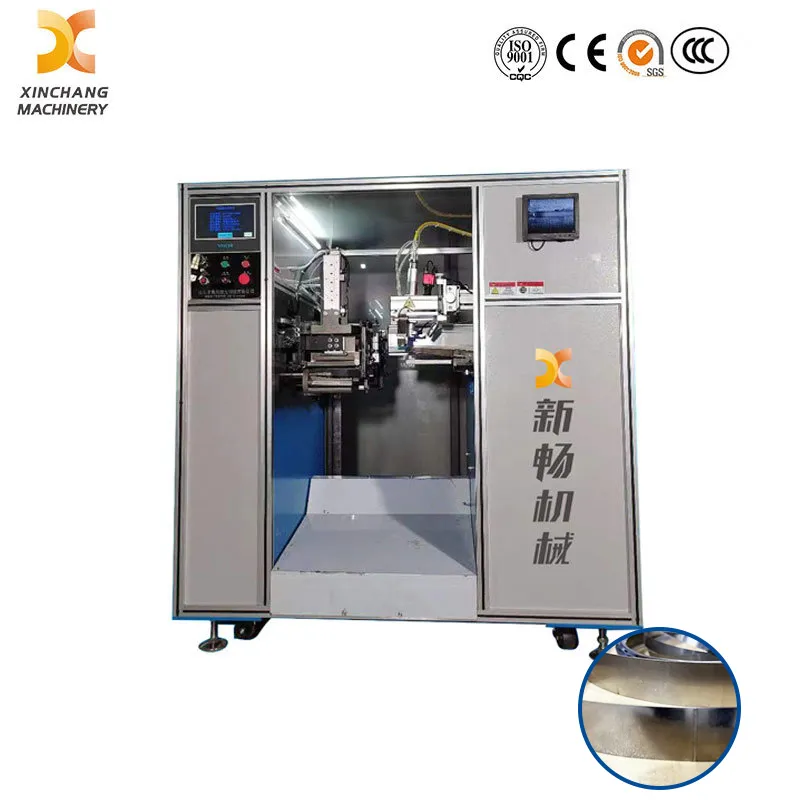

A. Model and specifications
| Model | XC-K53-1000 | XC-K92-1000 | XC-K160-1000 |
| Laser power | 1000W | 1000W | 1000W |
| Steel strip width | 8-53mm | 45-92mm | 80-160mm |
| Welding capacity | 14-18 pcs/min | 12 pcs/min | 10pcs/min |
| Steel strip thickness | 0.13-0.7mm | 0.2-0.5mm | 0.2-0.4mm |
| Steel ring diameter | 65-700mm | 85-700mm | 120-700mm |
| Total machine power | 5kw | 5kw | 5kw |
| Input voltage | 220V | 220V | 220V |
| Nitrogen protection | Optional | Optional | Optional |
| Mark function | Optional | Optional | Optional |
| Cooling mode | Water | Water | Water |
| Machine weight | 1350kg | 1350kg | 1350kg |
| Overall size | 148x128x168 cm | 148x128x168 cm | 148x128x168 cm |
B. Application
Ideal for processing stainless steel strip for glass covers, baskets, flour sieves, enamel pots, trash cans, steamers and more. This Laser Welding Machine adapts to steel strip sizes of 10–200mm in width and 0.1–1mm in thickness, supporting materials such as SS430/410/304/202/201, GI, Tinplate and other common grades.
C. Advantages
Elegant overall design with compact structure and small floor space.
Equipped with built-in fiber continuous laser, it needs no additional external layout space.
It supports 10–20 pcs welding capacity with greatly improved working efficiency.
Perfectly applicable to seamless steel ring processing, delivering premium welding finish and quality.
This Automatic Welding Machine adopts streamlined circuit design for more stable running performance and lower energy consumption. Operation is straightforward without complicated steps; the HMI interface enables easy parameter setting, simply by adjusting the laser percentage value. The overall layout of this Laser Equipment realizes integrated design, making installation and daily maintenance more convenient. D. Main configuration
Automatic forming servo tooling: self-made
Control system: Raynen
Fiber continuous laser: BWT/MAX
Cooling water chiller: Hanli

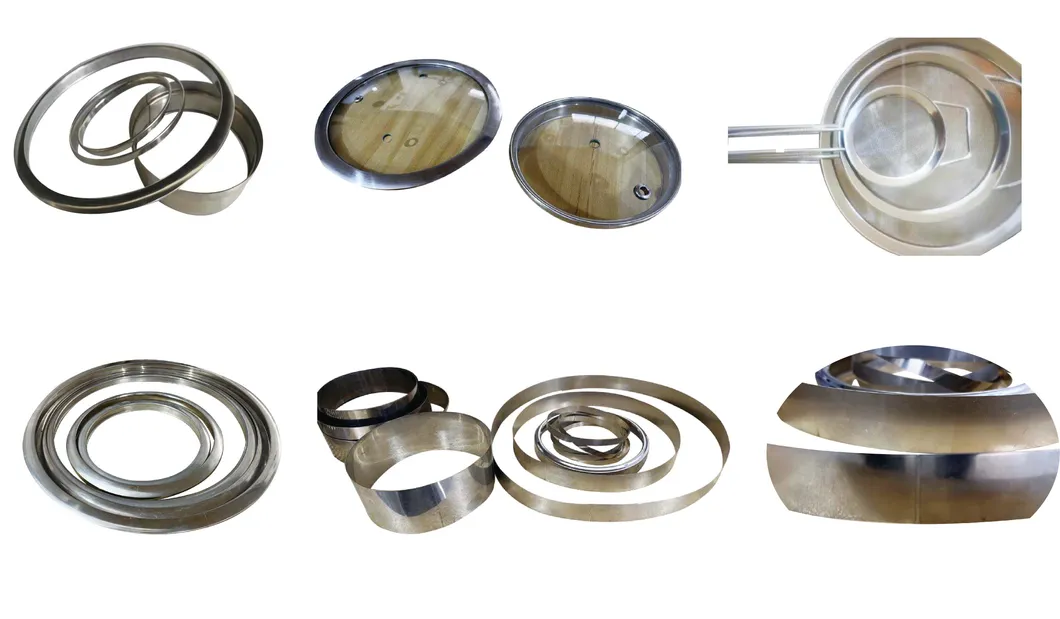

E. Welding samples photos:
