A. Model and specifications
| Model | XC-K53-1000 | XC-K92-1000 | XC-K160-1000 |
| Laser power | 1000W | 1000W | 1000W |
| Steel strip width | 8-53mm | 45-92mm | 80-160mm |
| Welding capacity | 14-18 pcs/min | 12 pcs/min | 10pcs/min |
| Steel strip thickness | 0.13-0.7mm | 0.2-0.5mm | 0.2-0.4mm |
| Steel ring diameter | 65-700mm | 85-700mm | 120-700mm |
| Total machine power | 5kw | 5kw | 5kw |
| Input voltage | 220V | 220V | 220V |
| Nitrogen protection | Optional | Optional | Optional |
| Mark function | Optional | Optional | Optional |
| Cooling mode | Water | Water | Water |
| Machine weight | 1350kg | 1350kg | 1350kg |
| Overall size | 148x128x168 cm | 148x128x168 cm | 148x128x168 cm |
B. Application
This Laser Welding Machine is designed for processing stainless steel strip used in glass covers, baskets, flour sieves, enamel pots, trash cans, steamers and other daily hardware products. The applicable steel strip specifications cover width 10-200mm and thickness 0.1-1mm, compatible with materials including SS430/410/304/202/201, GI, Tinplate etc.
C. Advantages
This Automatic Welding Machine features an elegant streamlined appearance and occupies minimal floor space.
It adopts a built-in fiber continuous laser configuration, requiring no extra external installation space.
With a welding capacity of 10-20 pieces per batch, it delivers outstanding working efficiency.
It performs exceptionally well in processing seamless steel rings and achieves superior welding quality.
The optimized circuit layout of this Laser Equipment ensures stable operation and lower power consumption.
It eliminates complex operational procedures; the HMI human-machine interface is intuitive and user-friendly, with operation only requiring simple adjustment of laser parameter percentage.
D. Main configuration
Automatic forming servo tooling: self-made
Control system: Raynen
Fiber continuous laser: BWT/MAX
Cooling water chiller: Hanli

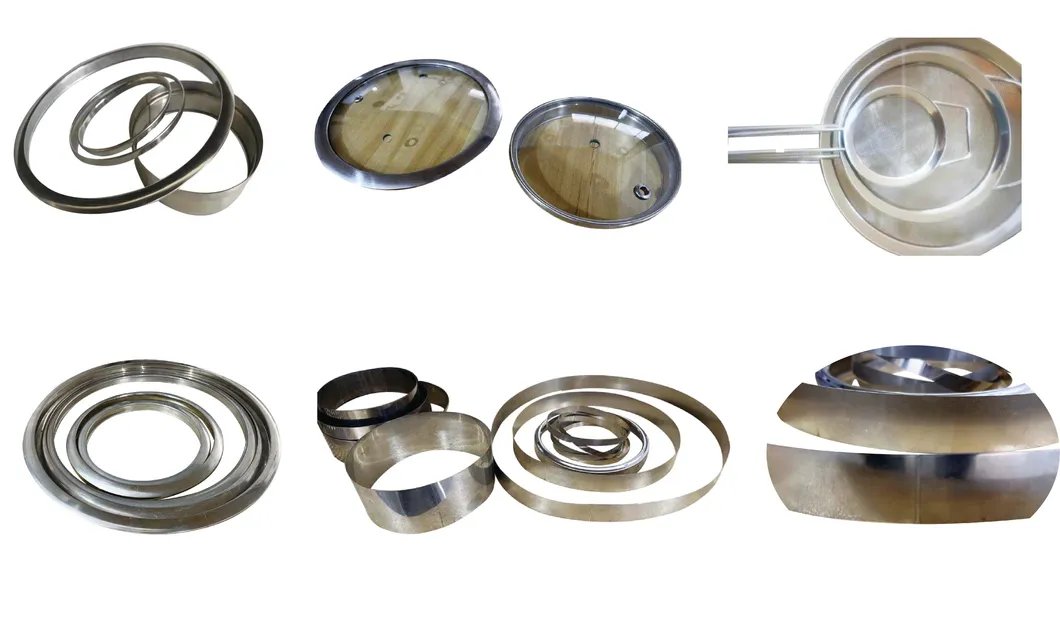

E. Welding samples photos:
