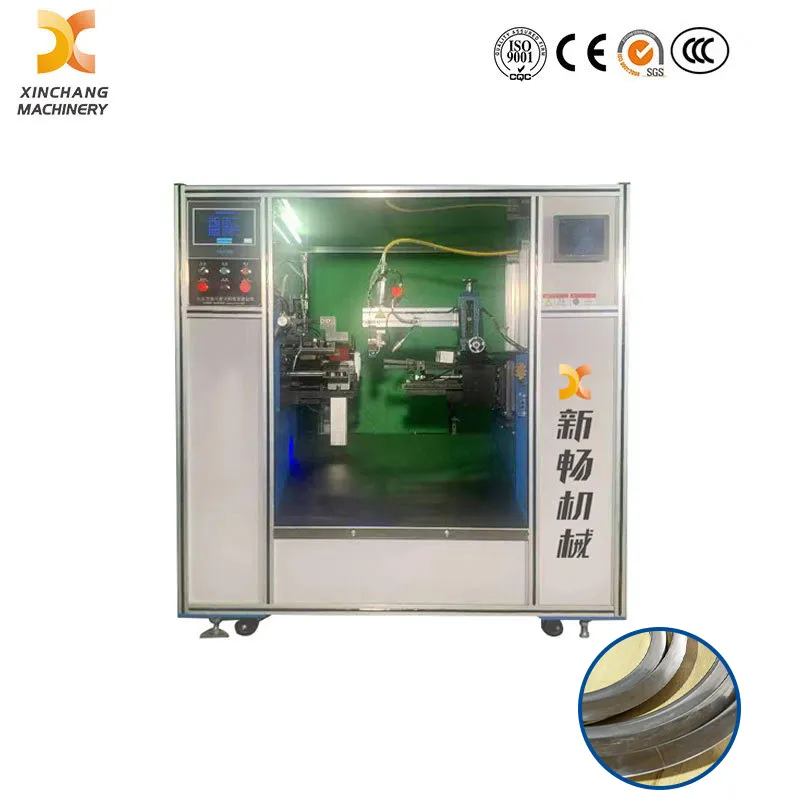

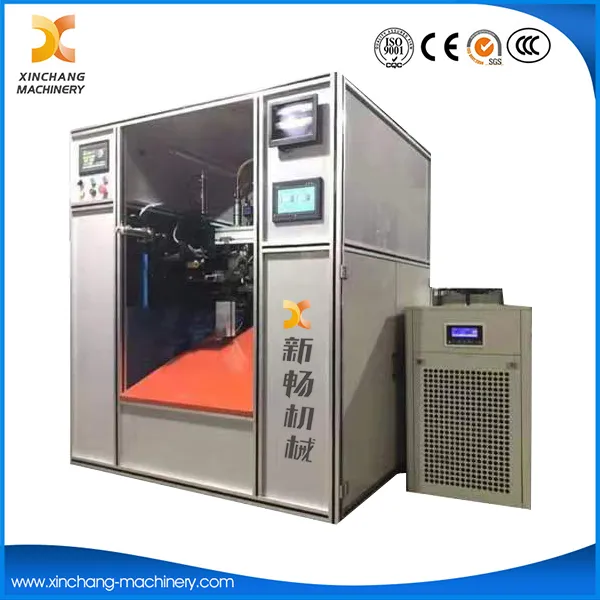

A. Model and specifications
| Model | XC-K53-1000 | XC-K92-1000 | XC-K160-1000 |
| Laser power | 1000W | 1000W | 1000W |
| Steel strip width | 8-53mm | 45-92mm | 80-160mm |
| Welding capacity | 14-18 pcs/min | 12 pcs/min | 10pcs/min |
| Steel strip thickness | 0.13-0.7mm | 0.2-0.5mm | 0.2-0.4mm |
| Steel ring diameter | 65-700mm | 85-700mm | 120-700mm |
| Total machine power | 5kw | 5kw | 5kw |
| Input voltage | 220V | 220V | 220V |
| Nitrogen protection | Optional | Optional | Optional |
| Mark function | Optional | Optional | Optional |
| Cooling mode | Water | Water | Water |
| Machine weight | 1350kg | 1350kg | 1350kg |
| Overall size | 148x128x168 cm | 148x128x168 cm | 148x128x168 cm |
B. Application
This Laser Welding Machine is suitable for processing stainless steel strips used in glass covers, baskets, flour sieves, enamel pots, trash cans, steamers and other products. The applicable steel strip specifications cover width of 10-200mm and thickness of 0.1-1mm, with optional materials including SS430/410/304/202/201, GI, Tinplate and more.
C. Advantages
Beautiful design appearance with small floor space
Built-in fiber continuous laser, no external space occupied.
With a welding capacity of 10-20 pcs per batch, the Automatic Welding Machine delivers higher working efficiency.
It fits seamlessly with seamless steel ring processing and achieves superior welding quality.
Adopts succinct circuit design for more stable operation and lower power consumption.
Featuring hassle-free operation, the HMI control interface is extremely user-friendly; operators only need to set the laser percentage parameter on this Laser Equipment.

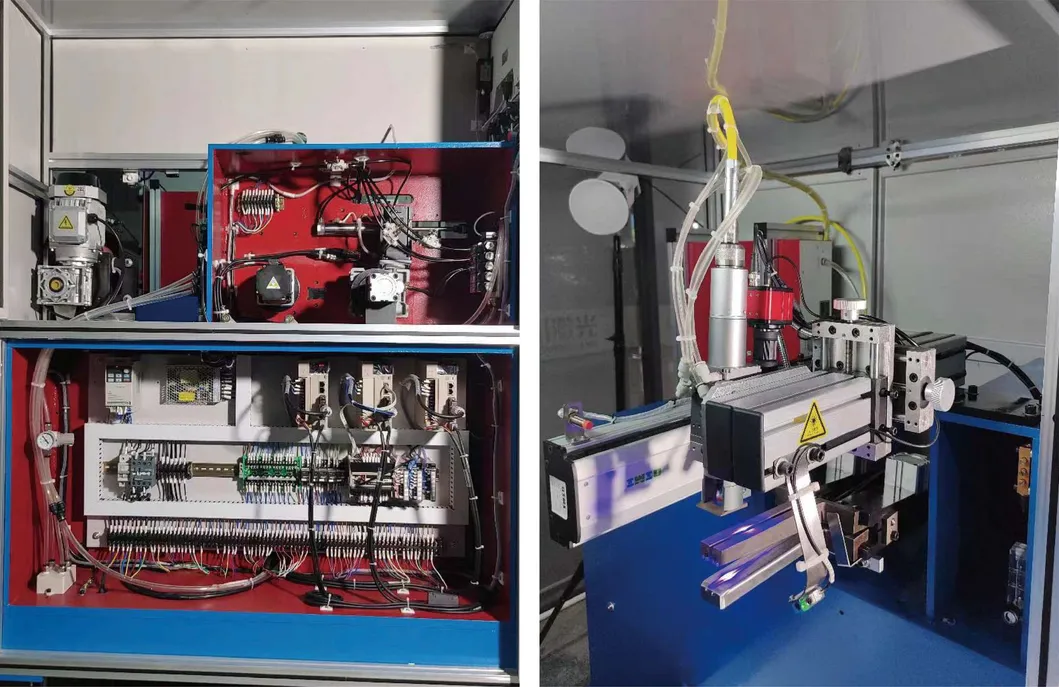

D. Main configuration
Automatic forming servo tooling: self-made
Control system: Raynen
Fiber continuous laser: BWT/MAX
Cooling water chiller: Hanli
E. Welding samples photos:
