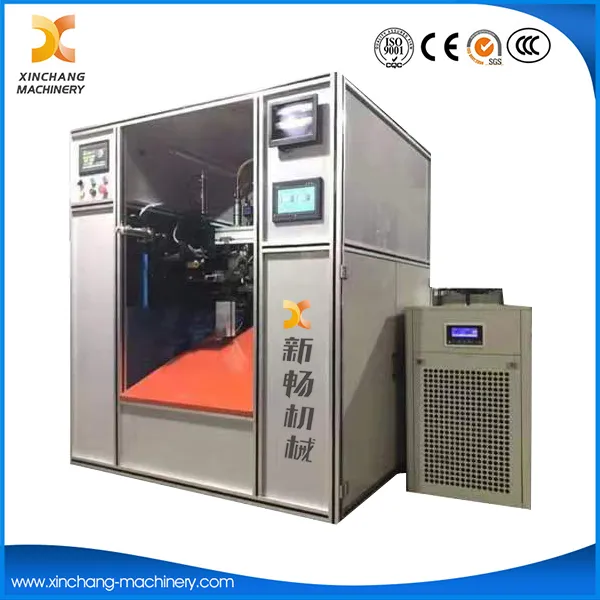

A. Model and specifications
| Item | Machine Models |
| Machine model | ZJ-GL1000-50A | ZJ-GL1000-95A | ZJ-GL1000-125A | ZJ-GL1000-/185A | ZJ-GL1000-200A |
| Max welding width | 10-45mm | 30-90mm | 50-120mm | 70-180mm | 70-200mm |
| Ring diameter | φ90-2000mm | φ90-2000mm | φ90-2000mm | φ90-2000mm | φ90-2000mm |
| Workpiece material | SS430/410/304/202/201,GI,Tinplate etc |
| Welding thickness | 0.1-1.0mm | 0.10-0.5mm | 0.10-0.5mm | 0.10-0.5mm | 0.10-0.5mm |
| Machine total power | 8KW | 8KW | 8KW | 8KW | 8KW |
| Laser power | 1KW | 1KW | 1KW | 1KW | 1KW |
| Input voltage | AC380V/3P | AC380V/3P | AC380V/3P | AC380V/3P | AC380V/3P |
| HZ | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Duty cycle | 100% | 100% | 100% | 100% | 100% |
| Working temperature | 0-45° | 0-45° | 0-45° | 0-45° | 0-45° |
| Humidity | ≤85% | ≤85% | ≤85% | ≤85% | ≤85% |
| Air pressure | ≤0.8MPa | ≤0.8MPa | ≤0.8MPa | ≤0.8MPa | ≤0.8MPa |
| Cooling water pressure | 0.2-0.4MPa | 0.2-0.4MPa | 0.2-0.4MPa | 0.2-0.4MPa | 0.2-0.4MPa |
| Production capacity | 10-30 pcs/min | 10-20pcs/min | 10-20pcs/min | 10-20pcs/min | 10-20pcs/min |
| Machine weight | 1.3Ton | 1.35Ton | 1.35Ton | 1.4Ton | 1.5Ton |
| Machine frame material | high-quality steel plate | high-quality steel plate & Alu. profile | high-quality steel plate & Alu. profile | high-quality steel plate & Alu. profile | high-quality steel plate & Alu. profile |
| Overall size | L1580,W1170, H1900mm | L1680,W1200,H1900mm | L1680,W1200, H1900mm | L1680,W1200, H1900mm | L1680,W1200, H1900mm |
| Chiller size | 720x490x855mm | 720x490x855mm | 720x490x855mm | 720x490x855mm | 720x490x855mm |
| Chiller weight | 38kg | 38kg | 38kg | 38kg | 38kg |
| Chiller power | 1500W | 1500W | 1500W | 1500W | 1500W |
| Cooling water flow | 15L/min | 15L/min | 15L/min | 15L/min | 15L/min |

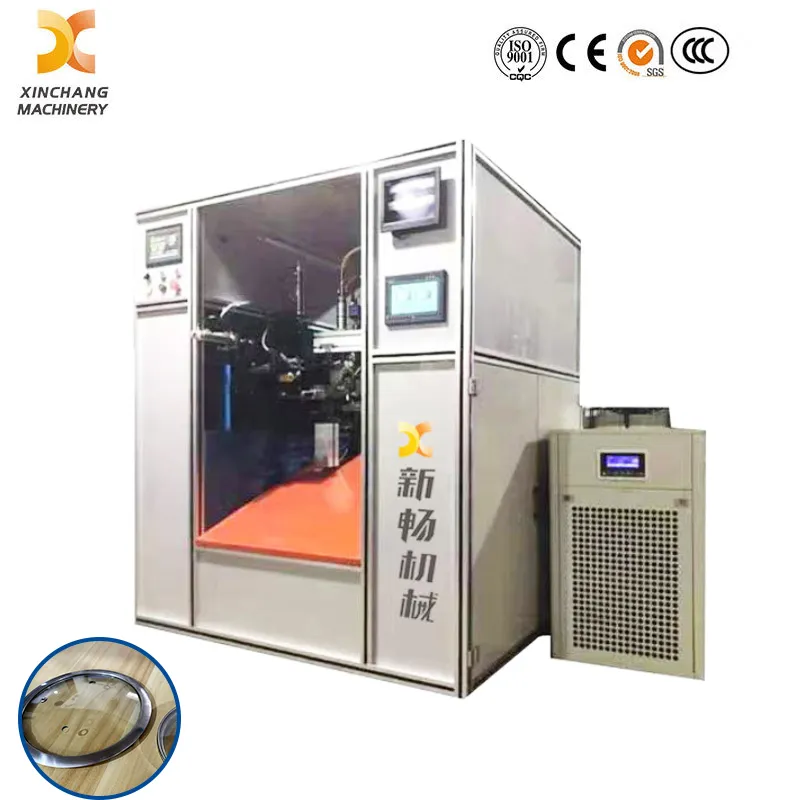

B. Application

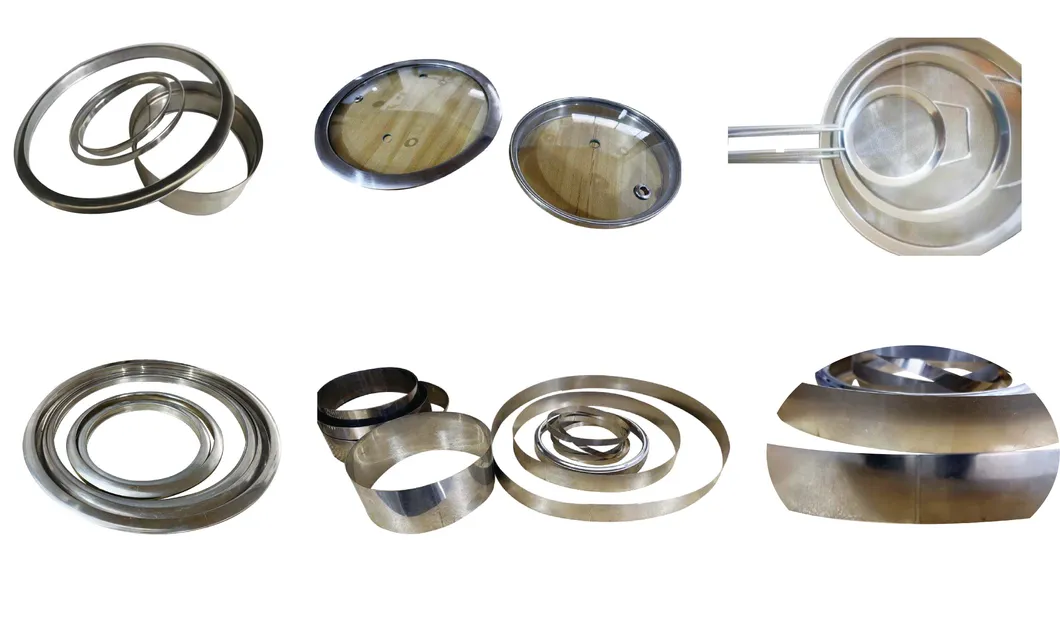

This Laser Welding Machine is specially applied for stainless steel strips used in glass covers, baskets, flour sieves, enamel pots, trash cans, steamers and other daily hardware products. The applicable steel strip specifications cover width 10-200mm and thickness 0.1-1mm, compatible with materials including SS430/410/304/202/201, GI and tinplate.

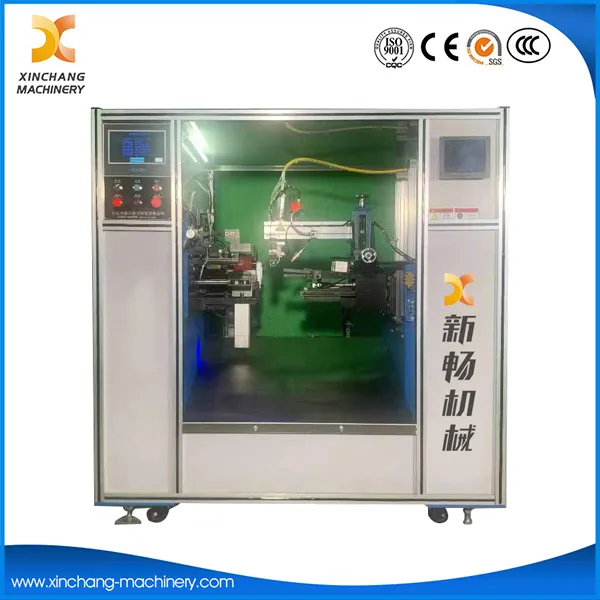

C. Advantages
Featuring an exquisite overall layout, this Automatic Welding Machine boasts attractive appearance and small floor space.
It adopts built-in fiber continuous laser design without occupying extra external space.With a welding capacity of 10-20 pieces per batch, it delivers remarkably higher working efficiency.
It is perfectly adapted to seamless steel ring processing with superior welding quality.
The optimized circuit structure of this Laser Equipment ensures stable operation and low power consumption.
Complicated operation procedures are avoided; the HMI control interface is user-friendly, requiring only simple laser parameter percentage setting to start work.

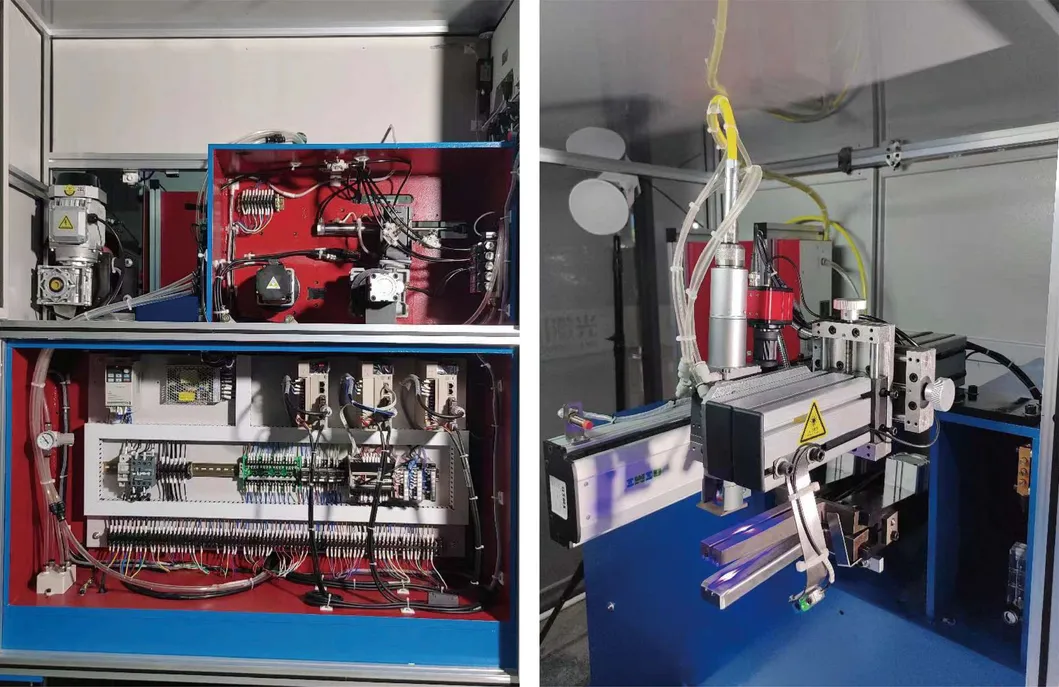

D. Main configuration
Automatic forming servo tooling: self-made
Control system: Raynen
Fiber continuous laser: BWT/MAX
Cooling water chiller: Hanli
