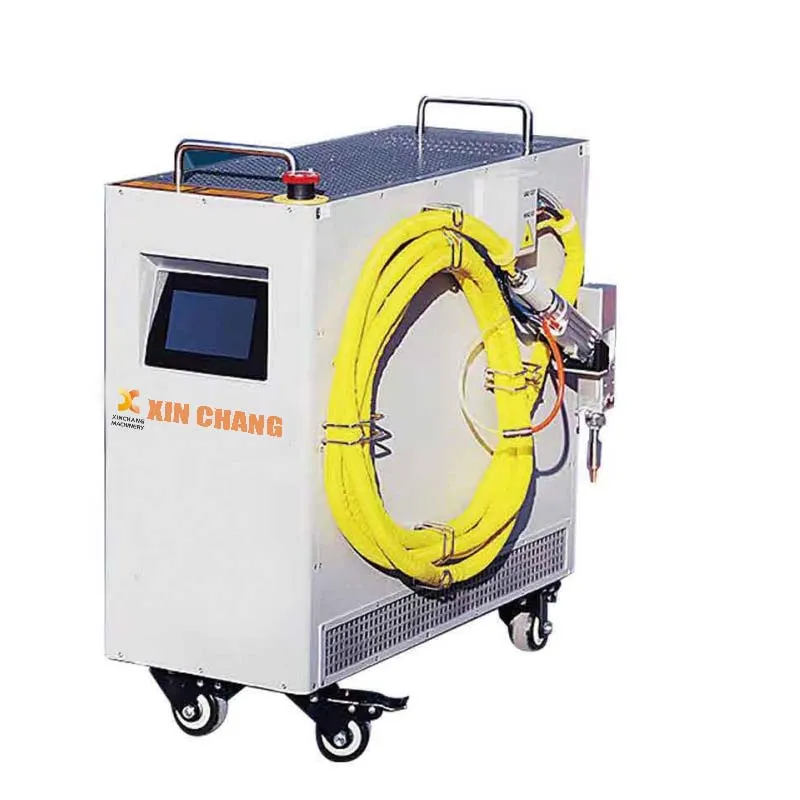

This Handheld Laser Welding Machine features strong universality, applicable to welding most metal workpieces and widely used in hardware equipment, precision machinery and auto parts industries. Compared with the fixed working mode of Automatic Welding Machine, it offers greater mobility, easily adapting to small-batch production, on-site maintenance and welding of irregular workpieces.
As a high-performance Laser Equipment, it delivers stable and efficient operation, with the following features:
1. With an output power of 1kw, its welding penetration can reach 3mm, ensuring the welding seam is firm, smooth and free of burrs, fully meeting the high-standard welding needs of various industrial fields.
2. Adopting advanced 976 nm pump technology, it achieves an electro-optic conversion efficiency of ≥42%, greatly reducing energy consumption and effectively improving the overall welding efficiency and production benefits.
3. It is equipped with a single swing welding joint, and the welding width can be flexibly adjusted according to the size of workpieces and welding process requirements, further enhancing the equipment’s applicability and versatility.
4. The overall weight is less than 60kg, with a compact and exquisite design and small volume, which is convenient for carrying and flexible operation in various complex and narrow working environments.
| Model | ZB-SC1000 |
| Laser wavelength | 1070±10nm |
| Peak pulse | 1500W |
| Optical cable length | 50um/5M/10M |
| swing width | ≤5mm |
| Indicating light wavelength | 650nm |
| Fiber optic connector | QBH |
