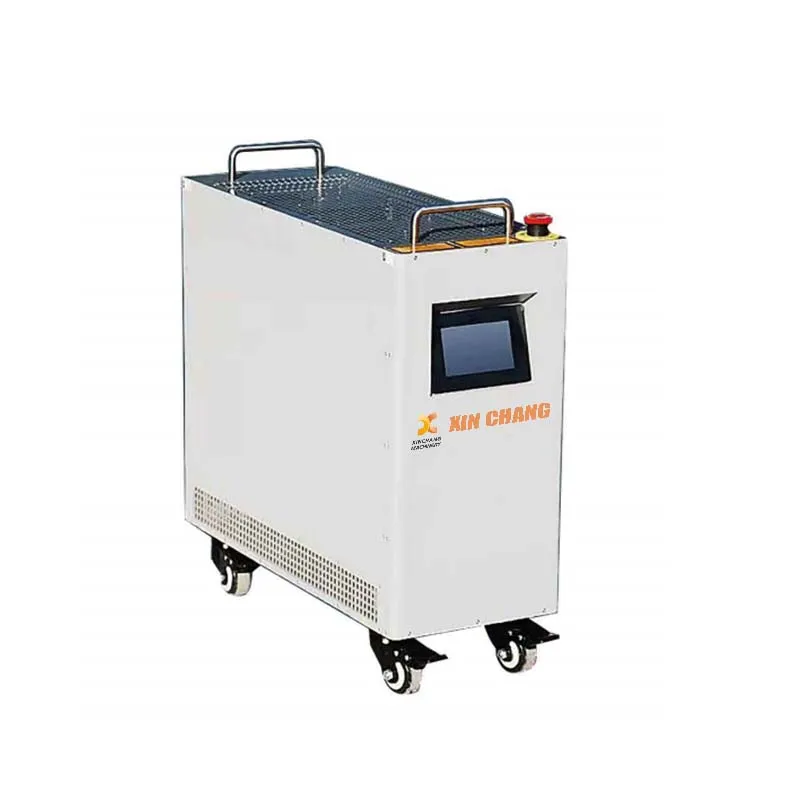

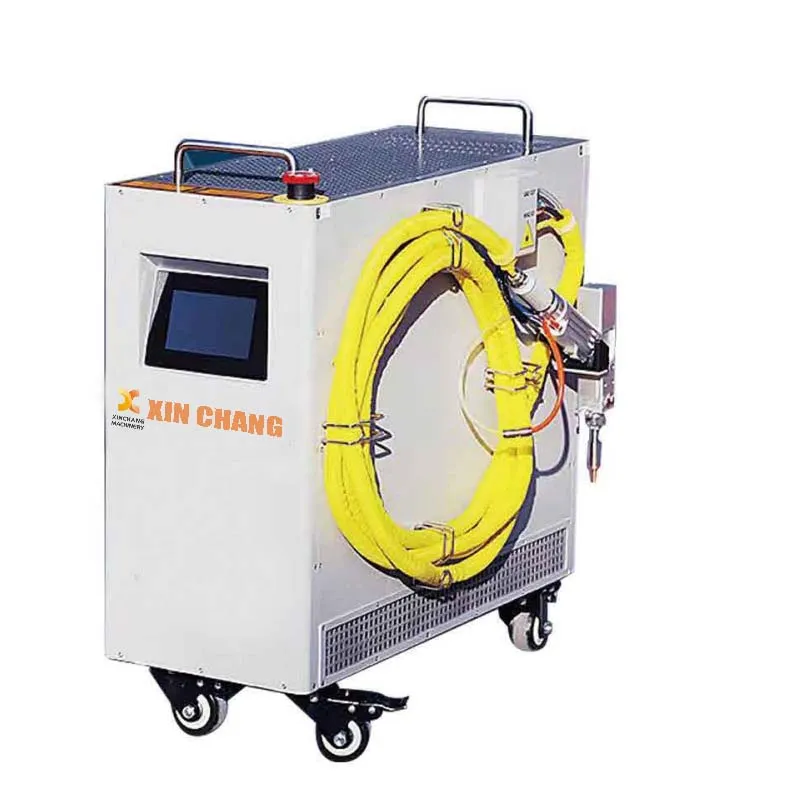

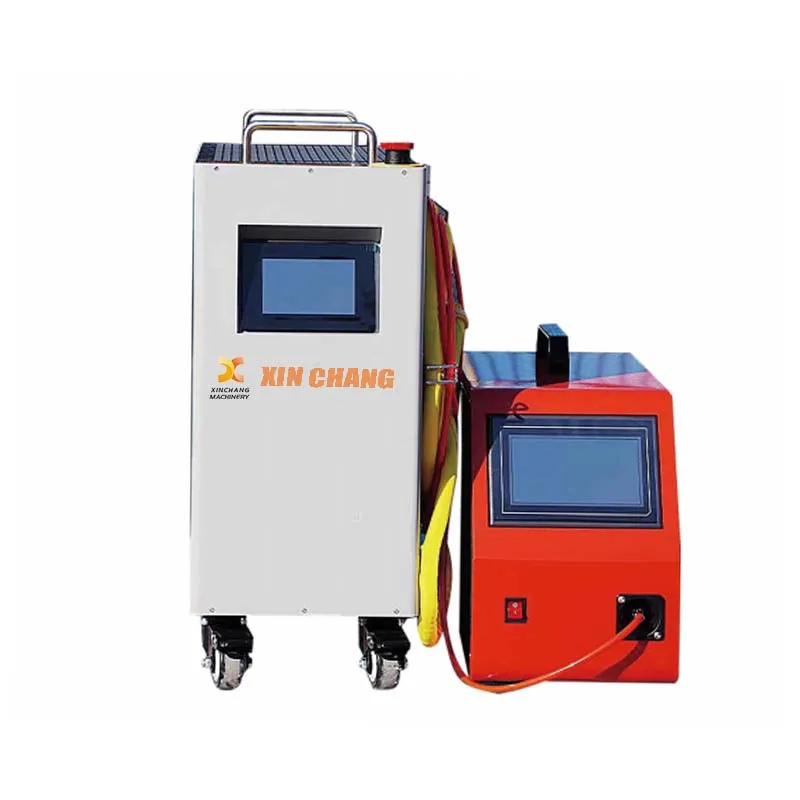

This Handheld Laser Welding Machine boasts strong universality, suitable for welding most metal workpieces and widely used in hardware equipment, auto parts and light industry. Unlike the fixed operation of Automatic Welding Machine, it enables flexible movement, perfectly adapting to small-batch processing, on-site maintenance and irregular workpiece welding scenarios.
As a high-quality Laser Equipment, it has excellent performance, with the following features:
1. It has an output power of 1kw, and the welding penetration can reach 3mm, which ensures the welding seam is tight, smooth and free of defects, meeting the high-standard welding requirements of various industries.
2. Based on advanced 976 nm pump technology, it achieves a high electro-optic conversion efficiency of ≥42%, which effectively reduces energy consumption and improves the overall welding efficiency.
3. Equipped with a single swing welding joint, the welding width can be flexibly adjusted according to different workpiece sizes and welding process requirements, enhancing the applicability of the equipment.
4. The overall weight is less than 60kg, with a compact design and small volume, making it easy to carry and operate in various complex working environments.
| Model | ZB-SC1000 |
| Laser wavelength | 1070±10nm |
| Peak pulse | 1500W |
| Optical cable length | 50um/5M/10M |
| swing width | ≤5mm |
| Indicating light wavelength | 650nm |
| Fiber optic connector | QBH |
