Name: Lattice Girder Production Line Welding Machine
Brand: Ningbo Xin Chang Machinery Co.,Ltd
Rating: 4.8 (13 reviews)

Lattice Girder Production Line Welding Machine

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Style: Fixed

Electrode Stroke: Vertical

Electric Current: Ac

Transmission: Hydraulic

Conductive Way: Both-Sided

Welding Spot Number: Multiple

Type: Spot Welders

Automation: Automatic

Certificates: ISO, CCC

Current: Alternating Current

Name: Lattice Girder Production Line

Transport Package: at Customer's Requrest

Specification: export standard

Trademark: xinchang

Origin: Ningbo China

Production Capacity: 80sets/Year

Customization: Available

Control: Automatic

Cooling Way: Water Cooling

Supply Ability & Additional Information

Supply Ability: 80sets/Year

Packaging & Delivery

Selling Units:

Piece/Pieces



Lattice Girder Deck Spot Welding Machine1



Overview
Product Description
Product Parameters
Detailed Photos
Company Profile
FAQ

Basic Info.

Style

Fixed

Electrode Stroke

Vertical

Electric Current

Transmission

Hydraulic

Conductive Way

Both-Sided

Welding Spot Number

Multiple

Type

Spot Welders

Automation

Automatic

Certificates

ISO, CCC

Current

Alternating Current

Name

Lattice Girder Production Line

Transport Package

at Customer's Requrest

Specification

export standard

Trademark

xinchang

Origin

Ningbo China

Production Capacity

80sets/Year

Product Description

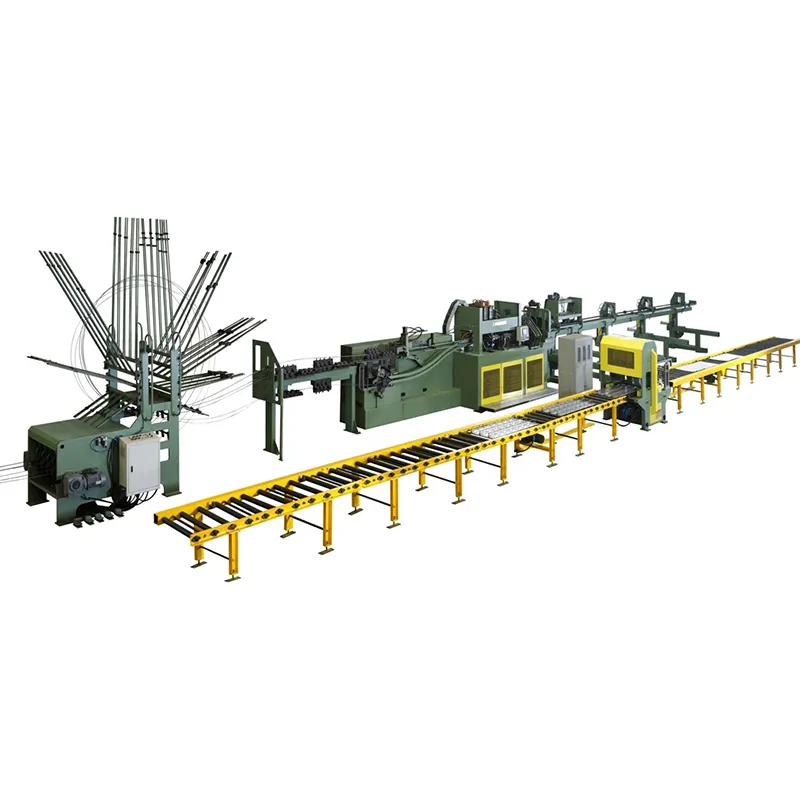

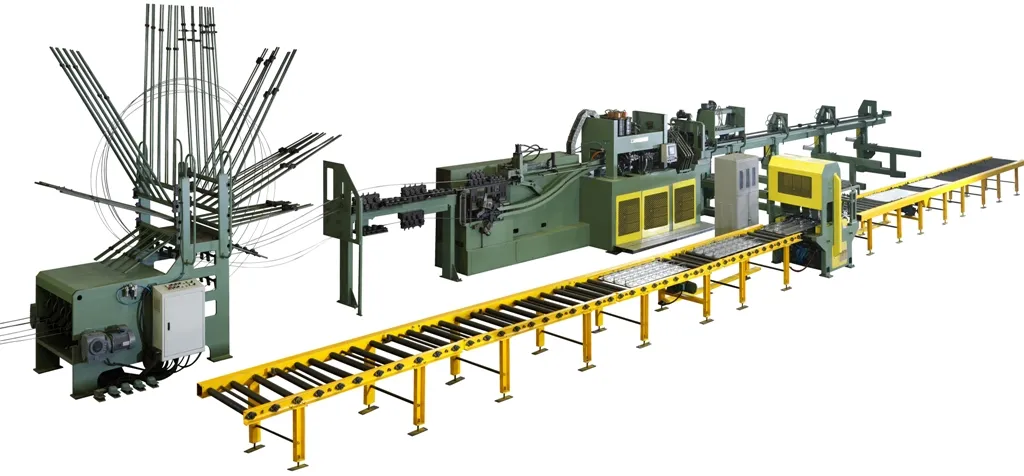

Lattice Girder Production Line Steel Truss Structure Welding Machine for Concrete Precast

The machine is used to weld rebar girders, be widely used in building projects field, railway projects field and so on.

1, The stepping configuration of truss is controlled by CNC servo motor, it has the high precision and is easy to adjust. Servo motor is Mitsubishi

2, The coil loader is automatically controlled to prevent causing of the mess of wire.

3, The high precision forming performance of wire bending configuration is stable and fast.

4, User-friendly control interface is intuitive and intelligent, is easy to operate.

5, The electric elements are imported, supplied by Siemens, stable and reliable.

6, Automatic aggregated configuration can reduce labor intensity and improve the efficiency.

7, Intelligent alarm system is easy to maintain and repair

8, Control systems: Siemens, Mitsubishi

9, Hydraulic system is from Yuken Japan.

Note: Non-adjustable type: Pitch of zigzag rods is fixed

Adjustable type: Pitch of zigzag rods is adjustable from 190mm to 210mm

Items	Unit	Data	Remark
Max. load capacity of coil loader	KG/pc	2000	Total 5 pcs
Girder height	mm	70 -400	Adjustable
Girder length	mm	≥ 200
Straightening speed	m/min	25
Upper chord diameter	mm	8-16
Lower chord diameter	mm	6-16
Zigzag rod diameter	mm	4-8.5
Straightening motor power	KW	7.5× 3	Imported motor
Wire feeding motor power	KW	7.5× 2	Imported motor
Zigzag forming motor power	KW	7.5× 3	Imported motor
Max. linear speed for bending& forming	M/min	18
Welding transformer power	KVA	200× 3
Welding liner speed	M/min	10-12
Hydraulic system capacity	KW	37
Cutting motor power	KW	30
Air pressure	MPa	≥ 0.6
Air consuming	M 3 /min	1.8
Rated voltage	V	380± 15%
Width of Lattice girder	mm	70-150	Adjustable
Pitch of Zigzag rods	mm	200	Or adjustable 180-220
Total weight	Ton	30
Overall length	M	42

Lattice Girder Production Line Steel Truss Structure Welding Machine for Concrete Precast

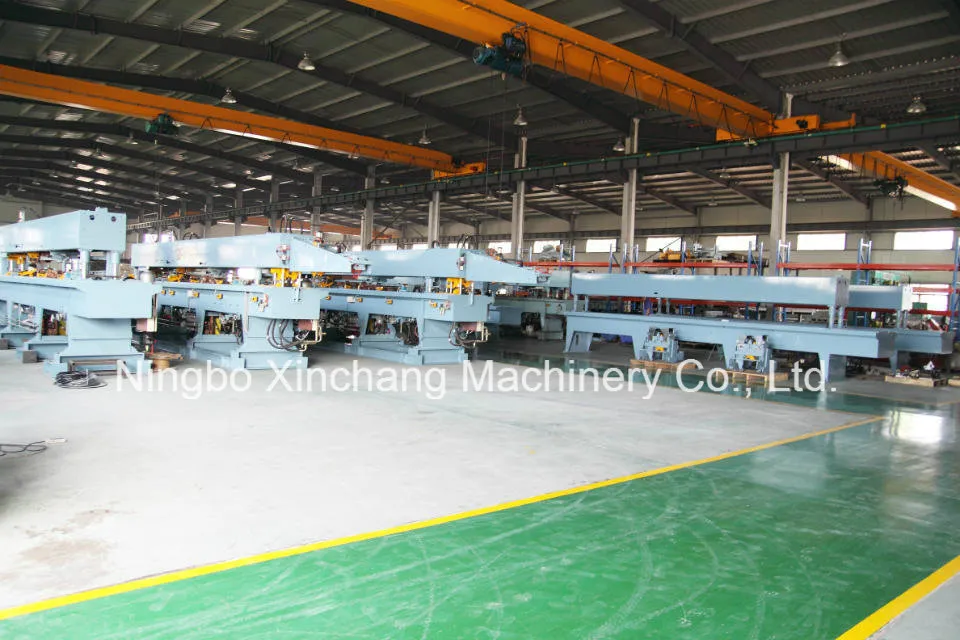

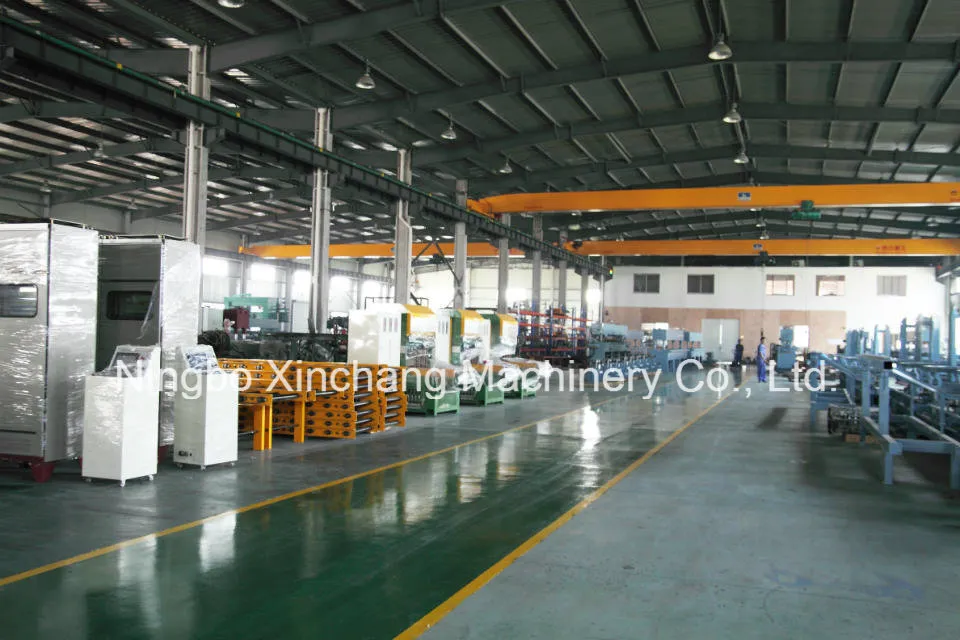

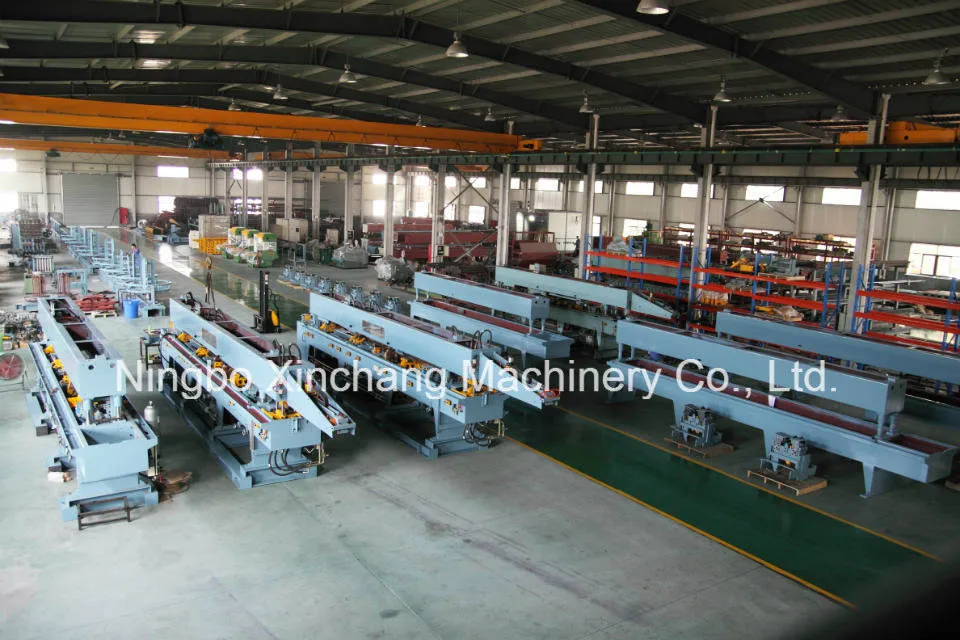

We, Ningbo Xin Chang Machinery Co.,Ltd are a professional designer and manufacturer in Friction Welding Machine, Resistance Welding Machine and Heat exchanger equipment. Our factory is in this line more than 20 years, we have more than 10 senior mechanical and electrical specialists and total more than 200 staff, our machine is famous in China. We have CCC, ISO9001 and CE certificates.

Over the years, we have exported so many machines to 30 and more countries, such as France,Spain,Poland,Russia,Indonesia,Vietnam,Pakistan,India,Mexico,Egypt etc.

Our main products are Heat exchanger equipment, Friction welding machine, Spot Welding Machine, Projection Welding Machine, Butt Welding Machine, Seam Welding Machine, Multi Head Welding Machine For Wire Mesh, and other various special welding machine for metal connection in different industries.

We always adhere to the management idea of "Integrity, profession, innovation, and win-win", to make Xin Chang becomes trustworthy enterprise of customers. Good product quality, perfect after-sales service, and professional technical support make customers choose no regrets and worry-free use.
