Name: Automatic Lattice Girder Production Line Truss Girder Welding Machine with CE
Brand: Ningbo Xin Chang Machinery Co.,Ltd
Rating: 4.6 (15 reviews)

Automatic Lattice Girder Production Line Truss Girder Welding Machine with CE

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Style: Fixed

Electrode Stroke: Vertical

Transmission: Pneumatic

Conductive Way: Both-Sided

Welding Spot Number: Multiple

Type: Spot Welders

Current: Alternating Current

Automation: Yes

Certificates: ISO, CCC

Name: Lattice Girder Production Line

Transport Package: at Customer's Requrest

Specification: export standard

Trademark: xinchang

Origin: Ningbo China

Production Capacity: 20 Sets/Month

Customization: Available

Control: Semi-Automatic

Cooling Way: Water Cooling

Supply Ability & Additional Information

Supply Ability: 20 Sets/Month

Packaging & Delivery

Selling Units:

Piece/Pieces



Lattice Girder Deck Spot Welding Machine1



Overview
Product Description
Product Parameters
Detailed Photos
Company Profile
FAQ

Basic Info.

Style

Fixed

Electrode Stroke

Vertical

Transmission

Pneumatic

Conductive Way

Both-Sided

Welding Spot Number

Multiple

Type

Spot Welders

Current

Alternating Current

Automation

Yes

Certificates

ISO, CCC

Name

Lattice Girder Production Line

Transport Package

at Customer's Requrest

Specification

export standard

Trademark

xinchang

Origin

Ningbo China

Production Capacity

20 Sets/Month

Product Description

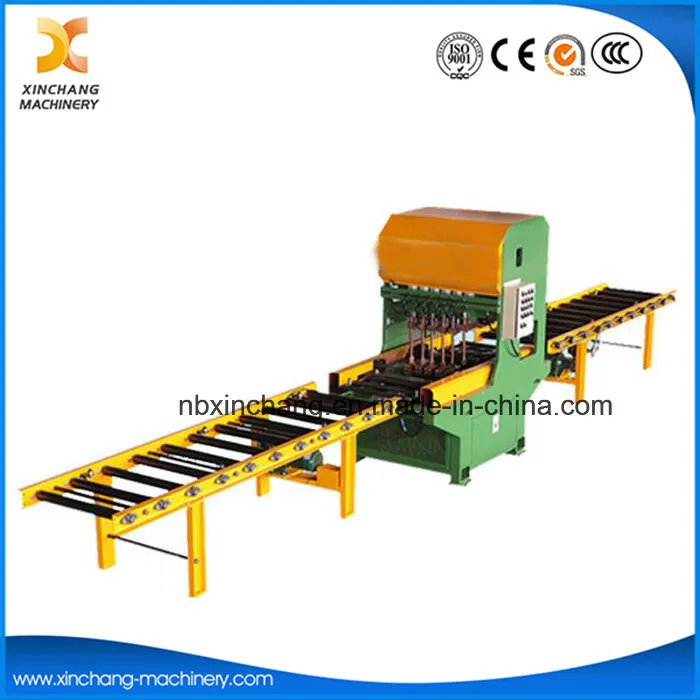

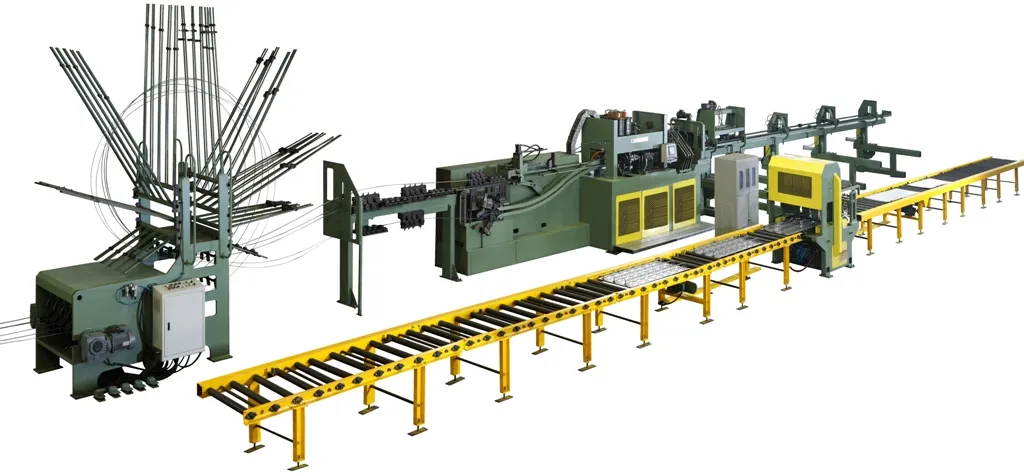

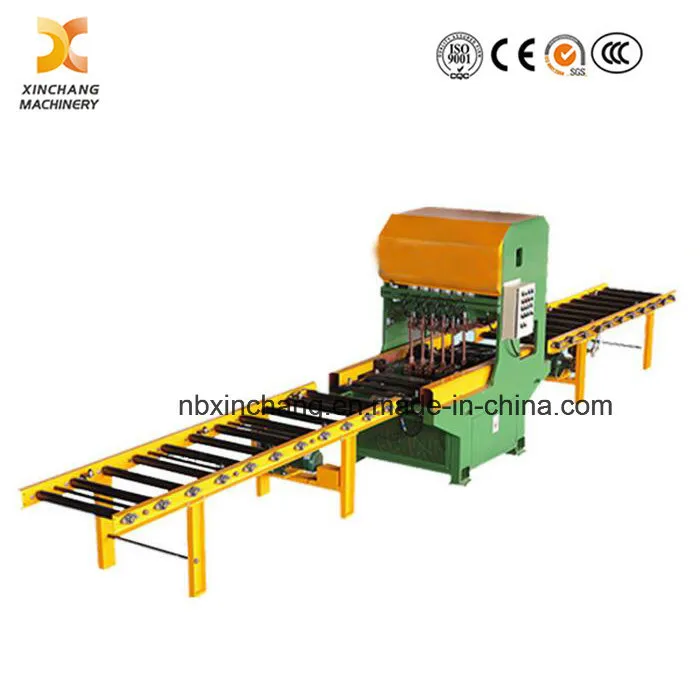

Automatic Lattice Girder Production Line Truss Girder Welding Machine with CE

Description:
1, High quality
2, easy to operate
3, littler consumption of electricity
4, Quality is stable, failure rate is low, the machine life is longer.

Advantage:
1, Machine body of thick steel sheet, not easy to deformation
2, Microcomputer control, accuracy and steady
3, Water cooling transformer: Use silicon sheets of 15000 gauss permeability to pile up. There is cooling water in inside, using full copper alloy core, reducing impedance, improving the utilization of power, 20% duty cycle to ensure the requirement of long time welding, big output power. The useful lifetime is longer, noise is smaller, structure is more compact and reasonable.
4, Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost.
5, Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.
6, Quality is stable, failure rate is low, therefore machine life is longer

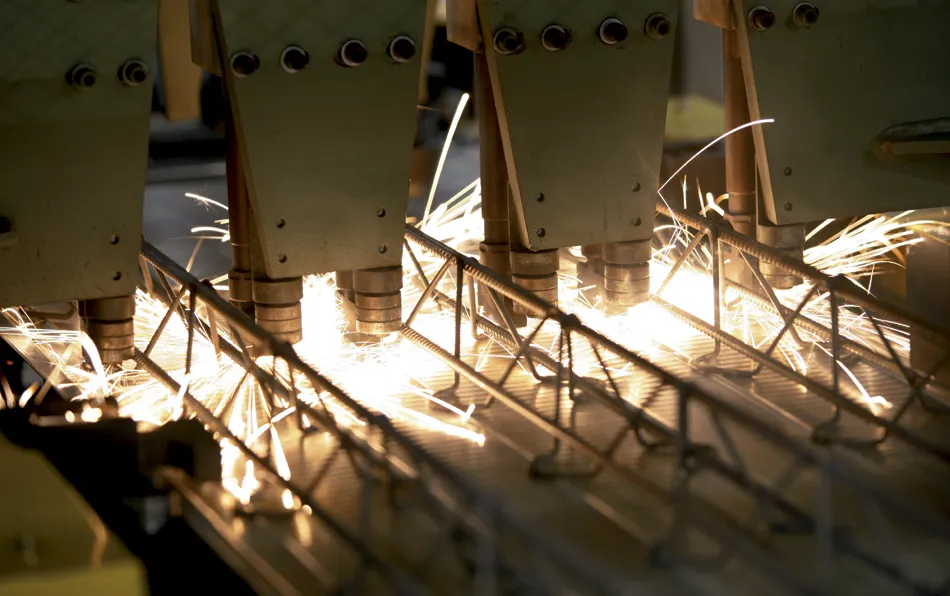

Application: Be used in the spot welding of steel floor decks with lattice girders of steel bars.

Items	Unit	Data	Remark
Max. load capacity of coil loader	KG/pc	2000	Total 5 pcs
Girder height	mm	70 -400	Adjustable
Girder length	mm	≥ 200
Straightening speed	m/min	25
Upper chord diameter	mm	8-16
Lower chord diameter	mm	6-16
Zigzag rod diameter	mm	4-8.5
Straightening motor power	KW	7.5× 3	Imported motor
Wire feeding motor power	KW	7.5× 2	Imported motor
Zigzag forming motor power	KW	7.5× 3	Imported motor
Max. linear speed for bending& forming	M/min	18
Welding transformer power	KVA	200× 3
Welding liner speed	M/min	10-12
Hydraulic system capacity	KW	37
Cutting motor power	KW	30
Air pressure	MPa	≥ 0.6
Air consuming	M 3 /min	1.8
Rated voltage	V	380± 15%
Width of Lattice girder	mm	70-150	Adjustable
Pitch of Zigzag rods	mm	200	Or adjustable 180-220
Total weight	Ton	30
Overall length	M	42

Automatic Lattice Girder Production Line Truss Girder Welding Machine with CE
