Description
Tailored for reliable fabrication demands, our Lattice Girder Welding Machine boasts standout product merits as below: High quality
easy to operate
littler consumption of electricity
Quality is stable, failure rate is low, the machine life is longer.
Advantage
Matching the core processing needs of the above equipment, our core structural and control strengths support stable continuous production for the Automatic Lattice Girder Welder: Machine body of thick steel sheet, not easy to deformation
Microcomputer control, accuracy and steady
Water cooling transformer: Use silicon sheets of 15000 gauss permeability to pile up. There is cooling water in inside, using full copper alloy core, reducing impedance, improving the utilization of power, 20% duty cycle to ensure the requirement of long time welding, big output power. The useful lifetime is longer, noise is smaller, structure is more compact and reasonable.
Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost.
Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.
Quality is stable, failure rate is low, therefore machine life is longer
Application

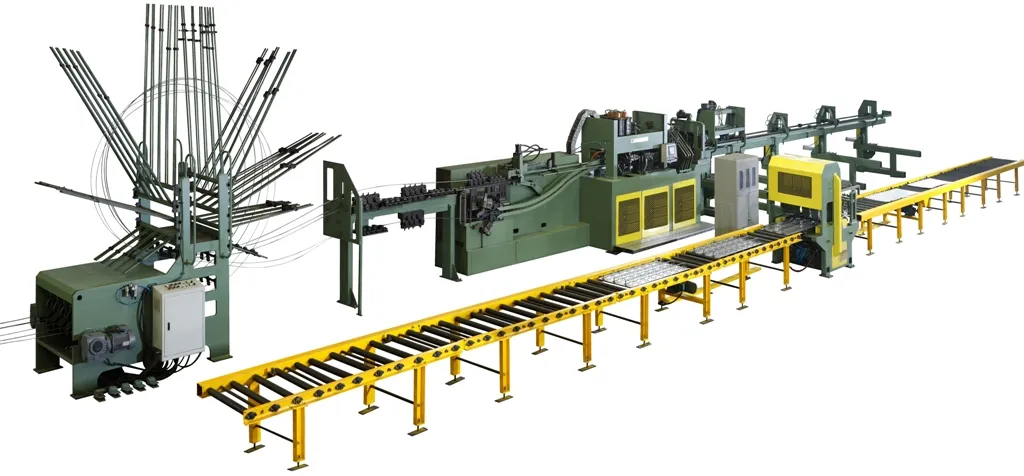

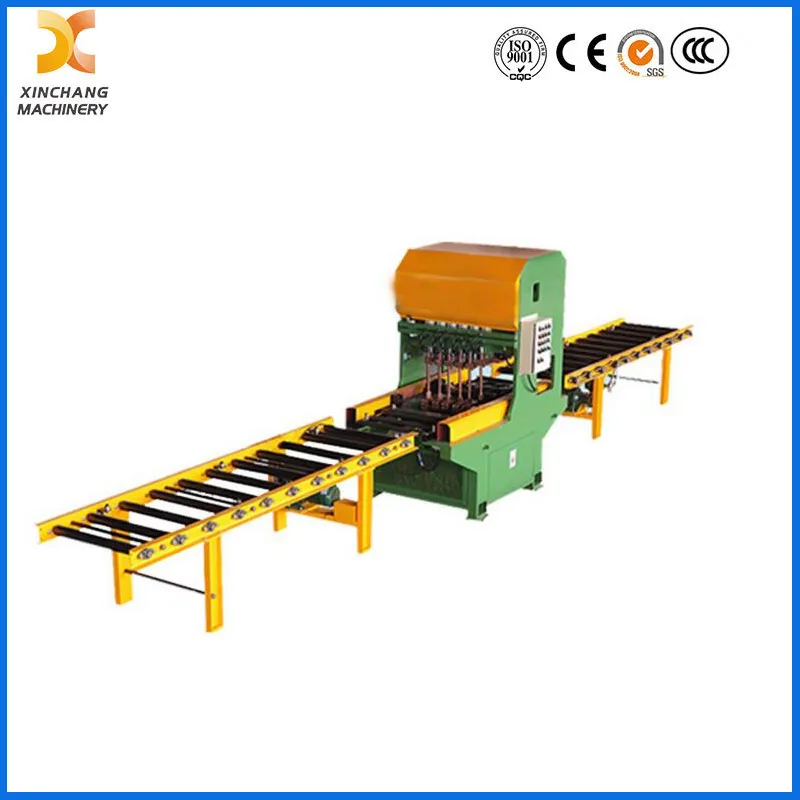

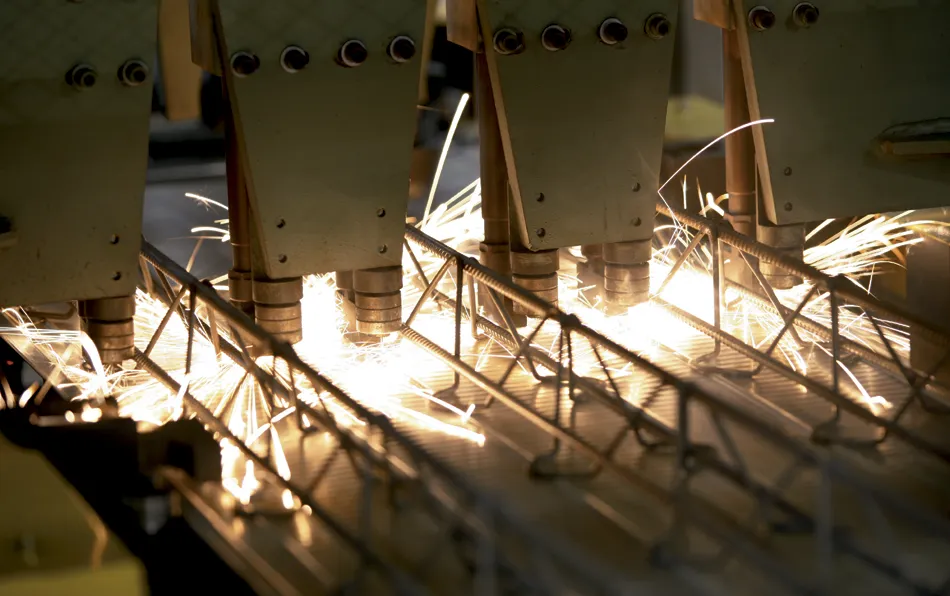

With all-round stable performance verified, this equipment serves as core standalone welding unit for complete CNC Lattice Girder Production Line, specially applied in the spot welding of steel floor decks with lattice girders of steel bars. | Items | Unit | Data | Remark |
| Max. load capacity of coil loader | KG/pc | 2000 | Total 5 pcs |
| Girder height | mm | 70 -400 | Adjustable |
| Girder length | mm | ≥ 200 | |
| Straightening speed | m/min | 25 | |
| Upper chord diameter | mm | 8-16 | |
| Lower chord diameter | mm | 6-16 | |
| Zigzag rod diameter | mm | 4-8.5 | |
| Straightening motor power | KW | 7.5× 3 | Imported motor |
| Wire feeding motor power | KW | 7.5× 2 | Imported motor |
| Zigzag forming motor power | KW | 7.5× 3 | Imported motor |
| Max. linear speed for bending& forming | M/min | 18 | |
| Welding transformer power | KVA | 200× 3 | |
| Welding liner speed | M/min | 10-12 | |
| Hydraulic system capacity | KW | 37 | |
| Cutting motor power | KW | 30 | |
| Air pressure | MPa | ≥ 0.6 | |
| Air consuming | M 3 /min | 1.8 | |
| Rated voltage | V | 380± 15% | |
| Width of Lattice girder | mm | 70-150 | Adjustable |
| Pitch of Zigzag rods | mm | 200 | Or adjustable 180-220 |
| Total weight | Ton | 30 | |
| Overall length | M | 42 | |
