Automatic Coil Wires Steel Mesh Row Welding Machine

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Brand: xinchang

Supply Ability & Additional Information

Supply Ability: 20 Sets/ Month

Packaging & Delivery

Selling Units:

Piece/Pieces



Reinforced Rods Wire Mesh Welding Machine



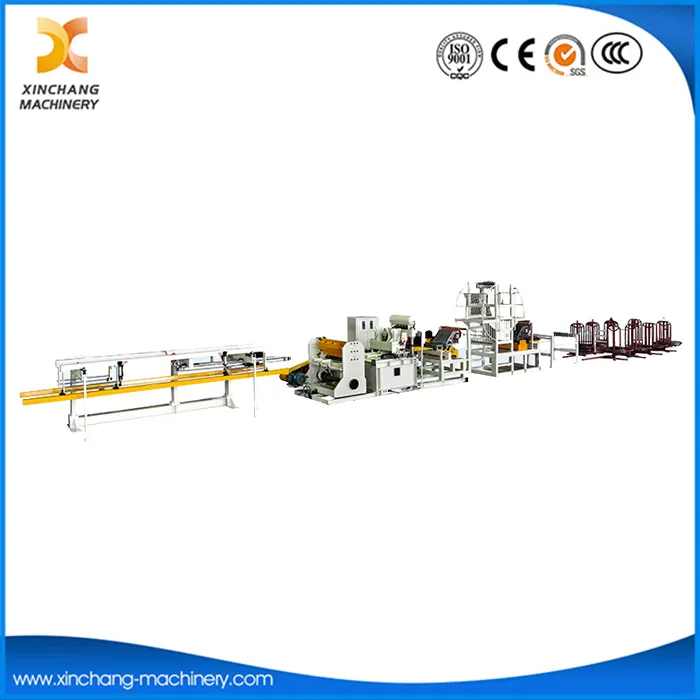

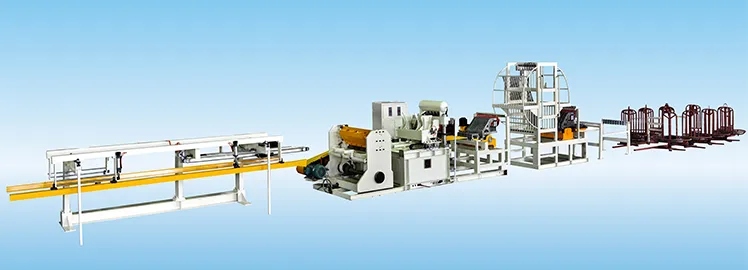

Full Automatic (coil wires) Wire Steel Mesh Welding Machine

This industrial wire mesh welding machine is engineered to complete welding between coil wires and longitudinal wires efficiently. Its horizontal wires are pre-cut and fed via automatic blanking, streamlining the entire production flow.

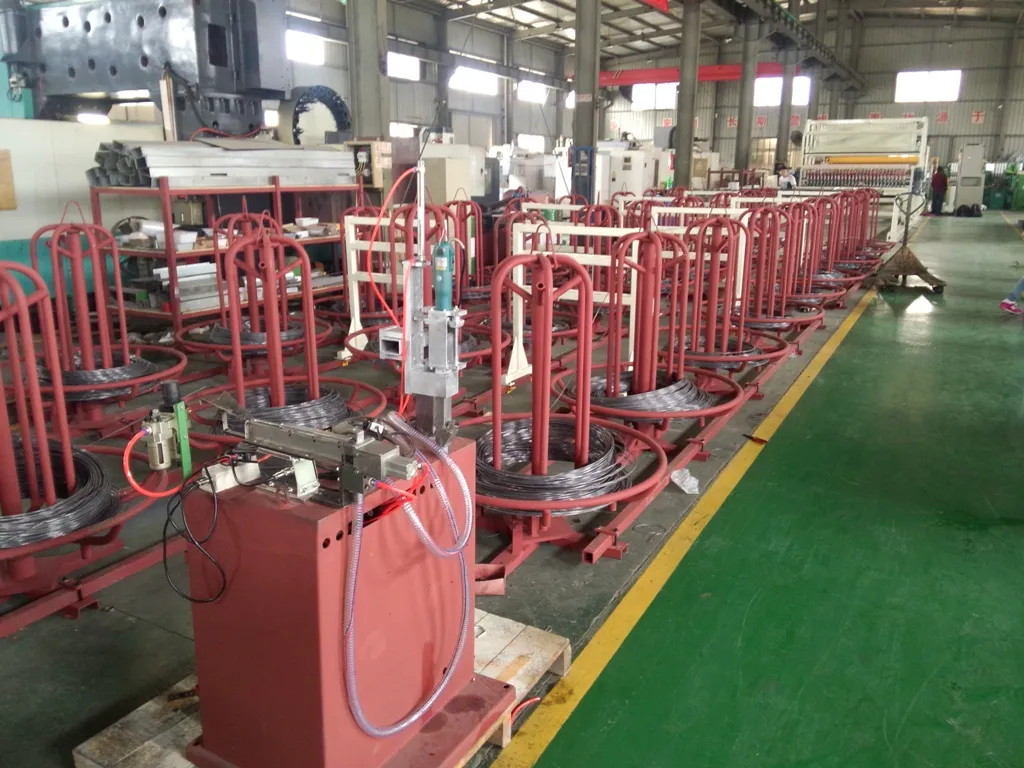

As a professional Multi-Head Wire Mesh Welder, it integrates a full set of functional modules, including coil loader, positioning and straightening unit, wire pulling mechanism, loop balancing system and material feeding assembly. Equipped with a reliable Wire Mesh Spot Welding Machine core unit, it delivers stable and precise welding performance.

The complete configuration also covers horizontal wire feeder, mesh cutter, turning and stacking system, conveyor and intelligent control system. Featuring full automation, the equipment realizes continuous operations from wire processing, welding to finished product collection, ensuring high production efficiency and uniform mesh quality for long-term industrial use.

Power supply	Three phase AC380V, +10%~-10%;
Duty cycle	20%
Rated Power Input	14X100kVA
Secondary no-load voltage	8V
Max. Short Current	32KA
Air pressure	0.4-0.8MPa
Coolant pressure	0.3MPa
Coolant flow	80-100L/Min
Coolant temperature	0≤ 30º C
Max Welding speed	60- 90row/min
Max mesh width	3000mm
Min. Spacing	50mm
Wire diameter of power cable(copper cable)	≥ 150mm2
Wire diameter of grounding cable(copper cable)	≥ 75mm2
Air switch capacity	900A
Water inlet and outlet diameter	G1½
Air Inlet diameter	φ 50mm
Welding machine main part weight	11000kg
Dimensions	55m× 7m× 5m

Full Automatic (coil wires) Wire Steel Mesh Welding Machine
