1, Use medium frequency inverter controller, welding current is DC, 1000Hz.
2, Saving energy.
3, Top quality.
4, There phase power supply input evenly.
5. less power supply needs, saving 40% electricity than AC Welding machine.
1, Machine body of thick steel sheet, not easy to deformation.
2, Microcomputer control.
3, Water cooling transformer: Use silicon sheets of 15000 gauss permeability to pile up. .
4, Fast solenoid valve, making welding speed faster.
5, Cylinder adopt high accurate, anti-friction hard material, which is duralumin.
6, Quality is stable, failure rate is low.

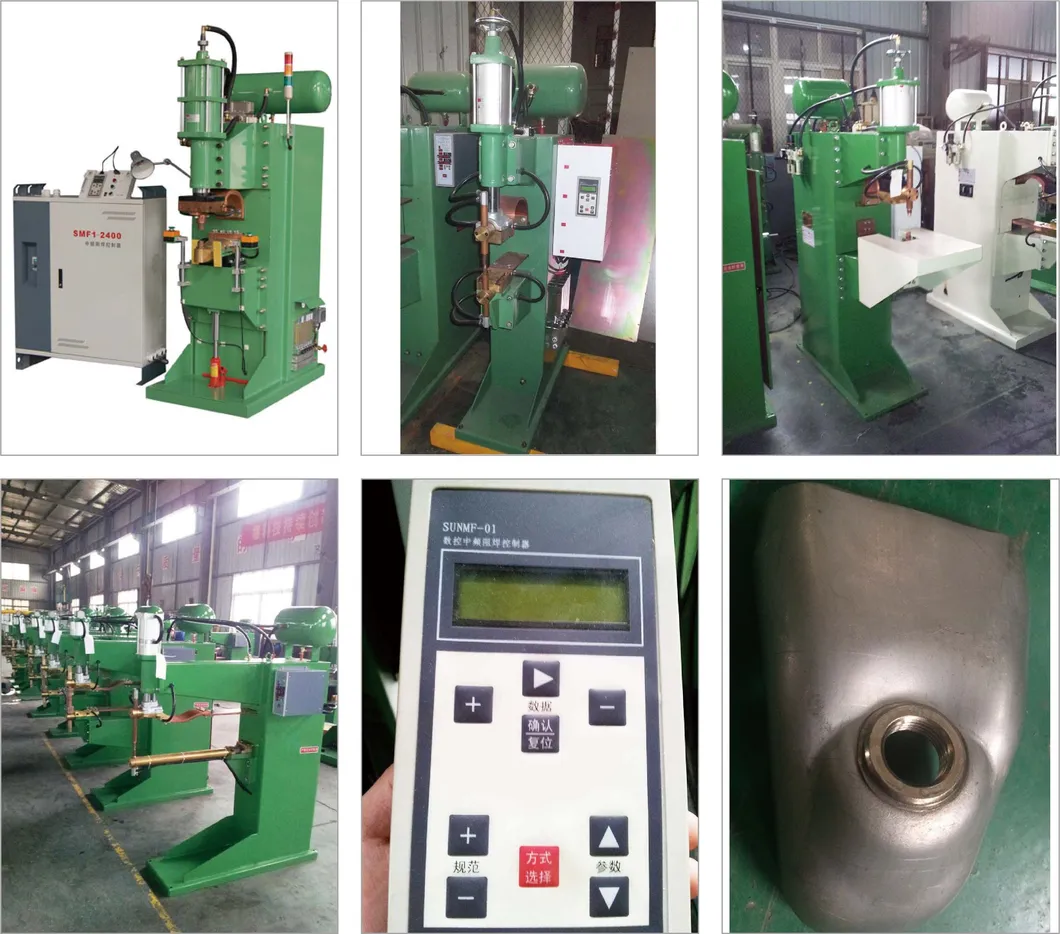

It is special suitable for spot welding of Aluminum plate.
Model
Unit
Item | DTMZ-12 | DTMZ-28 | DTMZ-50 | DTMZ-90 | DTMZ-160 | DTMZ-250 | DTMZ- 2× 160 | DTMZ- 2× 250 |
| Rated capacity | KVA | 12 | 28 | 50 | 90 | 160 | 250 | 320 | 500 |
| Primary voltage | V | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Max current firstly input | A | 55 | 140 | 340 | 600 | 840 | 1280 | 1680 | 2560 |
| Max current secondary output | KA | 7 | 12.8 | 20 | 25 | 30 | 42.9 | 60 | 80 |
| Secondary voltage | V | 6.0 | 7.5 | 8.0 | 10.0 | 10.8 | 12.5 | 10.8 | 12.5 |
| Cooling water flux | L/min | 6 | 6 | 8 | 8 | 10 | 10 | 12 | 12 |
| Duty cycle | % | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Atmosphere temperature | º C | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 |
| Humidity | % | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
