High Performance Pneumatic Spot Welding Machine

Digital CNC programming empowers this welder with fully automated parameter adjustment and high-precision welding positioning, greatly boosting batch production consistency. The equipment maintains steady thermal output to create sturdy, aesthetic welds for various metal components. It complies with industrial welding standards as a robust Resistance Spot Welding Machine. Innovative medium-frequency inverter technology optimizes power efficiency, shaping it into a high-grade MFDC Spot Welding Machine. Solid build and intelligent control make it an all-round practical Spot Welding Machine for modern processing.

Features:
^{_{1, Current is commutated to DC, little reactance.
2, Duty cycle is higher, power is bigger, so it can work continually for long time, so it is suitable for big work-piece (for example: Aluminium 4+4 mm), little spatter.
3, Power factor is better,
4, Lower strike to electric fence, having no influence to other equipments.
5, The welder can work continually 24 hours every day, life is up to 15 years.

Applications: Be widely used in low carbon steel, sheet steel plated, brass, aluminium and aluminium alloy, multi-layers sheet steel weld.}}

Compositions:
_{^{1, Machine body: Use vertical reinforcing structure, adopt good quality thickness steel plate to weld.
2, Control system: MF control system.

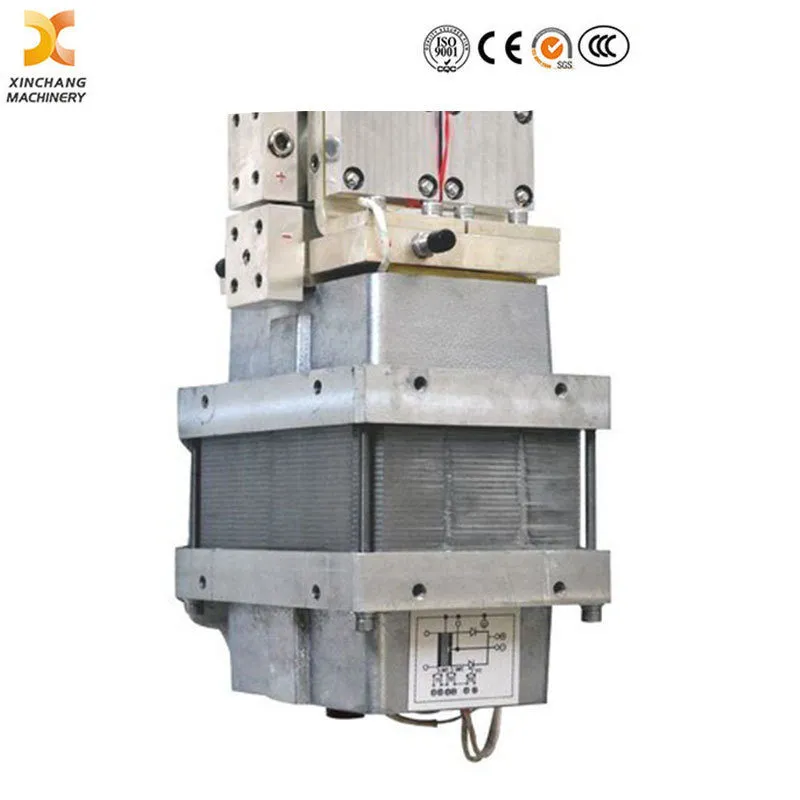

3, MF inverter transformers: Control current is DC,.
4, 3 layers pressurization cylinders: 3 layers pressurization cylinders,and cylinders adopt high accurate, anti-friction hard material, which is duralumin.
5, Electrode: With CuCrZr materials and by means of water cooling.
6, Compressed air system: Equipment is installed air processor and with muffler. Also it is with compressed air tank.
7, Cooling water system: There are transformers cooling, up electrode cooling, lower electrode cooling and other copper block cooling.}}

			DTNZ-63	DTNZ-100	DTNZ-160	DTNZ-3× 63	DTNZ-3× 100	DTNZ-3× 160	DTNZ-3× 200
Rated capacity		KVA	63	100	160	3*63	3*100	3*160	3*200
Voltage input		V/phase	380/1	380/1	380/1	380/3	380/3	380/3	380/3
Rated frequency		HZ	50	50	50	50	50	50	50
Duty cycle		%	50	50	50	50	50	50	50
Throat depth		MM	350	350	350	350	350	350	350
Electrode stroke		MM	100	100	100	100	100	100	100
Max pressure		N	7800	7800	12000	12000	12000	24000	24000
Cooling water flux		L/Min	6	6	6	12	12	12	12
Weight		Kg	400	500	600	1000	-	-	-
Max welding capacity	Low carbon steel	MM	3+3	3.5+3.5	4+4	5+5	6+6	7+7	8+8
Max welding capacity	Aluminium	MM	1+1	1.5+1.5	2.5+2.5	3+3	3.5+3.5	4+4	4.5+4.5

Mfdc Pneumatic Inverter DC Spot Welding Machine with ISO CCC2
