Features:
This Resistance Spot Welder adopts a multi-head structure, capable of completing multi-spot welding in a single operation. Control system: Equipped with microcomputer control, the unit can store 15 sets of welding schedules that support independent adjustment. It enables separate parameter tuning for single or multiple electrodes, perfectly meeting the welding demands of workpieces in different sizes and shapes.
Operators are allowed to customize the cylinder action sequence, operating times and welding schedules to accommodate diverse product welding standards.
A large display screen presents operating data intuitively and clearly.
Parameters can be set and modified via touch switches for simple, efficient operation.
The frame is fabricated from thick steel plates, featuring excellent rigidity and strong deformation resistance.
Water cooling transformer: Assembled with 15000 gauss permeability silicon steel sheets, it adopts a full copper alloy core instead of aluminum material with internal circulating cooling water. This design lowers impedance and boosts power utilization. With a 20% duty cycle, it supports long-duration continuous welding and high power output. The component also delivers longer service life, lower operating noise and a more compact, rational structure.
High-speed solenoid valves greatly accelerate welding speed and production efficiency, effectively cutting down overall production costs.
The cylinders are made of high-precision, wear-resistant hard duralumin material. This material prevents rust, reduces friction and running noise, and accelerates cylinder movement, which in turn minimizes weld spatter.
Benefiting from sophisticated processing equipment and exquisite craftsmanship, this CNC Spot Welding Machine maintains outstanding operational precision. It achieves a low rate of loose welds and generates minimal welding slag.
The equipment boasts simple operation and stable performance. It supports 24-hour non-stop operation with a service life of up to 15 years.
Electrodes are made of CuCrZr alloy with superior wear resistance. Supported by water cooling, the electrodes enjoy an extended service life.
Compressed air system: Fitted with an air processor to purify compressed air, a silencer to reduce noise, and an air tank to stabilize air pressure.
Cooling water system: It provides cooling for transformers, upper electrodes, lower electrodes and other copper components. Water distribution is regulated by independent flowmeters, which can be adjusted separately to ensure stable operation and avoid equipment damage.

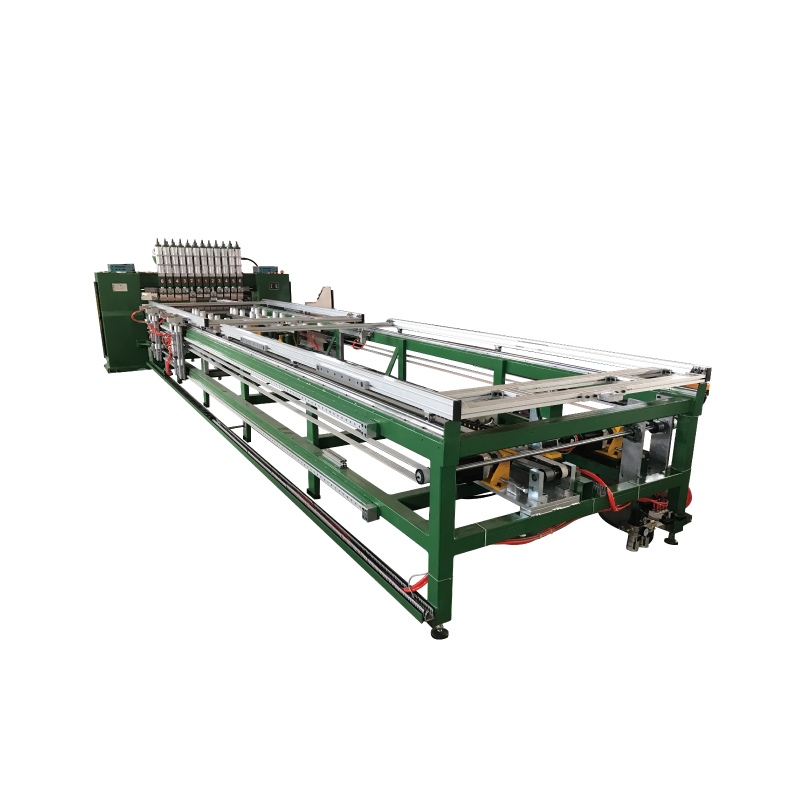

This Spot Welding Machine is widely applied for processing wire mesh, storage racks, protective fences and other similar products.
