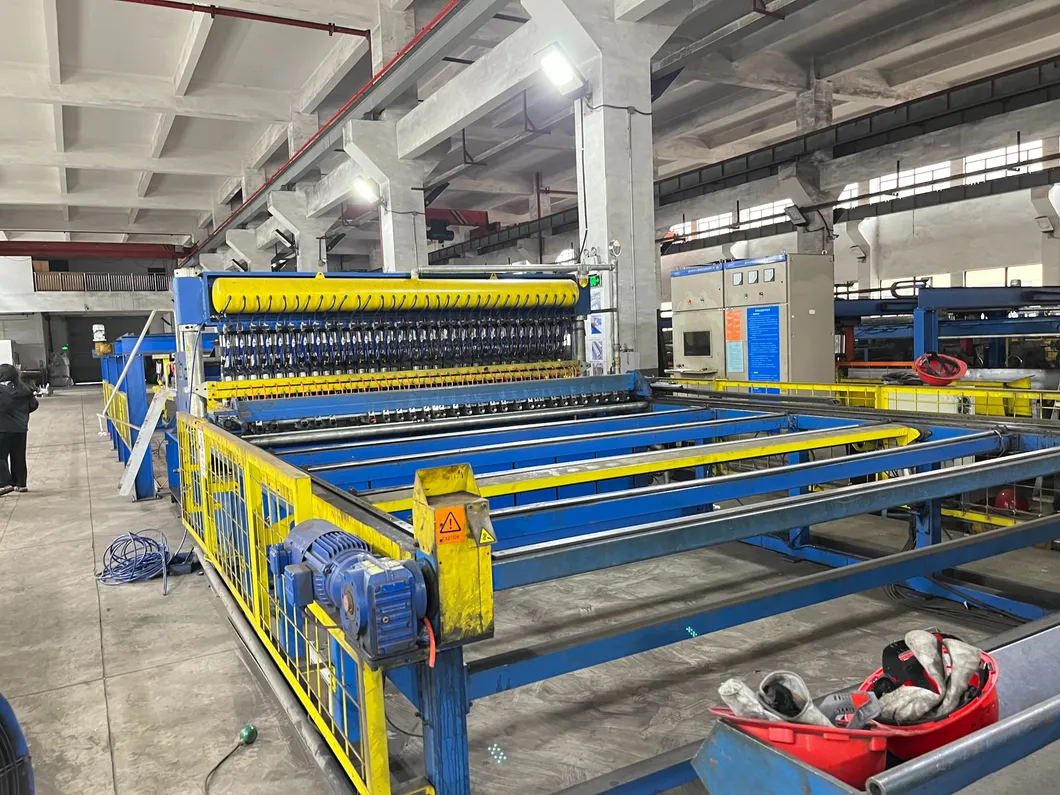

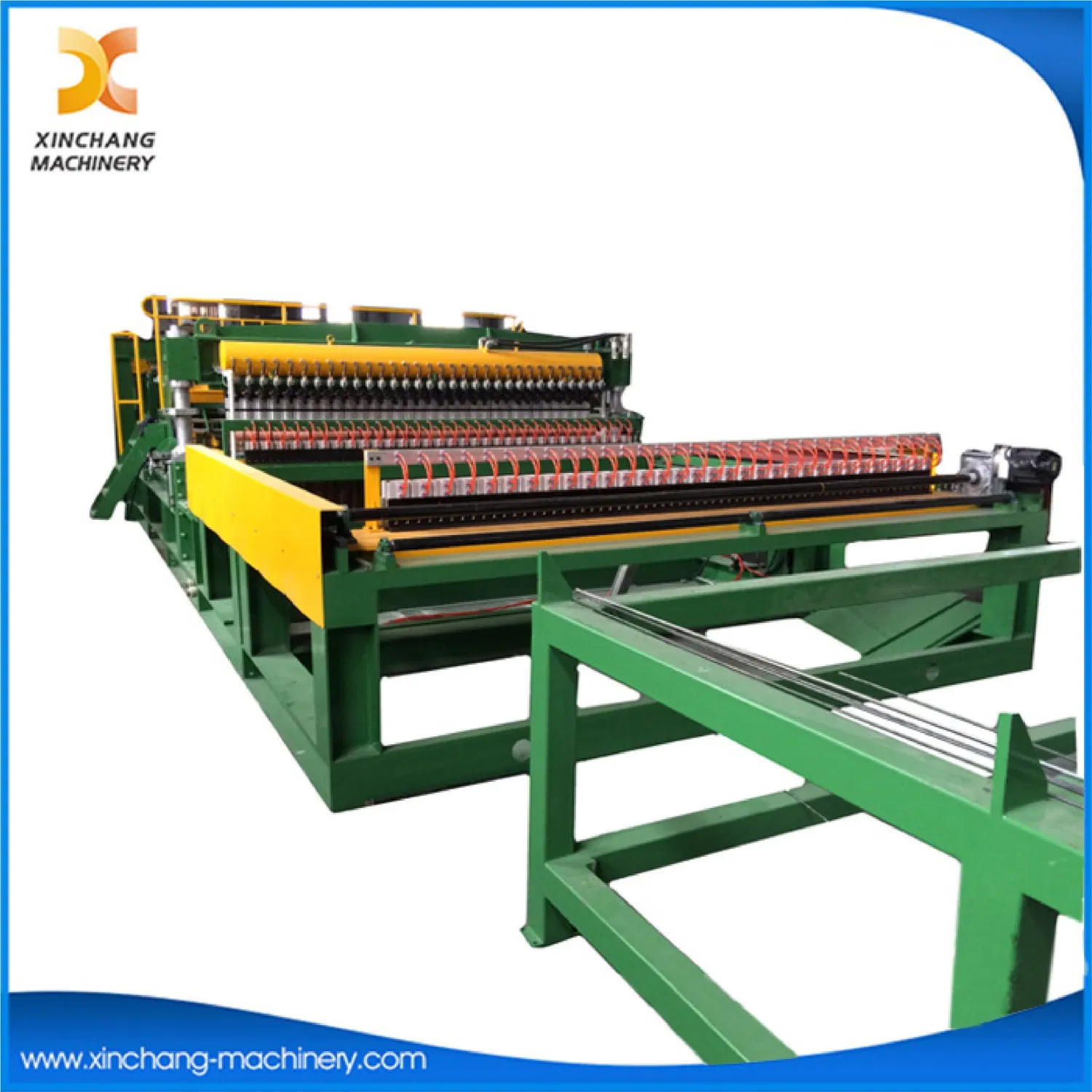

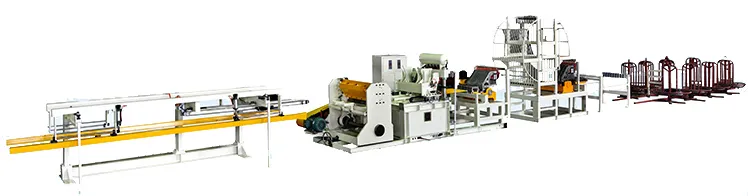

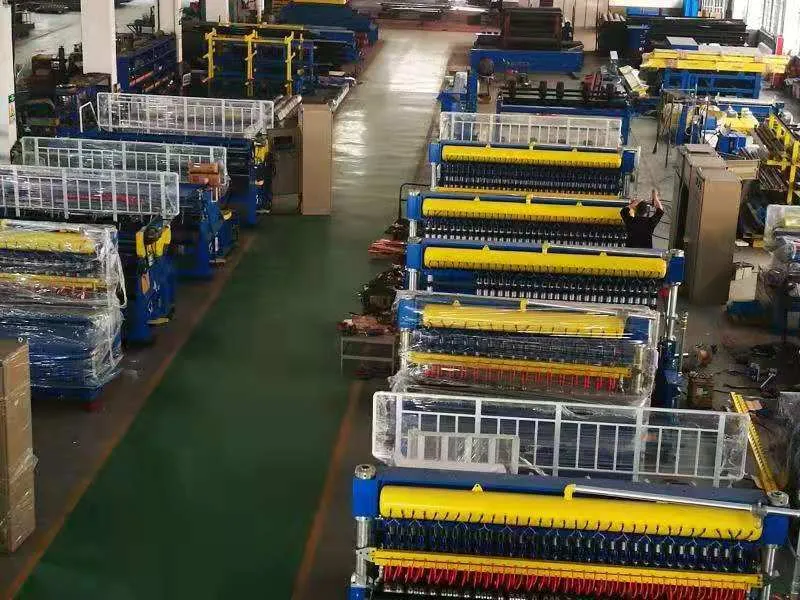

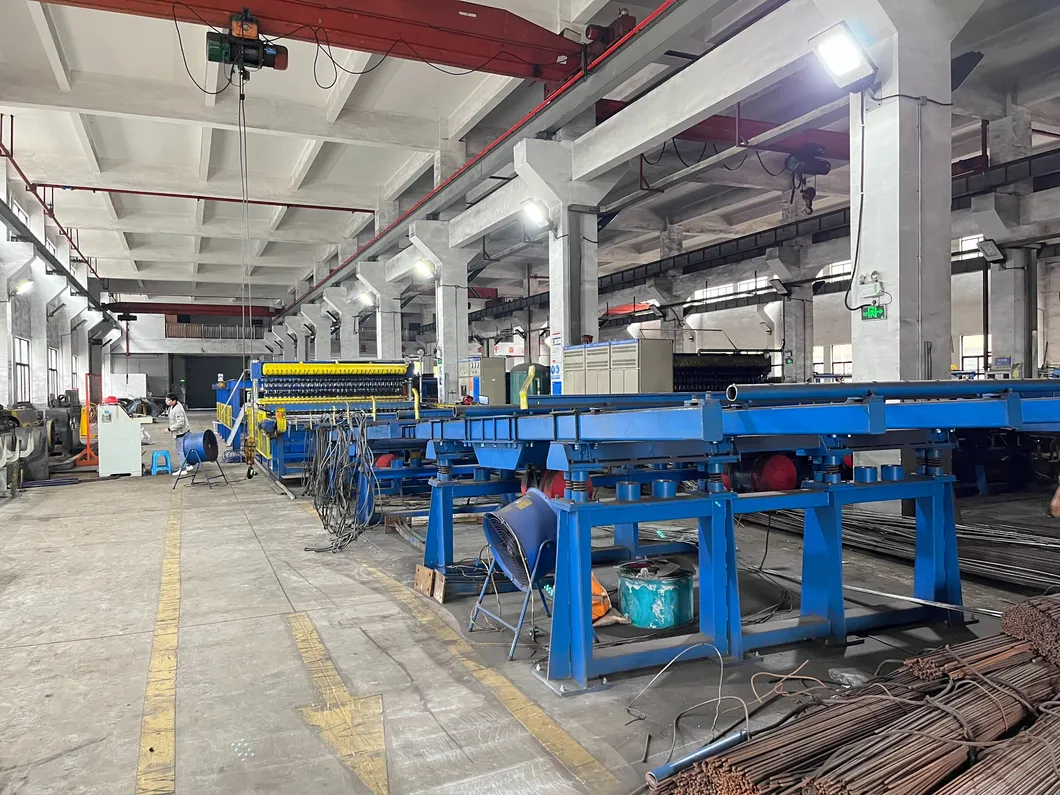

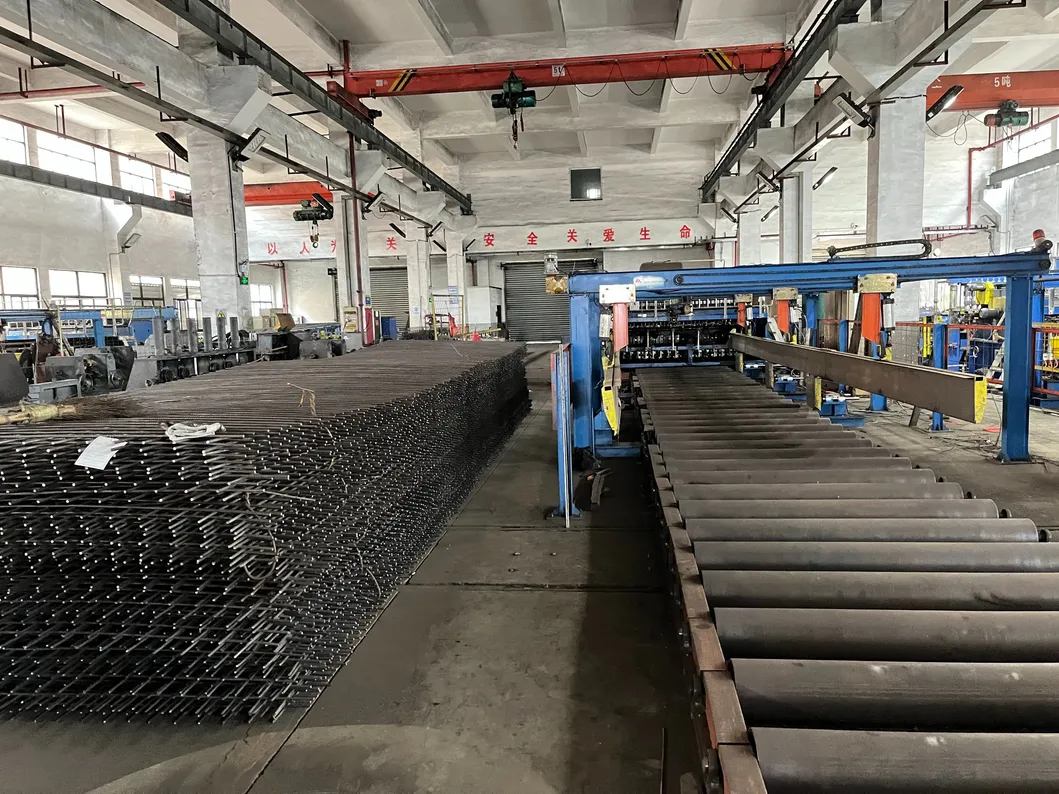

60 Rows /Min. Fast and Stable Wire Mesh Spot Welding Machine This machine, which can serve as a core equipment in the
Wire Mesh Industry, can be configured as a semi-automatic or full automatic welding production line. The wire can be supplied as coils or straight bars (pre-cut wires), and we offer both designs to cater to diverse production needs!
When conducting welding operations, place the vertical bar on the first welding point and position the line bar in the blanking configuration; this enables high-speed, efficient automatic feeding, welding and blanking, a key advantage that makes the
Automatic Wire Mesh Welding Machine stand out in mass production scenarios.
Thanks to its unique structural design, this product can solve many common problems in the welding process, such as incomplete welding, unstable solder points, uneven welding spacing, and limited mesh size diversity, etc.
The unique vertical bar guide and positioning design plays a crucial role in guiding and positioning vertical bars, meeting various mesh welding requirements (spacing ≥ 50mm, in multiples of 50). It adopts rollers and servo motors as stepping power to precisely control mesh spacing (stepping spacing can be adjusted according to welding needs with adjustable parameters), enabling high-speed welding and boosting annual production capacity—an essential feature of the
Multi-Head Wire Mesh Welder that enhances efficiency and precision.
This equipment is mainly composed of a machine base, line bar blanking device, vertical bar drawing device, welding host, electrical control system, power distribution cabinet, cooling water system, gas source system, and monitor & alarm system.
Machine base: Adopts high-quality H-section steel for connection, ensuring the installation levelness of the machine, thereby guaranteeing machine precision and an elegant appearance. It is made of thick steel sheets, which are not prone to deformation.
Line bar blanking device: Divided into a storage sector and an automatic feeding sector. The storage sector is used to store line bars, ensuring rapid mesh production and stable line feeding. The automatic feeding sector adopts a fully automatic separation and feeding mode, distributing line bars quickly, orderly and evenly to the welding electrodes to achieve single-drop accuracy. This eliminates the need for manual wire placement, maximizes the time saved on wire placement, and reduces labor costs.
Vertical bar drawing device: Its unique vertical bar guide and positioning design guides and positions vertical bars, meeting various mesh welding requirements (spacing ≥ 50mm, in multiples of 50). It uses rollers and servo motors as stepping power to precisely control mesh spacing (stepping spacing can be adjusted according to welding needs with adjustable parameters), enabling high-speed welding and improving annual production capacity.
Welding host: Equipped with special resistance transformers and special forced cylinders, it ensures the requirements of high-speed welding, welding pressure, joint strength, and actuator accuracy, boasting high environmental adaptability and reliability.
Electrical control system: Adopts Siemens PLC programmable control, with all other components imported from Japan. It uses a unique electrical operating system with a fault alarm function; the touch screen display allows for intuitive viewing of welding parameters, making operation easy and fast, thus reducing requirements for operators.
Cooling water system: Divided into transformer cooling, upper electrode cooling, lower electrode cooling, and other copper block cooling. It realizes water distribution through flowmeters, and each flowmeter can be adjusted independently to ensure the machine operates normally without damage.
Gas source system: Imported from SMC Japan, the equipment is equipped with an air processor to clean compressed air, a muffler to reduce noise, and a compressed air tank to stabilize air pressure.
| Model | GWC-2800 | GWC-3300 |
| Max mesh width(mm) | 2800 | 3300 |
| Vertical bars spacing (mm) | ≥ 50(50 multiples)
Steplessly adjustable | ≥ 50(50 multiples)
Steplessly adjustable |
| Horizontal bars spacing (mm) | ≥ 50 Steplessly adjustable | ≥ 50 Steplessly adjustable |
| Wire diameter (mm) | φ 3-φ 12 | φ 3-φ 12 |
| Max welding capacity (mm) | φ 12+φ 12 | φ 12+φ 12 |
| Max welding speed(row/min) | 30-50 | 30-50 |
| Max number of welding points | 56 | 64 |
| Rated power (KVA) | 1400 | 1600 |
| Air pressure (MPa) | ≥ 0.6 | ≥ 0.6 |
| Feeding method | Bars | Bars |
| Welding materials | Hot-rolled and cold-rolled wire | Hot-rolled and cold-rolled wire |
