Automatic Coil Wire Mesh Welding Machine

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Brand: xinchang

Supply Ability & Additional Information

Supply Ability: 20 Sets/ Month

Packaging & Delivery

Selling Units:

Piece/Pieces



Reinforced Rods Wire Mesh Welding Machine



Automatic Coil wire mesh welding machine

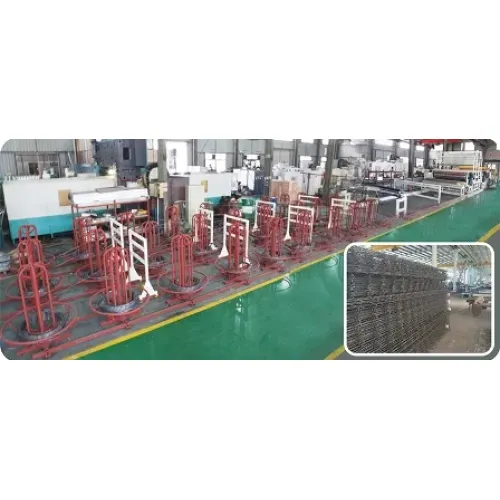

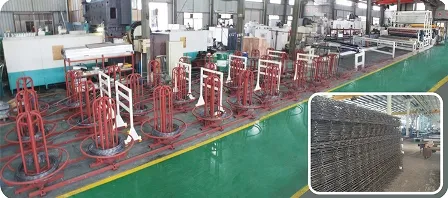

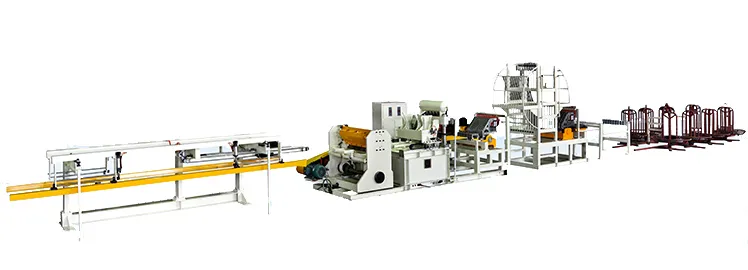

This equipment adopts a streamlined production flow, feeding coil wires continuously to complete stable welding with longitudinal wires, while horizontal wires are processed with pre-cutting and automatic blanking to streamline material handling and reduce manual intervention. As a high-efficiency full Automatic Wire Mesh Welding Machine, it integrates a complete and compact structural configuration, covering coil loader, positioning & straightening system, pulling wire device, loop & balancing system and feeding unit.

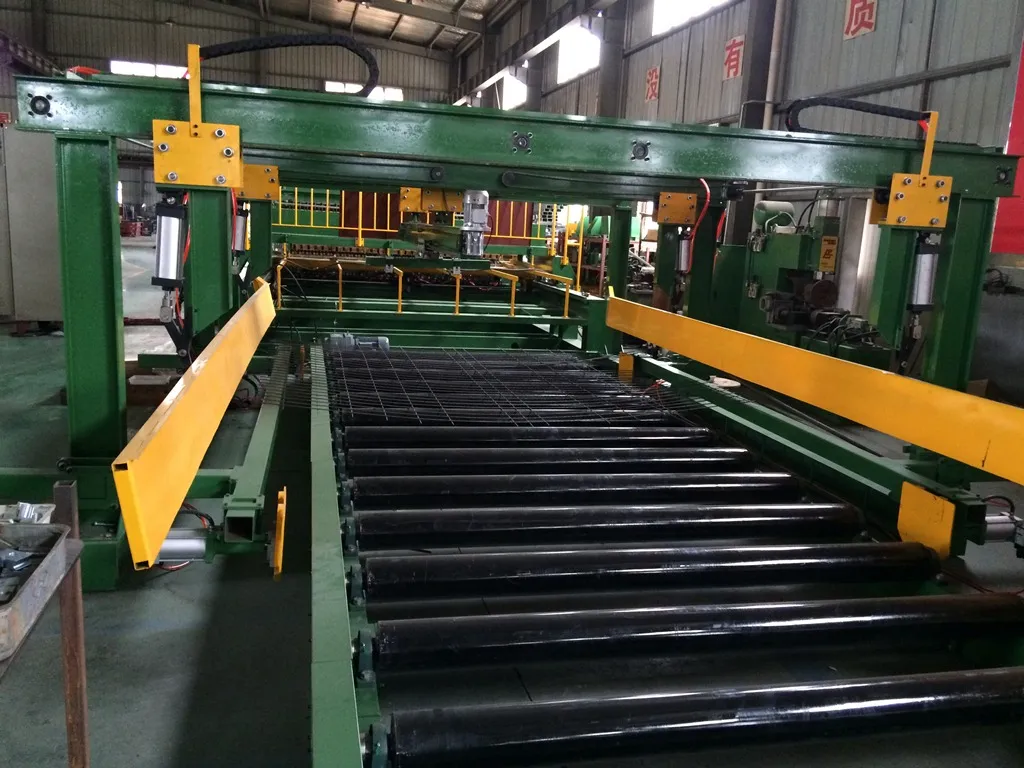

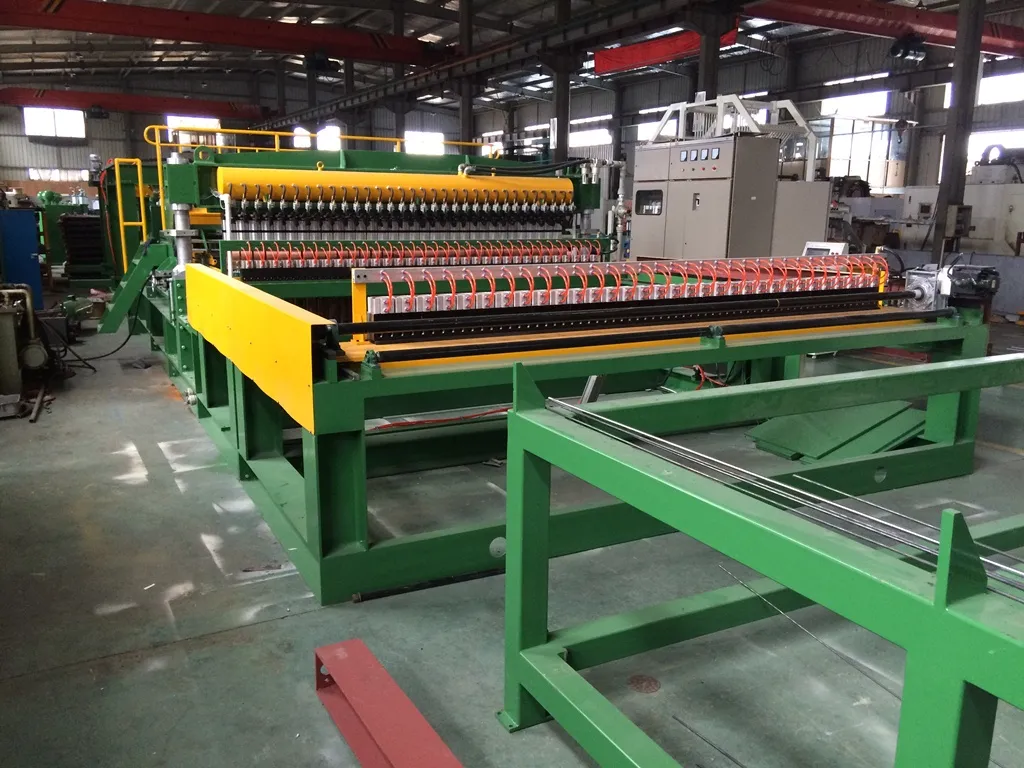

Equipped with a professional welding system and dedicated horizontal wire feeding device, it is equipped with mesh cutting, turning & stacking and conveying modules, alongside an intelligent control system to realize coordinated operation of all procedures. This well-engineered Multi-Head Wire Mesh Welder delivers precise and firm connection at wire intersections, with stable welding quality and adjustable specifications.

Adopting reliable spot welding principles, the integrated Spot Welding Machine core ensures uniform welding pressure and current, effectively enhancing the structural durability of finished mesh. Optimized for mass production, the whole line features high automation and stable operation, perfectly catering to the diversified manufacturing demands of the Wire Mesh Industry. It greatly boosts production efficiency, lowers operating costs, and delivers standardized, high-quality welded mesh products for construction, agriculture and industrial applications.

Power supply	Three phase AC380V, +10%~-10%;
Duty cycle	20%
Rated Power Input	14X100kVA
Secondary no-load voltage	8V
Max. Short Current	32KA
Air pressure	0.4-0.8MPa
Coolant pressure	0.3MPa
Coolant flow	80-100L/Min
Coolant temperature	0≤ 30º C
Max Welding speed	60- 90row/min
Max mesh width	3000mm
Min. Spacing	50mm
Wire diameter of power cable(copper cable)	≥ 150mm2
Wire diameter of grounding cable(copper cable)	≥ 75mm2
Air switch capacity	900A
Water inlet and outlet diameter	G1½
Air Inlet diameter	φ 50mm
Welding machine main part weight	11000kg
Dimensions	55m× 7m× 5m

Full Automatic Coil Wire Mesh Welding Equipment Welder Machine
