Full Automatic Steel Mesh Thyristor Spot Welding Machine1



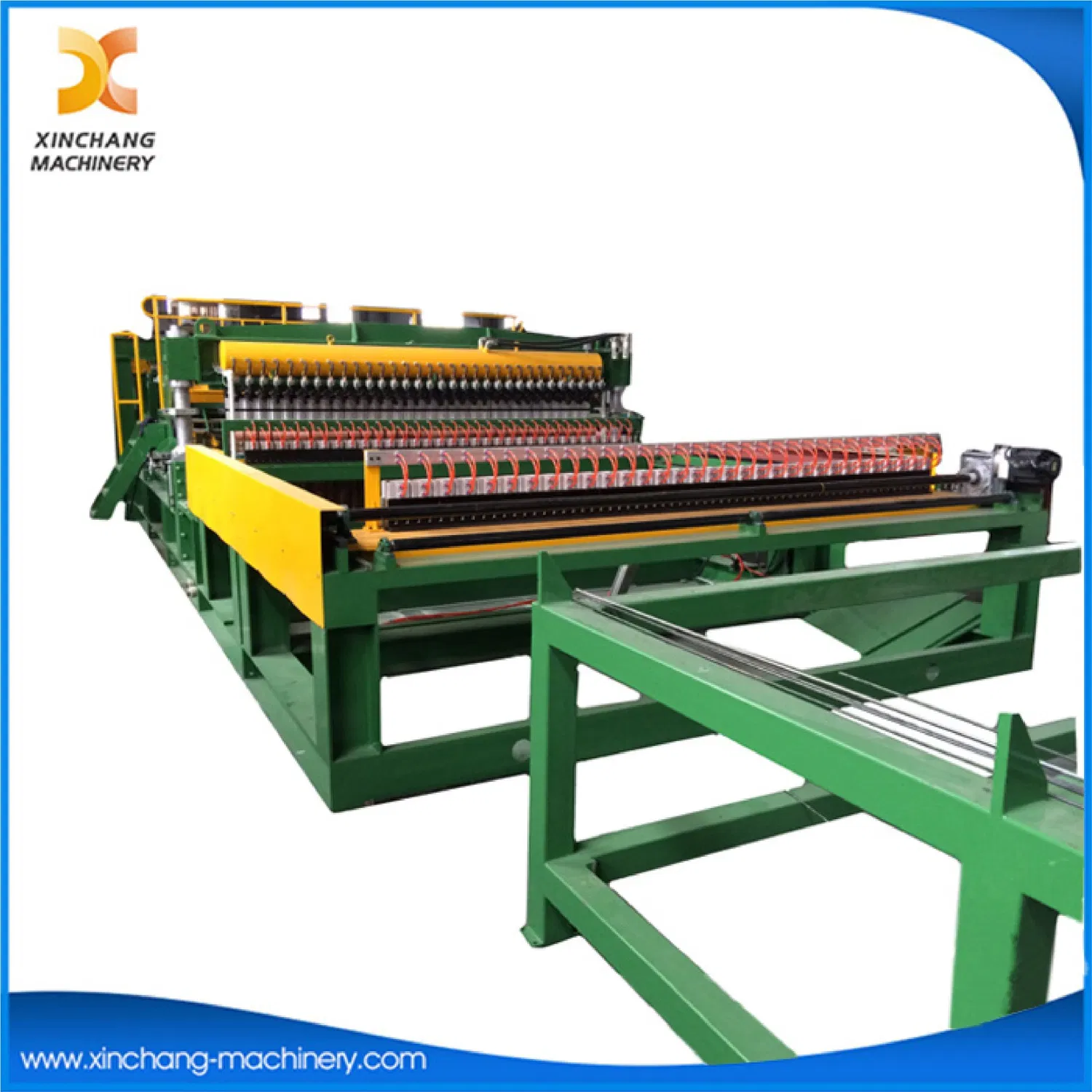

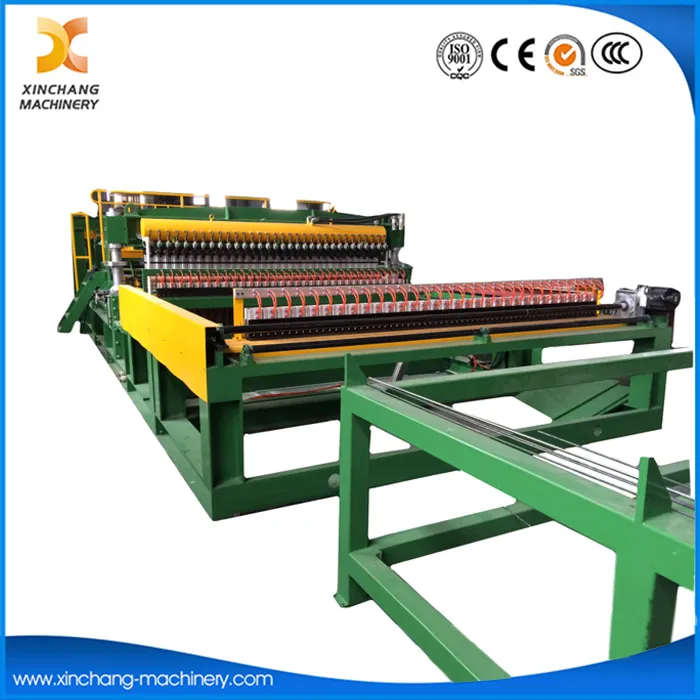

Automatic Wire Mesh Multi Spot Welding Machine

This is from coil wires to weld on longitudinal wires, and horizontal wire is pre-cut & automatic blanking.

Full automatic wire mesh welding machie, consist of Coil loader, positioning & straightening system, pulling wire device, loop & balancing system, feeding device, welding system, horizontal wire feeding device, mesh cutter, turning & stacking system, conveyor and control system etc.

Power supply	Three phase AC380V, +10%~-10%;
Duty cycle	20%
Rated Power Input	14X100kVA
Secondary no-load voltage	8V
Max. Short Current	32KA
Air pressure	0.4-0.8MPa
Coolant pressure	0.3MPa
Coolant flow	80-100L/Min
Coolant temperature	0≤ 30º C
Max Welding speed	60- 90row/min
Max mesh width	3000mm
Min. Spacing	50mm
Wire diameter of power cable(copper cable)	≥ 150mm2
Wire diameter of grounding cable(copper cable)	≥ 75mm2
Air switch capacity	900A
Water inlet and outlet diameter	G1½
Air Inlet diameter	φ 50mm
Welding machine main part weight	11000kg
Dimensions	55m× 7m× 5m

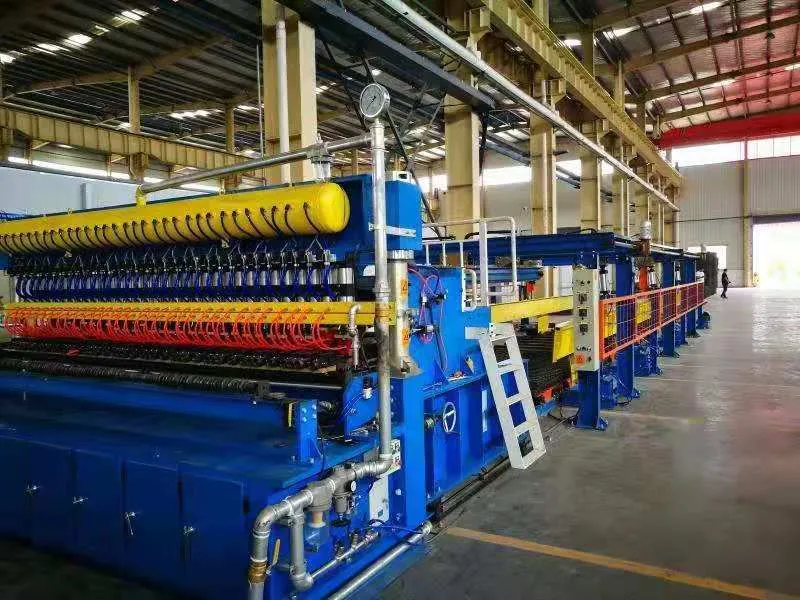

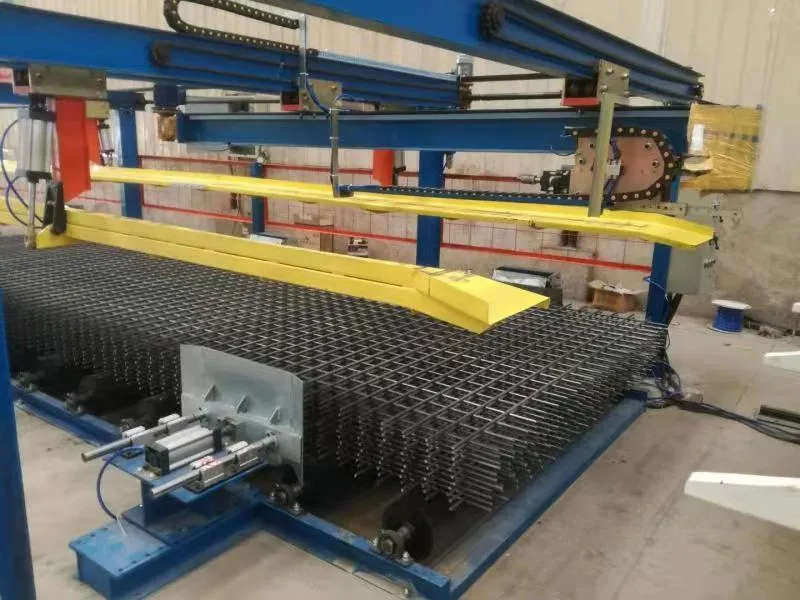

Automatic Welded Multi Spot Wire Mesh Welding Machine
