Features:

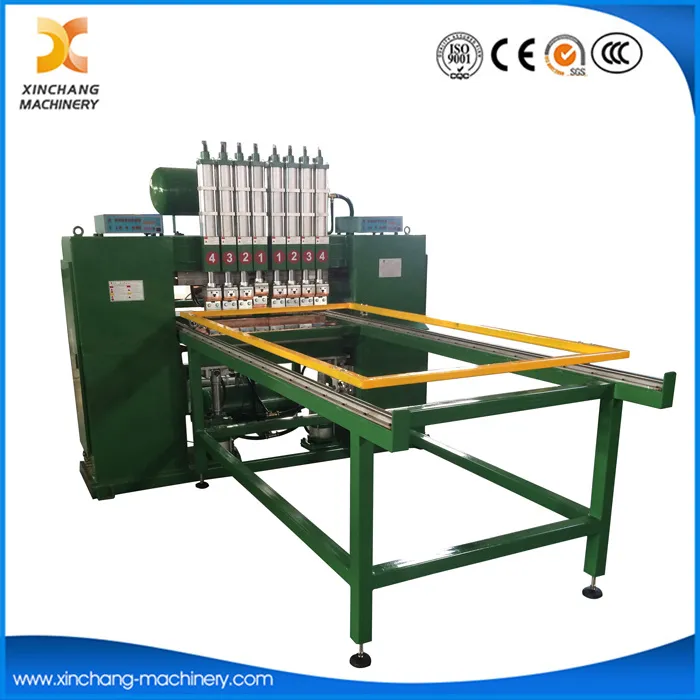

As a professional Multi Head Welding Machine For Wire Mesh, this machine adopts multi-head structure and can complete multi-spot welding in one go. Control system: Equipped with microcomputer control, it can store 15 sets of independent adjustable welding schedules. Operators can separately set welding parameters for single or multiple electrodes, perfectly meeting the welding demands of workpieces in different sizes and shapes, which makes it a reliable choice as Automatic Wire Mesh Welding Machine for diversified production needs. Users can independently set the cylinder action sequence, operating times and welding schedules to adapt to various product welding standards.
Large screen display presents data intuitively and clearly.
Parameters can be set and adjusted via touch switches, featuring simple operation and high efficiency.
The machine body is made of thick steel plates, boasting excellent rigidity and anti-deformation performance.
Water cooling transformer: Assembled with 15000 gauss permeability silicon steel sheets, it adopts full copper alloy core instead of aluminum core. Built-in cooling water structure reduces impedance and improves power utilization. With a 20% duty cycle, it supports long-duration welding and high power output. This design also extends service life, lowers operating noise and delivers a compact and rational overall structure.
High-speed solenoid valves accelerate welding speed, boost production efficiency and effectively cut down production costs.

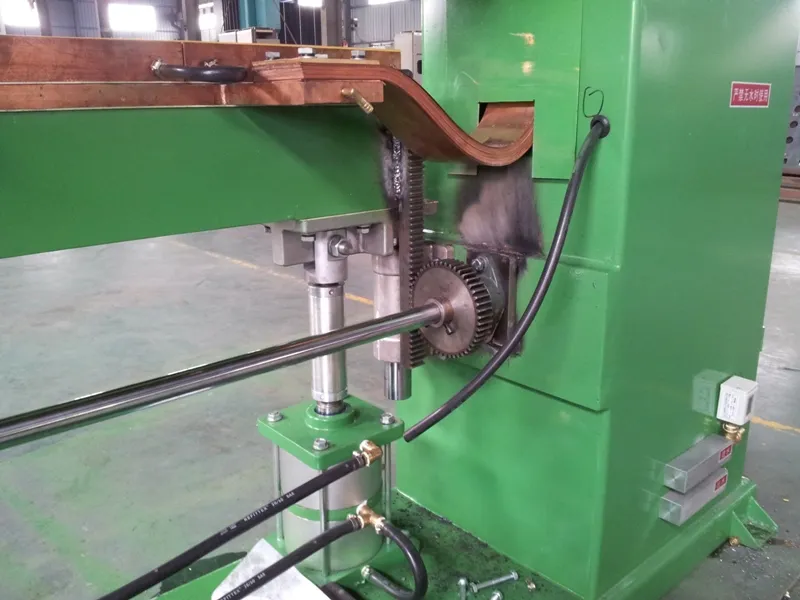

The cylinder is made of high-precision, wear-resistant duralumin material, which is rust-proof with low friction and noise. It realizes rapid feeding and reduces welding spatter.
Supported by advanced processing equipment and exquisite craftsmanship, the welding equipment achieves superior working precision.
It effectively lowers the rate of loose welds and generates fewer welding slags.
The equipment is easy to operate with stable overall performance, supporting 24-hour continuous operation and featuring a service life of up to 15 years.
Electrodes are made of CuCrZr alloy with outstanding wear resistance. Matched with water cooling design, the electrodes enjoy an extended service life.
Compressed air system: Fitted with an air processor to purify compressed air, a muffler for noise reduction and an air tank to stabilize air pressure.
Cooling water system: It provides cooling for transformers, upper electrodes, lower electrodes and other copper components. Water distribution is controlled by independently adjustable flowmeters, ensuring stable operation and avoiding equipment damage.
This Wire Mesh Welding Equipment is widely applied in the production of wire mesh, storage racks, protective fences and other products. Model
Item | DNW3-2x100-C | DNW3-2x150-C | DNW3-2x200-C |
| Rated capacity | KVA | 2x100 | 2x150 | 2x200 |
| Rated primary vtg. | V | 380 | 380 | 380 |
| Rated frequency | HZ | 50 | 50 | 50 |
| Max short circuit current | KA | 30 | 36 | 42 |
| Duty cycle | % | 20 | 20 | 20 |
| Max forging pressure | N | 5315 | 5315 | 5315 |
| Upper electrode stroke | mm | 60 | 60 | 60 |
| Lower electrode stroke | mm | 40 | 40 | 40 |
| Cooling water flux | L/min | 6 | 6 | 6 |
| Width of upper electrode | mm | 90 | 90 | 90 |
Max welding width (C) " C" is stand for " Max welding width"
| mm | 800-4000 | 800-4000 | 800-4000 |
